Eureka
Upright Vacuum

Model # 2034BT Official Eureka vacuum cleaner

Here are the diagrams and repair parts for Official Eureka 2034BT vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |

Bottom Plate 25922-1
#20

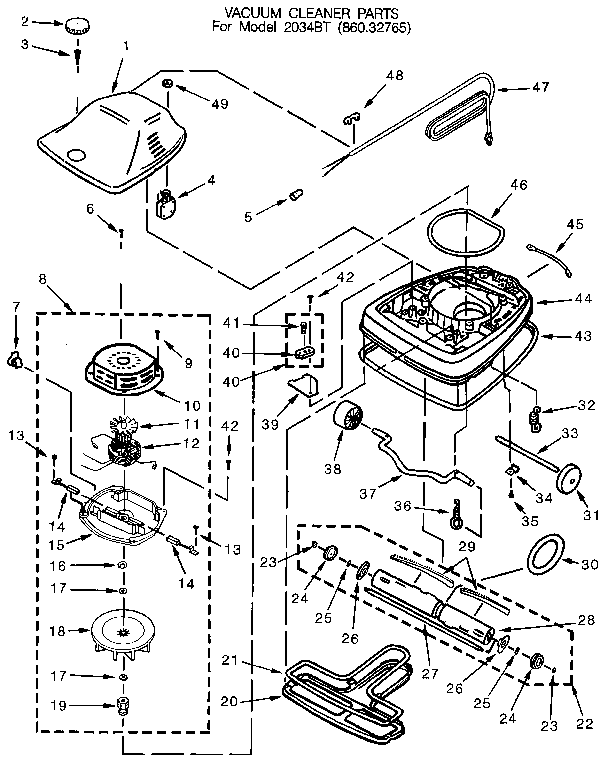

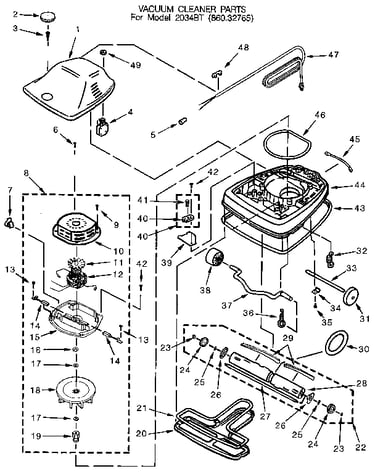

Nozzle and motor assembly diagram

Bottom plate

Part #25922-1

The manufacturer no longer makes this part, and there's no substitute part

Sock Shield 37157
#9

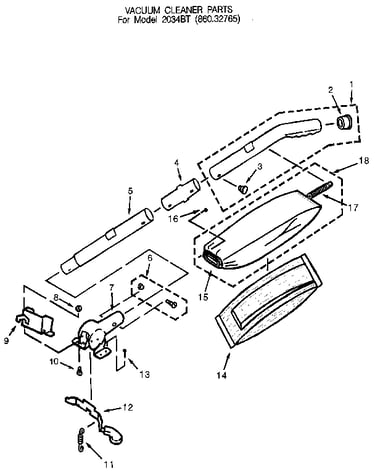

Handle and bag housing diagram

Sock shield

Part #37157

The manufacturer no longer makes this part, and there's no substitute part

Wire Clip 26307
#7

Nozzle and motor assembly diagram

Wire clip

Part #26307

The manufacturer no longer makes this part, and there's no substitute part

Screw 48642
#41

Nozzle and motor assembly diagram

Screw

Part #48642

The manufacturer no longer makes this part, and there's no substitute part

Shaft Washer 53167
#25

Nozzle and motor assembly diagram

Shaft washer

Part #53167

The manufacturer no longer makes this part, and there's no substitute part

Axle 47562
#33

Nozzle and motor assembly diagram

Axle

Part #47562

The manufacturer no longer makes this part, and there's no substitute part

Fan Washer 53148
#17

Nozzle and motor assembly diagram

Fan washer

Part #53148

The manufacturer no longer makes this part, and there's no substitute part

Wire Terminal 55296
#45

Nozzle and motor assembly diagram

Wire terminal

Part #55296

The manufacturer no longer makes this part, and there's no substitute part

Rivet 53118

#NI

All parts diagram

Rivet

Part #53118

The manufacturer no longer makes this part, and there's no substitute part

Screw Bag 53228-7
#16

Handle and bag housing diagram

Screw bag

Part #53228-7

The manufacturer no longer makes this part, and there's no substitute part
