Model # JDS8850AAW Official Jenn-Air dual-fuel slide-in range

Here are the diagrams and repair parts for Official Jenn-Air JDS8850AAW dual-fuel slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

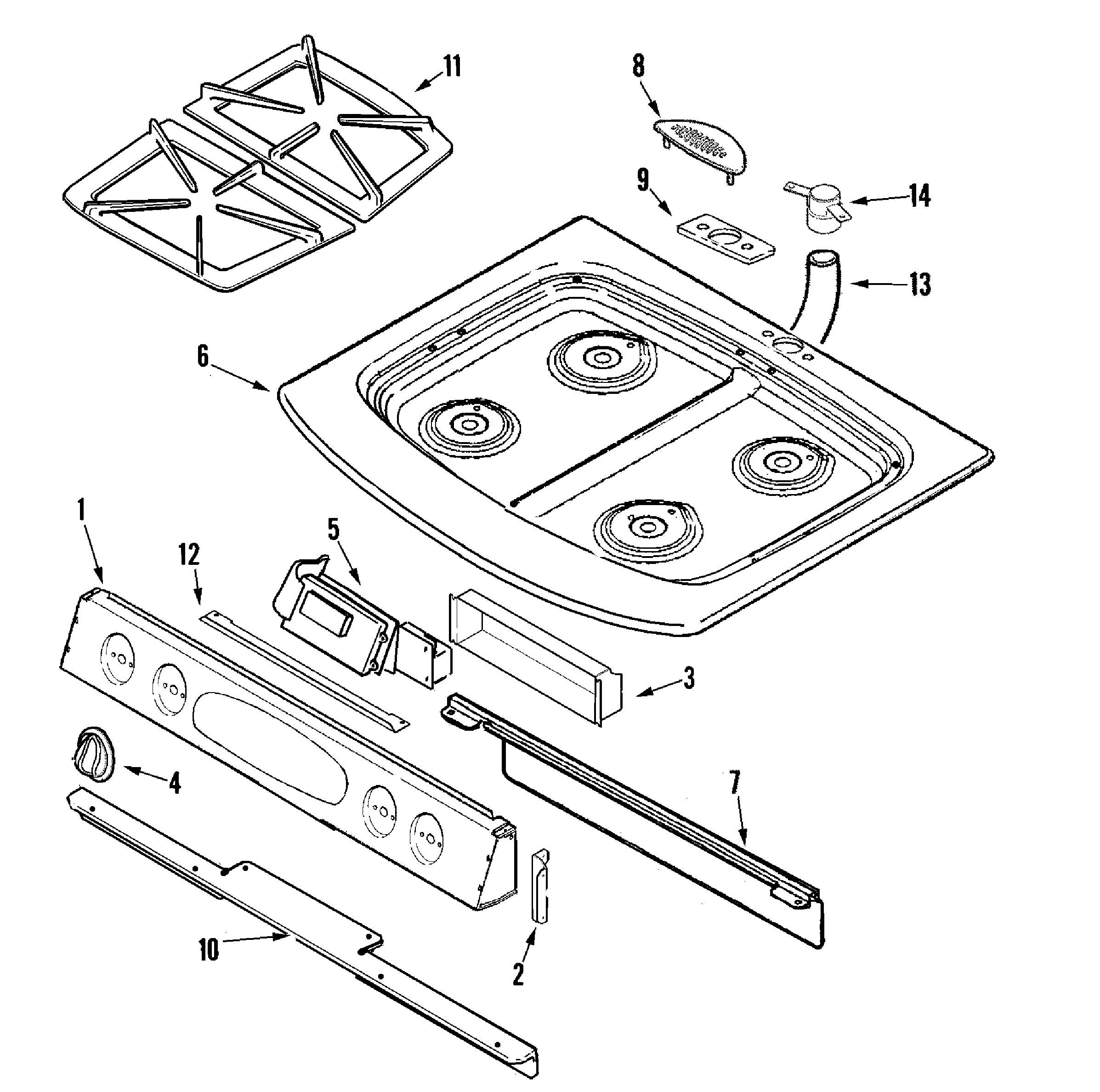

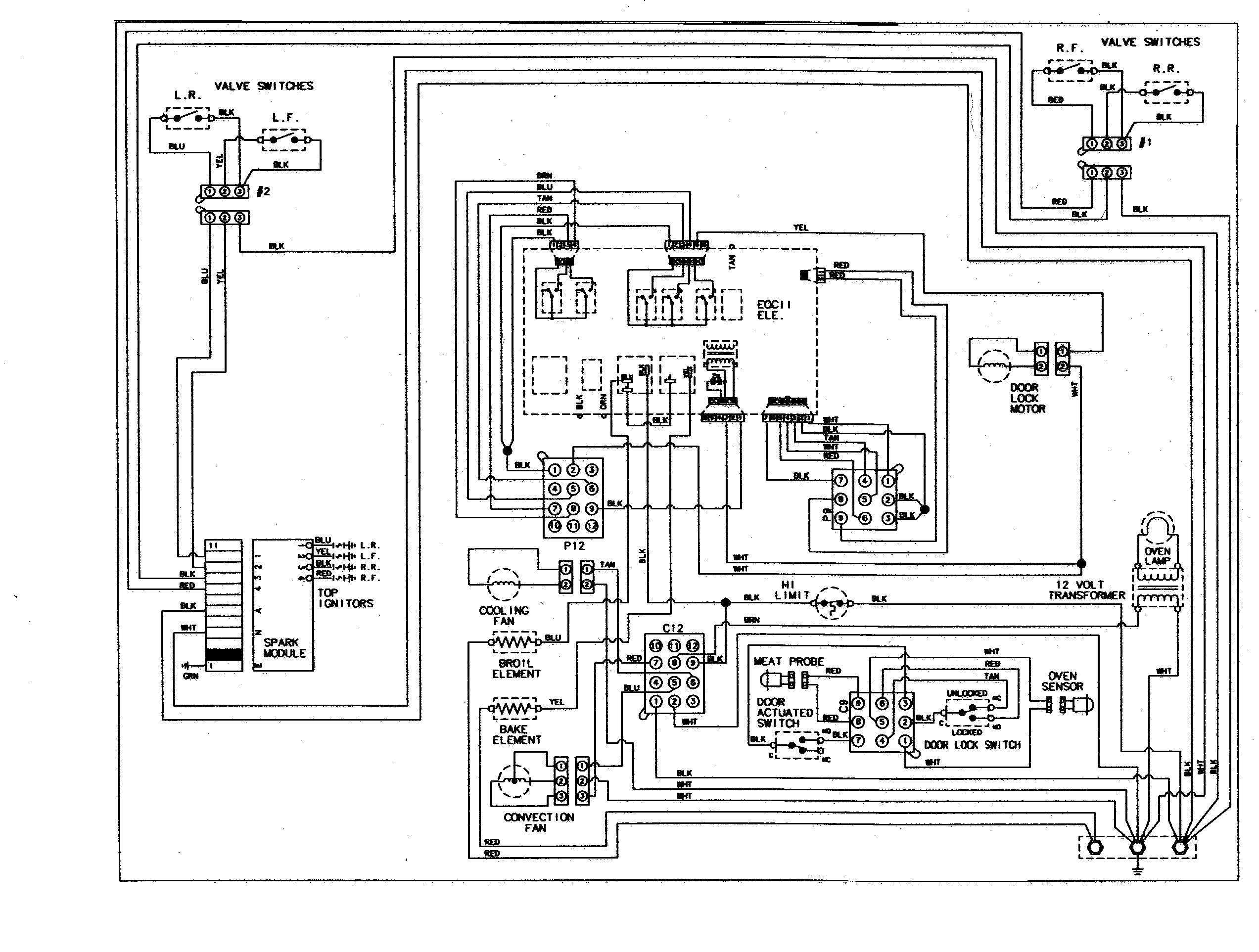

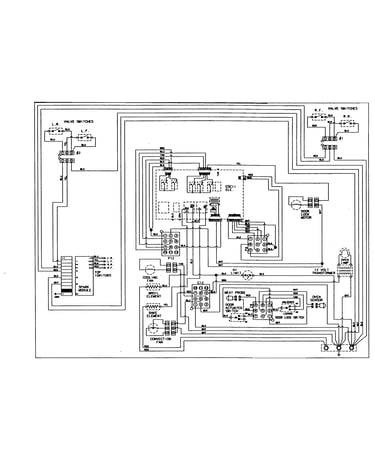

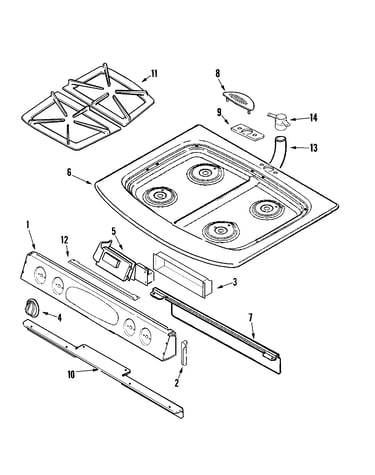

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 198 parts  |
Oven Sensor 74004943
#5

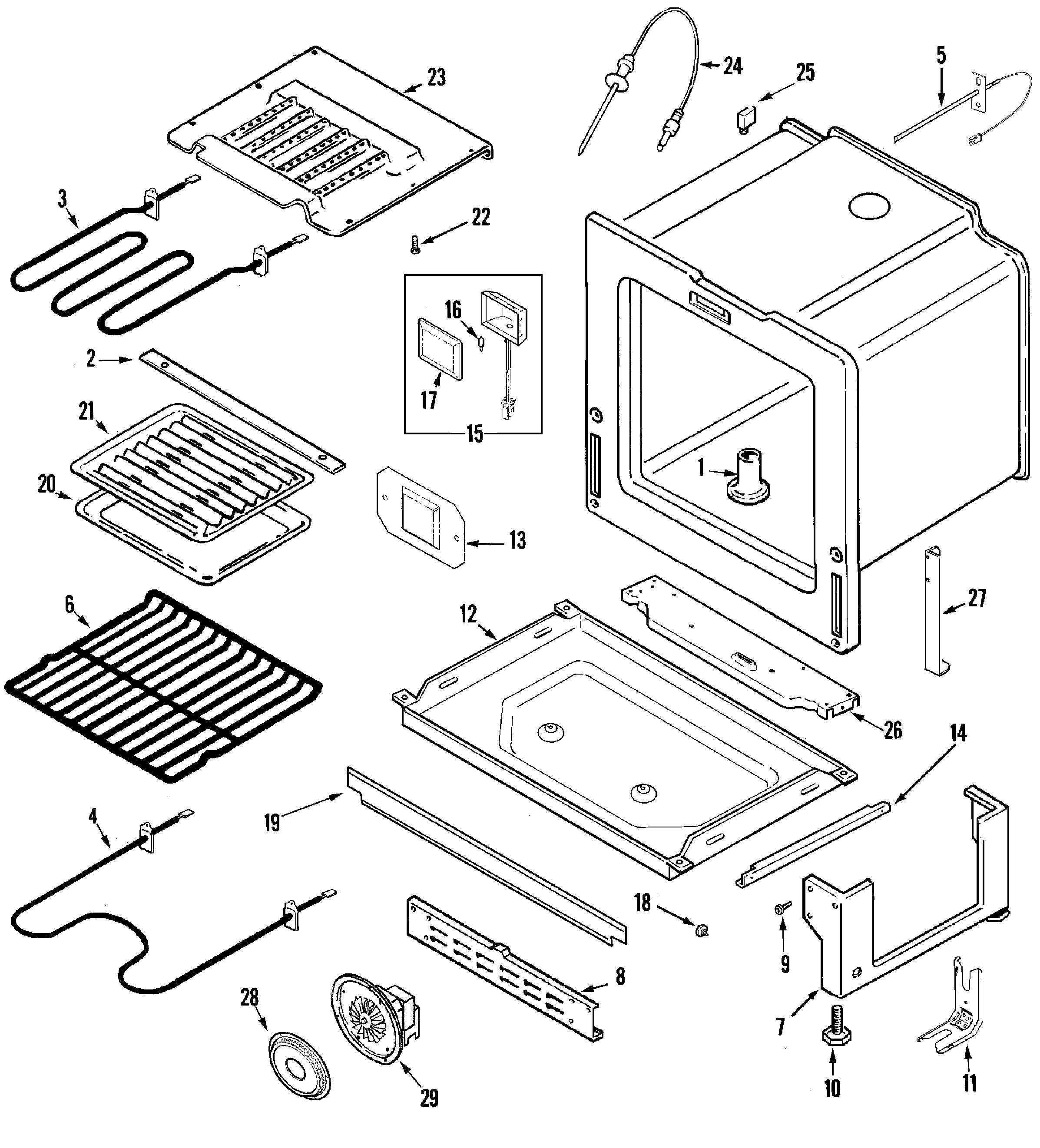

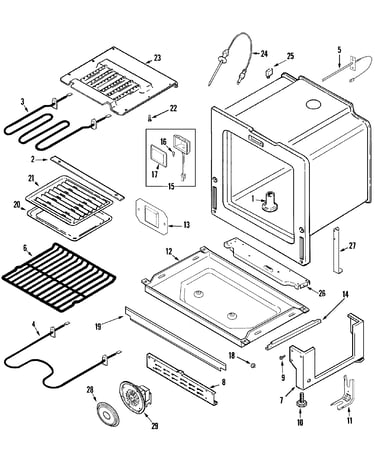

Oven/base diagram

Oven sensor

Part #74004943

Replaced by #12001656

?
Manufacturer substitution
This part replaces 74004943. Substitute parts can look different from the original.
BEST SELLER
$36.94 |
14% OFF Phone Price : $42.94
In Stock
Bake Element 74003039
#4

Oven/base diagram

Bake element

Part #74003039

Replaced by #WP74010750

?
Manufacturer substitution
This part replaces 74003039. Substitute parts can look different from the original.
BEST SELLER
$36.89 |
14% OFF Phone Price : $42.89
In Stock
Door Gasket 7201P046-60
#4

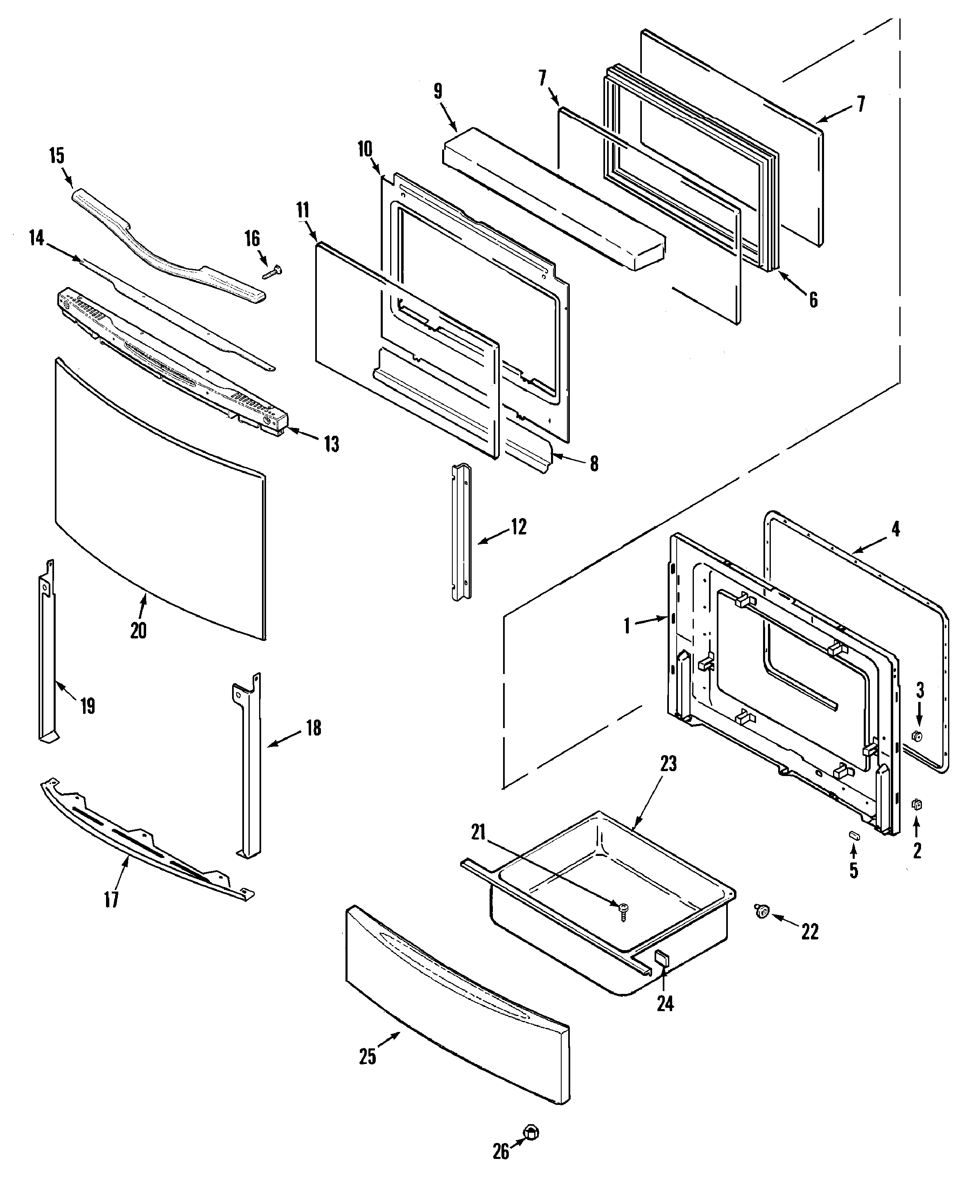

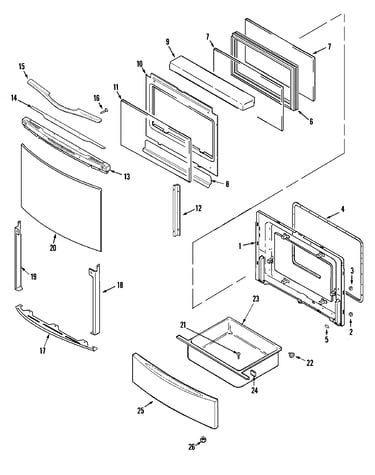

Door/drawer diagram

Door gasket

Part #7201P046-60

Replaced by #WPW10162384

?
Manufacturer substitution
This part replaces 7201P046-60. Substitute parts can look different from the original.
BEST SELLER
$64.38 |
9% OFF Phone Price : $70.38
In Stock
Range Oven Door Inner Glass (replaces 7902p436-60) 74003645
#7

Door/drawer diagram

Range oven door inner glass (replaces 7902p436-60)

Part #74003645

$104.75 |
10% OFF Phone Price : $116.75
In Stock
Oven Screw 74003004
#8

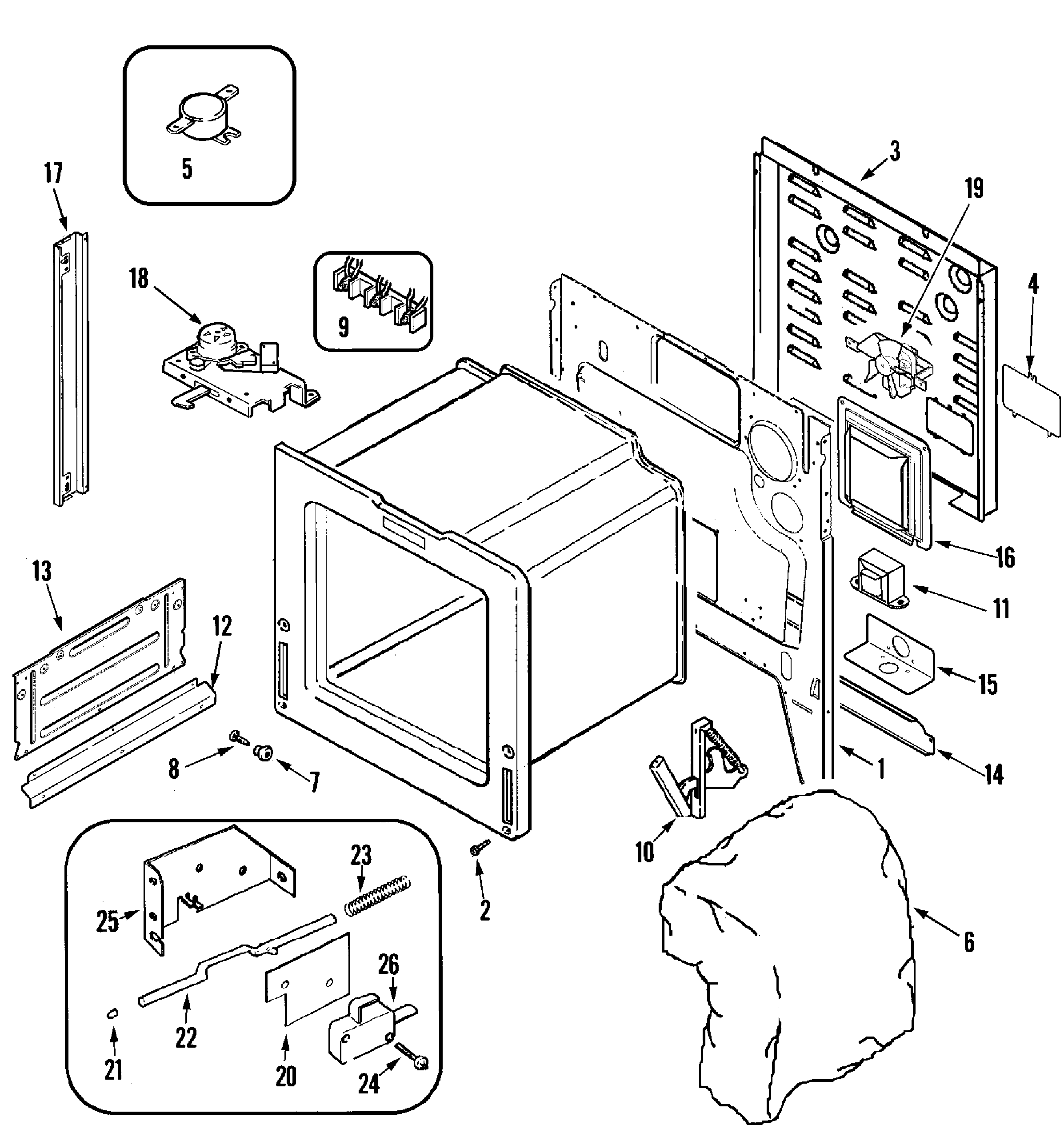

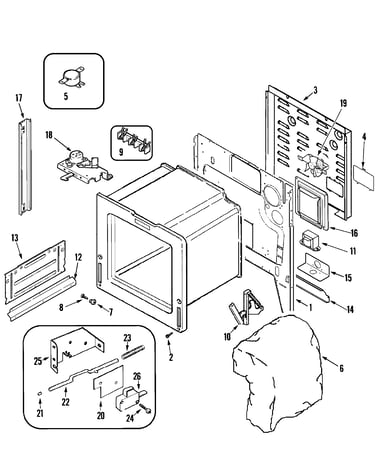

Body diagram

Oven screw

Part #74003004

Replaced by #W11693756

?
Manufacturer substitution
This part replaces 74003004. Substitute parts can look different from the original.
$13.06
In Stock
Bracket Screw 7101P040-60
#19C

Door/drawer diagram

Bracket screw

Part #7101P040-60

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 7101P040-60. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Screw 790448
Screw

Part #790448

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 790448. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Bracket, Ant 74005564
#11

Oven/base diagram

Bracket, ant

Part #74005564

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 74005564. Substitute parts can look different from the original.
This item is not returnable
$5.03 |
17% OFF Phone Price : $6.03
In Stock
Cooktop Igniter 71002724
#12

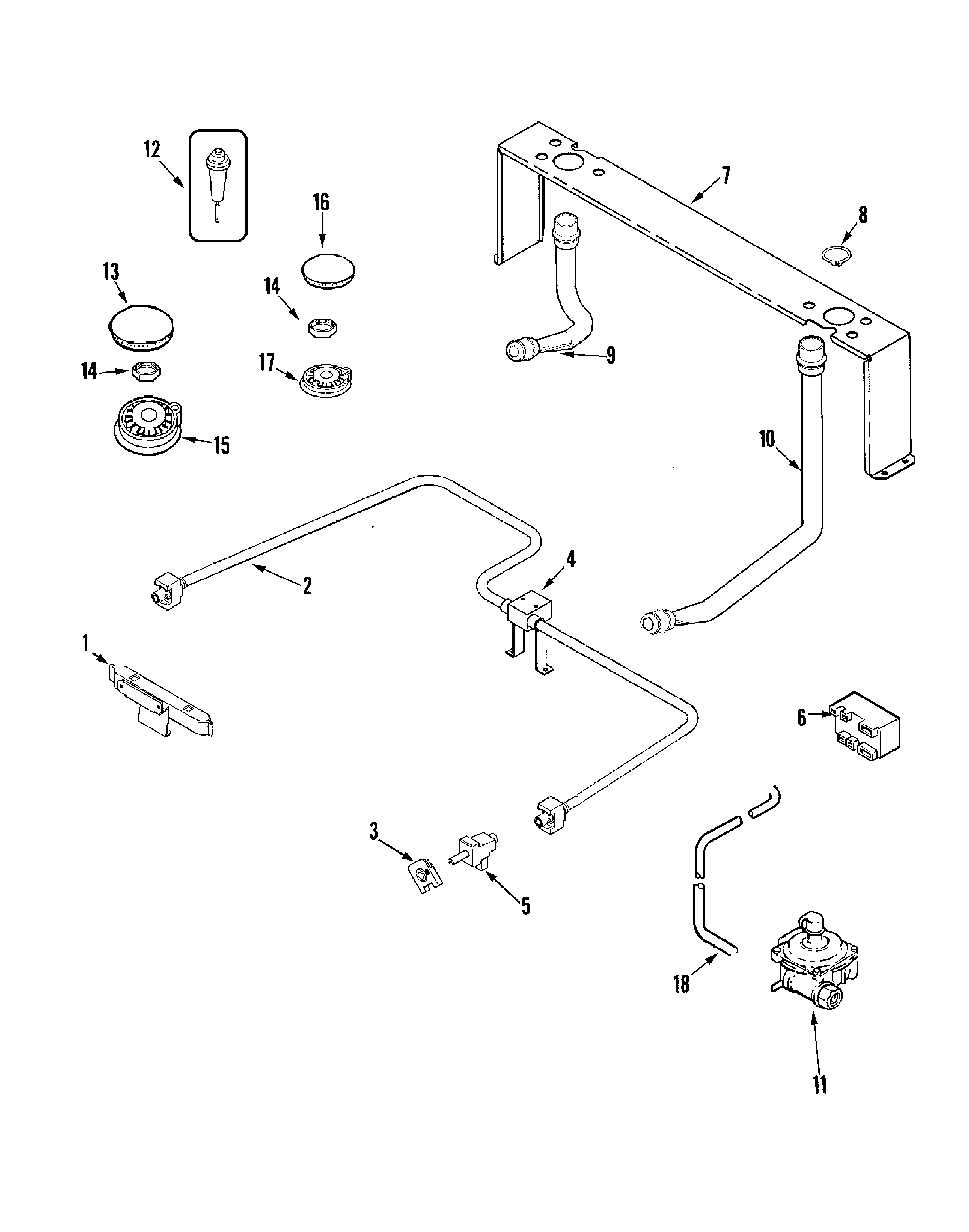

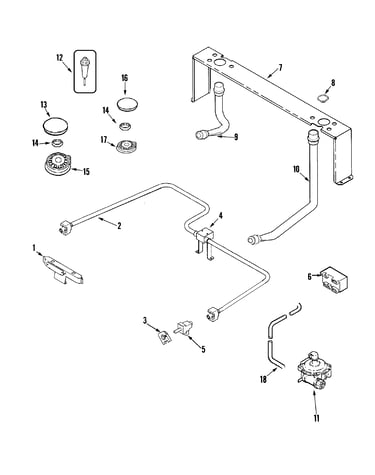

Gas controls diagram

Cooktop igniter

Part #71002724

Replaced by #WP7432P109-60

?
Manufacturer substitution
This part replaces 71002724. Substitute parts can look different from the original.
$38.38 |
14% OFF Phone Price : $44.38
In Stock
Range High-limit Thermostat 71001844
#5

Body diagram

Range high-limit thermostat

Part #71001844

Replaced by #WP71001844

?
Manufacturer substitution
This part replaces 71001844. Substitute parts can look different from the original.
$88.79 |
6% OFF Phone Price : $94.79
In Stock
