Amana
Bottom-Mount Refrigerator

Model # ABB1921DEW1 Official Amana bottom-mount refrigerator

Here are the diagrams and repair parts for Official Amana ABB1921DEW1 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

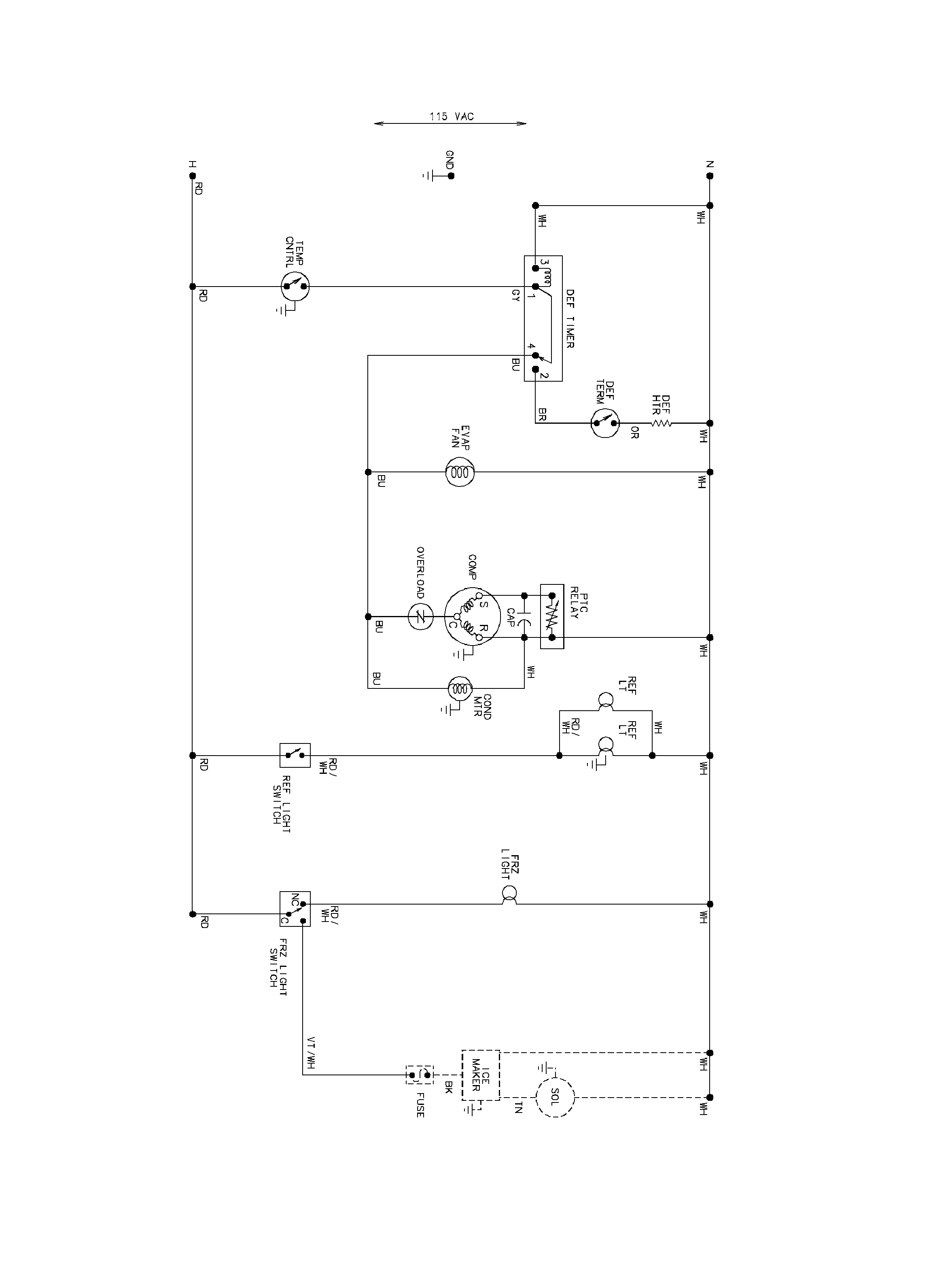

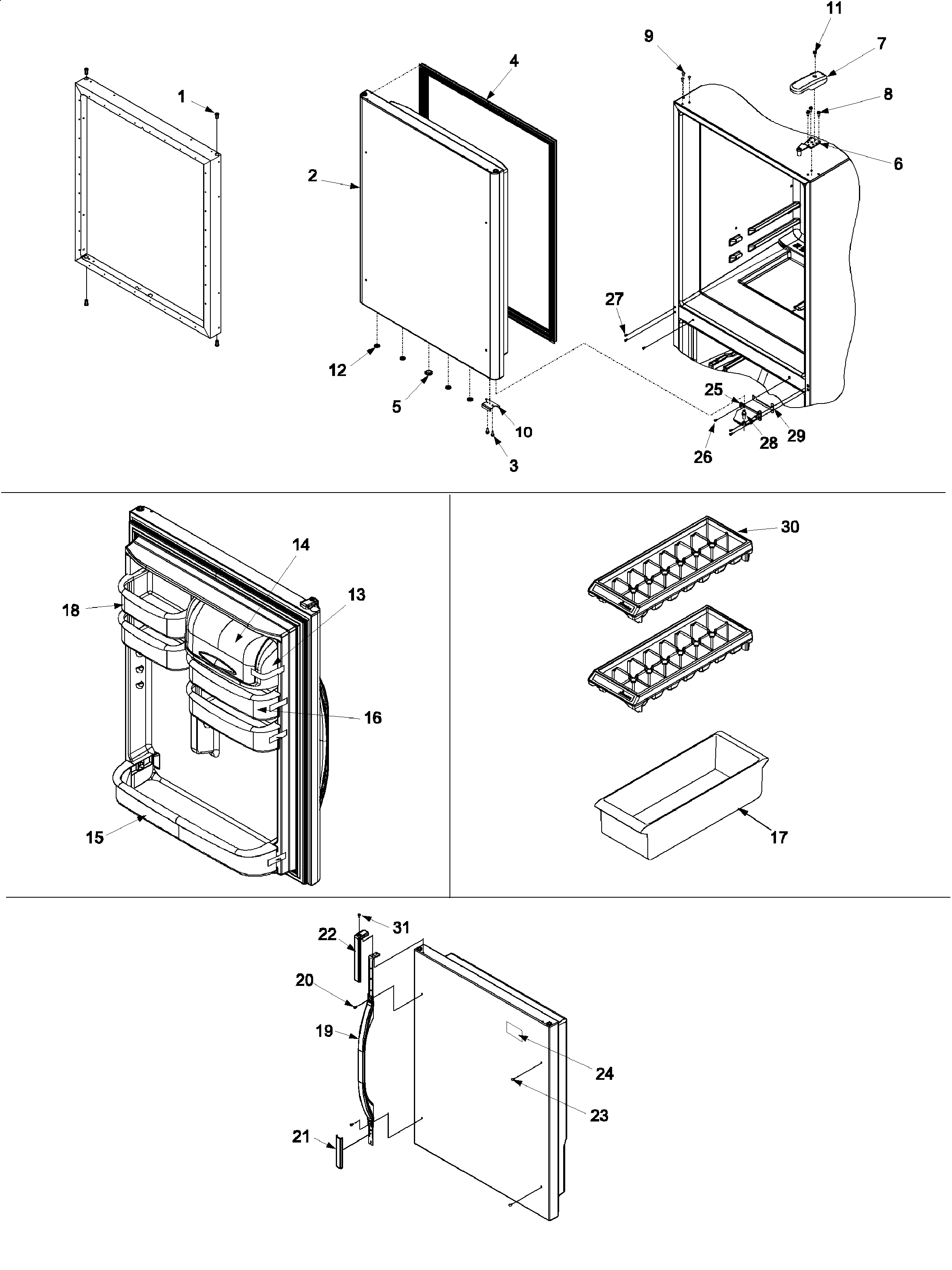

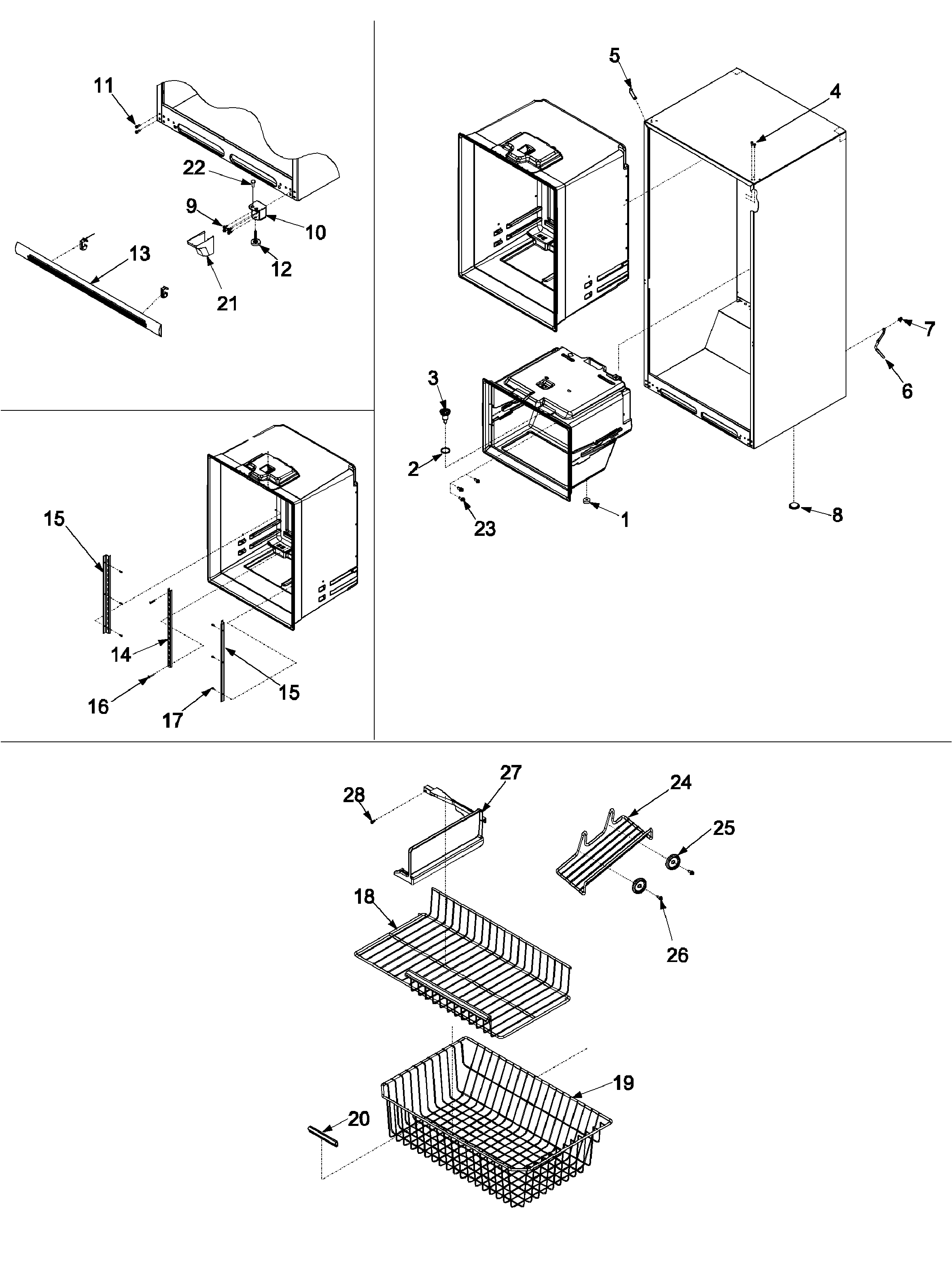

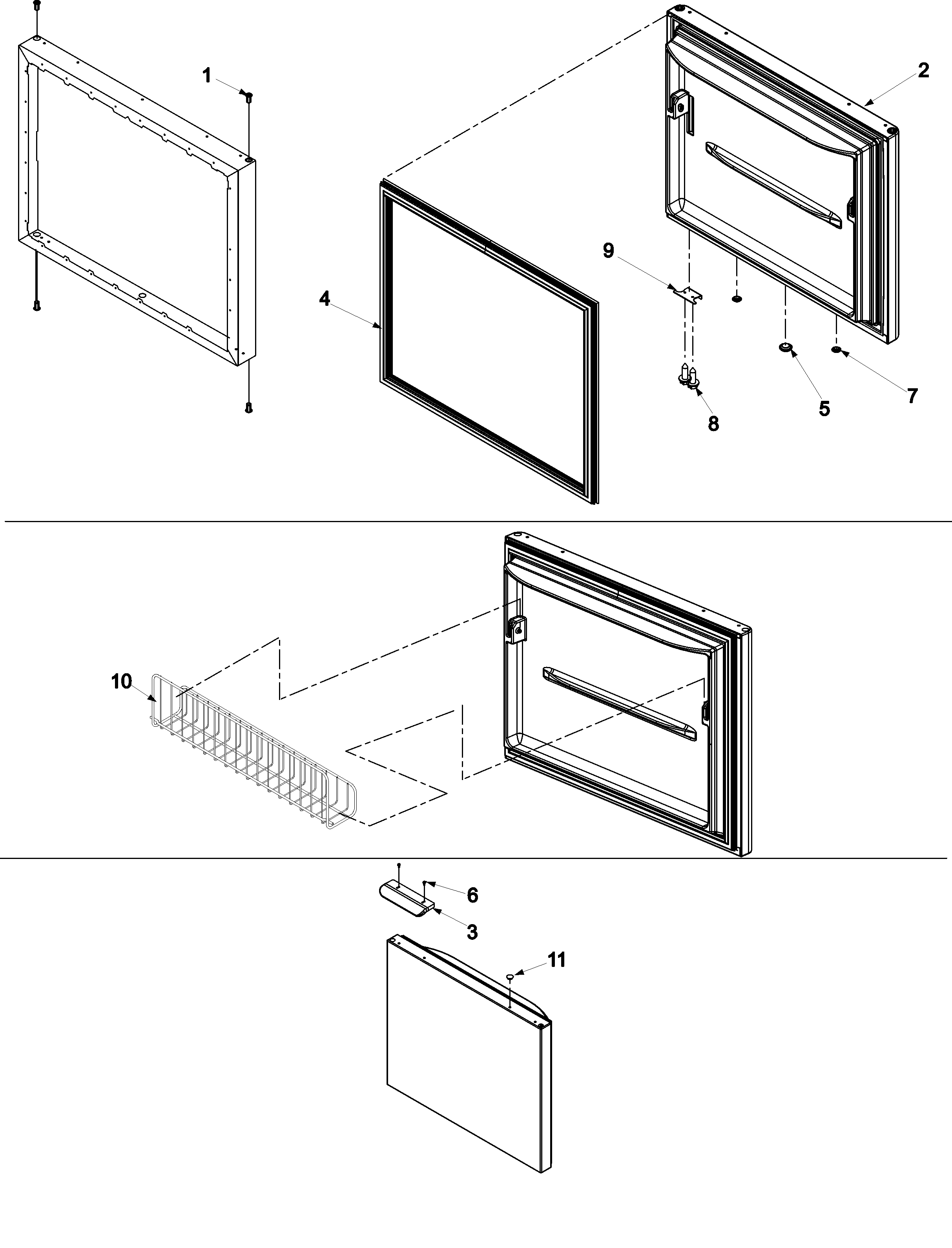

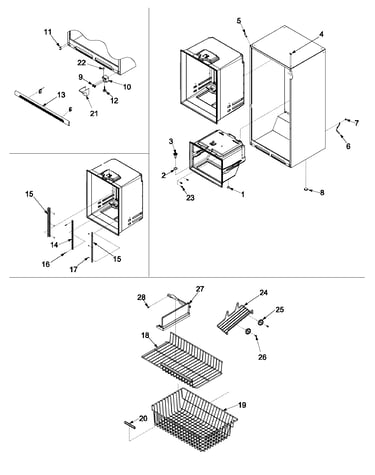

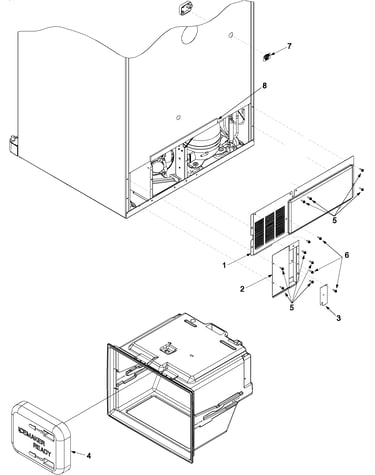

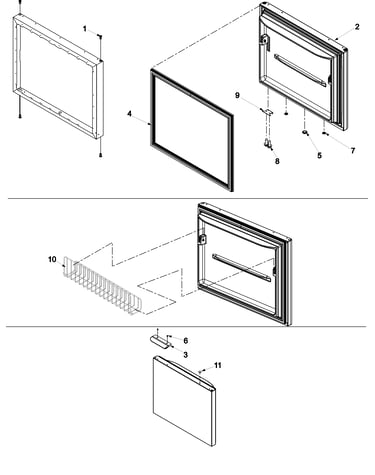

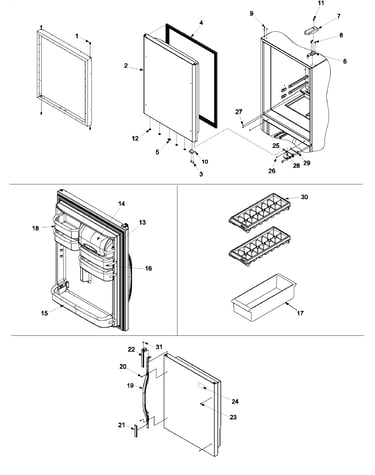

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 220 parts  |
Refrigerator Ice Maker D7824706
#14

Optional ice maker kit ic11b p1328003w diagram

Refrigerator ice maker

Part #D7824706

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces D7824706. Substitute parts can look different from the original.
BEST SELLER
$80.74 |
7% OFF Phone Price : $86.74
In Stock
Refrigerator Lamp, 40-watt, 115 To 125-volt A0282803
#15

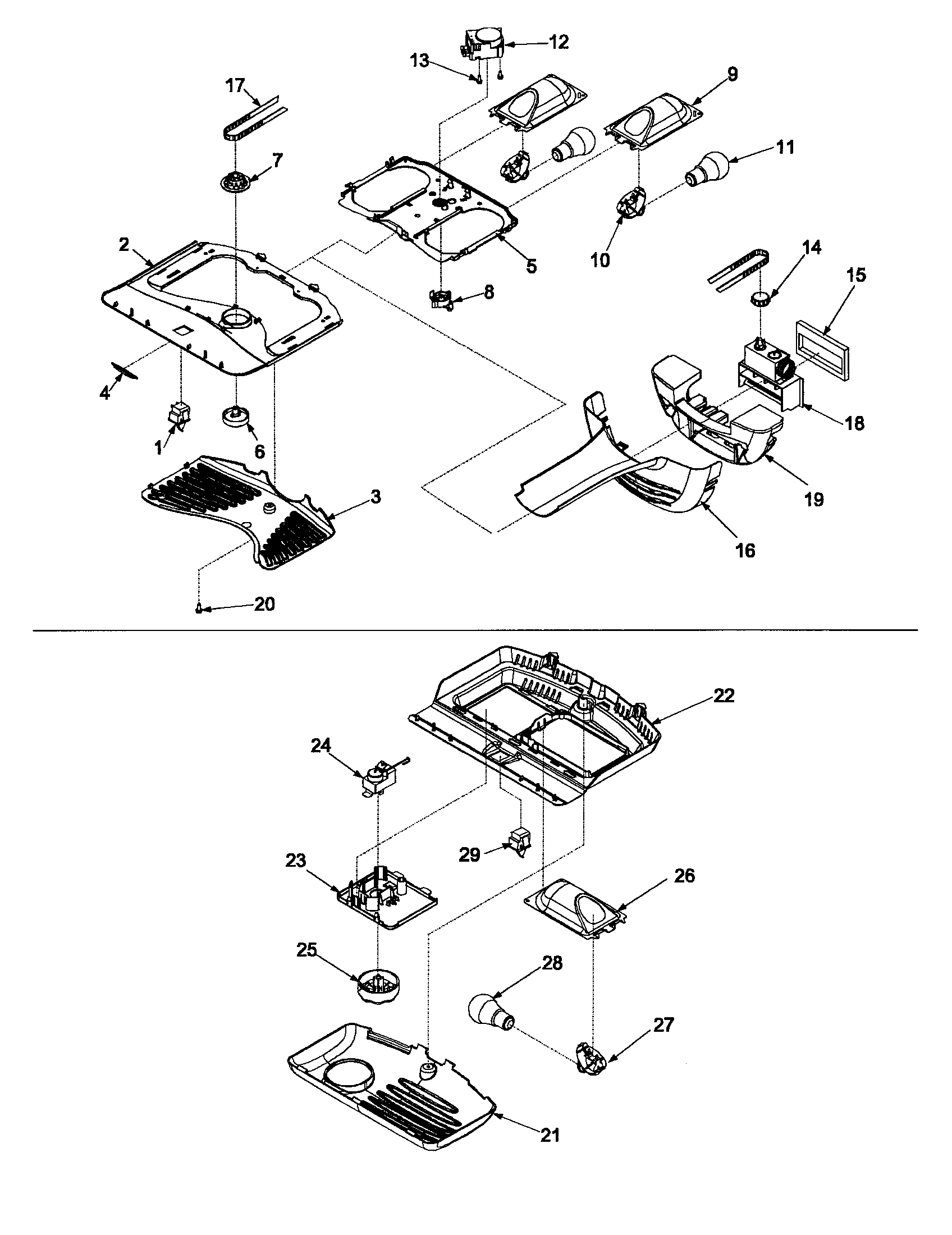

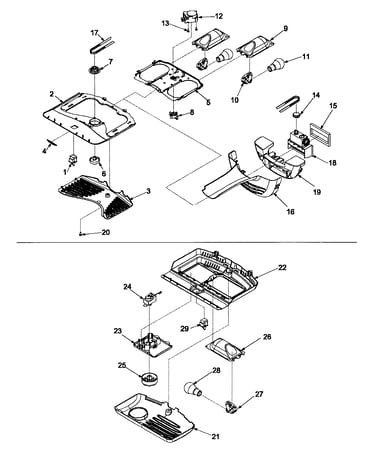

Controls diagram

Refrigerator lamp, 40-watt, 115 to 125-volt

Part #A0282803

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Light Bulb 67003883
#11

Controls diagram

Refrigerator light bulb

Part #67003883

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Switch C3680310
#1

Controls diagram

Refrigerator switch

Part #C3680310

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Blade 12217201
#21

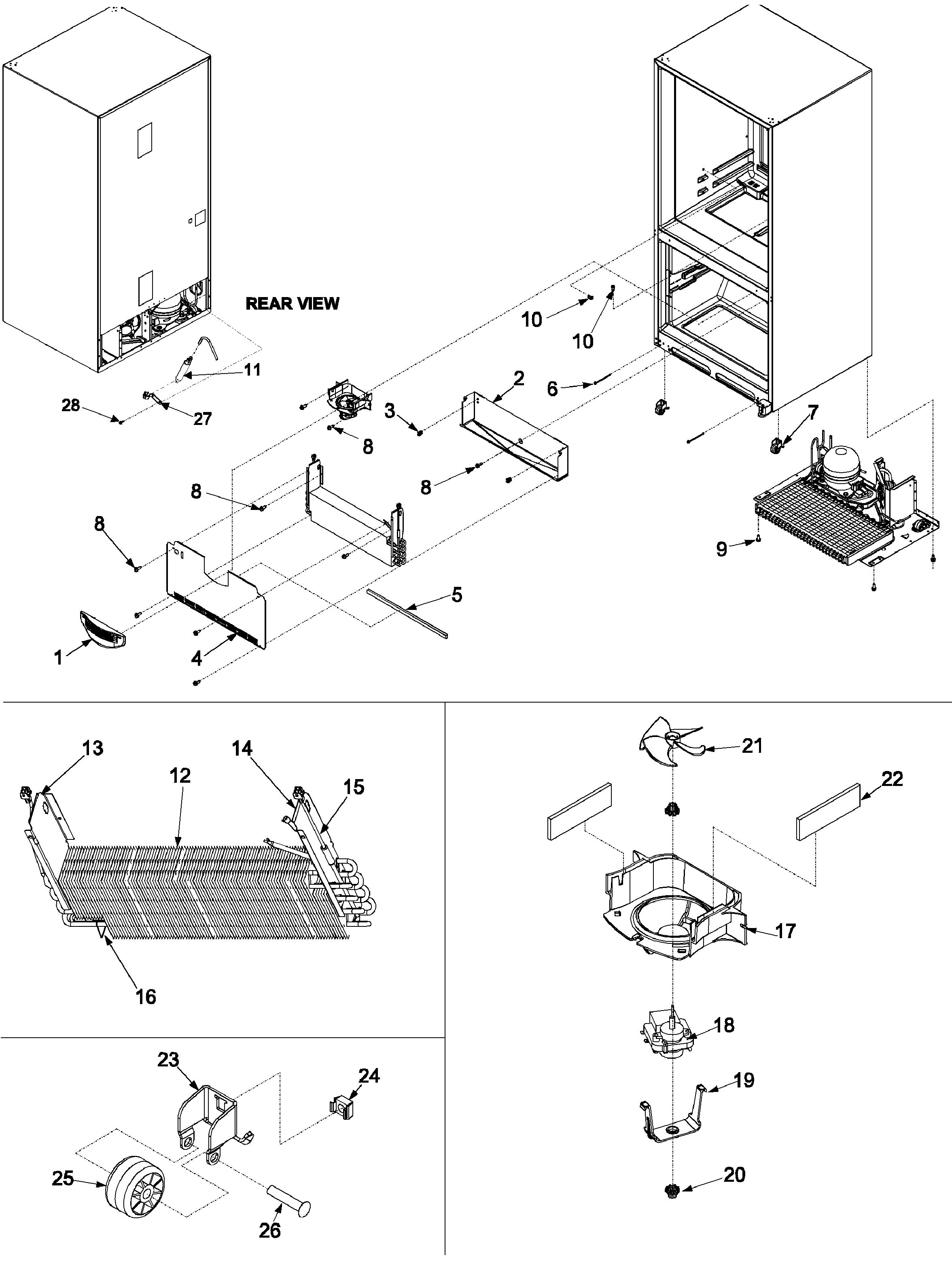

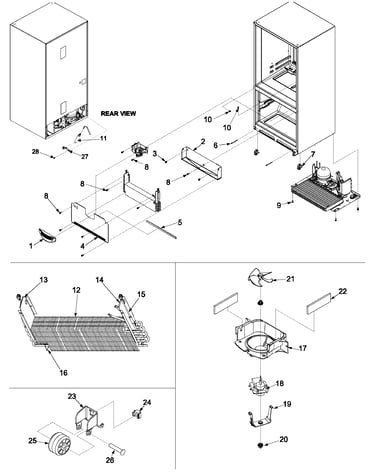

Evaporator area & rollers diagram

Refrigerator blade

Part #12217201

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Capacitor C8931612
#11

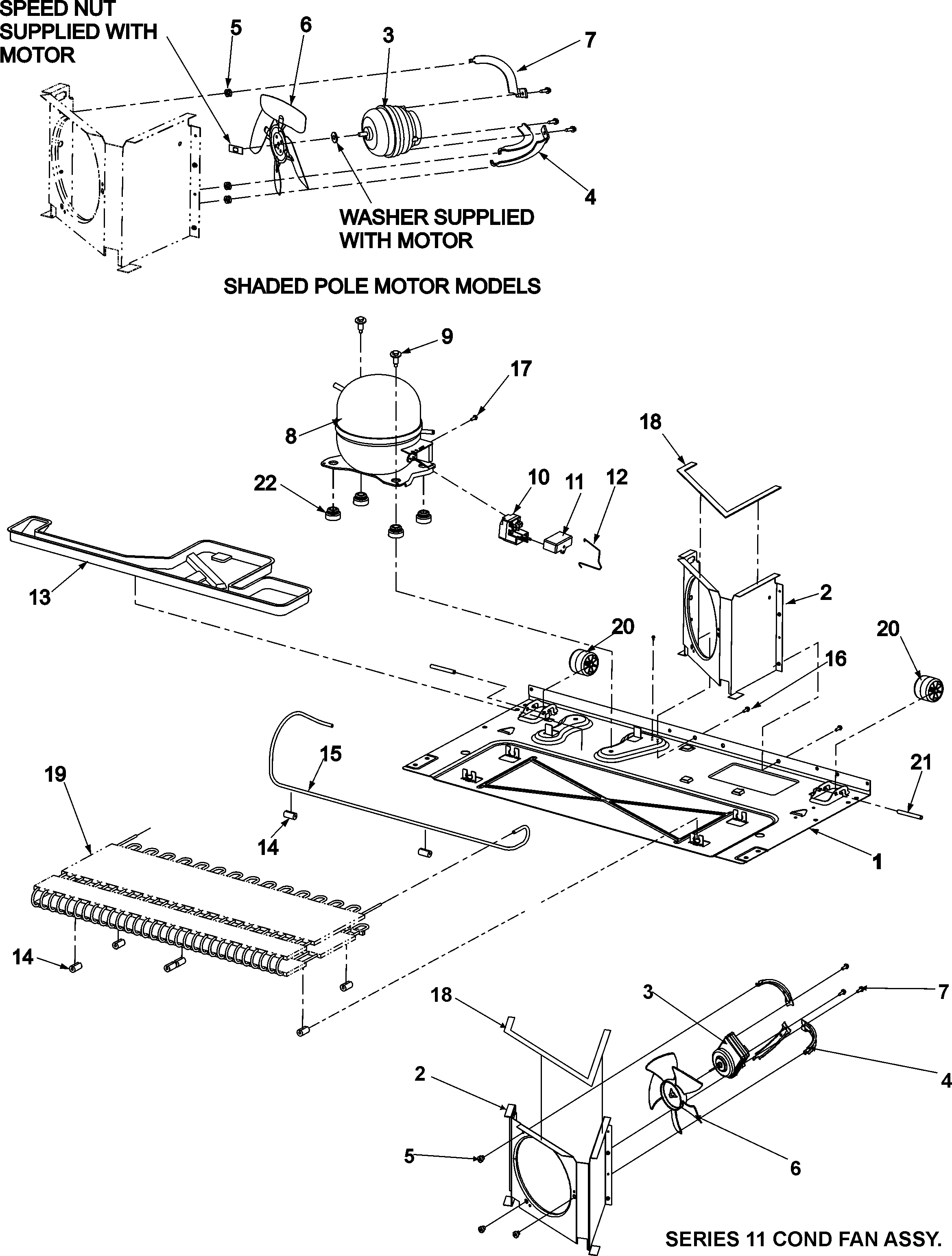

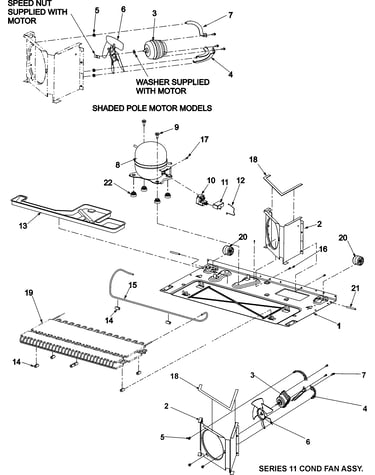

Compressor diagram

Refrigerator capacitor

Part #C8931612

Replaced by #W10613606

?
Manufacturer substitution
This part replaces C8931612. Substitute parts can look different from the original.
BEST SELLER
$56.27 |
10% OFF Phone Price : $62.27
In Stock
Refrigerator Overload Release 67003764
#10

Compressor diagram

Refrigerator overload release

Part #67003764

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Rail 67001057
#8

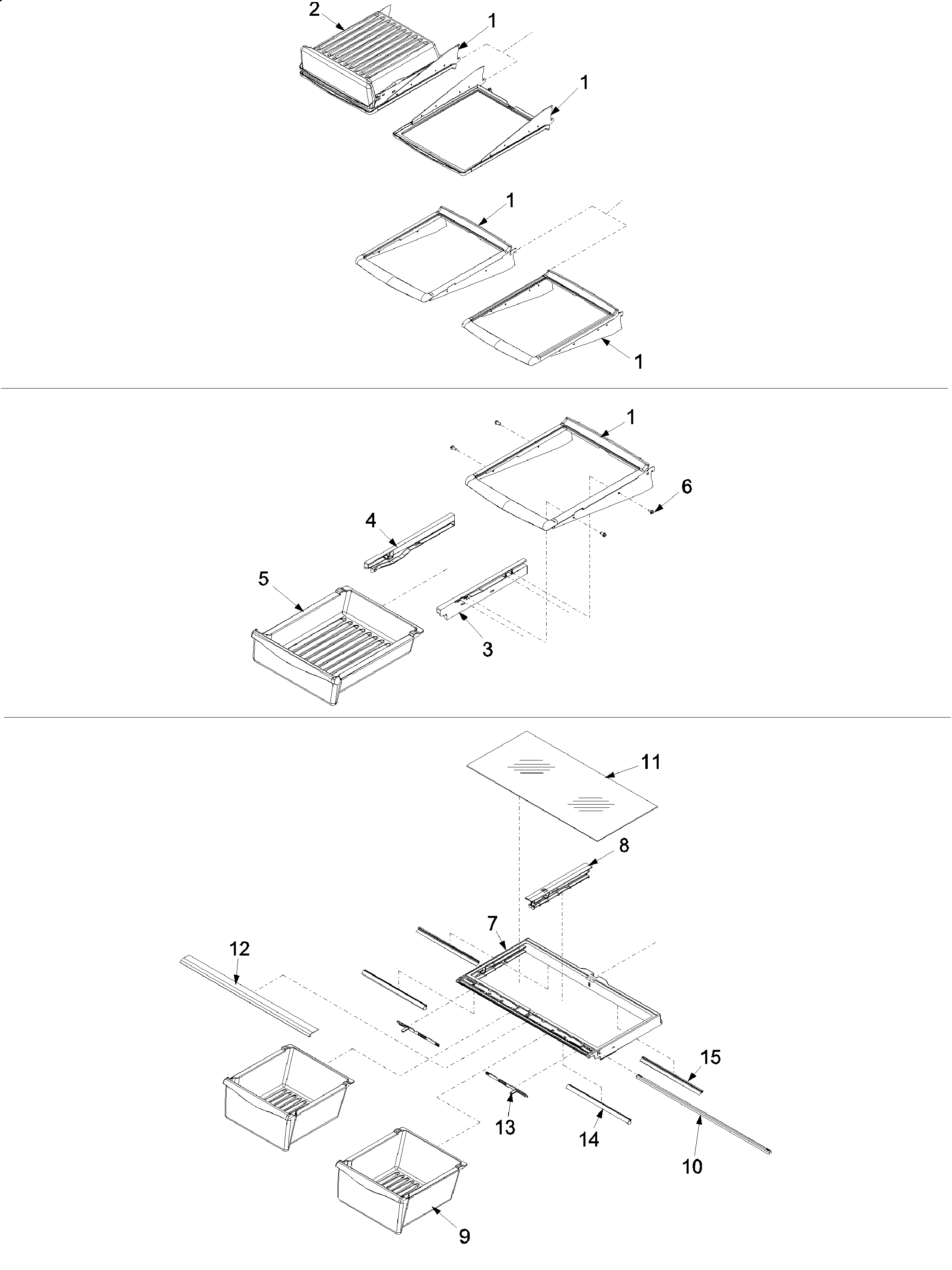

Refrigerator shelving diagram

Refrigerator rail

Part #67001057

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Switch 12466101
#20

Controls diagram

Refrigerator switch

Part #12466101

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 12466101. Substitute parts can look different from the original.
BEST SELLER
$21.08 |
22% OFF Phone Price : $27.08
In Stock
Drier B2150504
#11

Evaporator area & rollers diagram

Drier

Part #B2150504

Replaced by #WPB2150504

?
Manufacturer substitution
This part replaces B2150504. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
