Gas Walk-Behind Mower

Model # 917388851 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917388851 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 199 parts  |
Lawn Mower Wheel 194348X427
#37

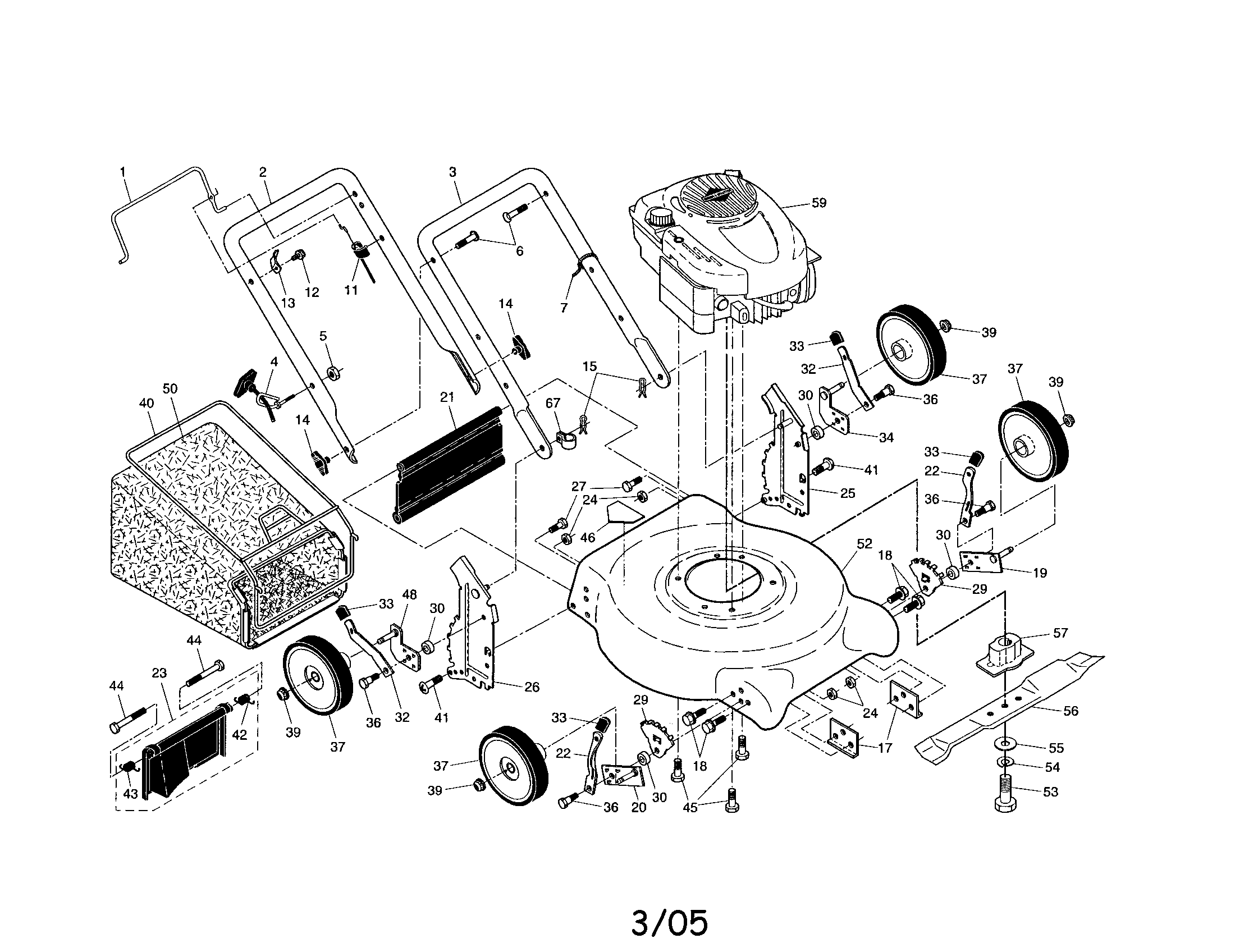

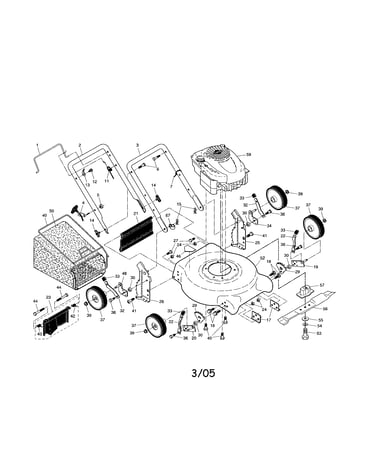

Engine/housing/handle/wheels/bag diagram

Lawn mower wheel

Part #194348X427

Replaced by #583720201

?
Manufacturer substitution
This part replaces 194348X427. Substitute parts can look different from the original.
BEST SELLER
$25.18 |
19% OFF Phone Price : $31.18
In Stock
Lawn Mower Grass Bag 194360
#50

Engine/housing/handle/wheels/bag diagram

Lawn mower grass bag

Part #194360

Replaced by #532410666

?
Manufacturer substitution
This part replaces 194360. Substitute parts can look different from the original.
BEST SELLER
$68.54 |
8% OFF Phone Price : $74.54
In Stock
Nut 132004
#5

Engine/housing/handle/wheels/bag diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#41

Engine/housing/handle/wheels/bag diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Rope Guide 179585
#4

Engine/housing/handle/wheels/bag diagram

Rope guide

Part #179585

Replaced by #586122501

?
Manufacturer substitution
This part replaces 179585. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Walk-behind Lawn Mower Selector Knob 87877
#33

Engine/housing/handle/wheels/bag diagram

Walk-behind lawn mower selector knob

Part #87877

Replaced by #532087877

?
Manufacturer substitution
This part replaces 87877. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Cable Bracket 86899X004
#13

Engine/housing/handle/wheels/bag diagram

Lawn mower cable bracket

Part #86899X004

Replaced by #532430034

?
Manufacturer substitution
This part replaces 86899X004. Substitute parts can look different from the original.
$10.26
In Stock
Handle Bolt 191574
#6

Engine/housing/handle/wheels/bag diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn & Garden Equipment Self-tapping Screw (replaces 532081276, 532750634, 81276) 750634
#12

Engine/housing/handle/wheels/bag diagram

Lawn & garden equipment self-tapping screw (replaces 532081276, 532750634, 81276)

Part #750634

Replaced by #532750634

?
Manufacturer substitution
This part replaces 750634. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Upper Handle 194179X479
#2

Engine/housing/handle/wheels/bag diagram

Upper handle

Part #194179X479

Replaced by #532194179

?
Manufacturer substitution
This part replaces 194179X479. Substitute parts can look different from the original.
$30.64
In Stock
