Top-Mount Refrigerator

Model # TBX21MAXERAA Official GE refrigerator - x series

Here are the diagrams and repair parts for Official GE TBX21MAXERAA refrigerator - x series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

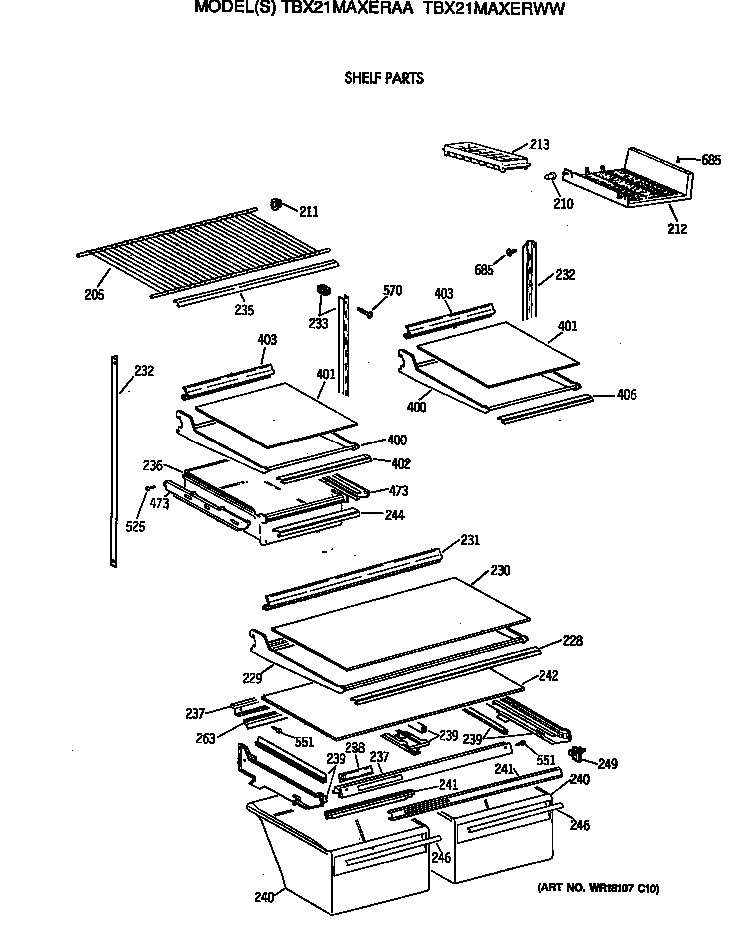

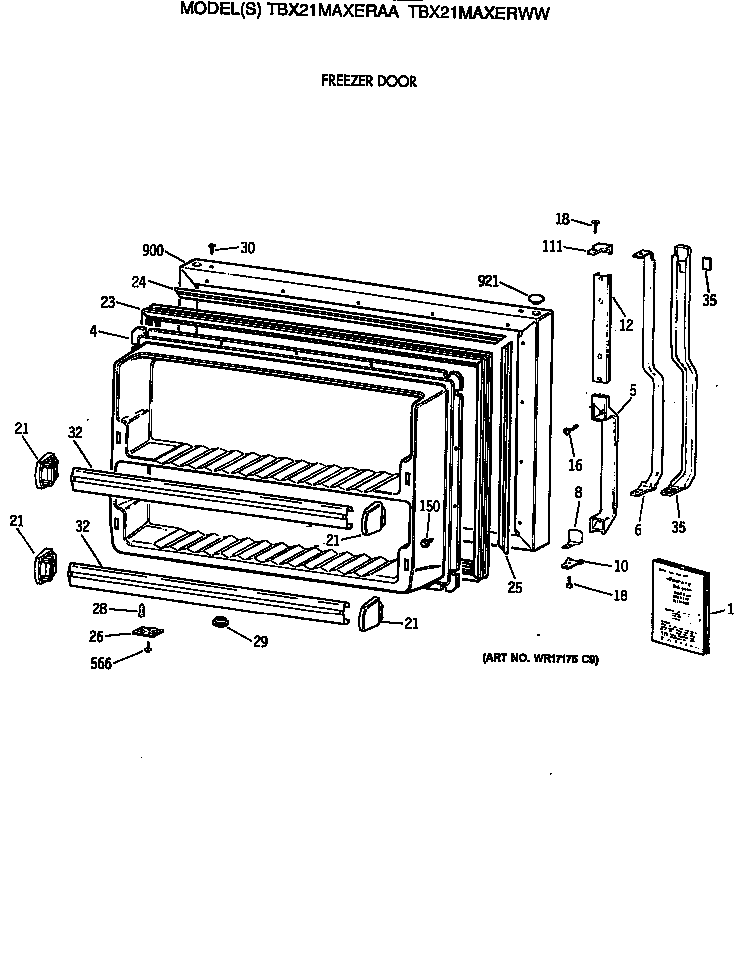

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 214 parts  |
Refrigerator Filter Dryer WR86X96
#740

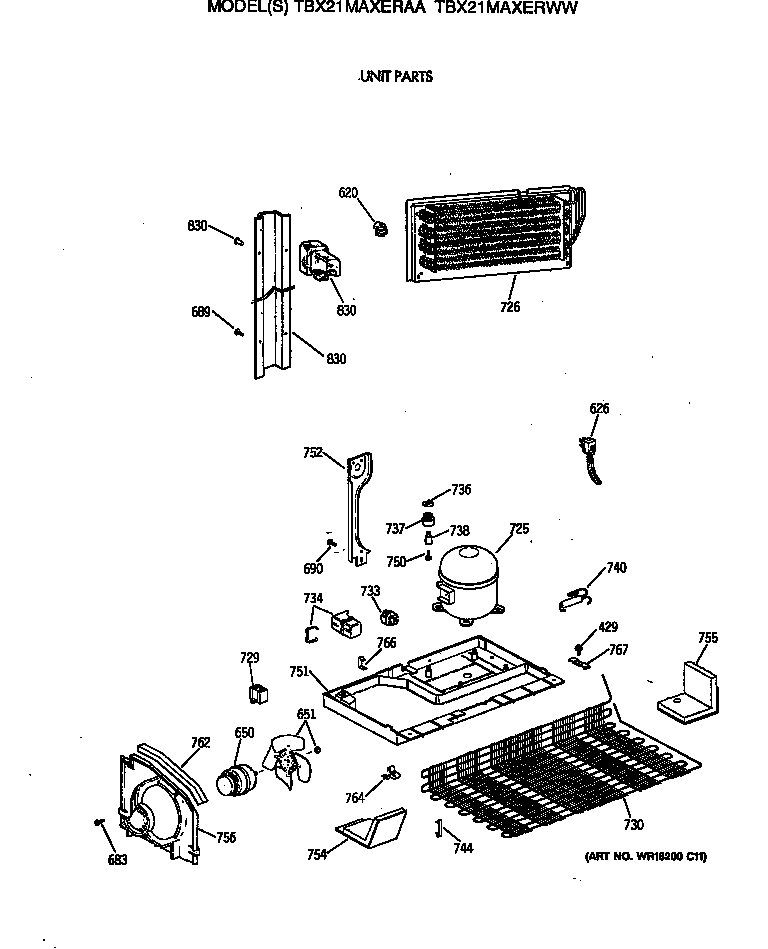

Unit parts diagram

Refrigerator filter dryer

Part #WR86X96

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
40a15/22 STD372402
#435A

Compartment separator parts diagram

40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Compressor Kit WR87X475
#725

Unit parts diagram

Refrigerator compressor kit

Part #WR87X475

Replaced by #WR87X10224

?
Manufacturer substitution
This part replaces WR87X475. Substitute parts can look different from the original.
BEST SELLER
$583.23 |
$12.00 OFF Phone Price : $595.23
In Stock
Refrigerator Defrost Heater (replaces Wr51x0465, Wr51x317, Wr51x368, Wr51x424, Wr51x431, Wr51x448) WR51X465
#618

Compartment separator parts diagram

Refrigerator defrost heater (replaces wr51x0465, wr51x317, wr51x368, wr51x424, wr51x431, wr51x448)

Part #WR51X465

$118.07 |
9% OFF Phone Price : $130.07
In Stock
Light Switch WR23X193
#609

Compartment separator parts diagram

Light switch

Part #WR23X193

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X193. Substitute parts can look different from the original.
$8.11
In Stock
Power Cord WR23X108
#626B

Unit parts diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Evaporator Fan Blade WR60X123
#613B

Cabinet parts diagram

Refrigerator evaporator fan blade

Part #WR60X123

$65.59 |
8% OFF Phone Price : $71.59
In Stock
Refrigerator Door Hole Plug (white) WR2X8693
#112

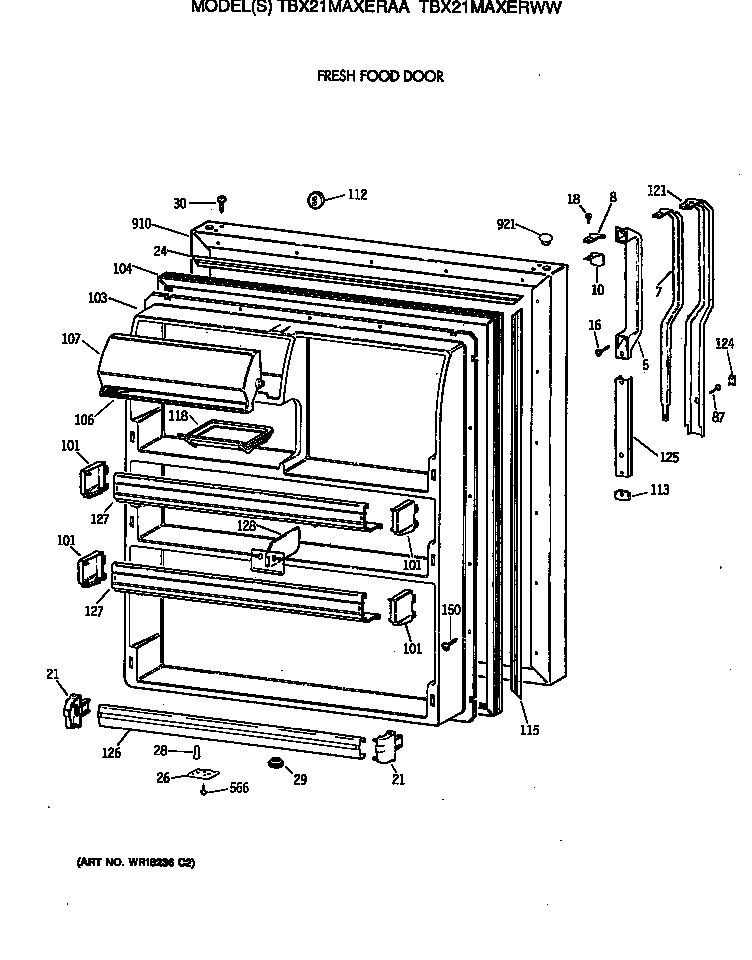

Fresh food door diagram

Refrigerator door hole plug (white)

Part #WR2X8693

Replaced by #WR01X21159

?
Manufacturer substitution
This part replaces WR2X8693. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Roller WR2X3594
#264

Cabinet parts diagram

Refrigerator roller

Part #WR2X3594

This item is not returnable
$21.62 |
22% OFF Phone Price : $27.62
In Stock
Refrigerator Evaporator Cover Seal WR14X313
Refrigerator evaporator cover seal

Part #WR14X313

$17.31 |
10% OFF Phone Price : $19.31
In Stock
