Craftsman
Power Sander

Model # 315115051 Official Craftsman sander

Here are the diagrams and repair parts for Official Craftsman 315115051 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

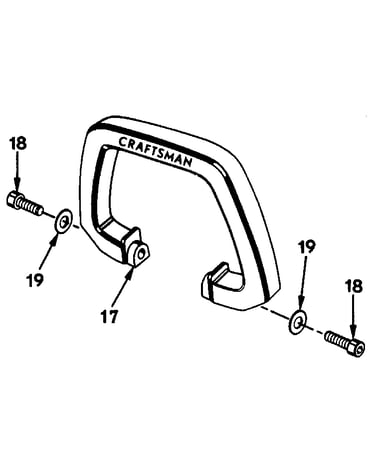

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Data Plate 968171-001
#1

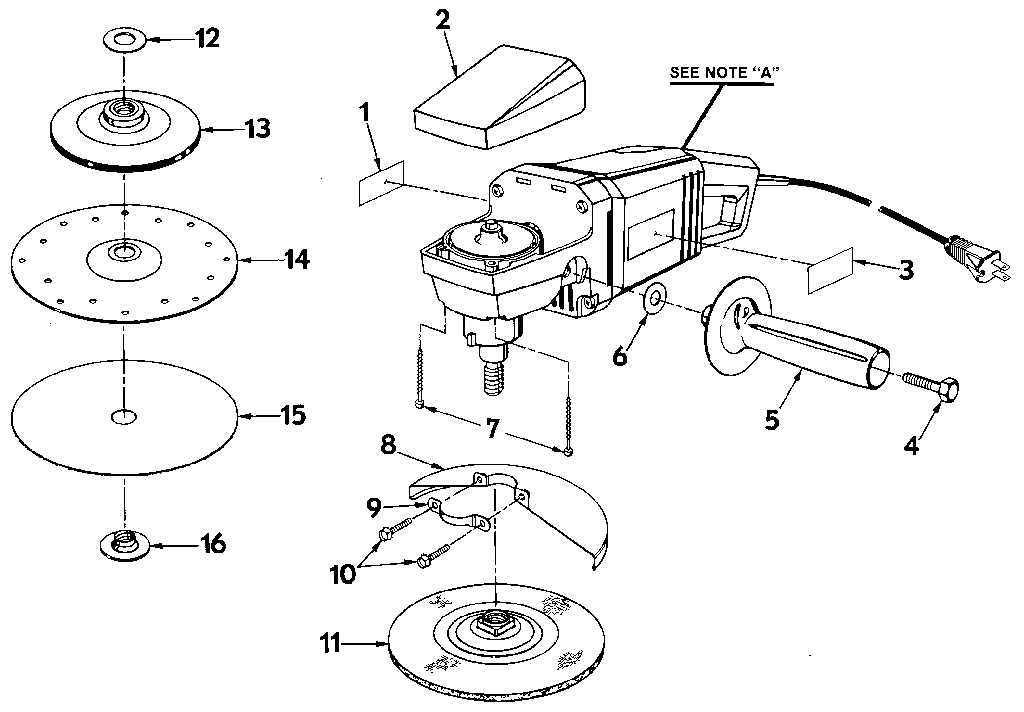

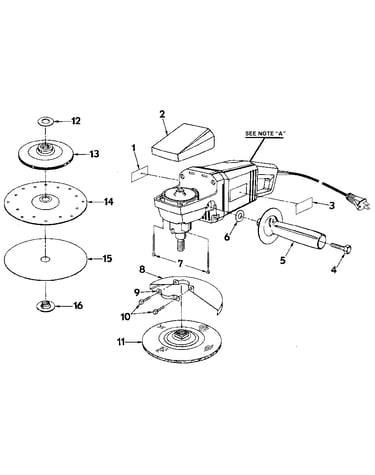

Sanding disc assembly diagram

Data plate

Part #968171-001

The manufacturer no longer makes this part, and there's no substitute part

Spring 998197-001
#24

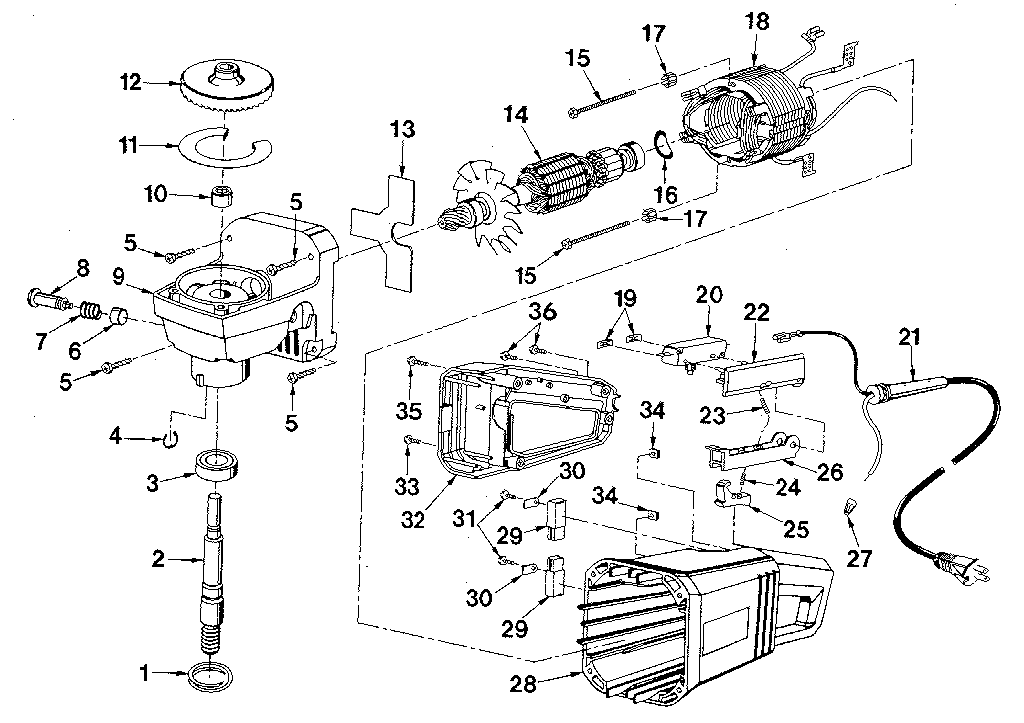

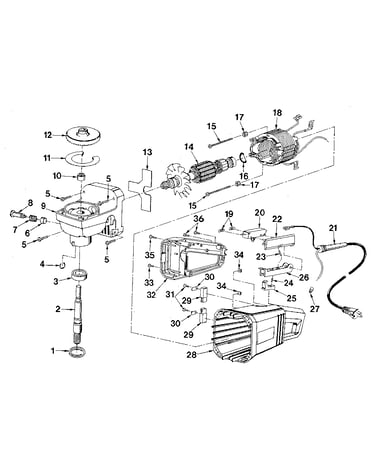

Section a diagram

Spring

Part #998197-001

The manufacturer no longer makes this part, and there's no substitute part

Bearing 622149-092
#10

Section a diagram

Bearing

Part #622149-092

The manufacturer no longer makes this part, and there's no substitute part

Field Assembly 967413-001
#18

Section a diagram

Field assembly

Part #967413-001

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 617595-007
#4

Sanding disc assembly diagram

Cap screw

Part #617595-007

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 620789-005
#16

Section a diagram

Spring washer

Part #620789-005

The manufacturer no longer makes this part, and there's no substitute part

E Ret Ring 623111-009
#4

Section a diagram

E ret ring

Part #623111-009

The manufacturer no longer makes this part, and there's no substitute part

Disc 617432-001
#14

Sanding disc assembly diagram

Disc

Part #617432-001

The manufacturer no longer makes this part, and there's no substitute part

Clamp 617800-001
#30

Section a diagram

Clamp

Part #617800-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 617966-007
#36

Section a diagram

Screw

Part #617966-007

The manufacturer no longer makes this part, and there's no substitute part
