Kenmore
Canister Vacuum

Model # 11621781 Official Kenmore vacuum cleaner & attachment set - august, 1971

Here are the diagrams and repair parts for Official Kenmore 11621781 vacuum cleaner & attachment set - august, 1971, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |

Latch 763770
#34

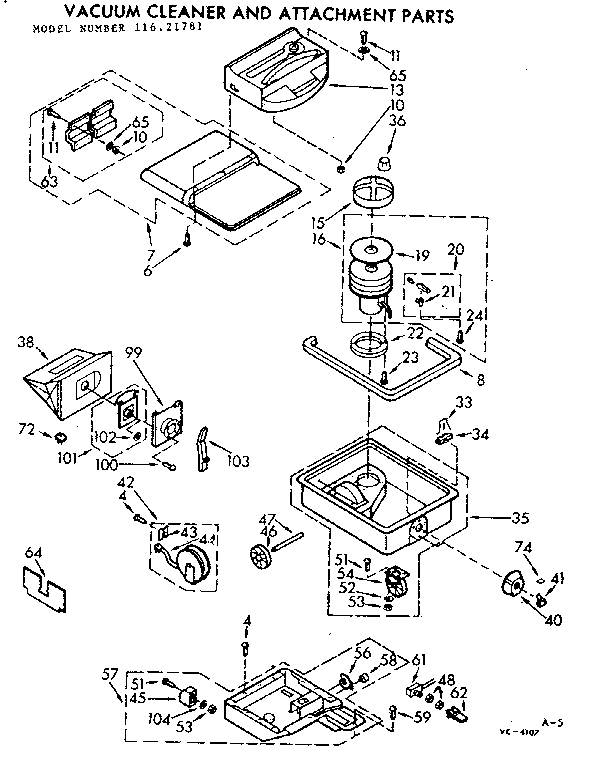

Base assembly diagram

Latch

Part #763770

The manufacturer no longer makes this part, and there's no substitute part

Brush 722734
#101

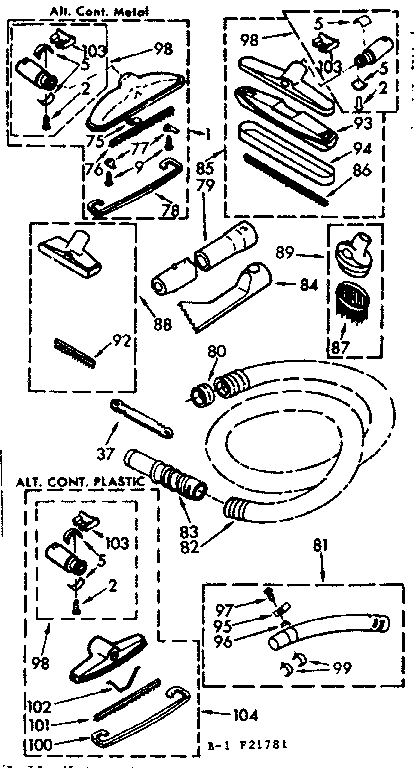

Attachment parts diagram

Brush

Part #722734

The manufacturer no longer makes this part, and there's no substitute part

Reel 700718
#42

Base assembly diagram

Reel

Part #700718

The manufacturer no longer makes this part, and there's no substitute part

Handle 722420
#81

Attachment parts diagram

Handle

Part #722420

The manufacturer no longer makes this part, and there's no substitute part

Pedal Switch 764057
#62

Base assembly diagram

Pedal switch

Part #764057

The manufacturer no longer makes this part, and there's no substitute part

Spring Assembly 720900
#99

Attachment parts diagram

Spring assembly

Part #720900

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 762976
#44

Base assembly diagram

Power cord

Part #762976

The manufacturer no longer makes this part, and there's no substitute part

Holder 763918
#13

Base assembly diagram

Holder

Part #763918

The manufacturer no longer makes this part, and there's no substitute part

Spring 722691
#102

Attachment parts diagram

Spring

Part #722691

The manufacturer no longer makes this part, and there's no substitute part

Rug Nozzle 722389
#1

Attachment parts diagram

Rug nozzle

Part #722389

The manufacturer no longer makes this part, and there's no substitute part
