Kenmore
Canister Vacuum

Model # 1163235092C Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1163235092C vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |

Repair Parts List LIT4155702

#NI

All parts diagram

Repair parts list

Part #LIT4155702

The manufacturer no longer makes this part, and there's no substitute part

Bag, Dust (available At Any Sears Retail Store) Sears No. 20-5045 746084
#23

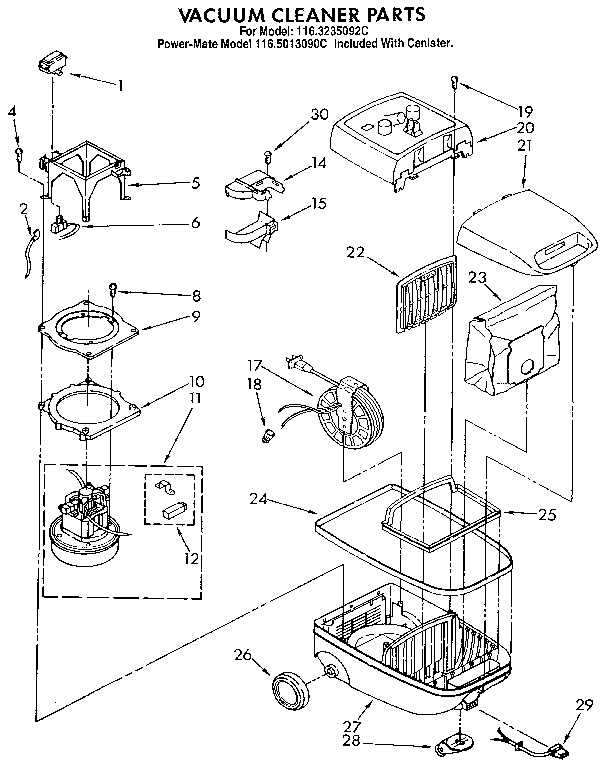

Vacuum cleaner diagram

Bag, dust (available at any sears retail store) sears no. 20-5045

Part #746084

The manufacturer no longer makes this part, and there's no substitute part

Floor Brush 4147110

#NI

All parts diagram

Floor brush

Part #4147110

The manufacturer no longer makes this part, and there's no substitute part

Rear Cover 4150460
#20

Vacuum cleaner diagram

Rear cover

Part #4150460

The manufacturer no longer makes this part, and there's no substitute part

Switch Button 4155507
#1

Vacuum cleaner diagram

Switch button

Part #4155507

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 4147236
#29

Vacuum cleaner diagram

Receptacle

Part #4147236

The manufacturer no longer makes this part, and there's no substitute part

Crevice Tool 4147889

#NI

All parts diagram

Crevice tool

Part #4147889

The manufacturer no longer makes this part, and there's no substitute part

Dust Brush 4147113

#NI

All parts diagram

Dust brush

Part #4147113

The manufacturer no longer makes this part, and there's no substitute part

Housing 4150453
#15

Vacuum cleaner diagram

Housing

Part #4150453

The manufacturer no longer makes this part, and there's no substitute part

Lead 706941
#2A

Vacuum cleaner diagram

Lead

Part #706941

The manufacturer no longer makes this part, and there's no substitute part
