Craftsman
Electric Line Trimmer

Model # 13898982 Official Craftsman trimmer

Here are the diagrams and repair parts for Official Craftsman 13898982 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 9 of 9 parts  |
15" Trimmer Guard 31105875
#5

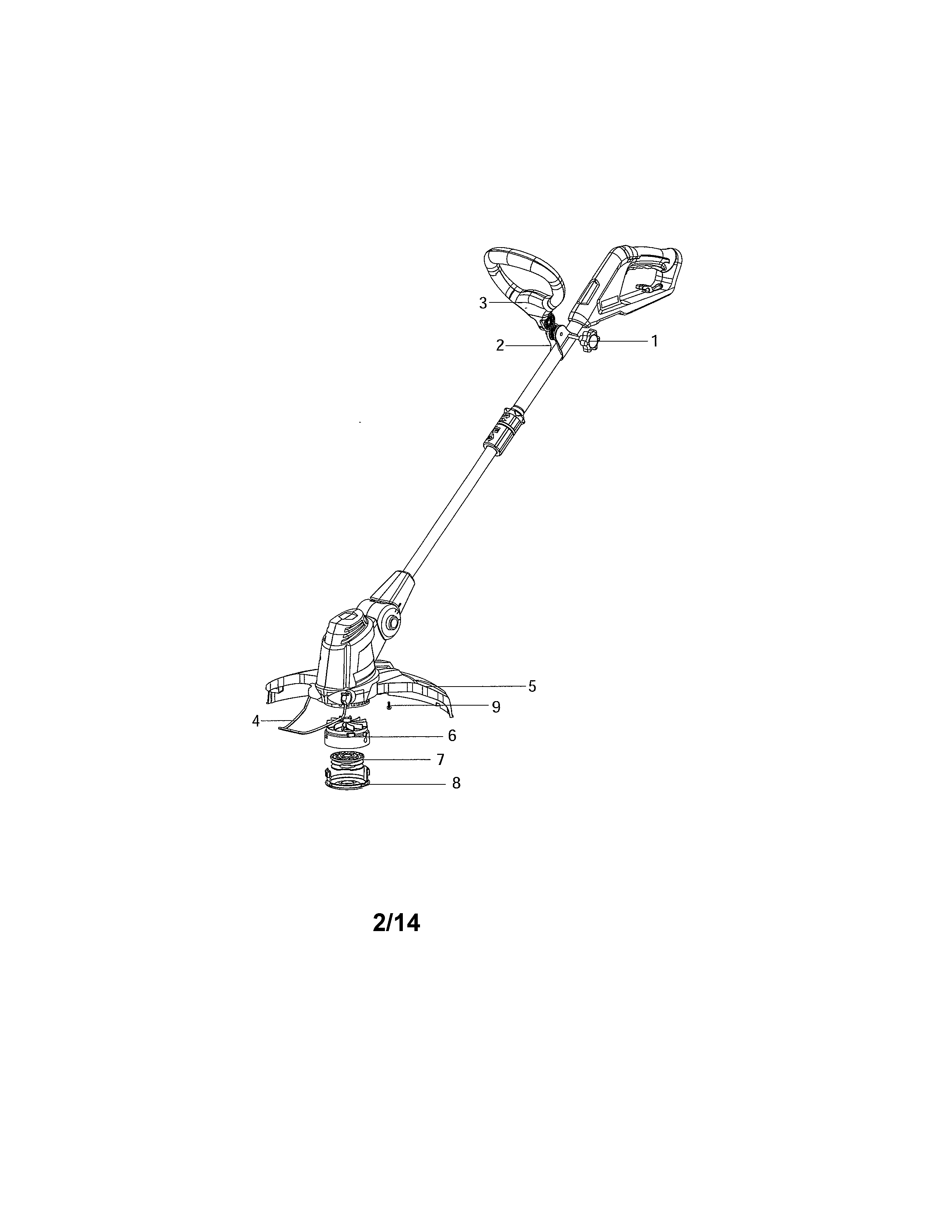

15" string trimmer diagram

15" trimmer guard

Part #31105875

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Edging Guide 33315875
#4

15" string trimmer diagram

Line trimmer edging guide

Part #33315875

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Guard Mounting Screw 3220313-3
#9

15" string trimmer diagram

Line trimmer guard mounting screw

Part #3220313-3

The manufacturer no longer makes this part, and there's no substitute part

Clamp Handle 3110482-2
#2

15" string trimmer diagram

Clamp handle

Part #3110482-2

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Cover 34101176A-1
#8

15" string trimmer diagram

Line trimmer cover

Part #34101176A-1

The manufacturer no longer makes this part, and there's no substitute part

Feed Housing 31106874
#6

15" string trimmer diagram

Feed housing

Part #31106874

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Front Handle 3110182-9
#3

15" string trimmer diagram

Line trimmer front handle

Part #3110182-9

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Spool Assembly 31104178
#7

15" string trimmer diagram

Line trimmer spool assembly

Part #31104178

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Handle Knob 3110282-9
#1

15" string trimmer diagram

Line trimmer handle knob

Part #3110282-9

The manufacturer no longer makes this part, and there's no substitute part
