Franklin Chef
Wine & Beverage Cooler

Model # FBC36OD Official Franklin Chef outdoor beverage cooler

Here are the diagrams and repair parts for Official Franklin Chef FBC36OD outdoor beverage cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Lock L222000034
#38

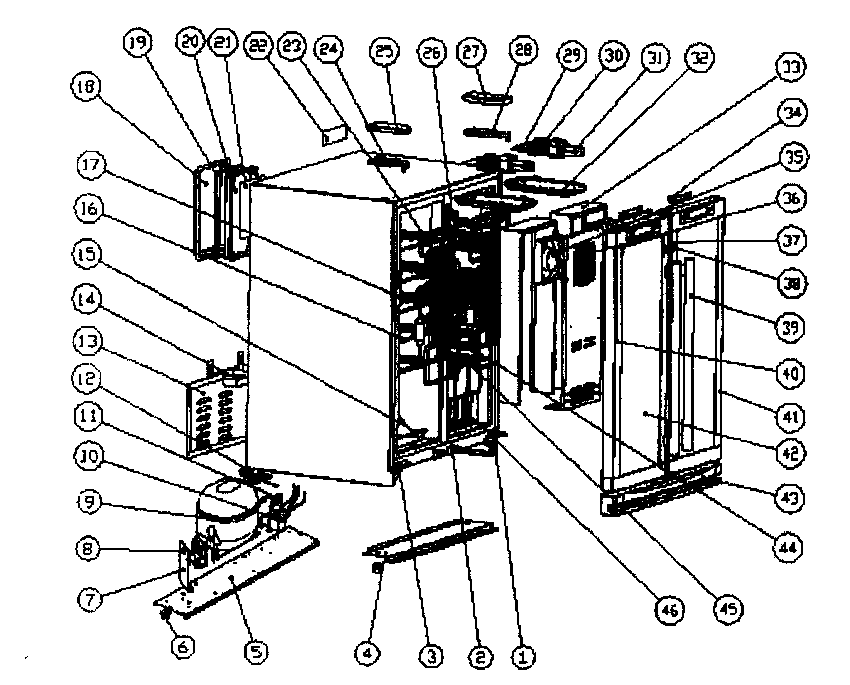

Cabinet parts diagram

Lock

Part #L222000034

The manufacturer no longer makes this part, and there's no substitute part

Wine Cooler Wire Rack L262000091
#15

Cabinet parts diagram

Wine cooler wire rack

Part #L262000091

The manufacturer no longer makes this part, and there's no substitute part

Rear Grill L232001342
#13

Cabinet parts diagram

Rear grill

Part #L232001342

The manufacturer no longer makes this part, and there's no substitute part

Hinge L232001120
#28

Cabinet parts diagram

Hinge

Part #L232001120

The manufacturer no longer makes this part, and there's no substitute part

Plate L272001266
#22

Cabinet parts diagram

Plate

Part #L272001266

The manufacturer no longer makes this part, and there's no substitute part

Drop Tray L232000257
#14

Cabinet parts diagram

Drop tray

Part #L232000257

The manufacturer no longer makes this part, and there's no substitute part

R Door L222001645
#40

Cabinet parts diagram

R door

Part #L222001645

The manufacturer no longer makes this part, and there's no substitute part

Lamp Clip L232000106
#29

Cabinet parts diagram

Lamp clip

Part #L232000106

The manufacturer no longer makes this part, and there's no substitute part

Light Cover L251001087
#32

Cabinet parts diagram

Light cover

Part #L251001087

The manufacturer no longer makes this part, and there's no substitute part

Compressor Y320001067
#9

Cabinet parts diagram

Compressor

Part #Y320001067

The manufacturer no longer makes this part, and there's no substitute part
