Frigidaire
Electric Wall Oven

Model # REG77BCB0 Official Frigidaire electric wall oven - 82-385-12

Here are the diagrams and repair parts for Official Frigidaire REG77BCB0 electric wall oven - 82-385-12, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

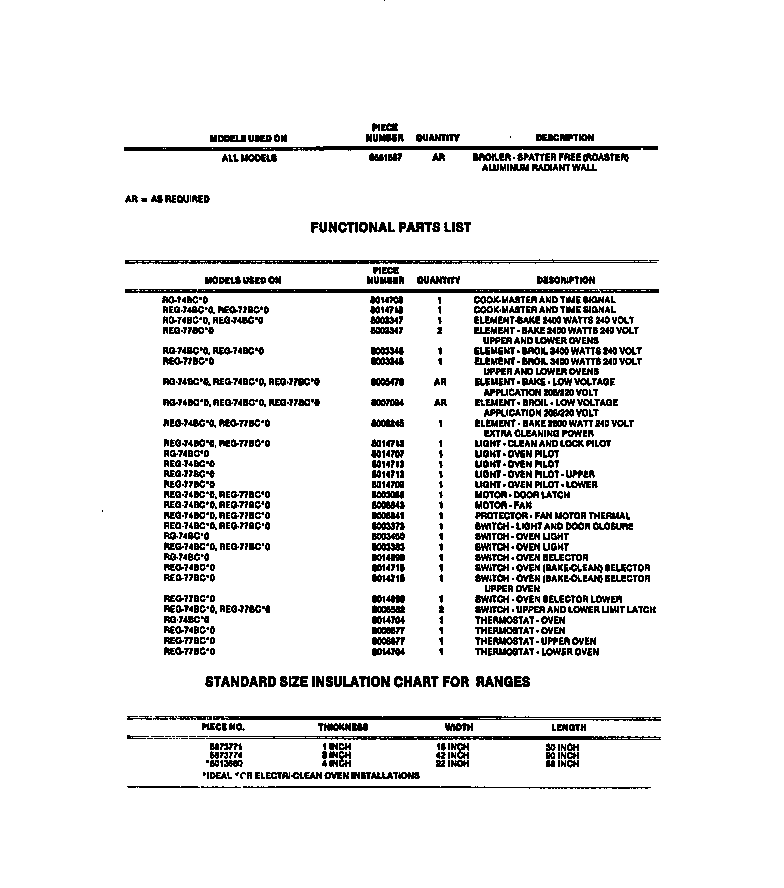

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 156 parts  |
Block 6563359
Block

Part #6563359

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 6563359. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Light Shield 8011086
Light shield

Part #8011086

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 8011086. Substitute parts can look different from the original.
$13.90 |
13% OFF Phone Price : $15.90
In Stock
Oven Element 8008245
#32

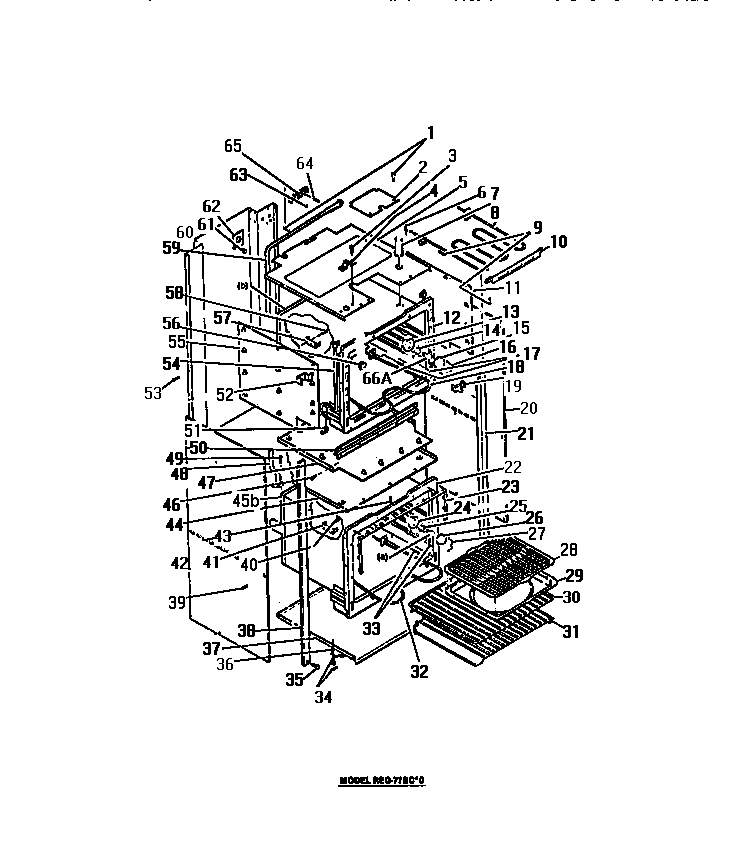

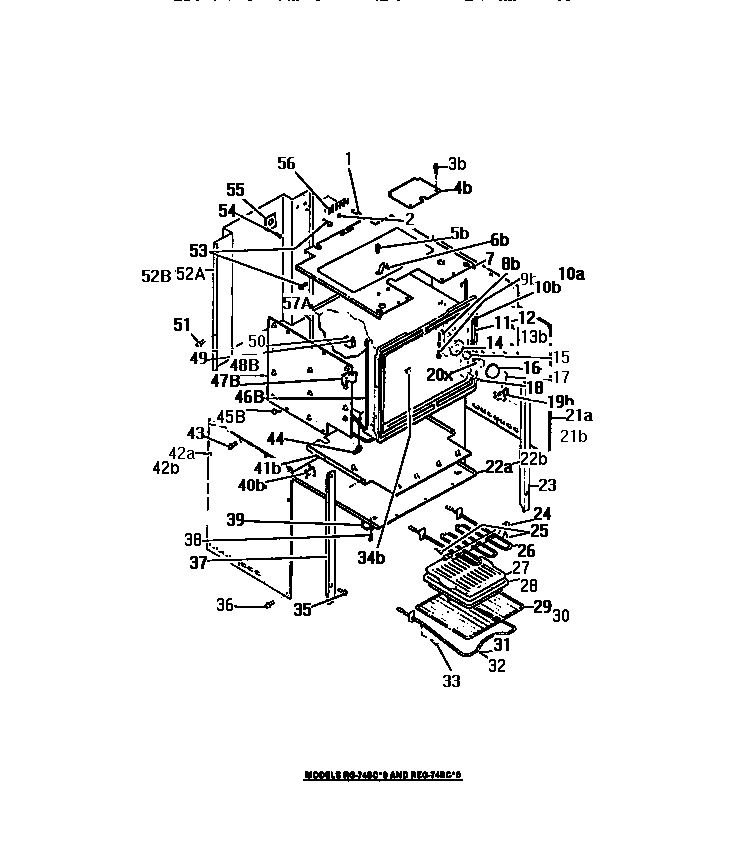

Oven liner, heating elements, panels diagram

Oven element

Part #8008245

The manufacturer no longer makes this part, and there's no substitute part

Oven Grille 8005314
Oven grille

Part #8005314

The manufacturer no longer makes this part, and there's no substitute part

Bar 8003366
#6

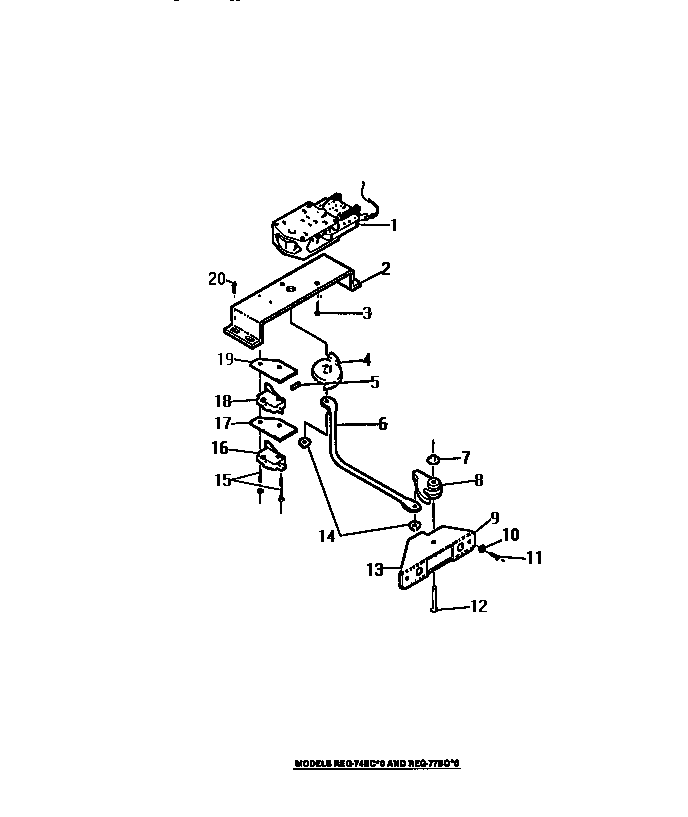

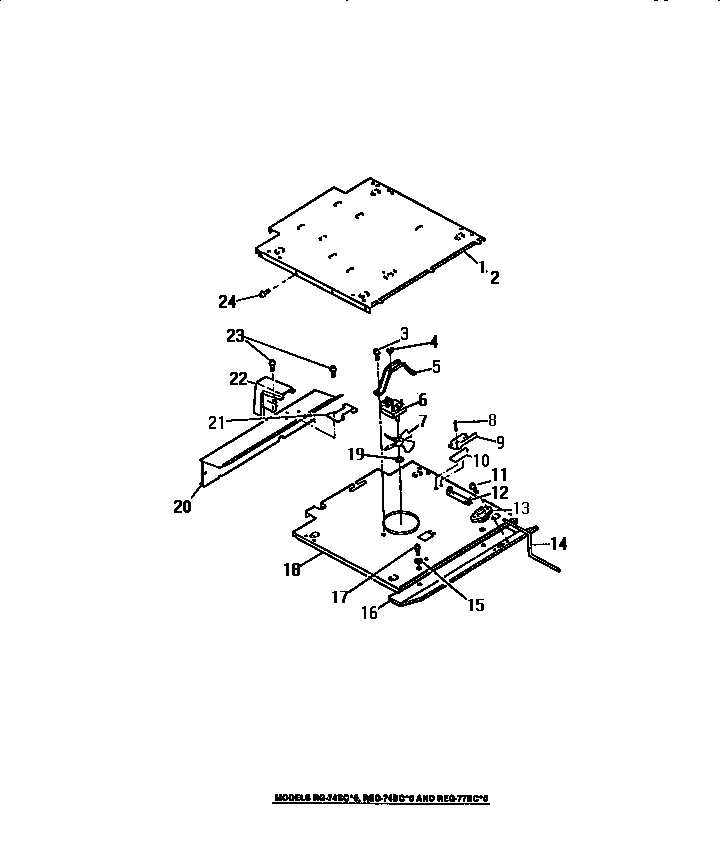

Door latch mechanism diagram

Bar

Part #8003366

The manufacturer no longer makes this part, and there's no substitute part

Handle 8014701
Handle

Part #8014701

The manufacturer no longer makes this part, and there's no substitute part

Knob (4) 8012558
Knob (4)

Part #8012558

The manufacturer no longer makes this part, and there's no substitute part

Motor 8003086
#1

Door latch mechanism diagram

Motor

Part #8003086

The manufacturer no longer makes this part, and there's no substitute part

Oven Light Switch 8003450
#2A

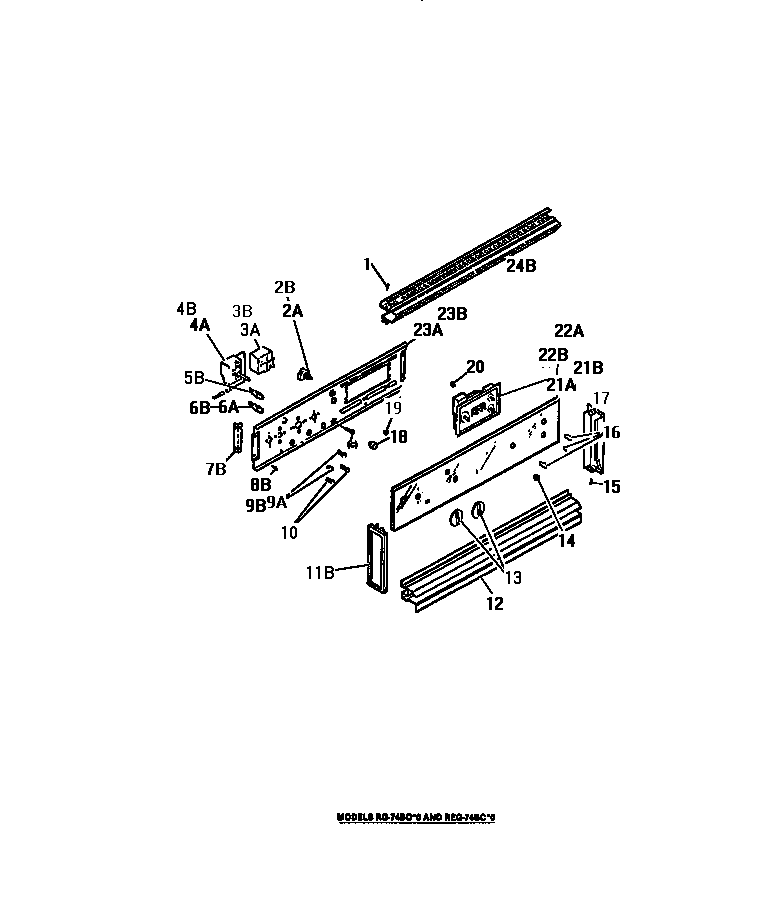

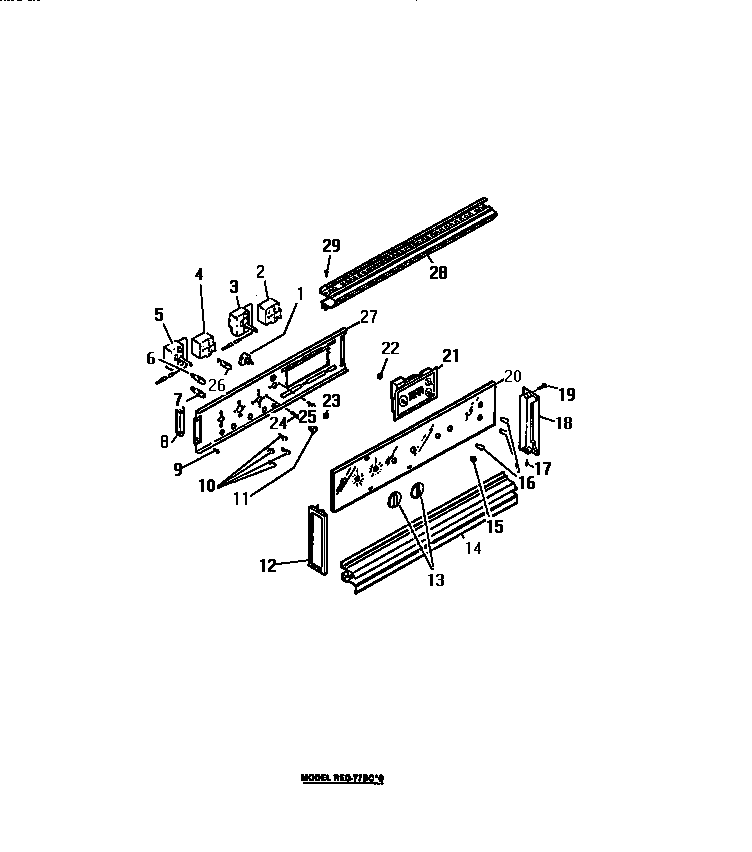

Control panel, cook-master, switches diagram

Oven light switch

Part #8003450

The manufacturer no longer makes this part, and there's no substitute part

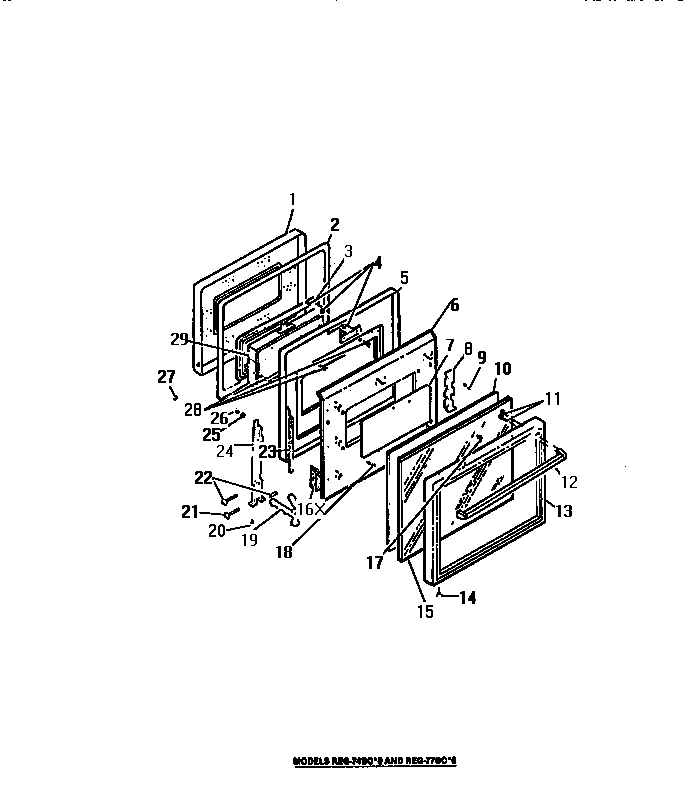

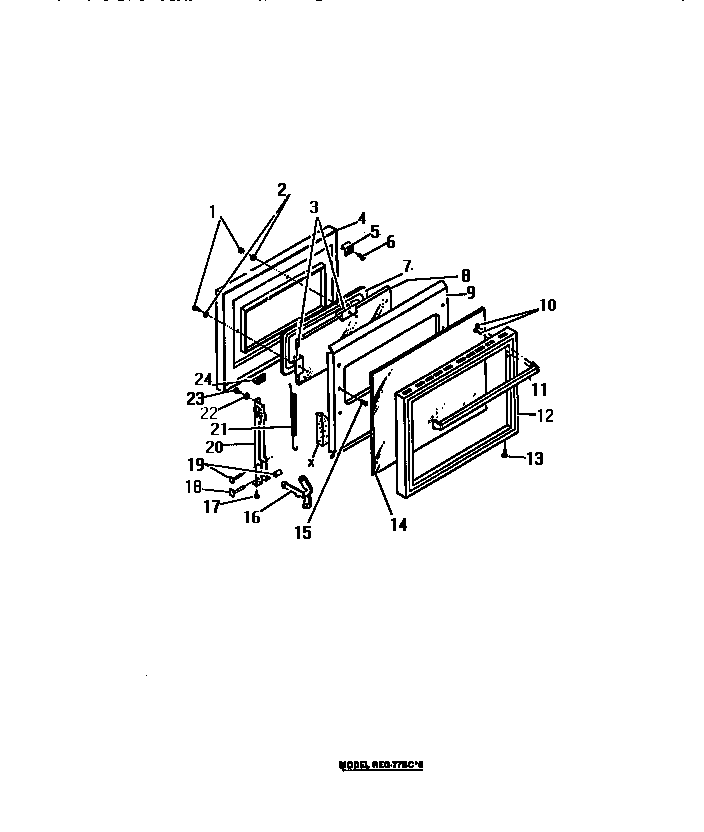

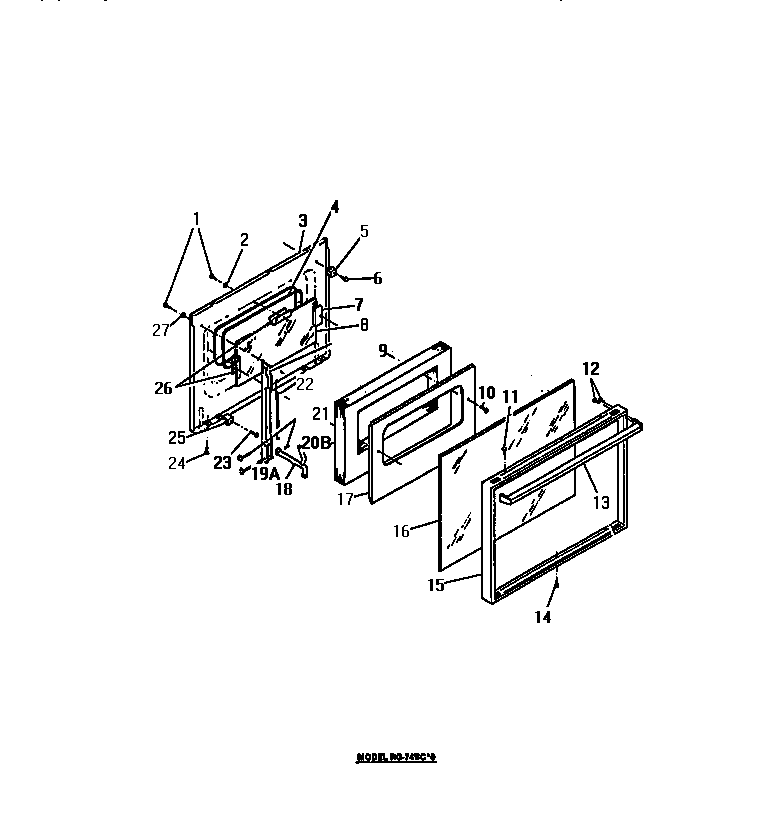

Inner Door Panel 8012255
Inner door panel

Part #8012255

The manufacturer no longer makes this part, and there's no substitute part
