Model # B1CH180A58A Official York heat pump

Here are the diagrams and repair parts for Official York B1CH180A58A heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 193 parts  |
Elec Cntrllr 025-20963-000

#8

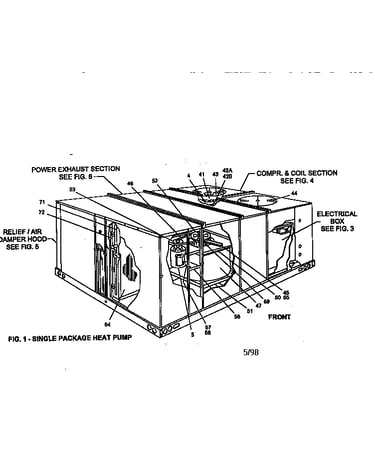

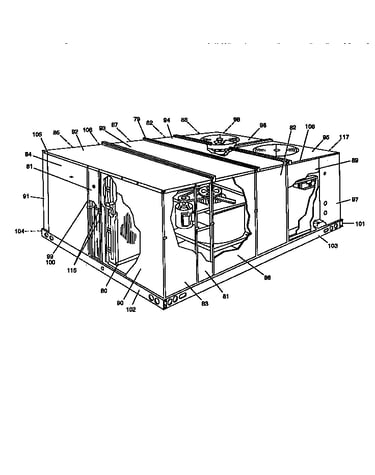

All parts diagram

Elec cntrllr

Part #025-20963-000

$19.63
In Stock
Hood, Rain (lower R/h Side) 073-01876-700
#8

Economizer/motorized damper diagram

Hood, rain (lower r/h side)

Part #073-01876-700

The manufacturer no longer makes this part, and there's no substitute part

Motor, Actuator (economizer - 25 And 46v) 025-26250-700
#1

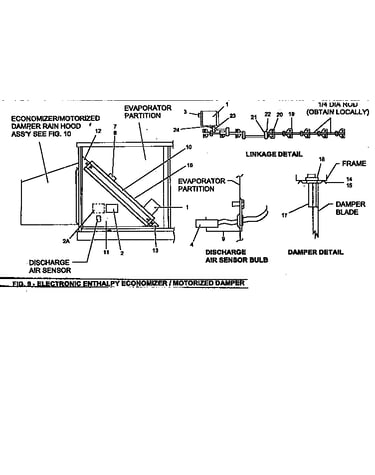

Electrical enthalpy diagram

Motor, actuator (economizer - 25 and 46v)

Part #025-26250-700

The manufacturer no longer makes this part, and there's no substitute part

Block Trmnl 025-20710-000

#35

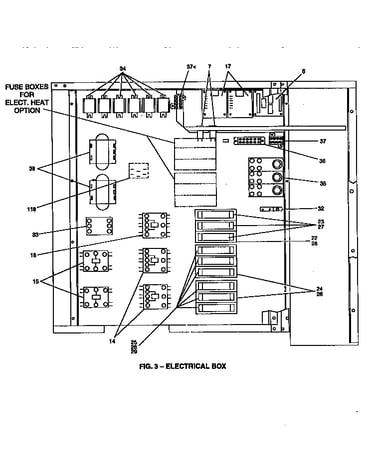

All parts diagram

Block trmnl

Part #025-20710-000

The manufacturer no longer makes this part, and there's no substitute part

Transformer 025-27729-700

#38

All parts diagram

Transformer

Part #025-27729-700

The manufacturer no longer makes this part, and there's no substitute part

Distr. Assembly W/tubes Sys. 1 And 2 (2-req) 022-08939-700

#67

All parts diagram

Distr. assembly w/tubes sys. 1 and 2 (2-req)

Part #022-08939-700

The manufacturer no longer makes this part, and there's no substitute part

Contact, Split Pin (box Of 50) (1) (use Hand Tool #044-02999-700 When Applying Contact.) 025-20919-700
Contact, split pin (box of 50) (1) (use hand tool #044-02999-700 when applying contact.)

Part #025-20919-700

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder 025-18283-000

#NI

All parts diagram

Fuse holder

Part #025-18283-000

The manufacturer no longer makes this part, and there's no substitute part

Heater Ele 025-27709-707
#1C

Wiring diagram diagram

Heater ele

Part #025-27709-707

The manufacturer no longer makes this part, and there's no substitute part

Flame, Damper Vert. (2-req'd) 073-01932-000
#11

Power exhaust diagram

Flame, damper vert. (2-req'd)

Part #073-01932-000

The manufacturer no longer makes this part, and there's no substitute part
