Kenmore
Trash Compactor

Model # 6657342701 Official Kenmore compactor

Here are the diagrams and repair parts for Official Kenmore 6657342701 compactor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

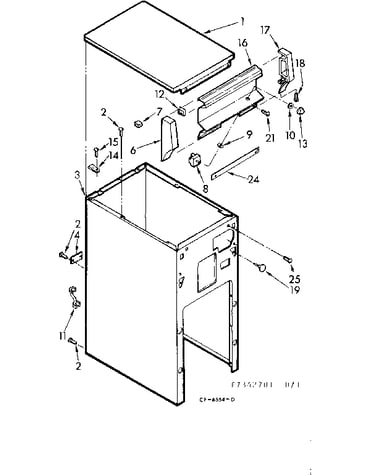

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Gear 776839
#11

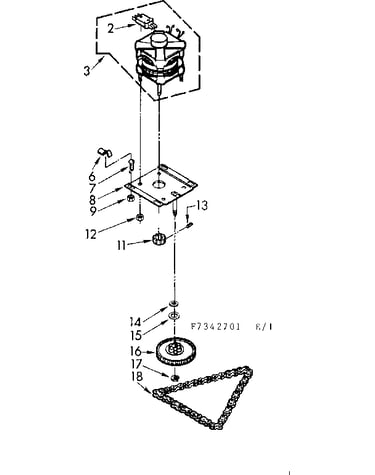

Motor & drive assembly diagram

Gear

Part #776839

Replaced by #882699

?
Manufacturer substitution
This part replaces 776839. Substitute parts can look different from the original.
BEST SELLER
$50.90 |
11% OFF Phone Price : $56.90
In Stock
Leveler 775526
#11

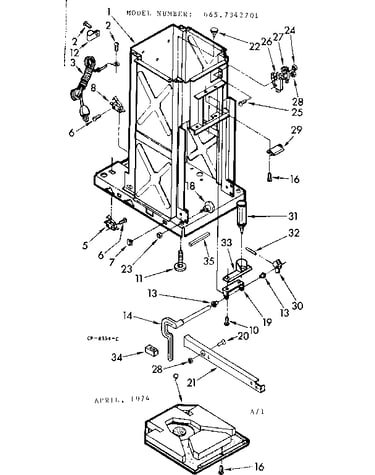

Frame assembly diagram

Leveler

Part #775526

Replaced by #WPW10001130

?
Manufacturer substitution
This part replaces 775526. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.23 |
19% OFF Phone Price : $5.23
In Stock
Pin 454512
#13

Motor & drive assembly diagram

Pin

Part #454512

Replaced by #WP454512

?
Manufacturer substitution
This part replaces 454512. Substitute parts can look different from the original.
This item is not returnable
$5.84 |
15% OFF Phone Price : $6.84
In Stock
Bearing 776262
#18

Frame assembly diagram

Bearing

Part #776262

Replaced by #882688

?
Manufacturer substitution
This part replaces 776262. Substitute parts can look different from the original.
This item is not returnable
$22.04 |
21% OFF Phone Price : $28.04
In Stock
Latch 775740
#10

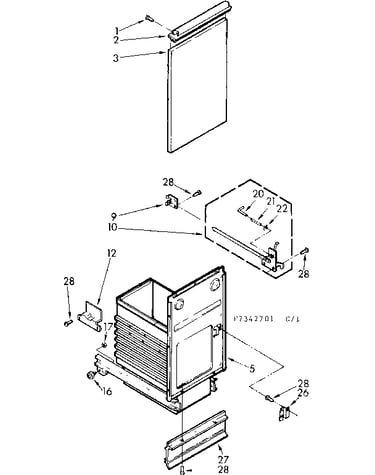

Container assembly diagram

Latch

Part #775740

Replaced by #675379

?
Manufacturer substitution
This part replaces 775740. Substitute parts can look different from the original.
$66.29 |
8% OFF Phone Price : $72.29
In Stock
Kenmore Elite Trash Compactor Drive Motor Plate 776327
#8

Motor & drive assembly diagram

Kenmore elite trash compactor drive motor plate

Part #776327

$46.62
In Stock
Kenmore Elite Trash Compactor Drawer Latch Assembly 775665
#26

Container assembly diagram

Kenmore elite trash compactor drawer latch assembly

Part #775665

$40.22
In Stock
Lock Nut 776338
#12

Motor & drive assembly diagram

Lock nut

Part #776338

Replaced by #WP776338

?
Manufacturer substitution
This part replaces 776338. Substitute parts can look different from the original.
$11.34
In Stock
Pan 776063
#9

Frame assembly diagram

Pan

Part #776063

Replaced by #WP780437

?
Manufacturer substitution
This part replaces 776063. Substitute parts can look different from the original.
$103.96 |
10% OFF Phone Price : $115.96
In Stock
Kenmore Elite Trash Compactor Power Screw Thrust Race 775481
#18

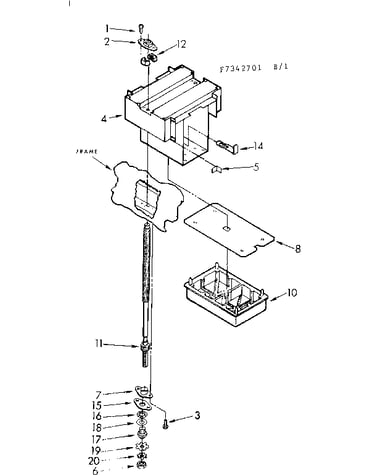

Power screw & ram assembly diagram

Kenmore elite trash compactor power screw thrust race

Part #775481

$33.89 |
15% OFF Phone Price : $39.89
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your trash compactors

Choose a symptom to see related trash compactor repairs.

View all

Why is the trash compactor's ram stuck in the down position?

Main causes: broken drive gear and sprocket chain, stripped power nuts, faulty top limit and directional switch…

Read more

Why won't my trash compactor stop running?

Main causes: stuck foot pedal, bad momentary start switch, power switch failure…

Read more

Why does my trash compactor run constantly with its ram in the up position?

Main cause: broken top limit and directional switch…

Read more

Why wont my trash compactor's ram go down?

Main cause: faulty drawer tilt switch …

Read more

Why does the trash compactor ram not move even though the motor runs?

Main causes: stripped or broken power nuts, broken or disconnected drive gear and sprocket chain, damaged drive parts…

Read more

Why is it hard to open the trash compactor drawer?

Main causes: bent drawer support rollers, damaged trash container…

Read more

Why won't my trash compactor start?

Main causes: lack of power, faulty drawer safety switch, bad power switch, momentary start switch failure, bad drive mot…

Read more
