KitchenAid
Gas Cooktop

Model # KGCU462VSS00 Official KitchenAid 36" professional cooktop (stainless)

Here are the diagrams and repair parts for Official KitchenAid KGCU462VSS00 36" professional cooktop (stainless), as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Spark Module W10116108
#27

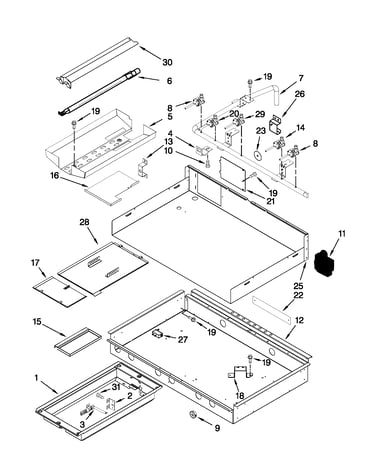

Burner box, gas valves, and switches diagram

Spark module

Part #W10116108

Replaced by #WP8190929

?
Manufacturer substitution
This part replaces W10116108. Substitute parts can look different from the original.
$39.55 |
13% OFF Phone Price : $45.55
In Stock
Cooktop Burner Valve W10305287
#20

Burner box, gas valves, and switches diagram

Cooktop burner valve

Part #W10305287

Replaced by #WPW10371235

?
Manufacturer substitution
This part replaces W10305287. Substitute parts can look different from the original.
$179.21 |
6% OFF Phone Price : $191.21
In Stock
Grate Pad 9760219
#8

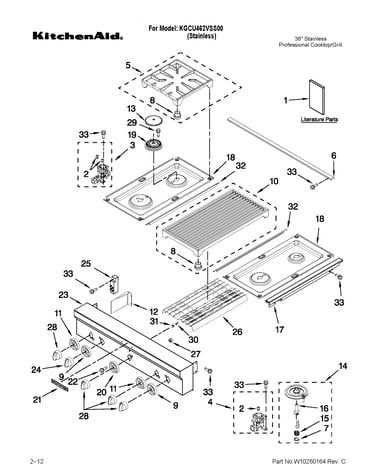

Cooktop, burner and grate parts diagram

Grate pad

Part #9760219

Replaced by #8186321

?
Manufacturer substitution
This part replaces 9760219. Substitute parts can look different from the original.
This item is not returnable
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Range Surface Burner Grate W10115928
#5

Cooktop, burner and grate parts diagram

Range surface burner grate

Part #W10115928

Replaced by #WPW10115928

?
Manufacturer substitution
This part replaces W10115928. Substitute parts can look different from the original.
$142.43 |
8% OFF Phone Price : $154.43
In Stock
Surface Igniter W10145991
#16B

Cooktop, burner and grate parts diagram

Surface igniter

Part #W10145991

Replaced by #WPW10145991

?
Manufacturer substitution
This part replaces W10145991. Substitute parts can look different from the original.
$36.58 |
14% OFF Phone Price : $42.58
In Stock
Range Screw 3177991
#19

Burner box, gas valves, and switches diagram

Range screw

Part #3177991

Replaced by #WP3177991

?
Manufacturer substitution
This part replaces 3177991. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Range Burner Head W10282515
#19B

Cooktop, burner and grate parts diagram

Range burner head

Part #W10282515

Replaced by #WPW10282515

?
Manufacturer substitution
This part replaces W10282515. Substitute parts can look different from the original.
$73.89 |
8% OFF Phone Price : $79.89
In Stock
Orifice W10160185
#2A

Cooktop, burner and grate parts diagram

Orifice

Part #W10160185

$41.36
In Stock
Range Grill Deflector W10250469
#26

Cooktop, burner and grate parts diagram

Range grill deflector

Part #W10250469

$243.49 |
5% OFF Phone Price : $255.49
In Stock
Cooktop Grill Burner Valve W10305285
#29

Burner box, gas valves, and switches diagram

Cooktop grill burner valve

Part #W10305285

$214.16
In Stock
