Model # 16153690 Official Sears electronic portable typewriter

Here are the diagrams and repair parts for Official Sears 16153690 electronic portable typewriter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

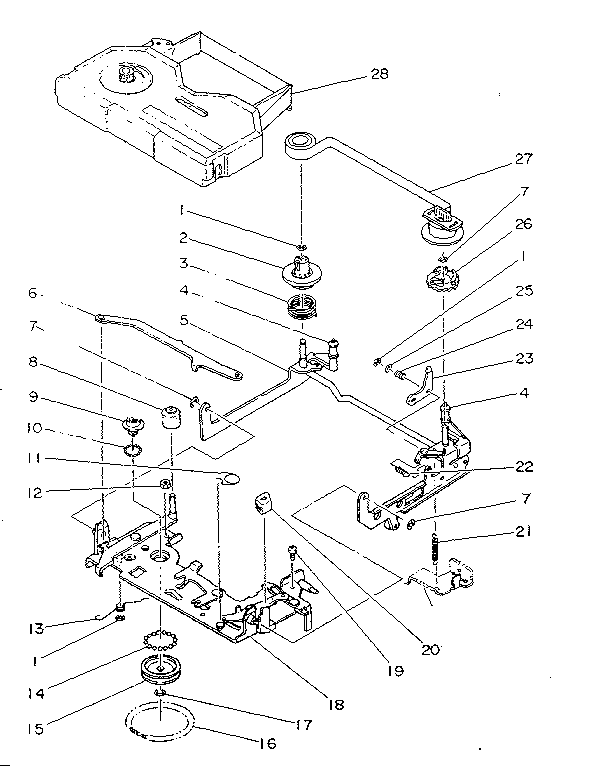

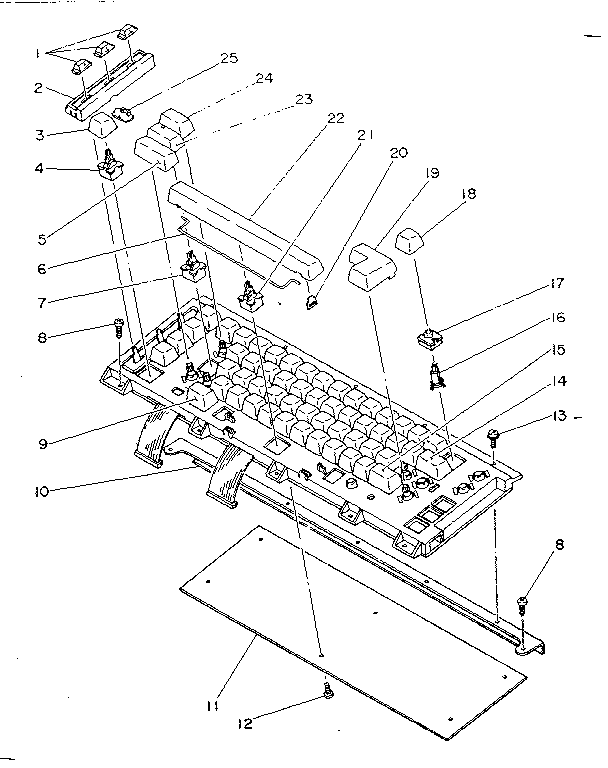

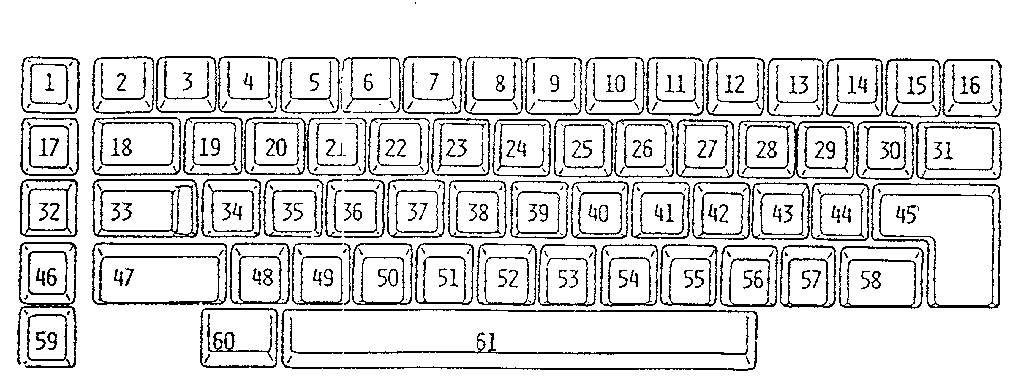

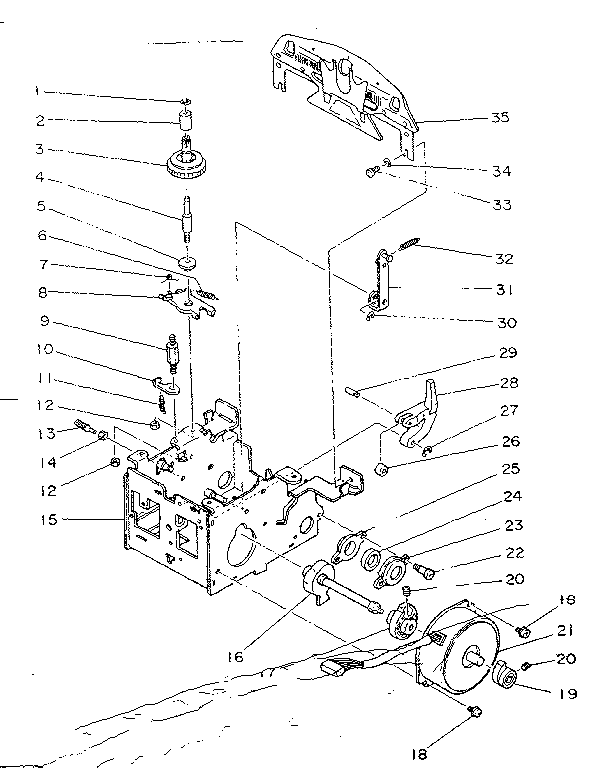

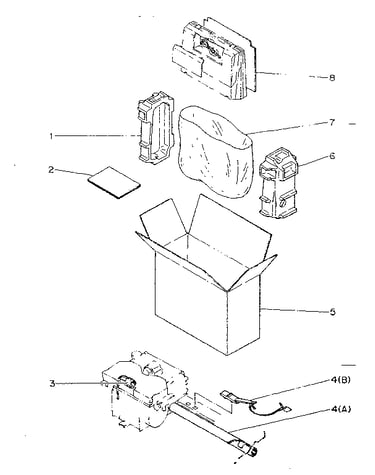

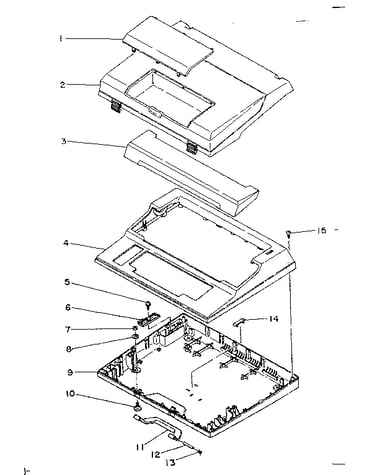

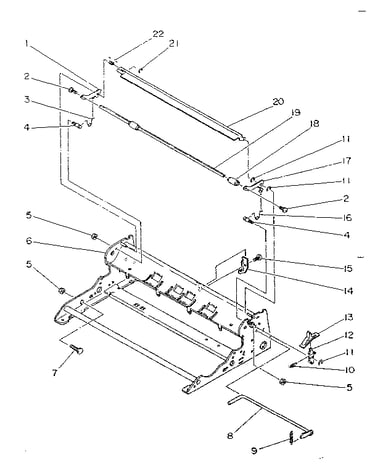

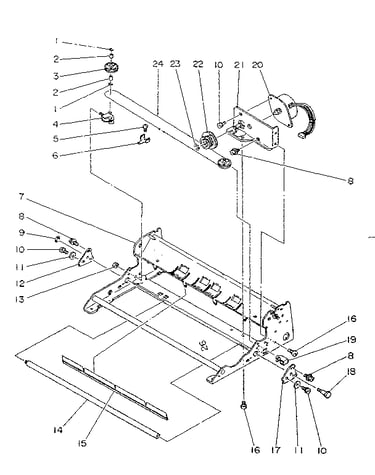

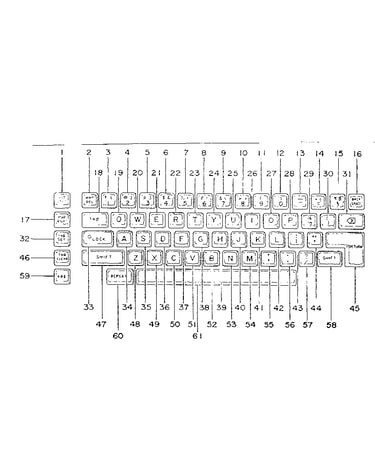

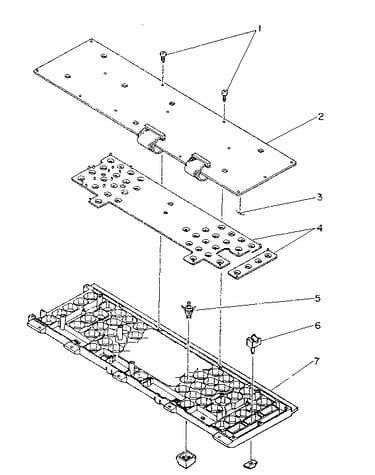

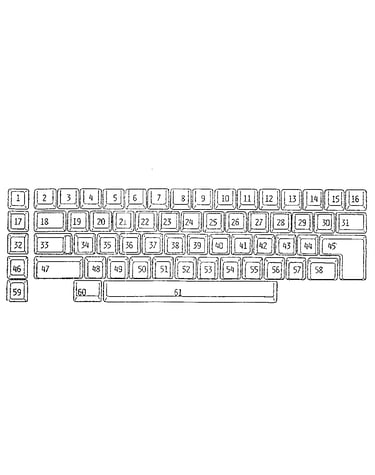

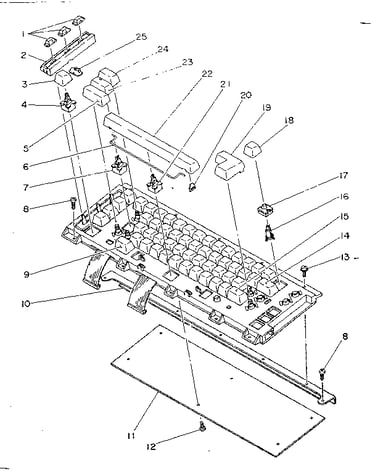

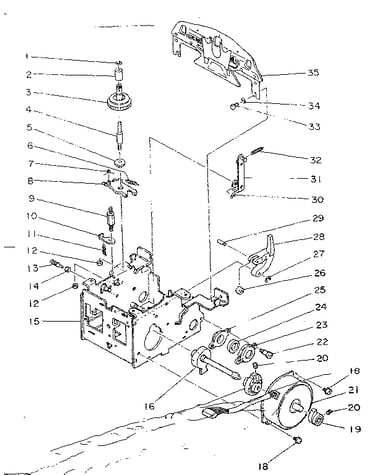

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 412 parts  |
Washer 501-10891
#17C

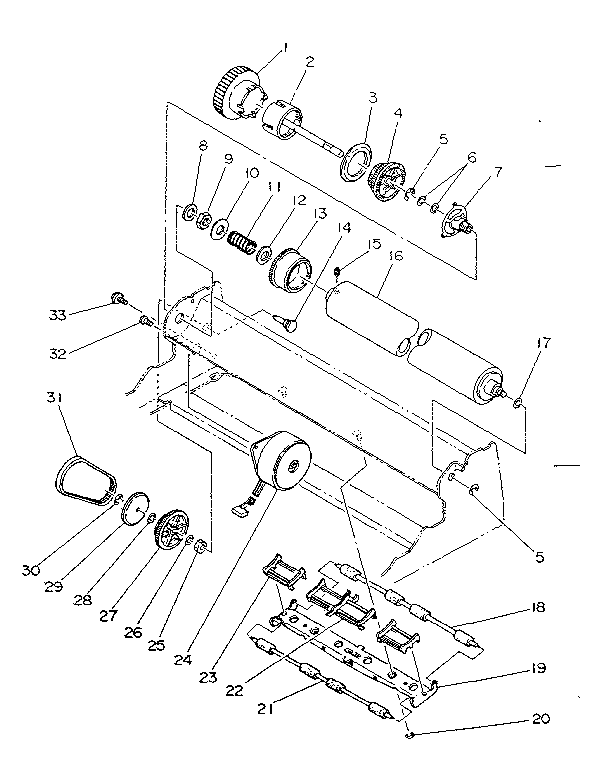

Paper feed mechanism diagram

Washer

Part #501-10891

The manufacturer no longer makes this part, and there's no substitute part

Washer 501-10930
#17A

Paper feed mechanism diagram

Washer

Part #501-10930

The manufacturer no longer makes this part, and there's no substitute part

1.6 Ohm 2w 330-21300
#18

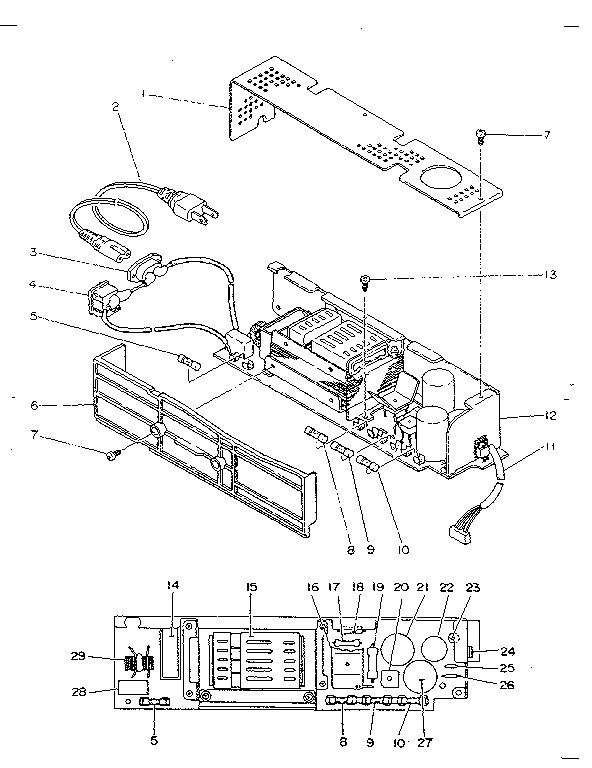

Power supply mechanism diagram

1.6 ohm 2w

Part #330-21300

The manufacturer no longer makes this part, and there's no substitute part

Screw 011-00160
#6

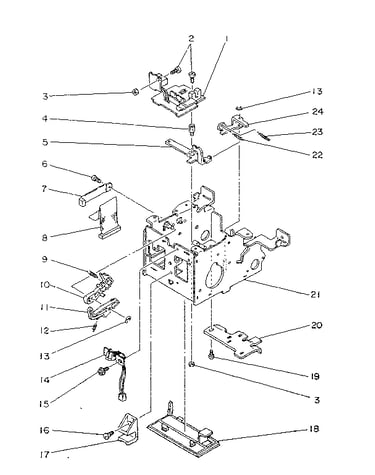

Carrier chassis mechanism-ii diagram

Screw

Part #011-00160

The manufacturer no longer makes this part, and there's no substitute part

Screw 551-10040
#3

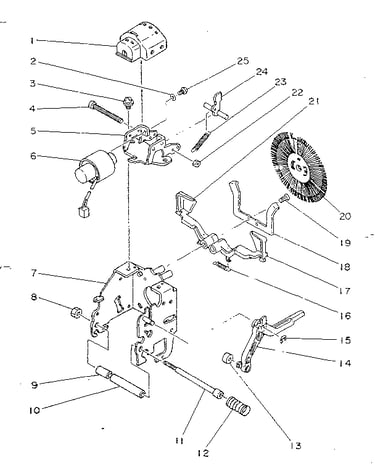

Printer head mechanism-ii diagram

Screw

Part #551-10040

The manufacturer no longer makes this part, and there's no substitute part

Screw 330-51070
#17

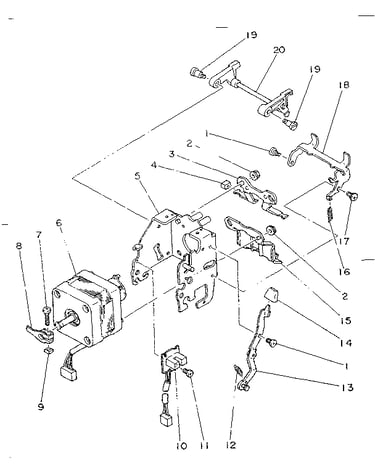

Printer head mechanism-i diagram

Screw

Part #330-51070

The manufacturer no longer makes this part, and there's no substitute part

Cap 3300uf 5 330-21080
#27

Power supply mechanism diagram

Cap 3300uf 5

Part #330-21080

The manufacturer no longer makes this part, and there's no substitute part

Fuse 330-21390
#8A

Power supply mechanism diagram

Fuse

Part #330-21390

The manufacturer no longer makes this part, and there's no substitute part

Nut M-3 011-03510
Nut m-3

Part #011-03510

The manufacturer no longer makes this part, and there's no substitute part

Rectifier 330-21150
#20

Power supply mechanism diagram

Rectifier

Part #330-21150

The manufacturer no longer makes this part, and there's no substitute part
