Model # KBSD708MBS00 Official KitchenAid refrigerator, all

Here are the diagrams and repair parts for Official KitchenAid KBSD708MBS00 refrigerator, all, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

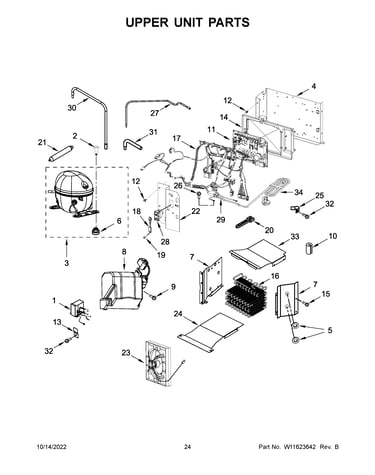

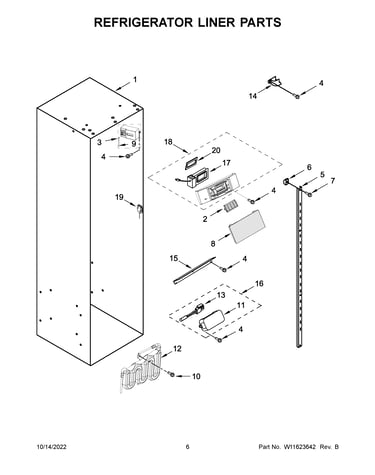

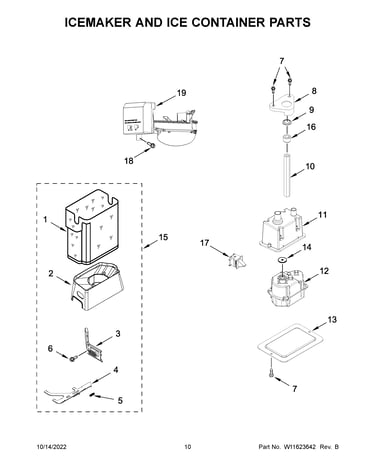

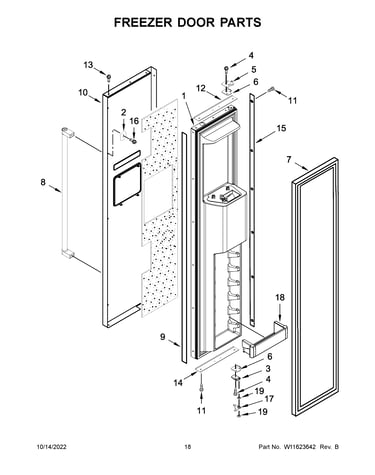

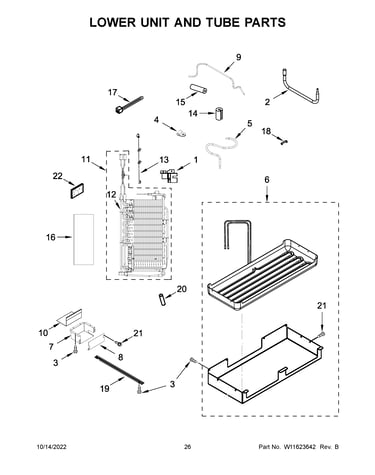

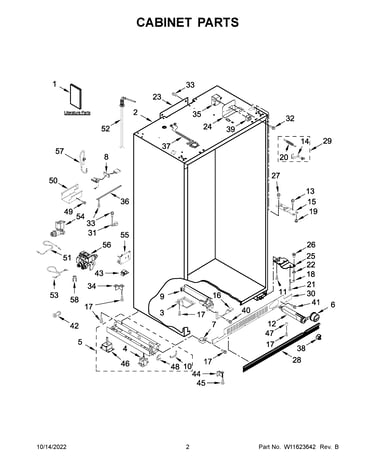

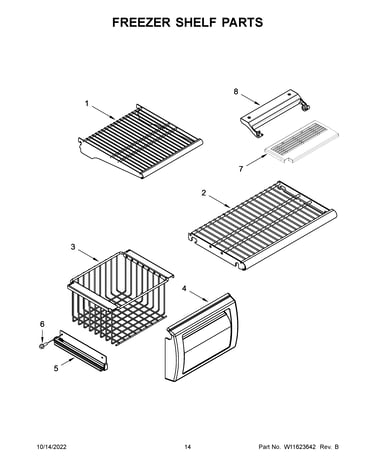

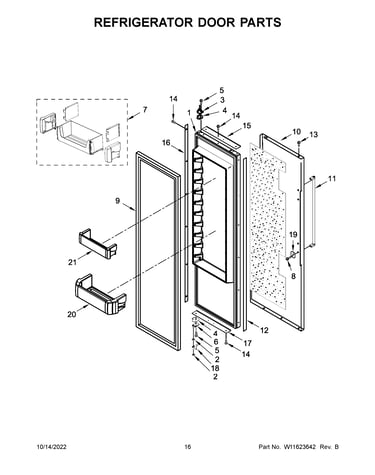

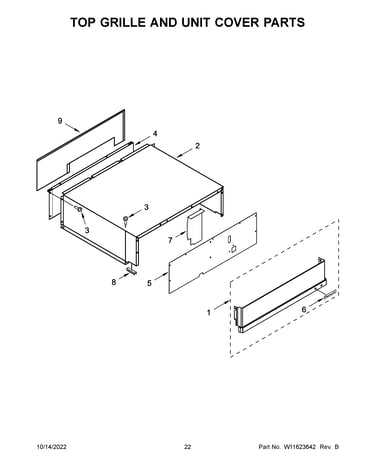

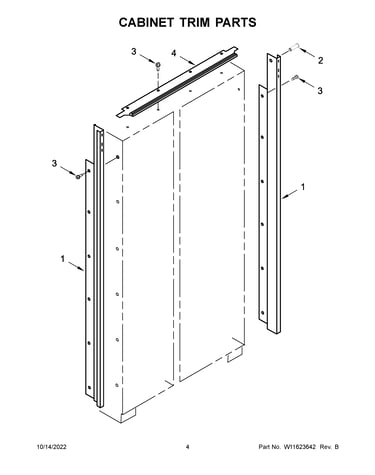

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 276 parts  |
Refrigerator Filter W10121146
Refrigerator filter

Part #W10121146

Replaced by #EDR3RXD1

?
Manufacturer substitution
This part replaces W10121146. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Refrigerator Air Filter W10315189
Refrigerator air filter

Part #W10315189

Replaced by #W10311524

?
Manufacturer substitution
This part replaces W10315189. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$16.74 |
11% OFF Phone Price : $18.74
In Stock
Dispenser Motor W11185741
Dispenser motor

Part #W11185741

Replaced by #W10822606

?
Manufacturer substitution
This part replaces W11185741. Substitute parts can look different from the original.
BEST SELLER
$89.46 |
7% OFF Was : $96.09
In Stock
Refrigerator Ice Dispenser Driveshaft Seal 2198628
Refrigerator ice dispenser driveshaft seal

Part #2198628

Replaced by #WP2198628

?
Manufacturer substitution
This part replaces 2198628. Substitute parts can look different from the original.
BEST SELLER
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Drier Tube W10805035
Drier tube

Part #W10805035

Replaced by #W11109499

?
Manufacturer substitution
This part replaces W10805035. Substitute parts can look different from the original.
BEST SELLER
$24.38 |
20% OFF Phone Price : $30.38
In Stock
Refrigerator Screw 8533928
Refrigerator screw

Part #8533928

Replaced by #WP8533928

?
Manufacturer substitution
This part replaces 8533928. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerator Bearing Sleeve 2315559
Refrigerator bearing sleeve

Part #2315559

Replaced by #WP2315559

?
Manufacturer substitution
This part replaces 2315559. Substitute parts can look different from the original.
BEST SELLER
$32.24 |
16% OFF Phone Price : $38.24
In Stock
Refrigerator Ice Door Motor W10546285
Refrigerator ice door motor

Part #W10546285

Replaced by #WPW10546285

?
Manufacturer substitution
This part replaces W10546285. Substitute parts can look different from the original.
BEST SELLER
$52.47 |
10% OFF Phone Price : $58.47
In Stock
Refrigerator Door Trim Screw 8281250
Refrigerator door trim screw

Part #8281250

Replaced by #WP8281250

?
Manufacturer substitution
This part replaces 8281250. Substitute parts can look different from the original.
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Refrigerator Spring 2198608
Refrigerator spring

Part #2198608

Replaced by #WP2198608

?
Manufacturer substitution
This part replaces 2198608. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
