Model # DX4500EA2WW Official GE electric dryer

Here are the diagrams and repair parts for Official GE DX4500EA2WW electric dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

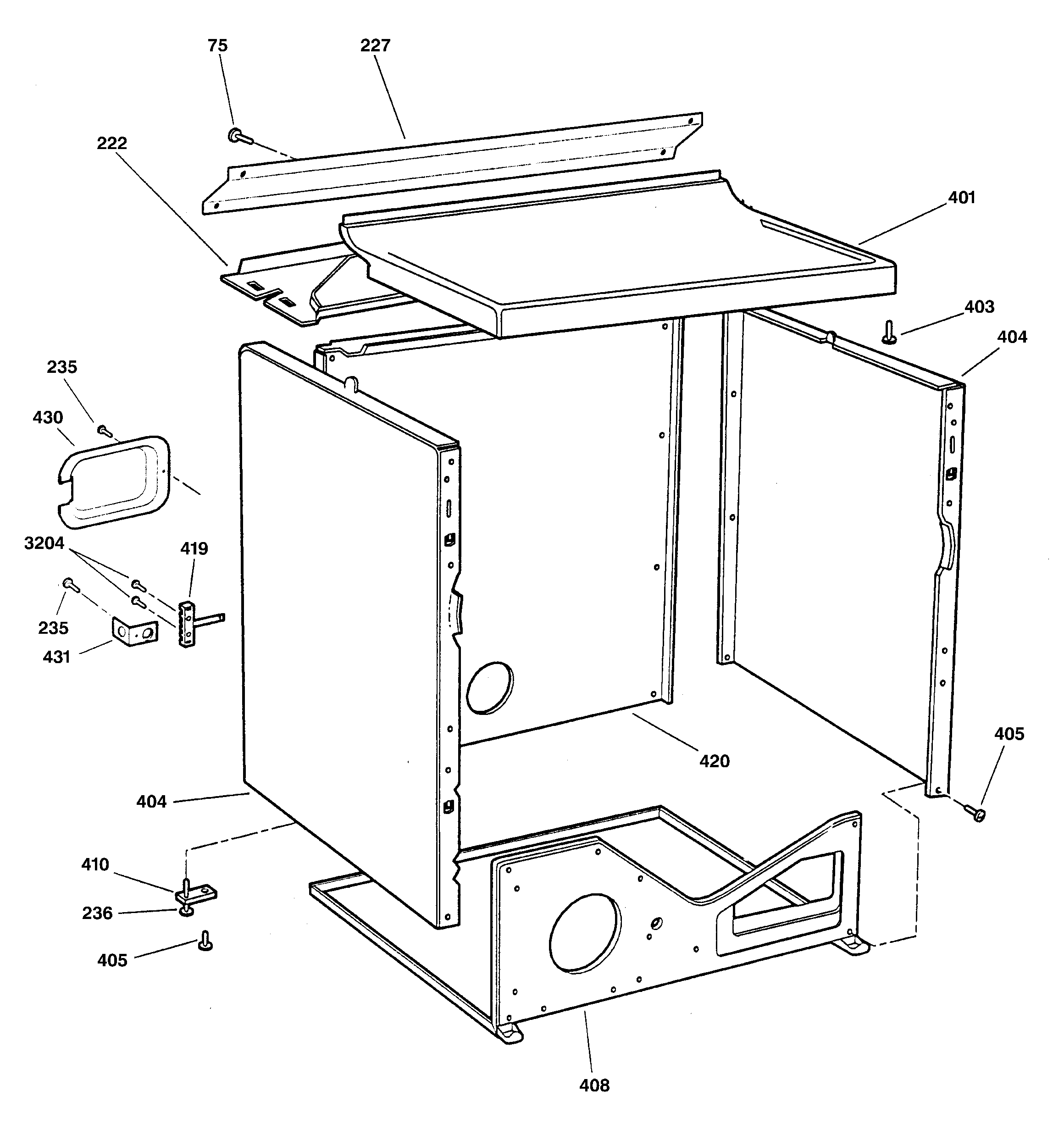

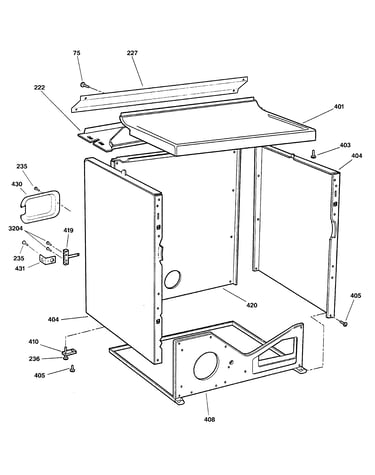

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forDX4500EA2WW Electric Dryer

  • Drum Bearing WE03M0020
    #313

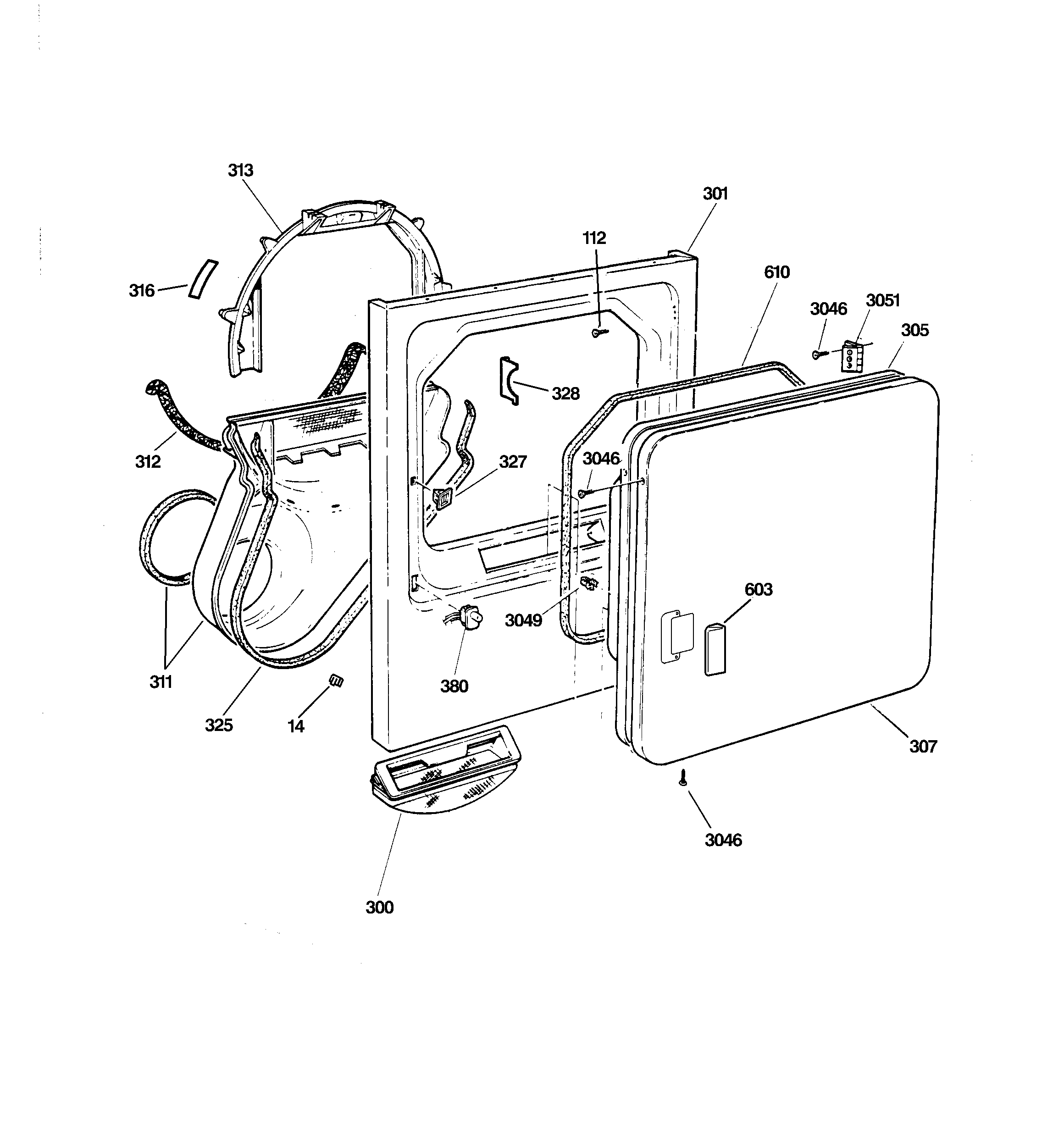

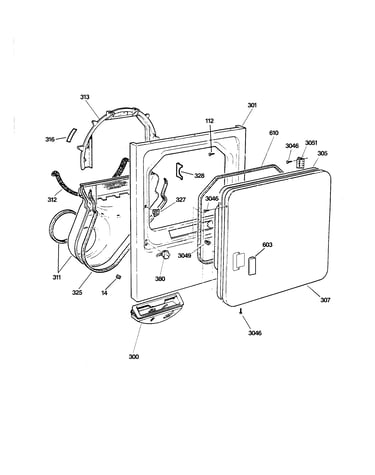

    Front panel & door diagram

    Drum bearing

    Part #WE03M0020

    Replaced by #WE3M26

    ?
    Manufacturer substitution
    This part replaces WE03M0020. Substitute parts can look different from the original.
    BEST SELLER
    $33.56
    15% OFF Phone Price : $39.56
    In Stock
  • Idler Pulley WE12M0008
    #216

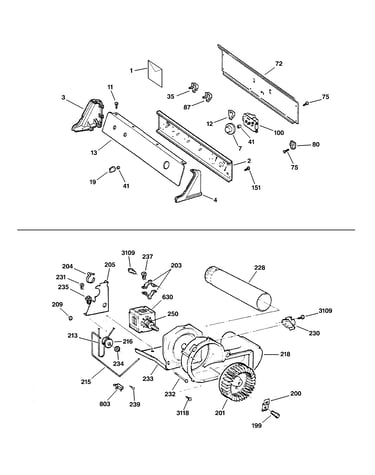

    Backsplash, blower & motor assembly diagram

    Idler pulley

    Part #WE12M0008

    Replaced by #WE03X31620

    ?
    Manufacturer substitution
    This part replaces WE12M0008. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
  • Slide Drum WE01M0333
    #316

    Front panel & door diagram

    Slide drum

    Part #WE01M0333

    Replaced by #WE03X37318

    ?
    Manufacturer substitution
    This part replaces WE01M0333. Substitute parts can look different from the original.
    BEST SELLER
    $10.69
    16% OFF Phone Price : $12.69
    In Stock
  • Air Duct WE14M0076
    #311

    Front panel & door diagram

    Air duct

    Part #WE14M0076

    Replaced by #WE14X25080

    ?
    Manufacturer substitution
    This part replaces WE14M0076. Substitute parts can look different from the original.
    BEST SELLER
    $74.73
    7% OFF Phone Price : $80.73
    In Stock
  • Dryer High-limit Thermostat WE4M137
    #507

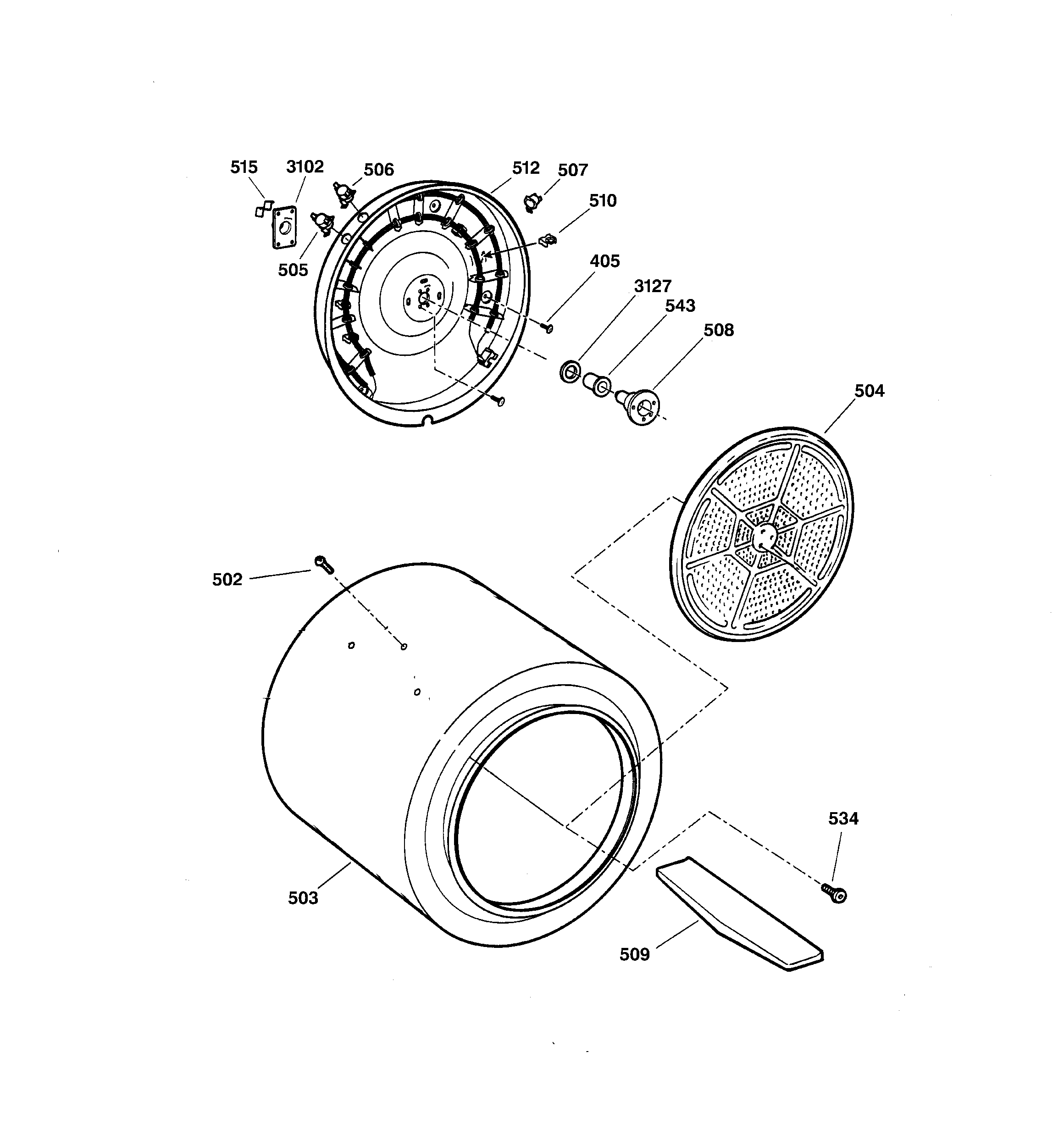

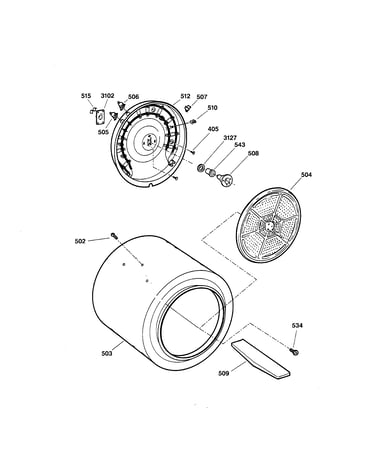

    Drum diagram

    Dryer high-limit thermostat

    Part #WE4M137

    BEST SELLER
    $90.19
    6% OFF Phone Price : $96.19
    In Stock
  • Bearing Retainer WE01M0300
    #3102

    Drum diagram

    Bearing retainer

    Part #WE01M0300

    Replaced by #WE1M300

    ?
    Manufacturer substitution
    This part replaces WE01M0300. Substitute parts can look different from the original.
    BEST SELLER
    $30.07
    17% OFF Phone Price : $36.07
    In Stock
  • G.e. Dryer Heating Element Assembly WE11M23
    #512

    Drum diagram

    G.e. dryer heating element assembly

    Part #WE11M23

    BEST SELLER
    $126.87
    9% OFF Phone Price : $138.87
    In Stock
  • Door Switch WE4M157
    #380

    Front panel & door diagram

    Door switch

    Part #WE4M157

    Replaced by #WE4M415

    ?
    Manufacturer substitution
    This part replaces WE4M157. Substitute parts can look different from the original.
    BEST SELLER
    $30.40
    16% OFF Phone Price : $36.40
    In Stock
  • Sleeve Bearing WE03M0015
    #543

    Drum diagram

    Sleeve bearing

    Part #WE03M0015

    Replaced by #WE25M40

    ?
    Manufacturer substitution
    This part replaces WE03M0015. Substitute parts can look different from the original.
    BEST SELLER
    $62.45
    9% OFF Phone Price : $68.45
    In Stock
  • Washer WE02X0195
    #3127

    Drum diagram

    Washer

    Part #WE02X0195

    Replaced by #WE25M40

    ?
    Manufacturer substitution
    This part replaces WE02X0195. Substitute parts can look different from the original.
    BEST SELLER
    $62.45
    9% OFF Phone Price : $68.45
    In Stock
