Goldstar
Room Air Conditioner

Model # LW5200ER Official Goldstar room air conditioner

Here are the diagrams and repair parts for Official Goldstar LW5200ER room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

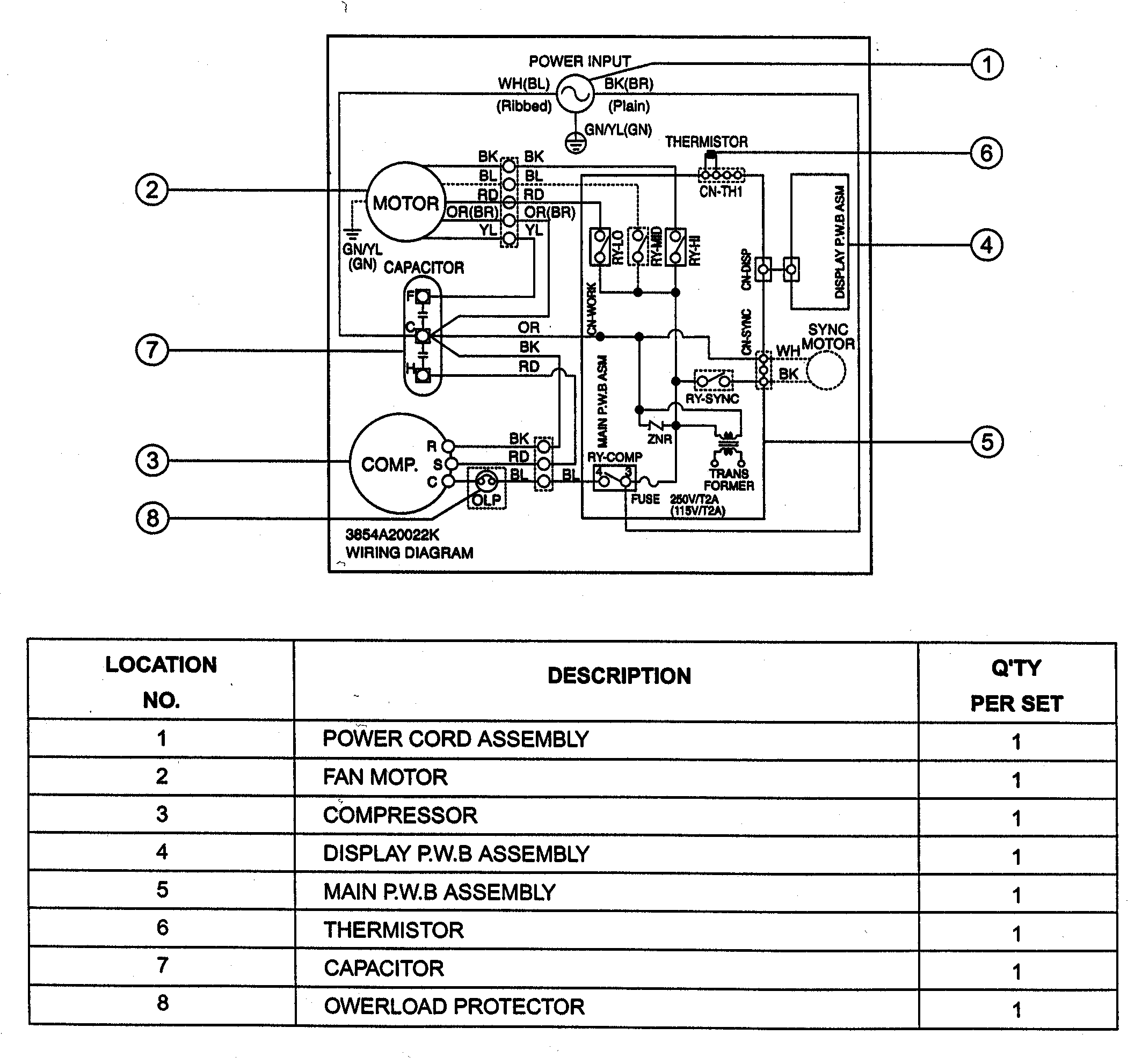

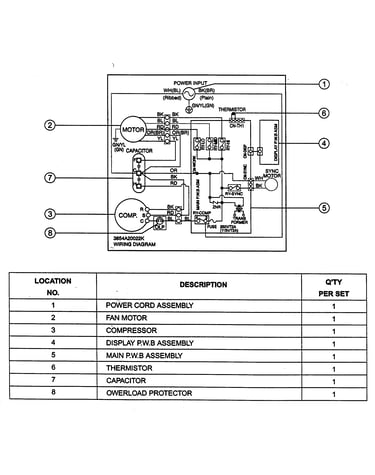

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Room Air Conditioner Air Filter 5231AR2148G
#2302

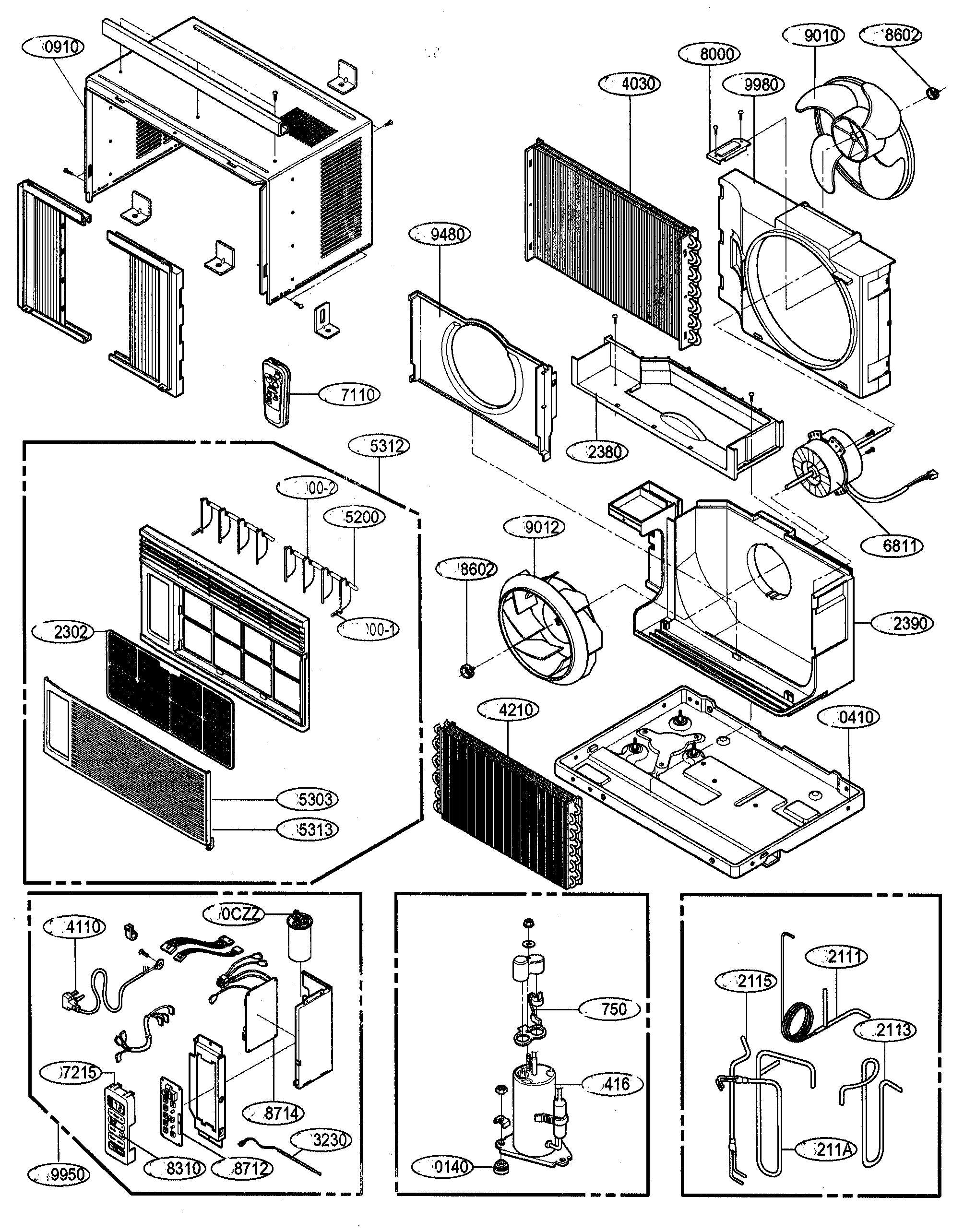

Cabinet parts diagram

Room air conditioner air filter

Part #5231AR2148G

Replaced by #5231AR2148R

?
Manufacturer substitution
This part replaces 5231AR2148G. Substitute parts can look different from the original.
$14.51
In Stock
Friedrich Room Air Conditioner Compressor Grommet 5040AR4195A
#140

Cabinet parts diagram

Friedrich room air conditioner compressor grommet

Part #5040AR4195A

This item is not returnable
$4.51
In Stock
Goldstar Capillary 5424AR3411A
#2101

Cabinet parts diagram

Goldstar capillary

Part #5424AR3411A

$10.60
In Stock
Service Manual 3828A20038L
#NI

Cabinet parts diagram

Service manual

Part #3828A20038L

$44.58
In Stock
Room Air Conditioner Remote Control 6711A20034E
#7110

Cabinet parts diagram

Room air conditioner remote control

Part #6711A20034E

Replaced by #AKB73795706

?
Manufacturer substitution
This part replaces 6711A20034E. Substitute parts can look different from the original.
$31.05 |
16% OFF Phone Price : $37.05
In Stock
Turbo Fan 5900A10005A
#9012

Cabinet parts diagram

Turbo fan

Part #5900A10005A

Replaced by #5900A10005B

?
Manufacturer substitution
This part replaces 5900A10005A. Substitute parts can look different from the original.
$14.51
In Stock
Thermistor 6323A20003D
#3230

Cabinet parts diagram

Thermistor

Part #6323A20003D

Replaced by #6323A20003S

?
Manufacturer substitution
This part replaces 6323A20003D. Substitute parts can look different from the original.
This item is not returnable
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Control Board 4995A20127H
#9950

Cabinet parts diagram

Control board

Part #4995A20127H

The manufacturer no longer makes this part, and there's no substitute part

Base Assembly 3041A10011E
#410

Cabinet parts diagram

Base assembly

Part #3041A10011E

The manufacturer no longer makes this part, and there's no substitute part

Compressor 5416A20013M
#416

Cabinet parts diagram

Compressor

Part #5416A20013M

The manufacturer no longer makes this part, and there's no substitute part
