Model # S1319 Official Hoover tempo vacuum cleaner

Here are the diagrams and repair parts for Official Hoover S1319 tempo vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

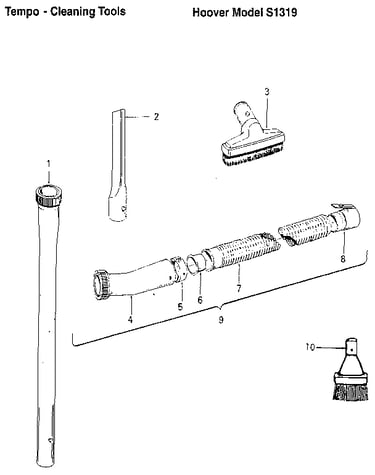

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |

Housing Assembly 42222186
Housing assembly

Part #42222186

The manufacturer no longer makes this part, and there's no substitute part

Spacer 31148011
#20

Motor diagram

Spacer

Part #31148011

The manufacturer no longer makes this part, and there's no substitute part

Field Coil 45311048
#19

Motor diagram

Field coil

Part #45311048

The manufacturer no longer makes this part, and there's no substitute part

Latch 36151022
#3

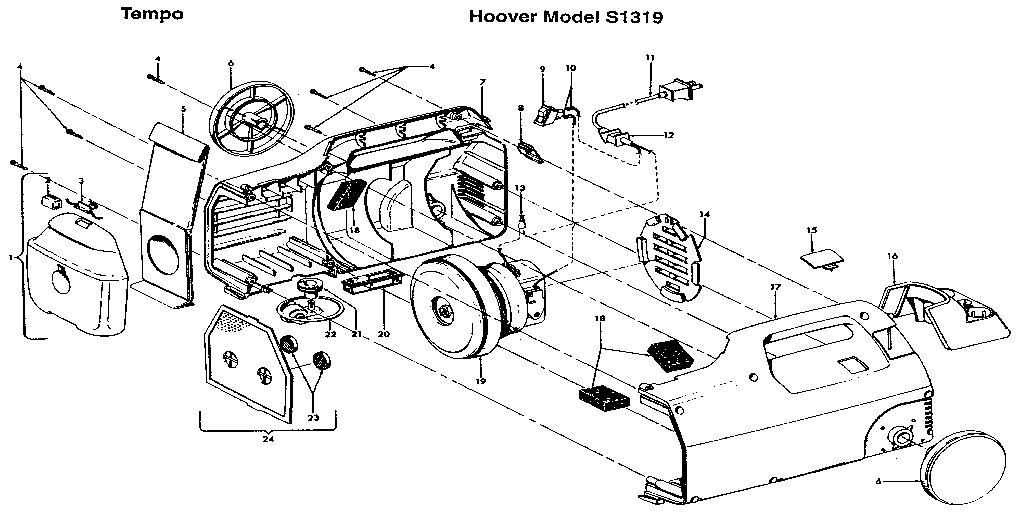

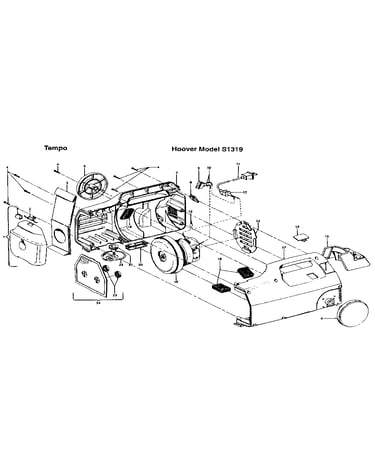

Base assembly diagram

Latch

Part #36151022

The manufacturer no longer makes this part, and there's no substitute part

Bulkhead Assembly 43615053
#24

Base assembly diagram

Bulkhead assembly

Part #43615053

The manufacturer no longer makes this part, and there's no substitute part

Retainer Plate 31165003
#7

Motor diagram

Retainer plate

Part #31165003

The manufacturer no longer makes this part, and there's no substitute part

Screw 21429406
#10

Motor diagram

Screw

Part #21429406

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Floor Nozzle Roller 38521018
#4

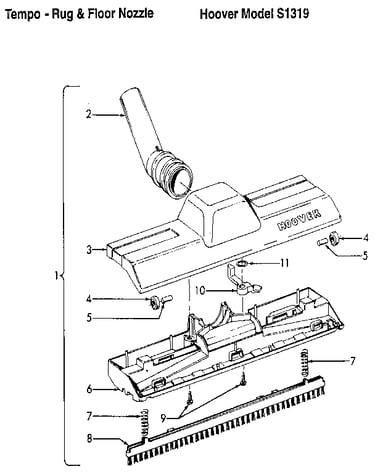

Rug & floor nozzle diagram

Vacuum floor nozzle roller

Part #38521018

The manufacturer no longer makes this part, and there's no substitute part

Fan 43551008
#5

Motor diagram

Fan

Part #43551008

The manufacturer no longer makes this part, and there's no substitute part

Fan Cover 37196065
#4

Motor diagram

Fan cover

Part #37196065

The manufacturer no longer makes this part, and there's no substitute part
