Model # 11626131 Official Kenmore powermate vacuum attachment

Here are the diagrams and repair parts for Official Kenmore 11626131 powermate vacuum attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |

Vacuum Wand Lock Spring Set, 2-pack 569318
#58

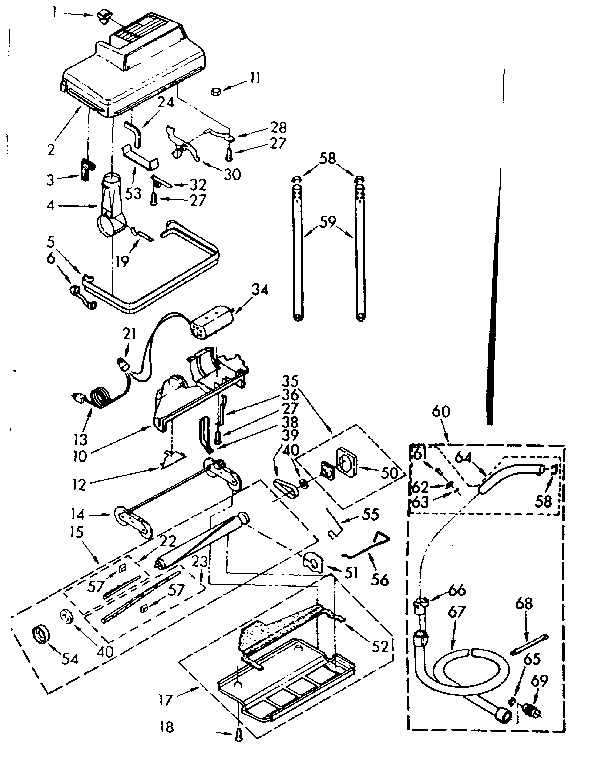

Powermate parts diagram

Vacuum wand lock spring set, 2-pack

Part #569318

The manufacturer no longer makes this part, and there's no substitute part

Plug 725423
#65

Powermate parts diagram

Plug

Part #725423

The manufacturer no longer makes this part, and there's no substitute part

Guard 722496
#5

Powermate parts diagram

Guard

Part #722496

The manufacturer no longer makes this part, and there's no substitute part

Seal 722494
#3

Powermate parts diagram

Seal

Part #722494

The manufacturer no longer makes this part, and there's no substitute part

Suction Control 722419
#62

Powermate parts diagram

Suction control

Part #722419

The manufacturer no longer makes this part, and there's no substitute part

Adapter 725675
#66

Powermate parts diagram

Adapter

Part #725675

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor  Brush N/P
#39

Powermate parts diagram

(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Handle 725752
#64

Powermate parts diagram

Handle

Part #725752

The manufacturer no longer makes this part, and there's no substitute part

Shield 722828
#38

Powermate parts diagram

Shield

Part #722828

The manufacturer no longer makes this part, and there's no substitute part

Gasket 722089
#52

Powermate parts diagram

Gasket

Part #722089

The manufacturer no longer makes this part, and there's no substitute part
