Maytag
Electric Cooktop

Model # MEC9530BS00 Official Maytag 30" electric built-in cooktop

Here are the diagrams and repair parts for Official Maytag MEC9530BS00 30" electric built-in cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Range Radiant Surface Element 8273994
#11

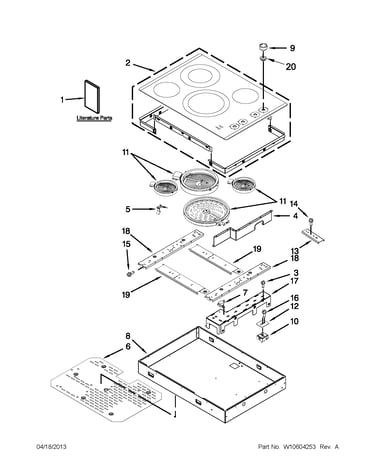

Cooktop parts diagram

Range radiant surface element

Part #8273994

Replaced by #W11171119

?
Manufacturer substitution
This part replaces 8273994. Substitute parts can look different from the original.
BEST SELLER
$102.34 |
10% OFF Phone Price : $114.34
In Stock
Switch 7403P755-60
#10B

Cooktop parts diagram

Switch

Part #7403P755-60

Replaced by #WP74007840

?
Manufacturer substitution
This part replaces 7403P755-60. Substitute parts can look different from the original.
$111.56 |
10% OFF Phone Price : $123.56
In Stock
Infinite Switch W10326246
#10

Cooktop parts diagram

Infinite switch

Part #W10326246

Replaced by #WPW10326246

?
Manufacturer substitution
This part replaces W10326246. Substitute parts can look different from the original.
$67.97 |
8% OFF Phone Price : $73.97
In Stock
Cooktop Knob Grommet W10293874
#20

Cooktop parts diagram

Cooktop knob grommet

Part #W10293874

Replaced by #WPW10293874

?
Manufacturer substitution
This part replaces W10293874. Substitute parts can look different from the original.
This item is not returnable
$6.29 |
14% OFF Phone Price : $7.29
In Stock
Range Dual Radiant Surface Element W10189281
#11B

Cooktop parts diagram

Range dual radiant surface element

Part #W10189281

Replaced by #WPW10189281

?
Manufacturer substitution
This part replaces W10189281. Substitute parts can look different from the original.
$216.70 |
5% OFF Phone Price : $228.70
In Stock
Cooktop Main Top (stainless) W10570703
#2A

Cooktop parts diagram

Cooktop main top (stainless)

Part #W10570703

$228.37
In Stock
Heat Shield W10311796
#4

Cooktop parts diagram

Heat shield

Part #W10311796

$31.40
In Stock
Whirlpool Cooktop Element Control Switch W10431995
#10C

Cooktop parts diagram

Whirlpool cooktop element control switch

Part #W10431995

$85.22 |
7% OFF Phone Price : $91.22
In Stock
Element Support W10311790
#19

Cooktop parts diagram

Element support

Part #W10311790

$29.89
In Stock
Cooking Appliance Safer Cooking Guide 9762761
#1C

Cooktop parts diagram

Cooking appliance safer cooking guide

Part #9762761

$10.09 |
17% OFF Phone Price : $12.09
In Stock
