Model # 1107208300 Official Kenmore portable dryer

Here are the diagrams and repair parts for Official Kenmore 1107208300 portable dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |
Shaft Pulley 337407
#10

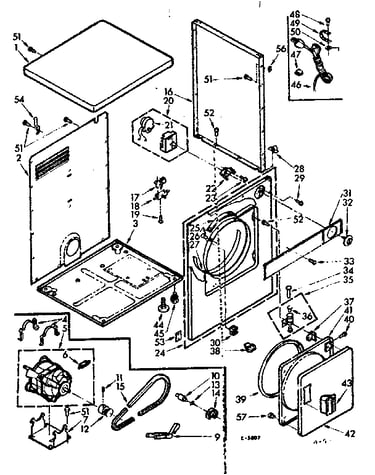

Cabinet assembly diagram

Shaft pulley

Part #337407

Replaced by #WP691366

?
Manufacturer substitution
This part replaces 337407. Substitute parts can look different from the original.
BEST SELLER
$15.98 |
11% OFF Phone Price : $17.98
In Stock
Bracket 337510
#9

Cabinet assembly diagram

Bracket

Part #337510

Replaced by #WP691366

?
Manufacturer substitution
This part replaces 337510. Substitute parts can look different from the original.
BEST SELLER
$15.98 |
11% OFF Phone Price : $17.98
In Stock
Pulley 338946
#14

Cabinet assembly diagram

Pulley

Part #338946

Replaced by #WP691366

?
Manufacturer substitution
This part replaces 338946. Substitute parts can look different from the original.
BEST SELLER
$15.98 |
11% OFF Phone Price : $17.98
In Stock
Motor-60 Cy 339635
#5

Cabinet assembly diagram

Motor-60 cy

Part #339635

Replaced by #279827

?
Manufacturer substitution
This part replaces 339635. Substitute parts can look different from the original.
BEST SELLER
$93.81 |
6% OFF Phone Price : $99.81
In Stock
Dryer Element 337378
#22

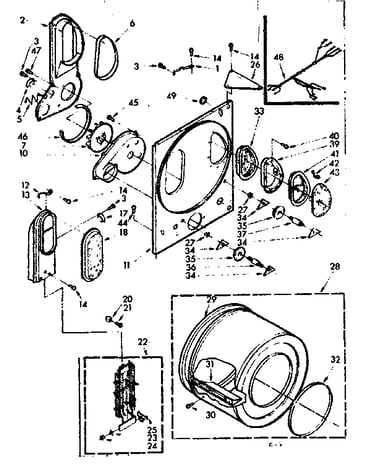

Bulkhead assembly diagram

Dryer element

Part #337378

Replaced by #WP4391960

?
Manufacturer substitution
This part replaces 337378. Substitute parts can look different from the original.
BEST SELLER
$41.42 |
13% OFF Phone Price : $47.42
In Stock
Tri-ring 339491
#34

Bulkhead assembly diagram

Tri-ring

Part #339491

Replaced by #WPW10512946

?
Manufacturer substitution
This part replaces 339491. Substitute parts can look different from the original.
BEST SELLER
$6.53 |
13% OFF Phone Price : $7.53
In Stock
Switch 344475
#18

Cabinet assembly diagram

Switch

Part #344475

Replaced by #W10820036

?
Manufacturer substitution
This part replaces 344475. Substitute parts can look different from the original.
BEST SELLER
$24.22 |
20% OFF Phone Price : $30.22
In Stock
Shaft 339490
#36

Bulkhead assembly diagram

Shaft

Part #339490

Replaced by #WPW10359270

?
Manufacturer substitution
This part replaces 339490. Substitute parts can look different from the original.
BEST SELLER
$34.45 |
15% OFF Phone Price : $40.45
In Stock
Thermostat 299621
#4

Bulkhead assembly diagram

Thermostat

Part #299621

Replaced by #WP694674

?
Manufacturer substitution
This part replaces 299621. Substitute parts can look different from the original.
BEST SELLER
$57.19 |
9% OFF Phone Price : $63.19
In Stock
Dryer Lint Screen Housing Foam Seal 339956
#6

Bulkhead assembly diagram

Dryer lint screen housing foam seal

Part #339956

Replaced by #WP339956

?
Manufacturer substitution
This part replaces 339956. Substitute parts can look different from the original.
BEST SELLER
$7.20 |
12% OFF Phone Price : $8.20
In Stock
