Model # HES345U/01 Official Bosch electric range

Here are the diagrams and repair parts for Official Bosch HES345U-01 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

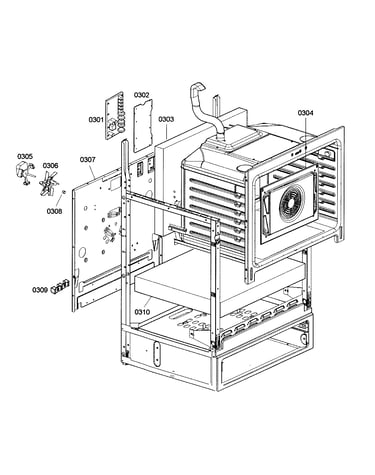

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Heater Element 436632
#204

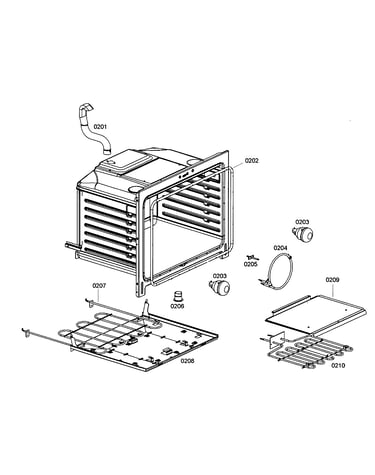

Oven assy diagram

Heater element

Part #436632

Replaced by #00436632

?
Manufacturer substitution
This part replaces 436632. Substitute parts can look different from the original.
$157.21 |
7% OFF Phone Price : $169.21
In Stock
Control Knob (black) 422367
#103

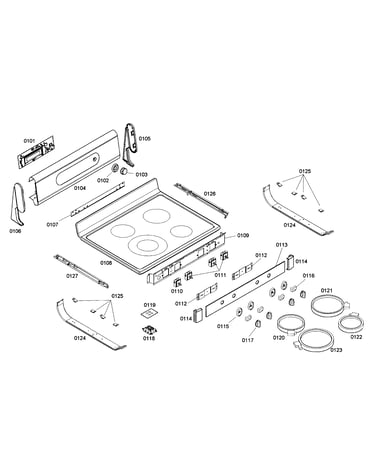

Top assy diagram

Control knob (black)

Part #422367

Replaced by #00422367

?
Manufacturer substitution
This part replaces 422367. Substitute parts can look different from the original.
$15.89
In Stock
Oven Glass 436379
#704

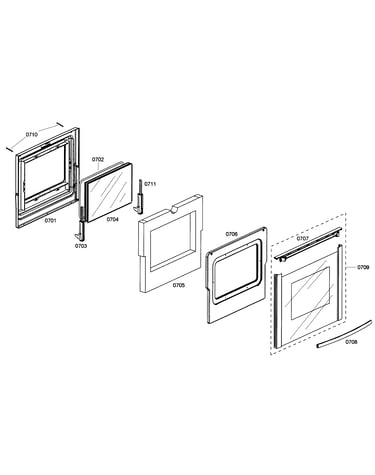

Door assy diagram

Oven glass

Part #436379

Replaced by #00436379

?
Manufacturer substitution
This part replaces 436379. Substitute parts can look different from the original.
$174.99 |
6% OFF Phone Price : $186.99
In Stock
Hinge 491539
#405

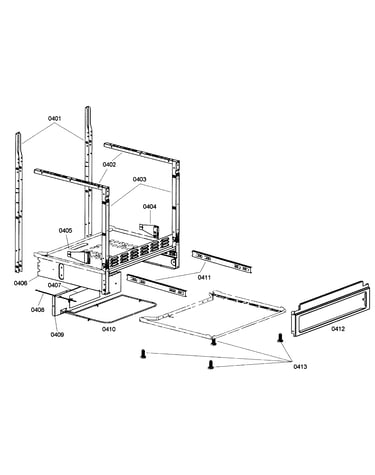

Base assy diagram

Hinge

Part #491539

Replaced by #00491539

?
Manufacturer substitution
This part replaces 491539. Substitute parts can look different from the original.
$43.62
In Stock
Oven Lamp Assembly 415045
#203

Oven assy diagram

Oven lamp assembly

Part #415045

Replaced by #00415045

?
Manufacturer substitution
This part replaces 415045. Substitute parts can look different from the original.
$79.29 |
7% OFF Phone Price : $85.29
In Stock
Control 445290
Control

Part #445290

Replaced by #00445290

?
Manufacturer substitution
This part replaces 445290. Substitute parts can look different from the original.
$572.26 |
$12.00 OFF Phone Price : $584.26
In Stock
Range Oven Door Lock Assembly 493095
#606

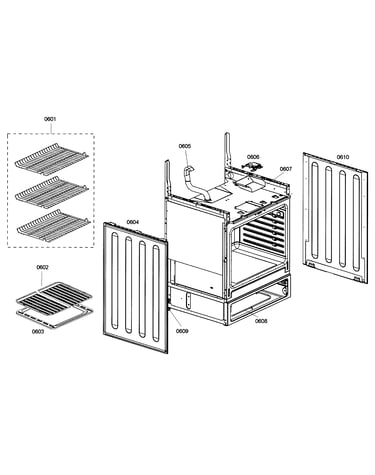

Shelf assy diagram

Range oven door lock assembly

Part #493095

$189.58
In Stock
Heater Element 491295
Heater element

Part #491295

Replaced by #00491295

?
Manufacturer substitution
This part replaces 491295. Substitute parts can look different from the original.
$134.69 |
8% OFF Phone Price : $146.69
In Stock
Broil Grille 143673
#602

Shelf assy diagram

Broil grille

Part #143673

Replaced by #00449756

?
Manufacturer substitution
This part replaces 143673. Substitute parts can look different from the original.
$57.89
In Stock
Oven Hinge 641231
#711

Door assy diagram

Oven hinge

Part #641231

Replaced by #00683867

?
Manufacturer substitution
This part replaces 641231. Substitute parts can look different from the original.
$321.62 |
$12.00 OFF Phone Price : $333.62
In Stock
