Model # CBR1420BGW Official Maytag gas freestanding range

Here are the diagrams and repair parts for Official Maytag CBR1420BGW gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

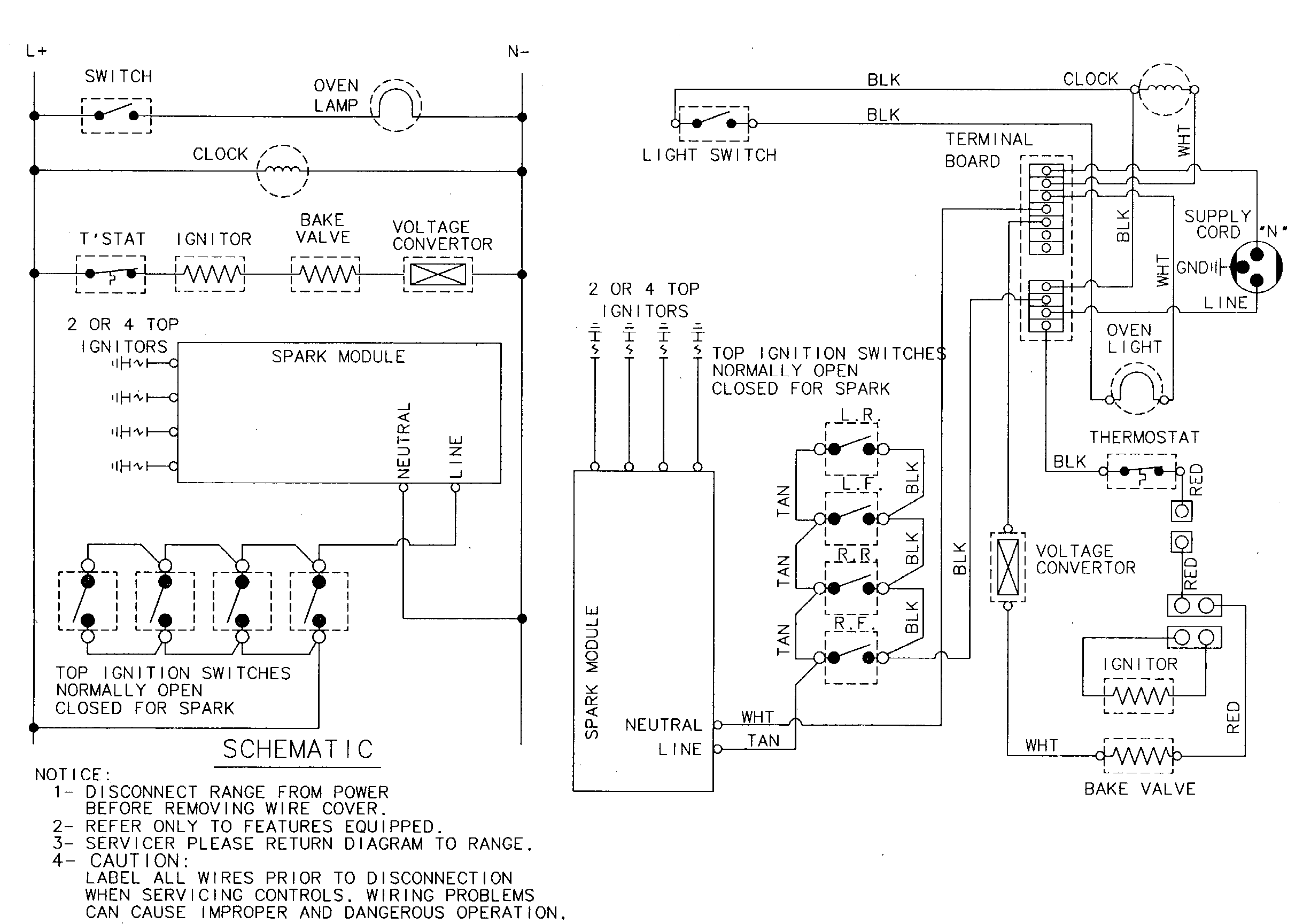

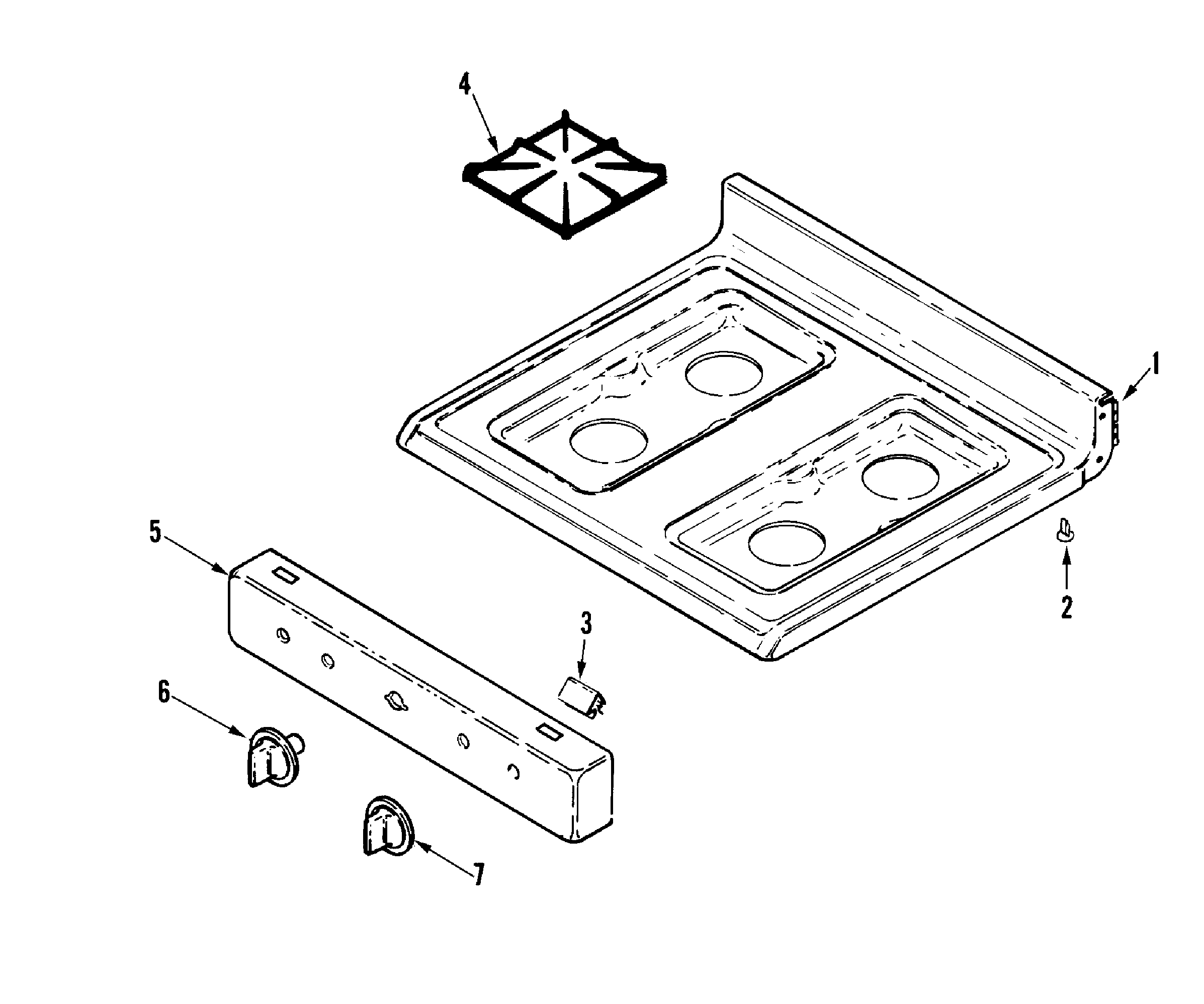

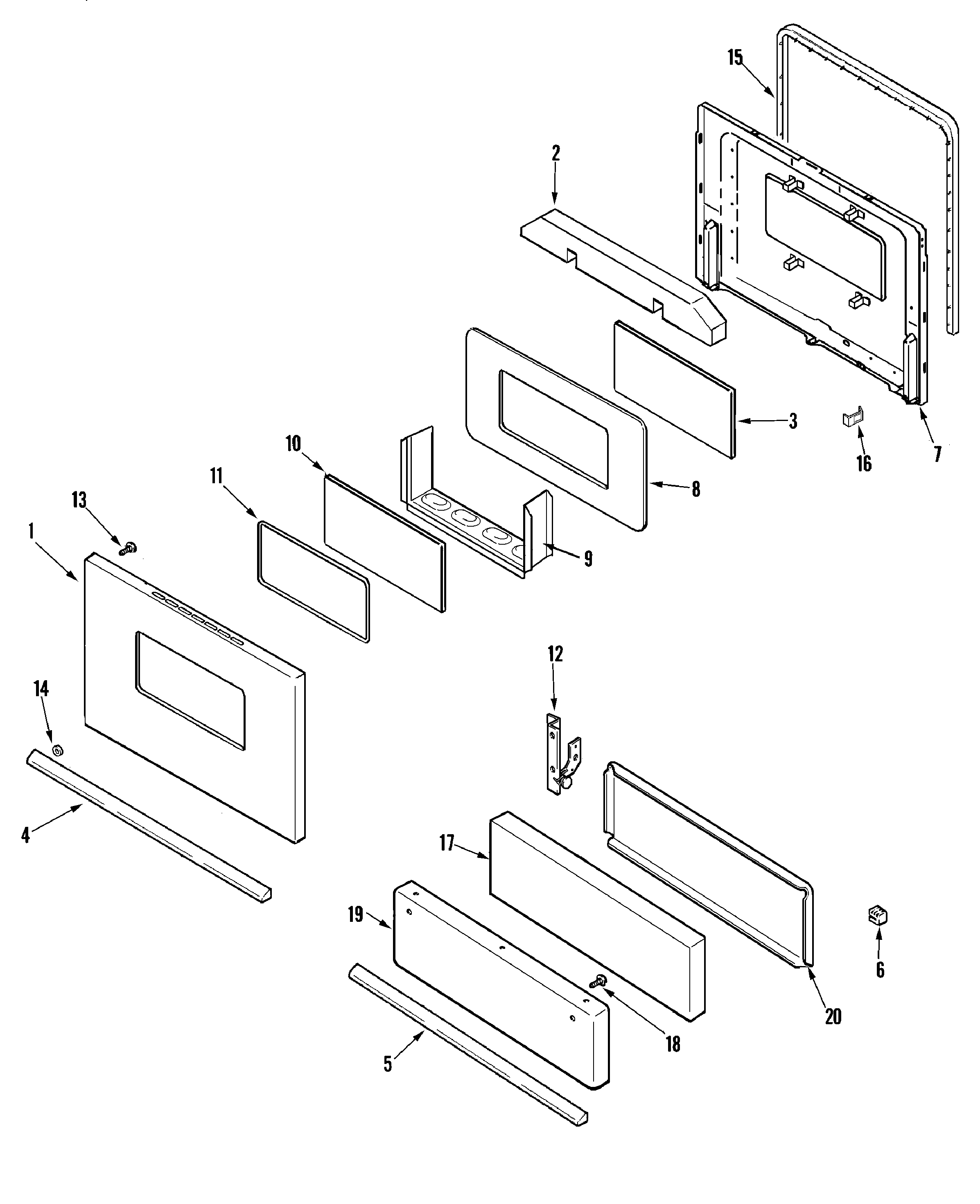

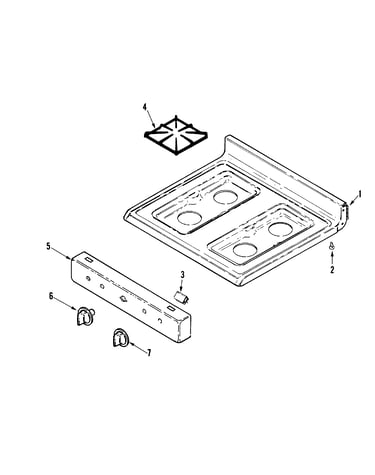

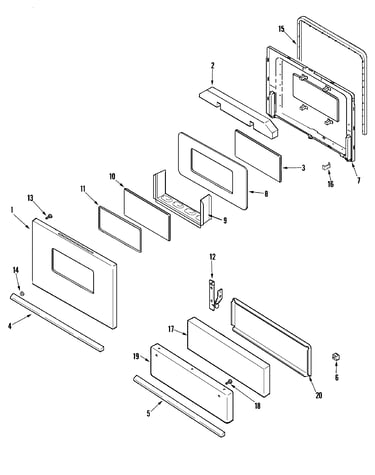

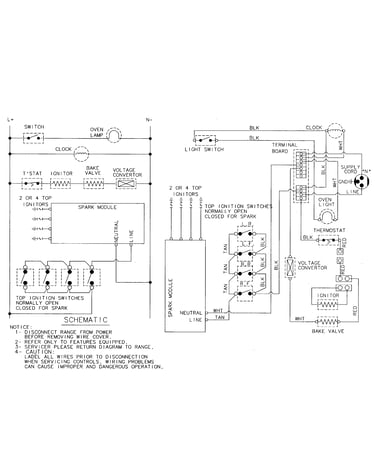

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Ikea Range Oven Burner Igniter (replaces 7432p075-60, 7432p106-60) 74007498
#14

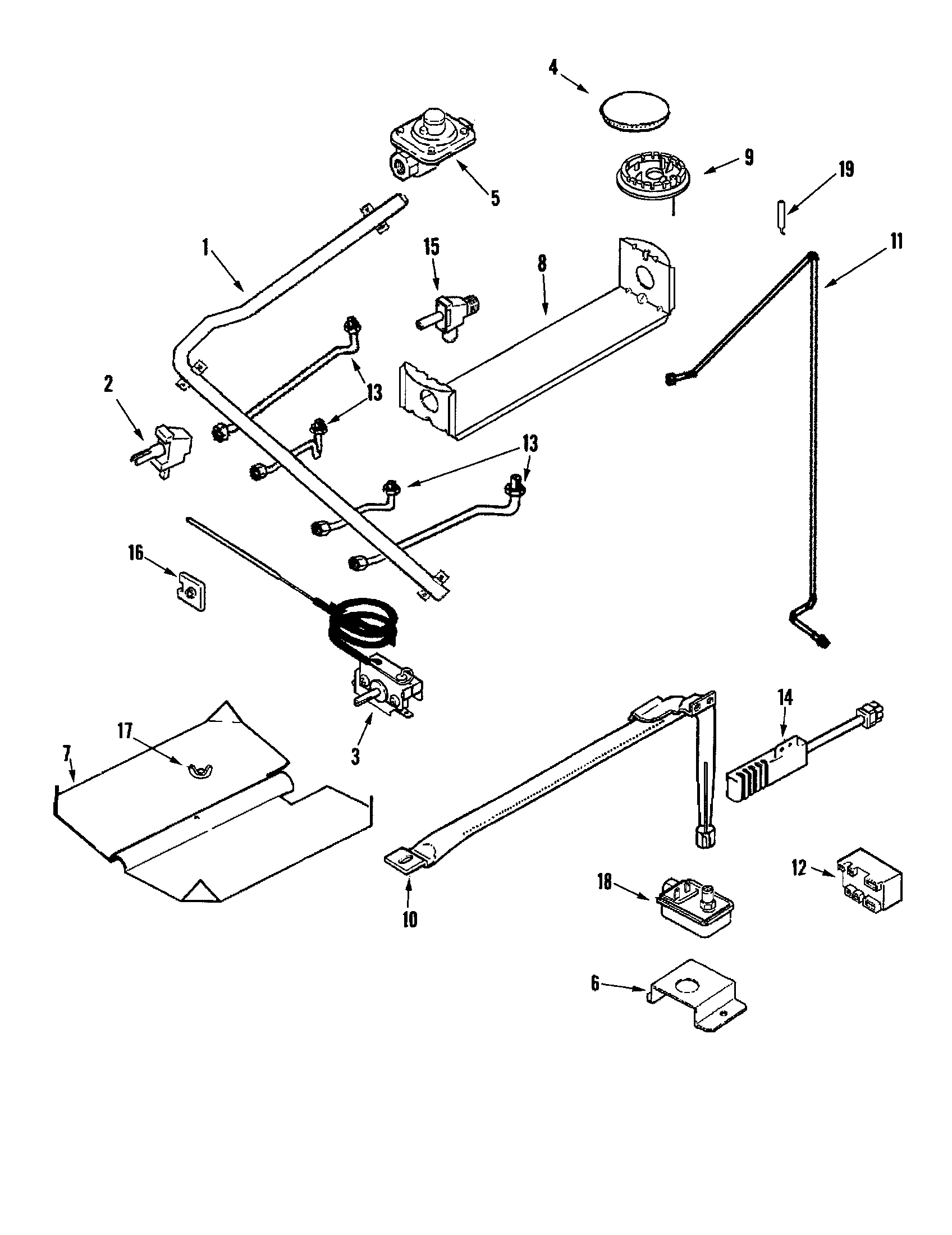

Gas controls diagram

Ikea range oven burner igniter (replaces 7432p075-60, 7432p106-60)

Part #74007498

BEST SELLER
$59.77 |
9% OFF Phone Price : $65.77
In Stock
Sourdillion Ignitor 74007473
#13

Gas controls diagram

Sourdillion ignitor

Part #74007473

Replaced by #WP8523793

?
Manufacturer substitution
This part replaces 74007473. Substitute parts can look different from the original.
BEST SELLER
$26.66 |
18% OFF Phone Price : $32.66
In Stock
Screw 74001530
Screw

Part #74001530

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 74001530. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 7101P313-60
#6

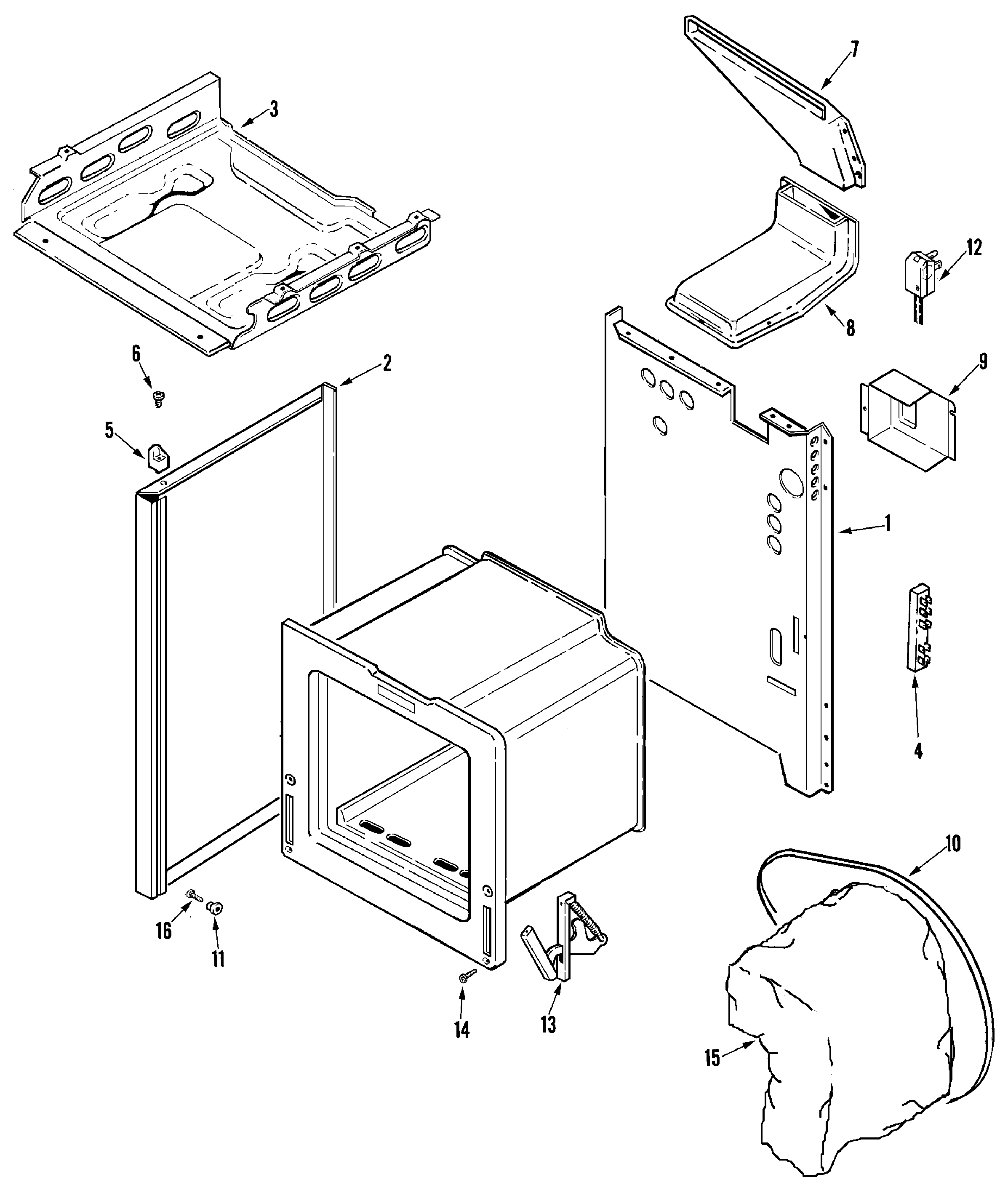

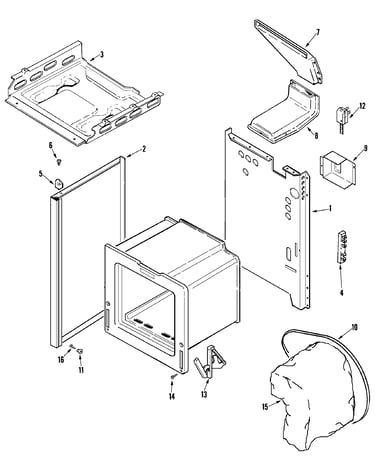

Body diagram

Screw

Part #7101P313-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P313-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 7101P338-60
Screw

Part #7101P338-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P338-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 7101P282-60
Screw

Part #7101P282-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P282-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Oven Screw 74003004
#16A

Body diagram

Oven screw

Part #74003004

Replaced by #W11693756

?
Manufacturer substitution
This part replaces 74003004. Substitute parts can look different from the original.
$13.06
In Stock
Bracket, Ant 74005564
#3

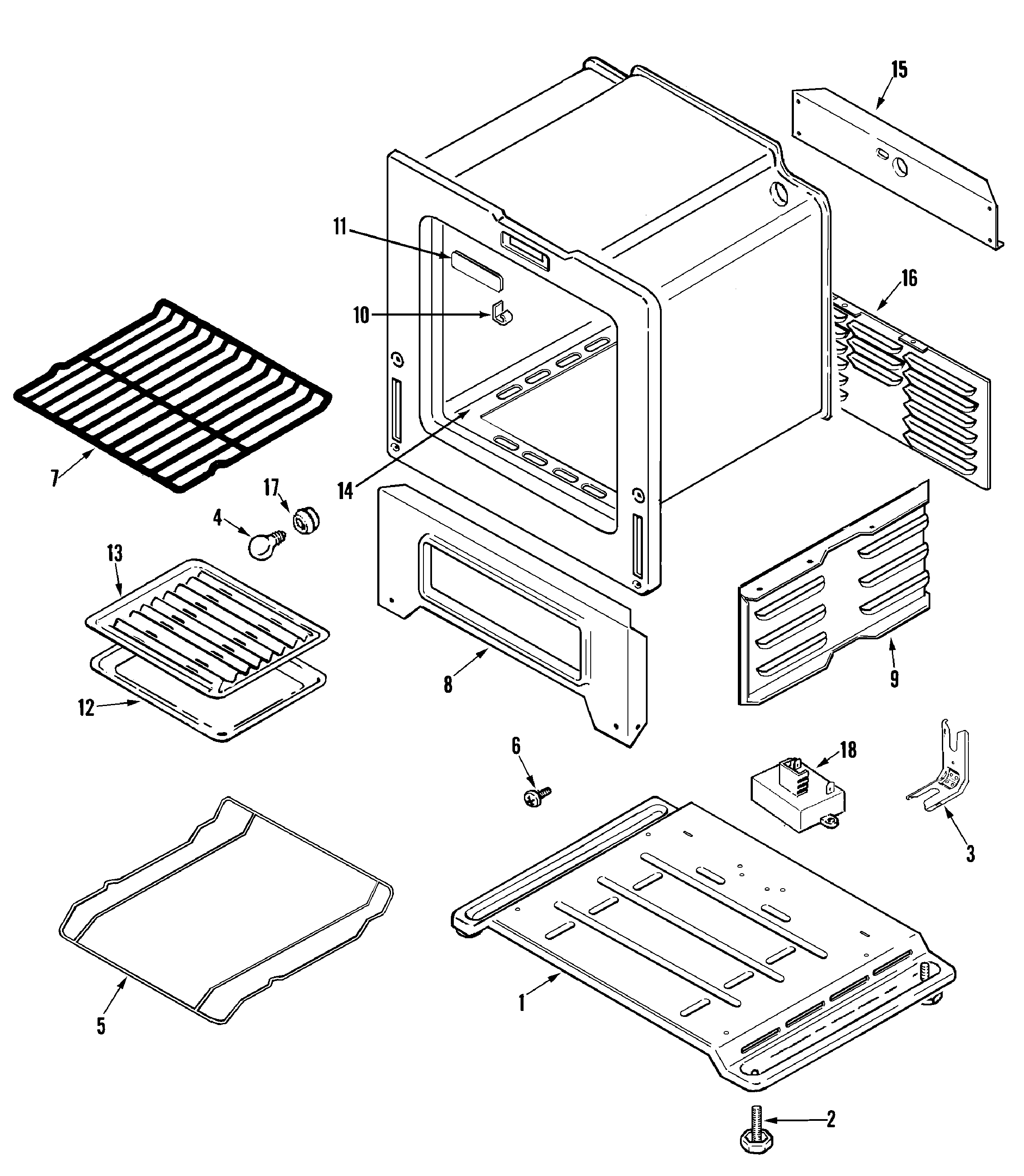

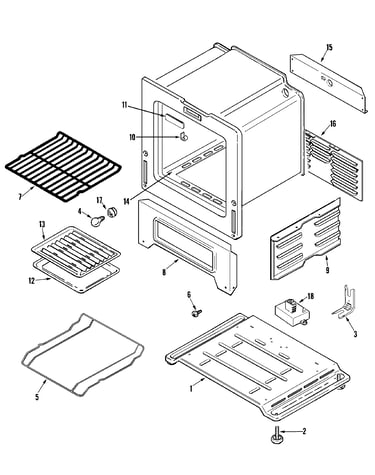

Oven/base diagram

Bracket, ant

Part #74005564

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 74005564. Substitute parts can look different from the original.
This item is not returnable
$5.03 |
17% OFF Phone Price : $6.03
In Stock
Range Oven Control Thermostat 74002390
#3

Gas controls diagram

Range oven control thermostat

Part #74002390

Replaced by #WP74002390

?
Manufacturer substitution
This part replaces 74002390. Substitute parts can look different from the original.
$155.72 |
7% OFF Phone Price : $167.72
In Stock
Hinge Screw 7101P270-60
#2B

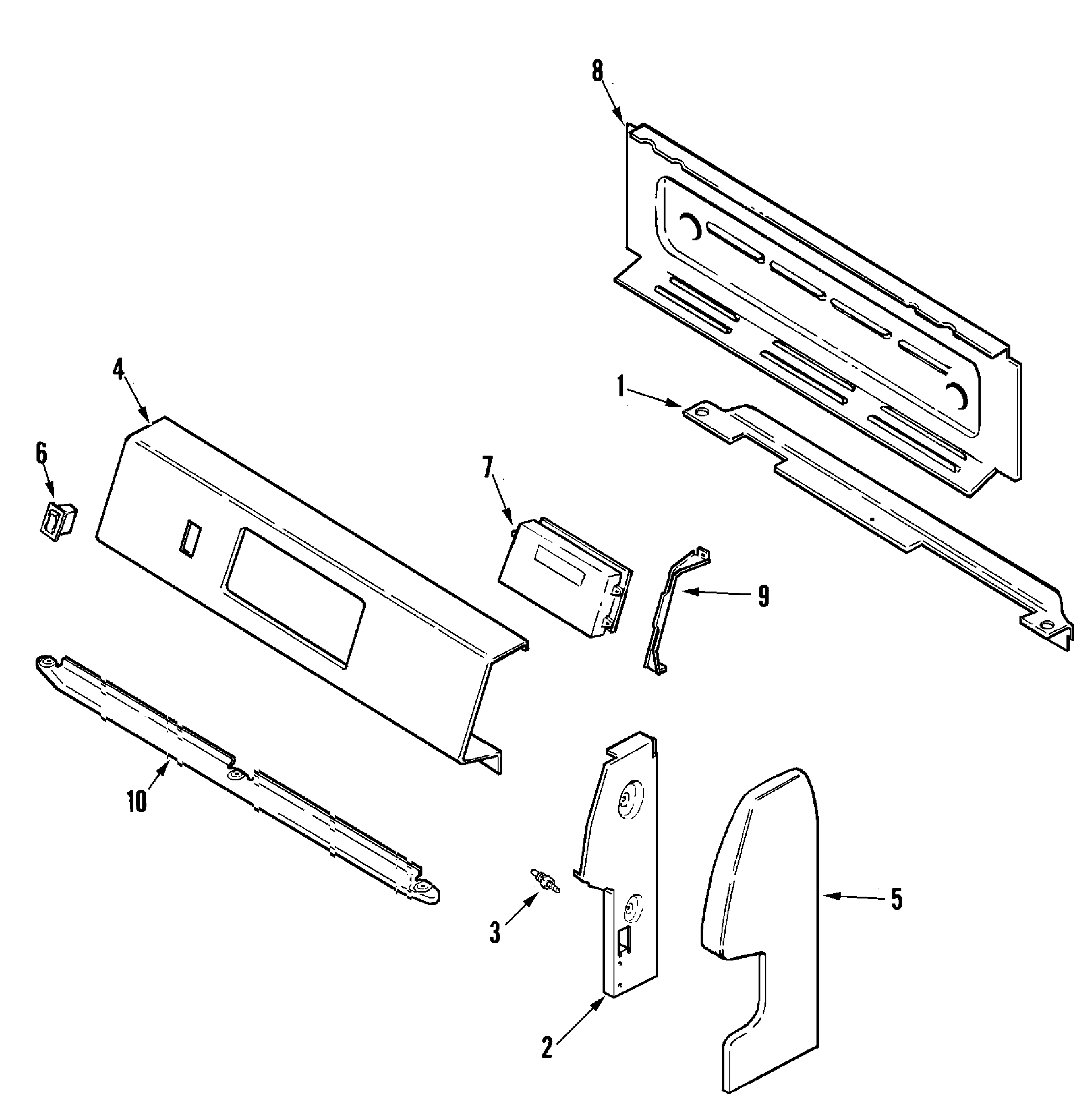

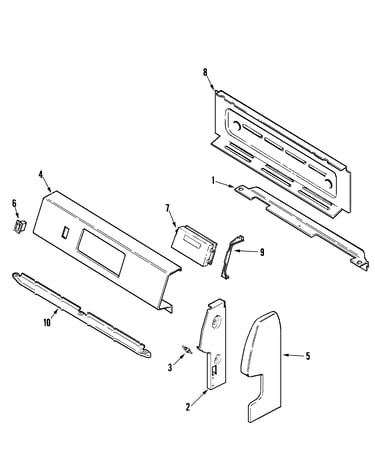

Control panel diagram

Hinge screw

Part #7101P270-60

Replaced by #W10828565

?
Manufacturer substitution
This part replaces 7101P270-60. Substitute parts can look different from the original.
This item is not returnable
$5.29 |
16% OFF Phone Price : $6.29
In Stock
