Hoover
Upright Vacuum

Model # U8161-900 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U8161-900 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |

Regina Vacuum Screw 21447072
#24

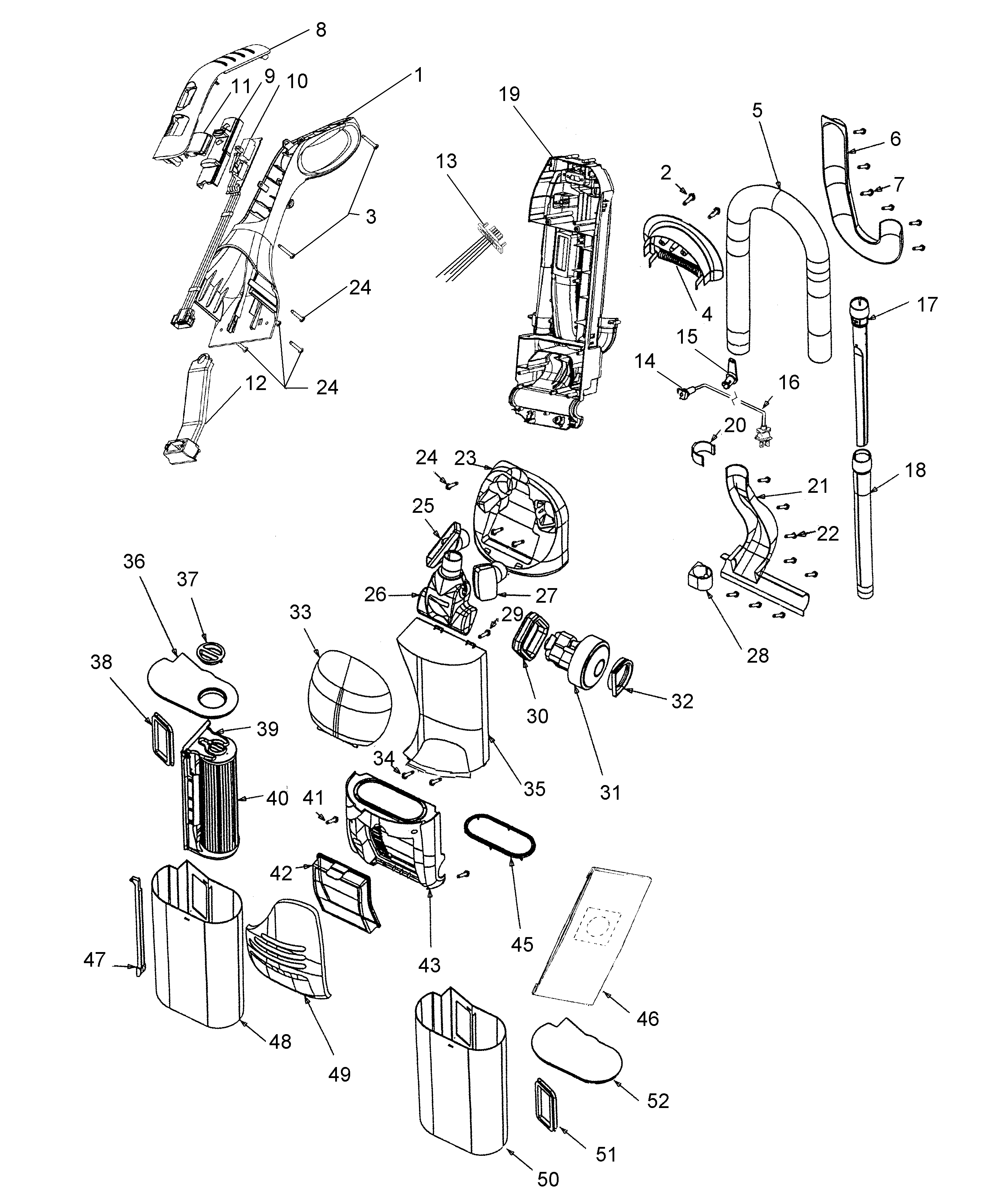

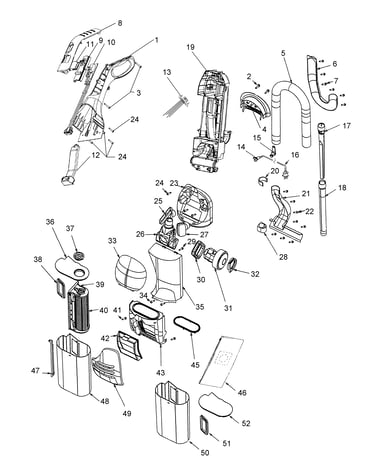

Main assembly diagram

Regina vacuum screw

Part #21447072

The manufacturer no longer makes this part, and there's no substitute part

Bottom Plate 37245102
#36

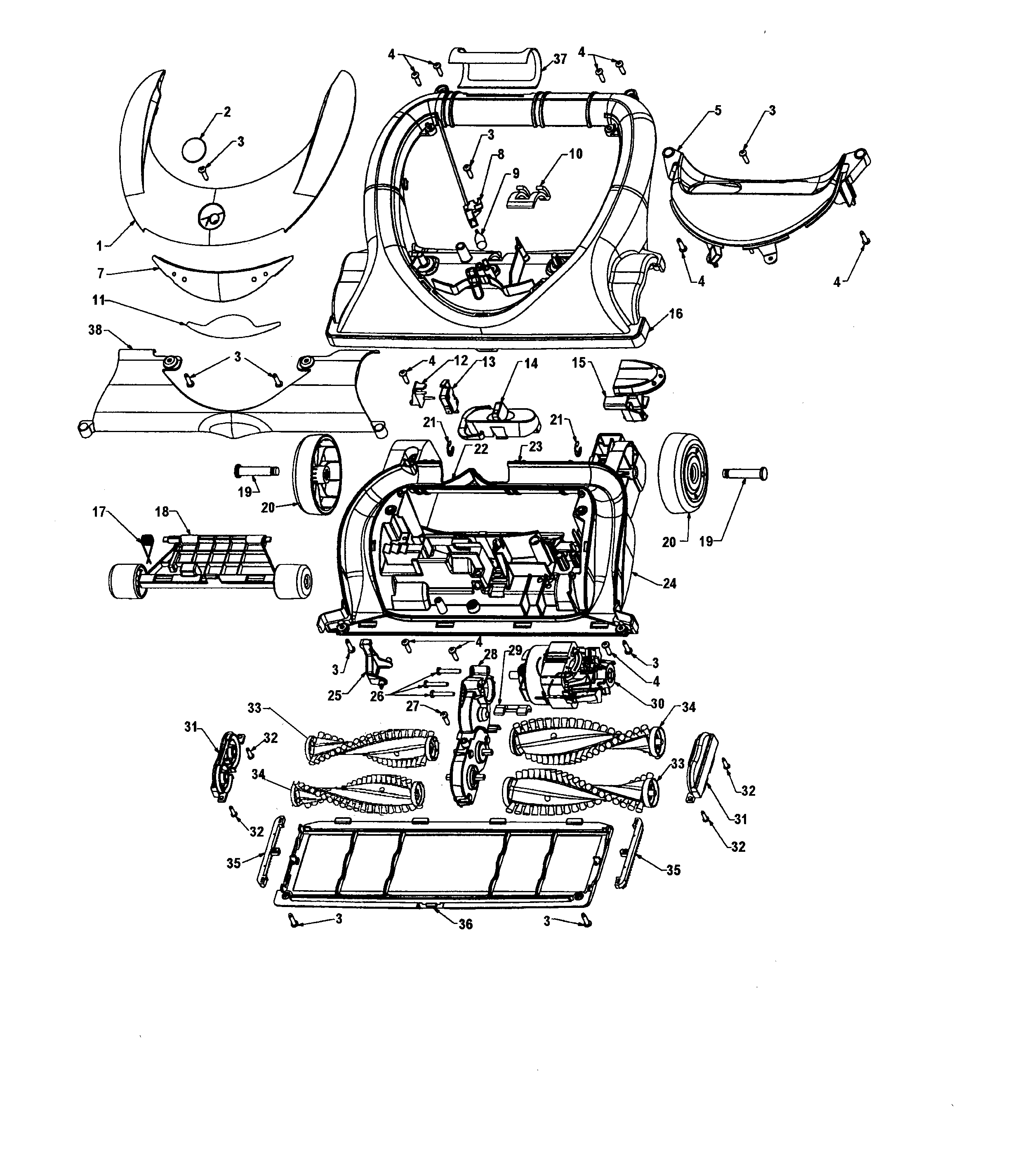

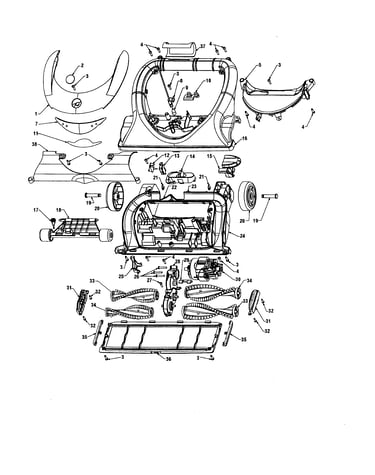

Foot diagram

Bottom plate

Part #37245102

The manufacturer no longer makes this part, and there's no substitute part

Final Filter 38769017
#49

Main assembly diagram

Final filter

Part #38769017

The manufacturer no longer makes this part, and there's no substitute part

Foam 34163016
#54

Main assembly diagram

Foam

Part #34163016

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor 27212053
#31

Main assembly diagram

Vacuum motor

Part #27212053

The manufacturer no longer makes this part, and there's no substitute part

Inlet Seal 38783029
#38

Main assembly diagram

Inlet seal

Part #38783029

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21479446
#32

Foot diagram

Vacuum screw

Part #21479446

The manufacturer no longer makes this part, and there's no substitute part

Grip 39383124
#11

Main assembly diagram

Grip

Part #39383124

The manufacturer no longer makes this part, and there's no substitute part

Motor Mount 36322036
#30

Main assembly diagram

Motor mount

Part #36322036

The manufacturer no longer makes this part, and there's no substitute part

Tool Holder 36433199
#23

Main assembly diagram

Tool holder

Part #36433199

The manufacturer no longer makes this part, and there's no substitute part
