DeWalt
Power Hammer

Model # D25330K TYPE 2 Official DeWalt power hammer

Here are the diagrams and repair parts for Official DeWalt D25330K-TYPE-2 power hammer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Washer 577797-00
#110

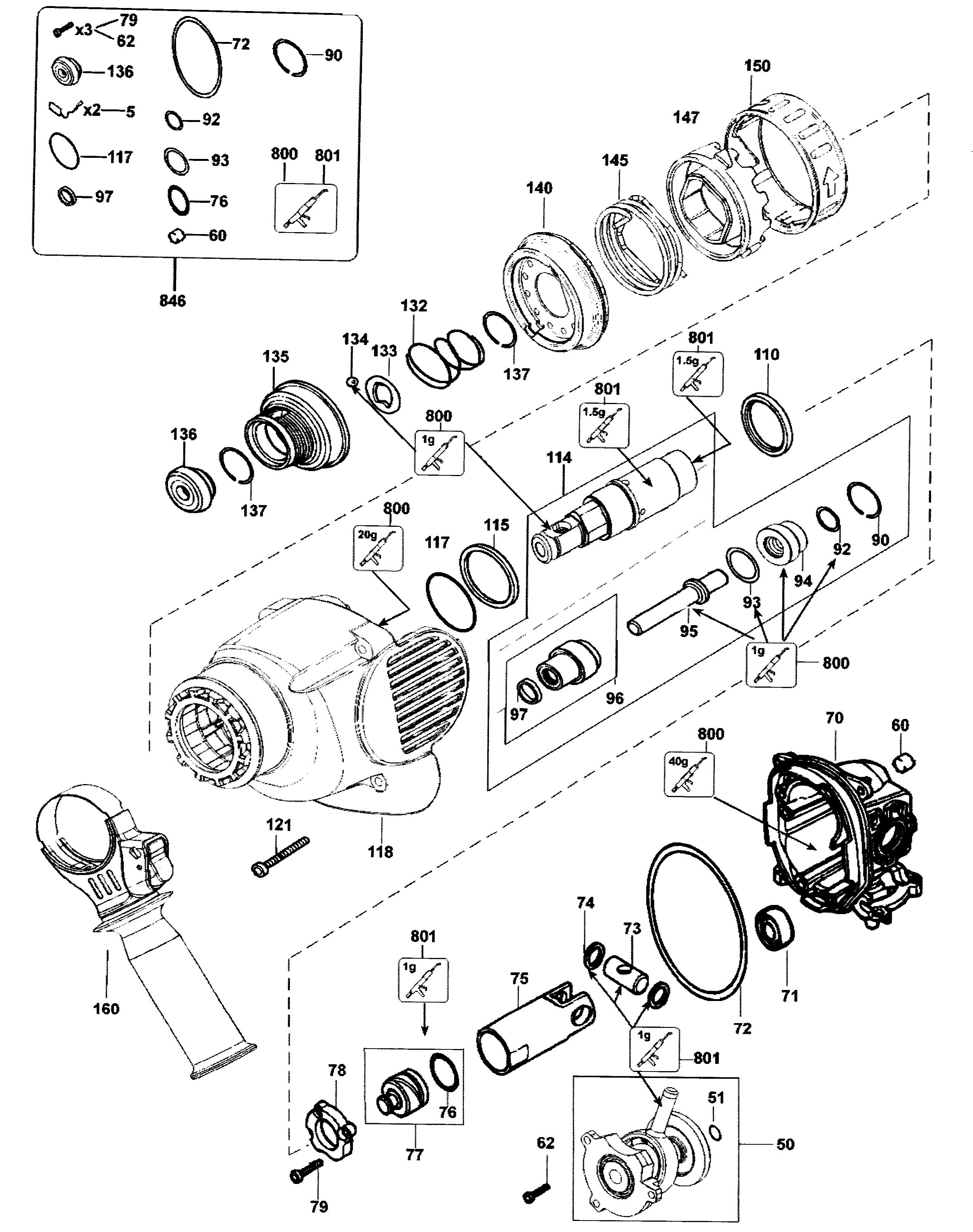

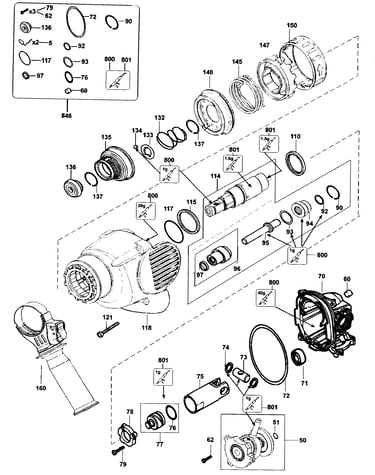

Drive assy diagram

Washer

Part #577797-00

The manufacturer no longer makes this part, and there's no substitute part

Slider 588902-00
#19

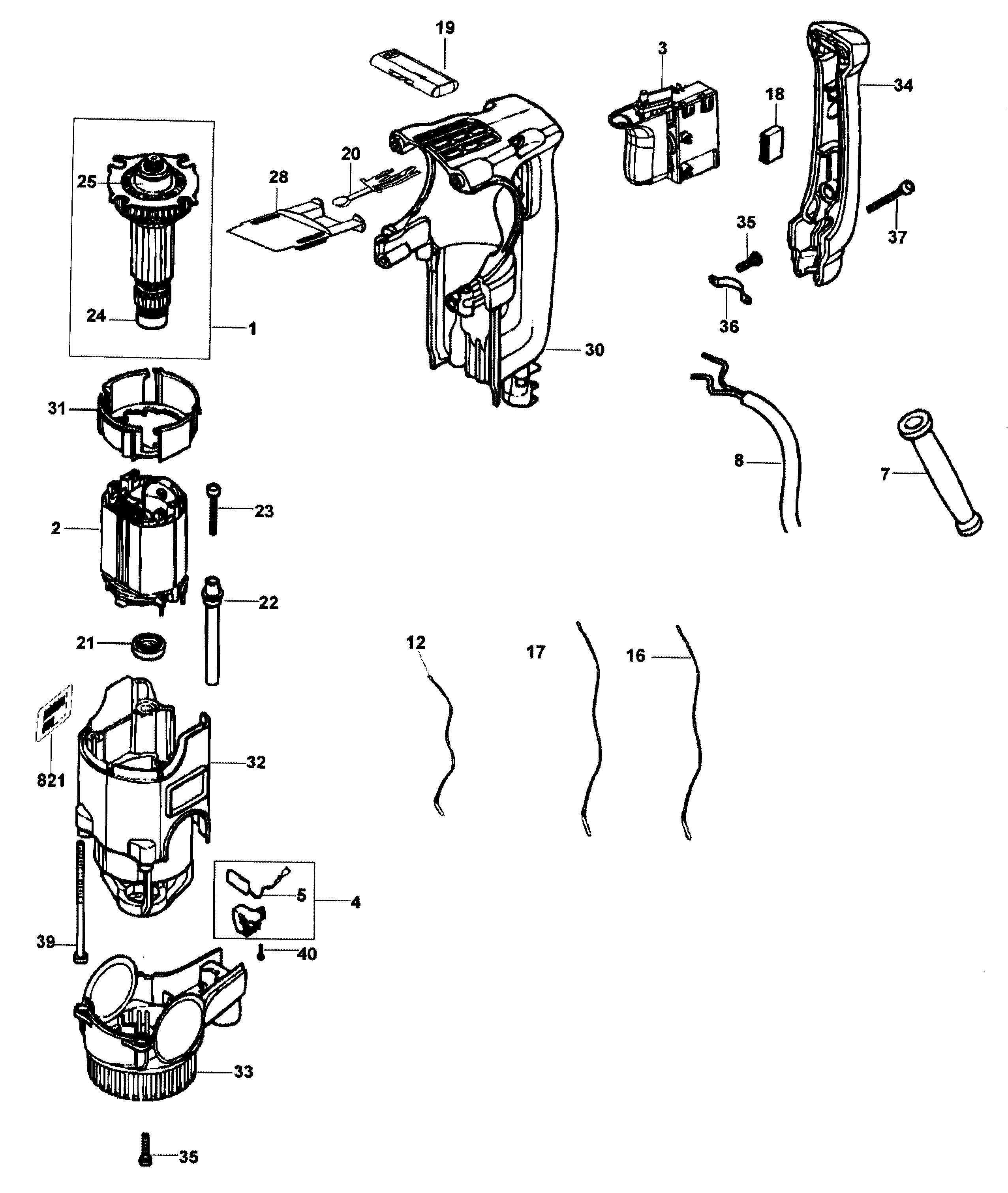

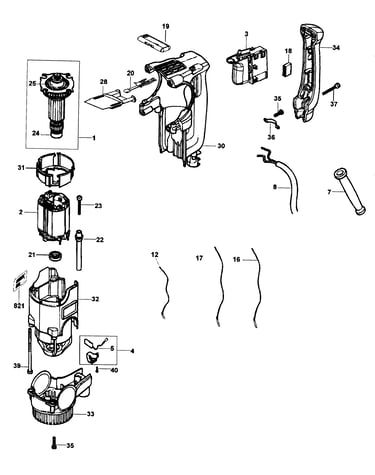

Motor & handle diagram

Slider

Part #588902-00

The manufacturer no longer makes this part, and there's no substitute part

Lead 582064-16
#16

Motor & handle diagram

Lead

Part #582064-16

The manufacturer no longer makes this part, and there's no substitute part

Shim Washe 577802-00
#74

Drive assy diagram

Shim washe

Part #577802-00

The manufacturer no longer makes this part, and there's no substitute part

Grease 487130-04
#NI

Motor & handle diagram

Grease

Part #487130-04

The manufacturer no longer makes this part, and there's no substitute part

Screw 330065-09
#37

Motor & handle diagram

Screw

Part #330065-09

The manufacturer no longer makes this part, and there's no substitute part

Ring 579212-00
#137

Drive assy diagram

Ring

Part #579212-00

The manufacturer no longer makes this part, and there's no substitute part

Bearing Cover 870052
#21

Motor & handle diagram

Bearing cover

Part #870052

The manufacturer no longer makes this part, and there's no substitute part

Screw 330065-08
#35

Motor & handle diagram

Screw

Part #330065-08

The manufacturer no longer makes this part, and there's no substitute part

Screw 583981-00
#62

Drive assy diagram

Screw

Part #583981-00

The manufacturer no longer makes this part, and there's no substitute part
