Model # GPS484WKS Official Thermador professional gas cooktop with wok

Here are the diagrams and repair parts for Official Thermador GPS484WKS professional gas cooktop with wok, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

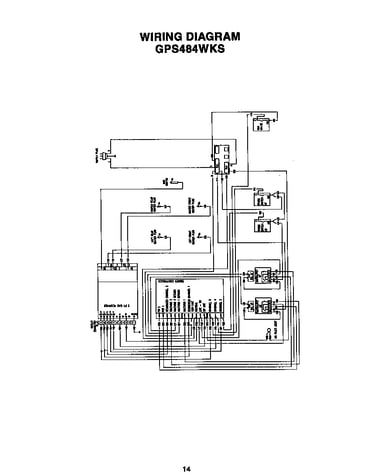

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Nut 14-93-167
#32

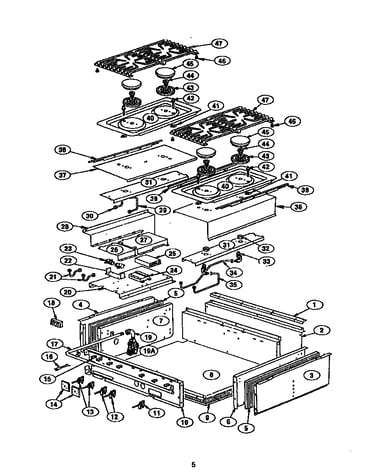

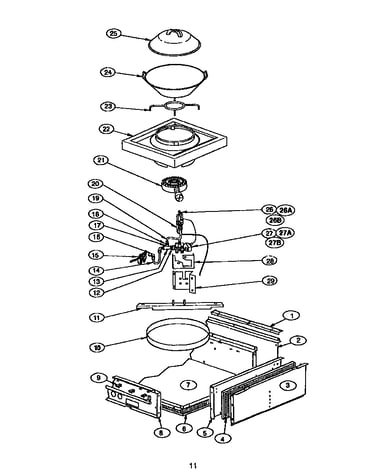

Page 5 diagram

Nut

Part #14-93-167

Replaced by #00188978

?
Manufacturer substitution
This part replaces 14-93-167. Substitute parts can look different from the original.
$20.59 |
23% OFF Phone Price : $26.59
In Stock
Grate Kit 15-11-039
#46

Page 5 diagram

Grate kit

Part #15-11-039

Replaced by #00413552

?
Manufacturer substitution
This part replaces 15-11-039. Substitute parts can look different from the original.
This item is not returnable
$27.49 |
18% OFF Phone Price : $33.49
In Stock
Ring 20-02-042
#41

Page 5 diagram

Ring

Part #20-02-042

This item is not returnable
$3.99
Back Order
Module 20-01-924-01
#25

Page 5 diagram

Module

Part #20-01-924-01

Replaced by #00753257

?
Manufacturer substitution
This part replaces 20-01-924-01. Substitute parts can look different from the original.
$179.68 |
6% OFF Phone Price : $191.68
In Stock
Tubing 15-10-173
#34

Page 5 diagram

Tubing

Part #15-10-173

Replaced by #00368934

?
Manufacturer substitution
This part replaces 15-10-173. Substitute parts can look different from the original.
$29.42
In Stock
Screw 14-91-010

#NI

All parts diagram

Screw

Part #14-91-010

This item is not returnable
$2.16
In Stock
Light Lens 15-10-319
#9

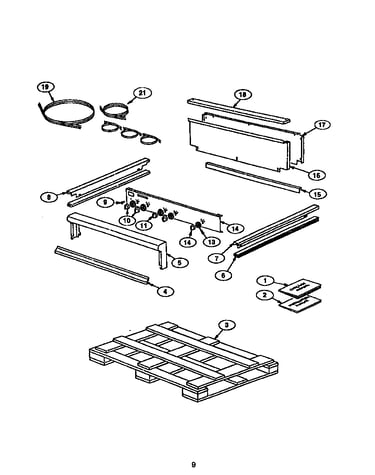

Page 9 diagram

Light lens

Part #15-10-319

Replaced by #00415053

?
Manufacturer substitution
This part replaces 15-10-319. Substitute parts can look different from the original.
This item is not returnable
$5.69
In Stock
Plug 20-02-377
#42

Page 5 diagram

Plug

Part #20-02-377

Replaced by #00189324

?
Manufacturer substitution
This part replaces 20-02-377. Substitute parts can look different from the original.
$35.49 |
14% OFF Phone Price : $41.49
In Stock
Tubing 15-10-171
#30

Page 5 diagram

Tubing

Part #15-10-171

Replaced by #00487243

?
Manufacturer substitution
This part replaces 15-10-171. Substitute parts can look different from the original.
$32.40 |
16% OFF Phone Price : $38.40
In Stock
Jet Holder 15-10-156
#33

Page 5 diagram

Jet holder

Part #15-10-156

Replaced by #00415498

?
Manufacturer substitution
This part replaces 15-10-156. Substitute parts can look different from the original.
$29.19 |
17% OFF Phone Price : $35.19
In Stock
