Model # AF-R100DX Official Sharp air conditioner

Here are the diagrams and repair parts for Official Sharp AF-R100DX air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

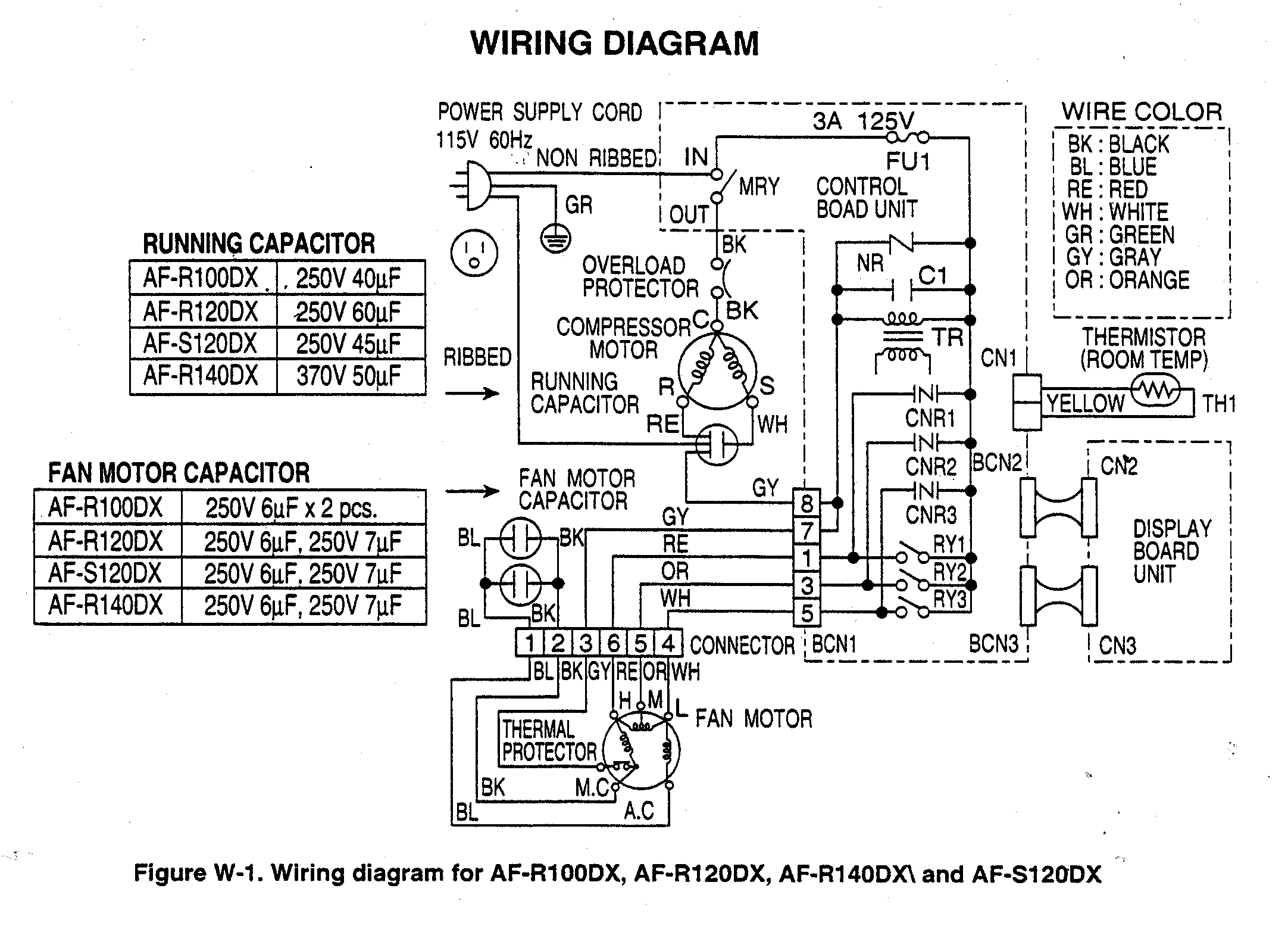

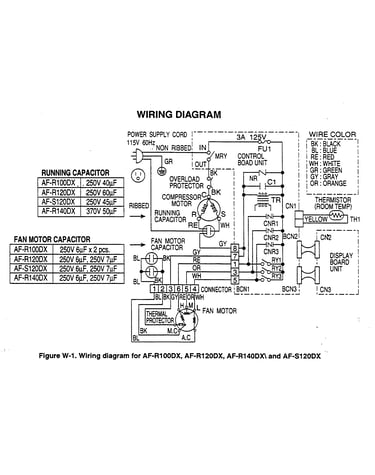

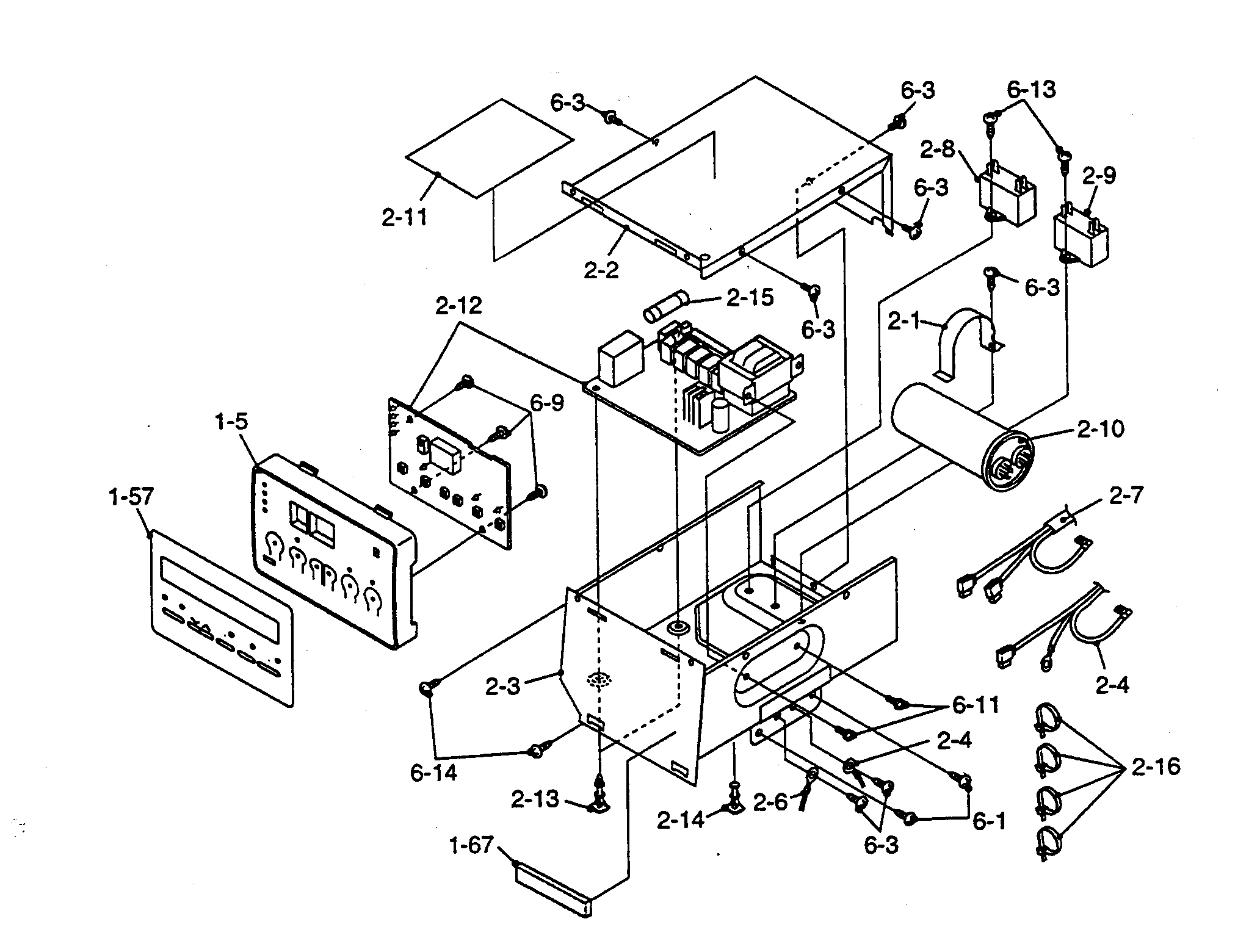

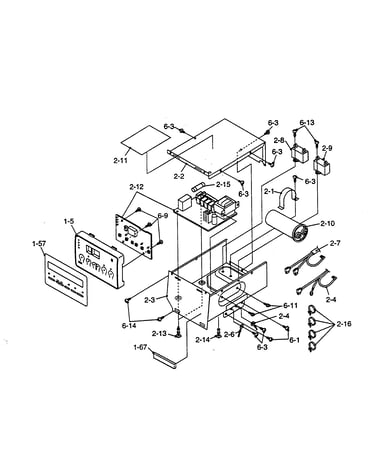

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 108 parts  |
Damper Assembly CLEV-A044JBKZ
#1-10

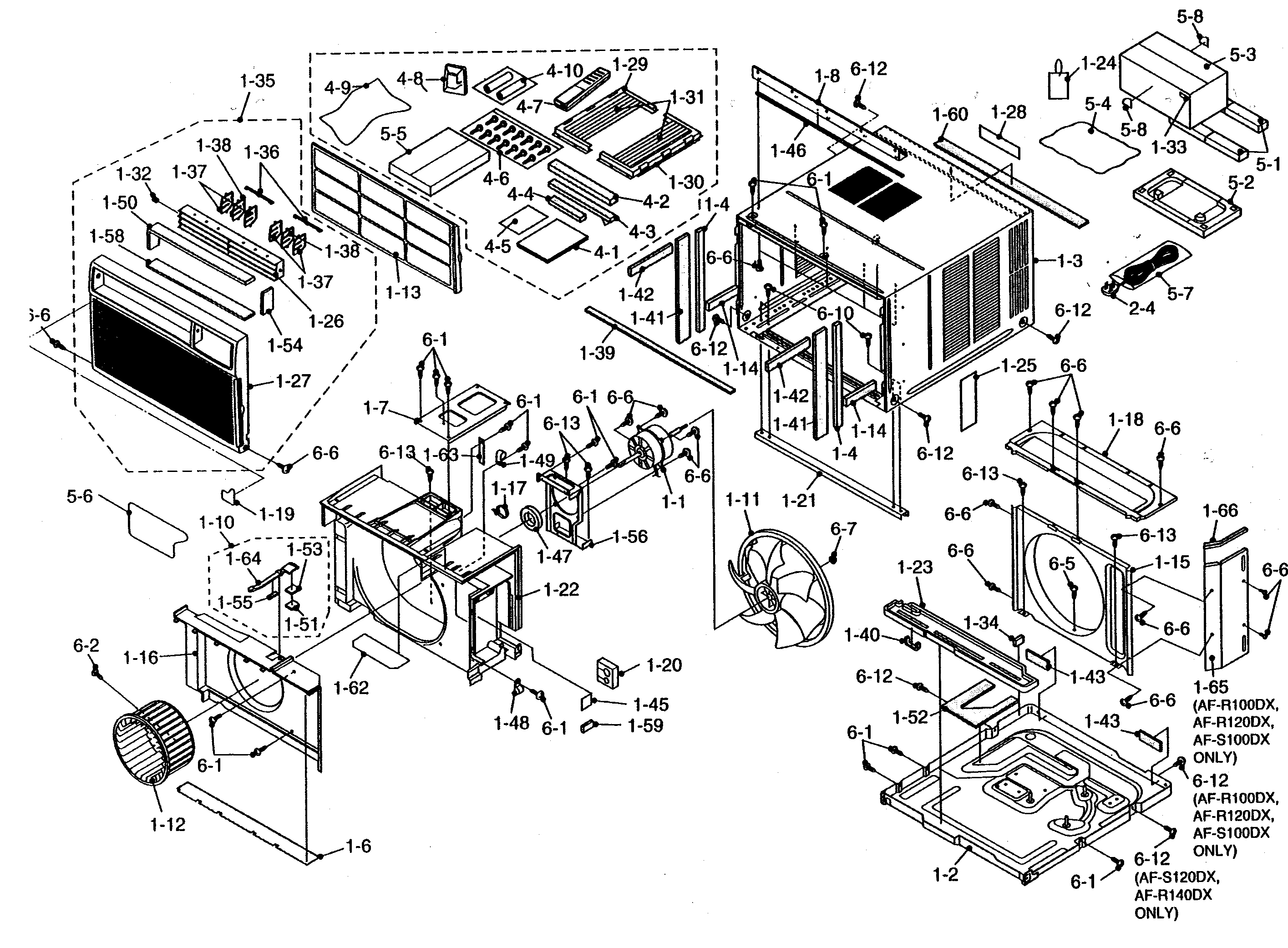

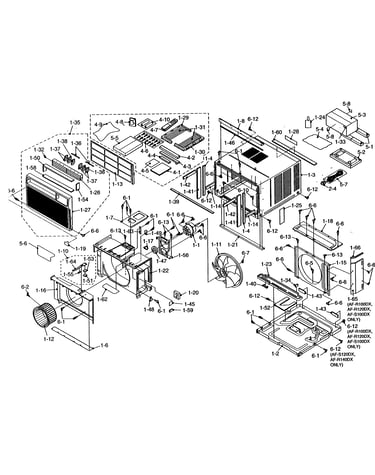

Cabinet parts diagram

Damper assembly

Part #CLEV-A044JBKZ

The manufacturer no longer makes this part, and there's no substitute part

Damper Lever MLEVPA015JBFE
#1-64

Cabinet parts diagram

Damper lever

Part #MLEVPA015JBFE

The manufacturer no longer makes this part, and there's no substitute part

Sharp Discharge Tube PPIPCG218JB1Z
#3-2

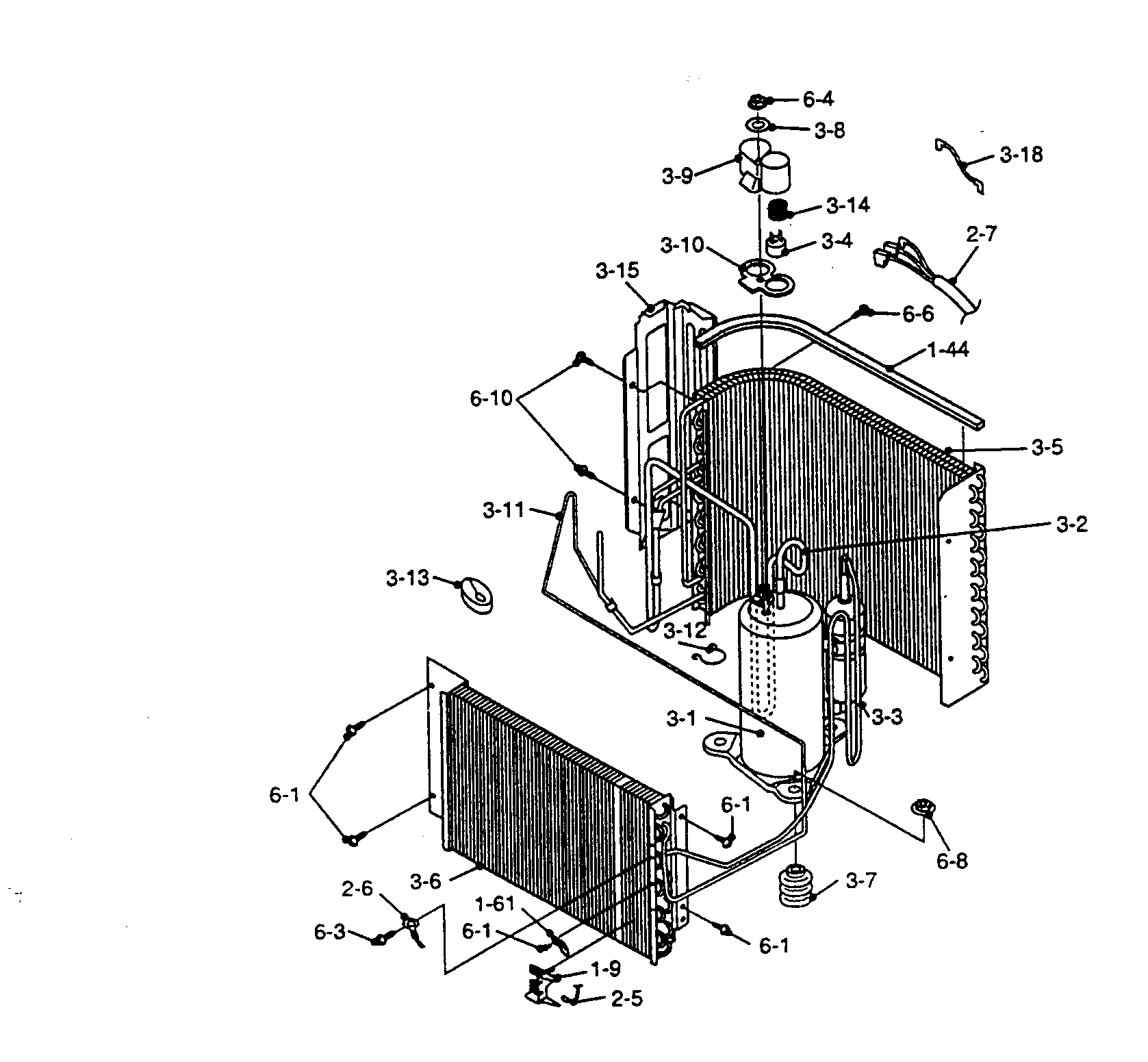

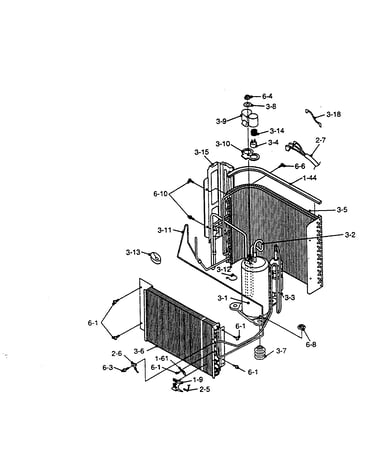

Cycle parts diagram

Sharp discharge tube

Part #PPIPCG218JB1Z

The manufacturer no longer makes this part, and there's no substitute part

Vertical Louver B MLOV-A253JBFE
#1-38

Cabinet parts diagram

Vertical louver b

Part #MLOV-A253JBFE

The manufacturer no longer makes this part, and there's no substitute part

Damper Rubber PGUM-0034JBE0
#3-13

Cycle parts diagram

Damper rubber

Part #PGUM-0034JBE0

The manufacturer no longer makes this part, and there's no substitute part

Louver Link MJNTPA074JBFE
#1-36

Cabinet parts diagram

Louver link

Part #MJNTPA074JBFE

The manufacturer no longer makes this part, and there's no substitute part

Sharp Suction Tube PPIPCG369JB1Z
#3-3

Cycle parts diagram

Sharp suction tube

Part #PPIPCG369JB1Z

The manufacturer no longer makes this part, and there's no substitute part

Screw DX-BZA027JBK0
#4-6

Cabinet parts diagram

Screw

Part #DX-BZA027JBK0

The manufacturer no longer makes this part, and there's no substitute part

Window Insulator PSEL-A349JBE0
#4-2

Cabinet parts diagram

Window insulator

Part #PSEL-A349JBE0

The manufacturer no longer makes this part, and there's no substitute part

Vertical Louver A MLOV-A252JBFE
#1-37

Cabinet parts diagram

Vertical louver a

Part #MLOV-A252JBFE

The manufacturer no longer makes this part, and there's no substitute part
