Electrolux
Electric Wall Oven

Model # EW30EW55GS4 Official Electrolux wall oven

Here are the diagrams and repair parts for Official Electrolux EW30EW55GS4 wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

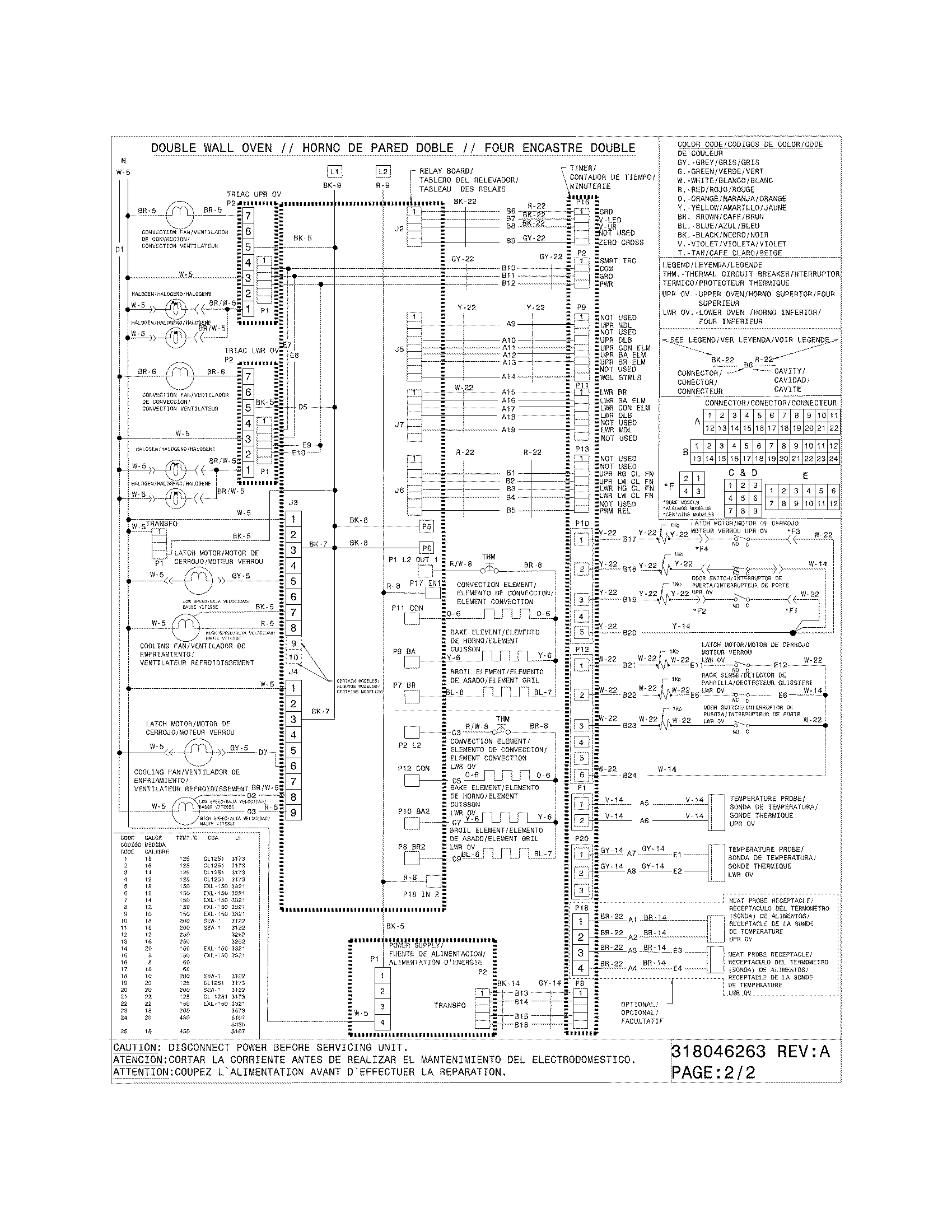

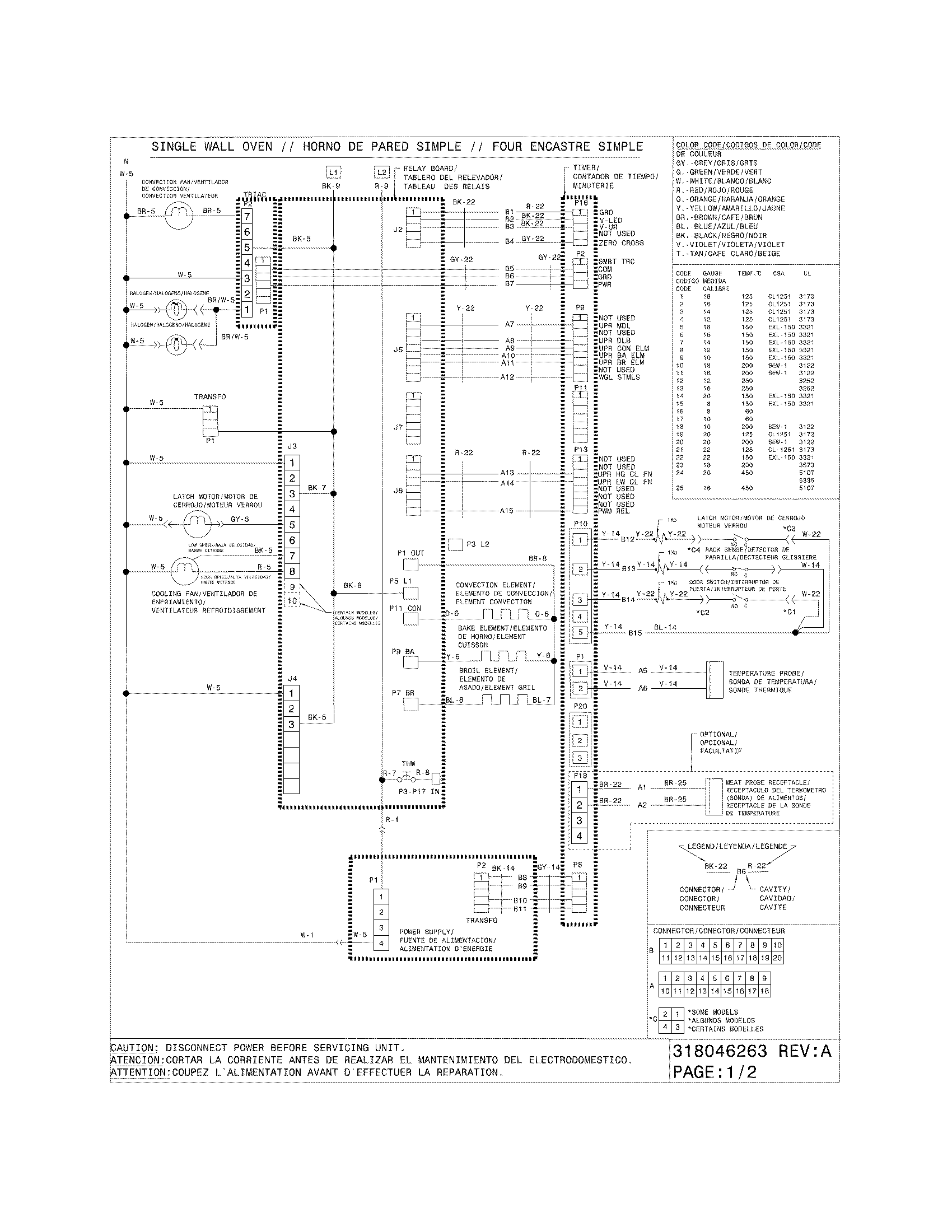

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Probe 7316217002
#37

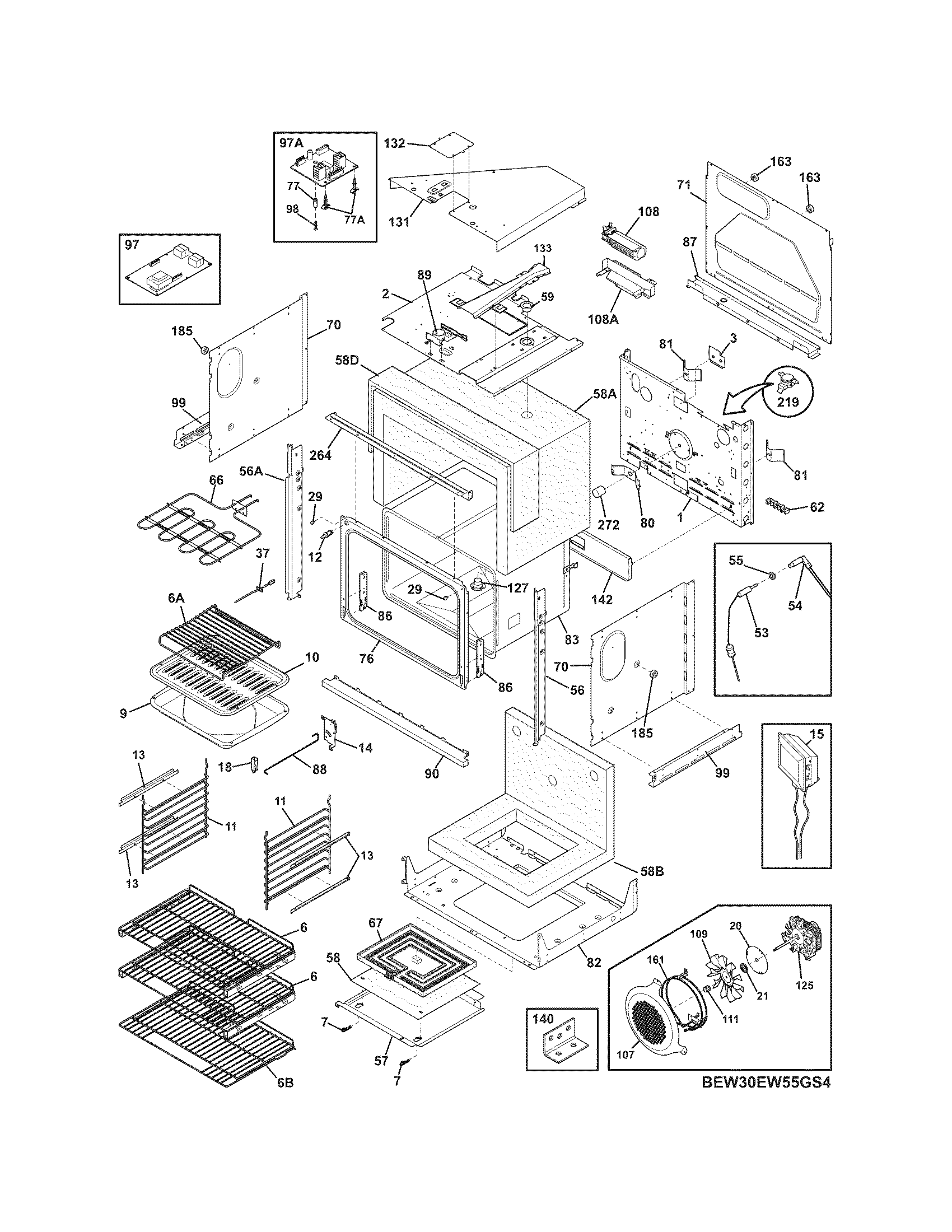

Body diagram

Probe

Part #7316217002

Replaced by #316217002

?
Manufacturer substitution
This part replaces 7316217002. Substitute parts can look different from the original.
BEST SELLER
$44.86 |
12% OFF Phone Price : $50.86
In Stock
Heat Element 7318601601
#67

Body diagram

Heat element

Part #7318601601

Replaced by #318601604

?
Manufacturer substitution
This part replaces 7318601601. Substitute parts can look different from the original.
BEST SELLER
$197.10 |
6% OFF Phone Price : $209.10
In Stock
Glass 7316117500
#8

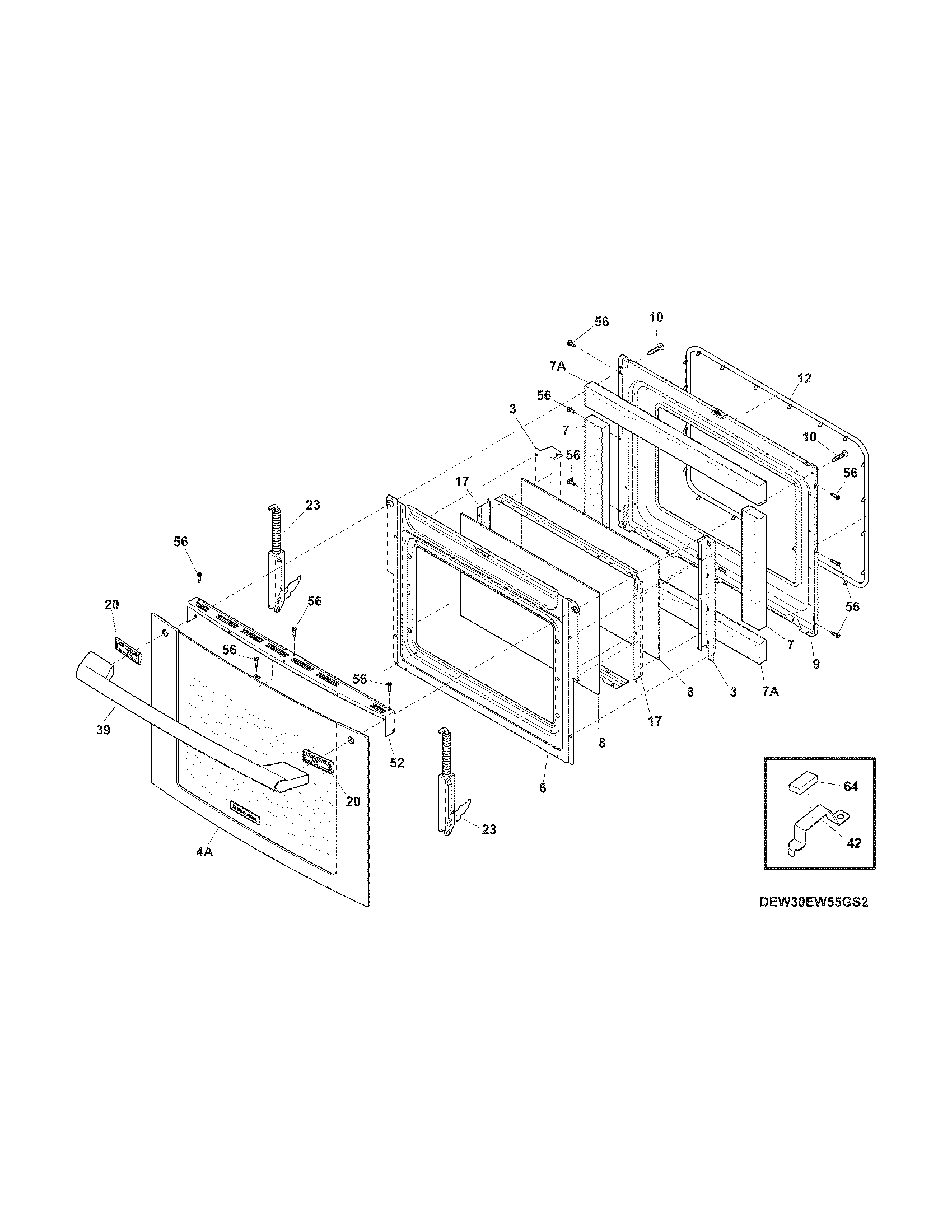

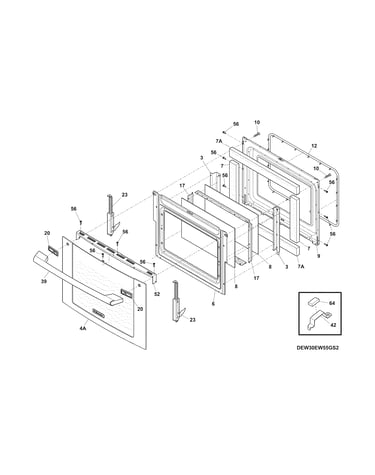

Door diagram

Glass

Part #7316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 7316117500. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Light Switch 7316445501
#12

Body diagram

Light switch

Part #7316445501

Replaced by #316445501

?
Manufacturer substitution
This part replaces 7316445501. Substitute parts can look different from the original.
$63.47 |
9% OFF Phone Price : $69.47
In Stock
Probe 7318601302
#53

Body diagram

Probe

Part #7318601302

Replaced by #5304504202

?
Manufacturer substitution
This part replaces 7318601302. Substitute parts can look different from the original.
$89.51 |
6% OFF Phone Price : $95.51
In Stock
Heat Element 7318255506
#161

Body diagram

Heat element

Part #7318255506

Replaced by #318255511

?
Manufacturer substitution
This part replaces 7318255506. Substitute parts can look different from the original.
$97.49 |
11% OFF Phone Price : $109.49
In Stock
Electronic Control 7316443918
#97

Body diagram

Electronic control

Part #7316443918

Replaced by #316443918

?
Manufacturer substitution
This part replaces 7316443918. Substitute parts can look different from the original.
This item is not returnable
$270.84 |
$12.00 OFF Phone Price : $282.84
In Stock
Electronic Harness 7318231838
#NI

Body diagram

Electronic harness

Part #7318231838

Replaced by #318231870

?
Manufacturer substitution
This part replaces 7318231838. Substitute parts can look different from the original.
$56.67 |
10% OFF Phone Price : $62.67
In Stock
Bracket 7318382301
#42

Door diagram

Bracket

Part #7318382301

Replaced by #318382302

?
Manufacturer substitution
This part replaces 7318382301. Substitute parts can look different from the original.
$43.42
In Stock
Receptacle 7318601206
#54

Body diagram

Receptacle

Part #7318601206

Replaced by #318601206

?
Manufacturer substitution
This part replaces 7318601206. Substitute parts can look different from the original.
$145.59 |
8% OFF Phone Price : $157.59
In Stock
