Amana
Electric Cooktop

Model # AK2T36W2-P1131564NW Official Amana electric cooktop

Here are the diagrams and repair parts for Official Amana AK2T36W2-P1131564NW electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Cleaner, Coo 0314274
#H

Miscellaeous information diagram

Cleaner, coo

Part #0314274

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 0314274. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Rib Element 0314911
#1

Elements and limiters diagram

Rib element

Part #0314911

Replaced by #W10823699

?
Manufacturer substitution
This part replaces 0314911. Substitute parts can look different from the original.
$74.52 |
7% OFF Phone Price : $80.52
In Stock
Infinite Switch 0309862
Infinite switch

Part #0309862

Replaced by #W11121639

?
Manufacturer substitution
This part replaces 0309862. Substitute parts can look different from the original.
$74.41 |
7% OFF Phone Price : $80.41
In Stock
Rib Element 0314912
#3

Elements and limiters diagram

Rib element

Part #0314912

Replaced by #W10823710

?
Manufacturer substitution
This part replaces 0314912. Substitute parts can look different from the original.
$156.59 |
7% OFF Phone Price : $168.59
In Stock
Element, Dua 0314899
#11

Elements and limiters diagram

Element, dua

Part #0314899

Replaced by #W10823726

?
Manufacturer substitution
This part replaces 0314899. Substitute parts can look different from the original.
$128.56 |
9% OFF Phone Price : $140.56
In Stock
Rib Element 0316127
#3A

Elements and limiters diagram

Rib element

Part #0316127

Replaced by #W10823710

?
Manufacturer substitution
This part replaces 0316127. Substitute parts can look different from the original.
$156.59 |
7% OFF Phone Price : $168.59
In Stock
Insulation 0307481
#2

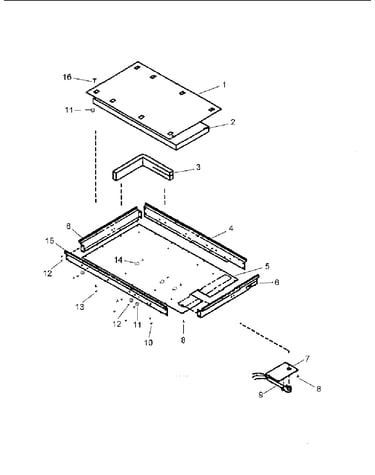

Heater box diagram

Insulation

Part #0307481

The manufacturer no longer makes this part, and there's no substitute part

Indicator Light 0307442
#16

Cooktop diagram

Indicator light

Part #0307442

The manufacturer no longer makes this part, and there's no substitute part

Element Spring 0306683
#7

Elements and limiters diagram

Element spring

Part #0306683

The manufacturer no longer makes this part, and there's no substitute part

Tape Per Rol M0275045
#0

Miscellaeous information diagram

Tape per rol

Part #M0275045

The manufacturer no longer makes this part, and there's no substitute part
