DeWalt
Reciprocating Saw

Model # HS600KTY1 Official DeWalt saw

Here are the diagrams and repair parts for Official DeWalt HS600KTY1 saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

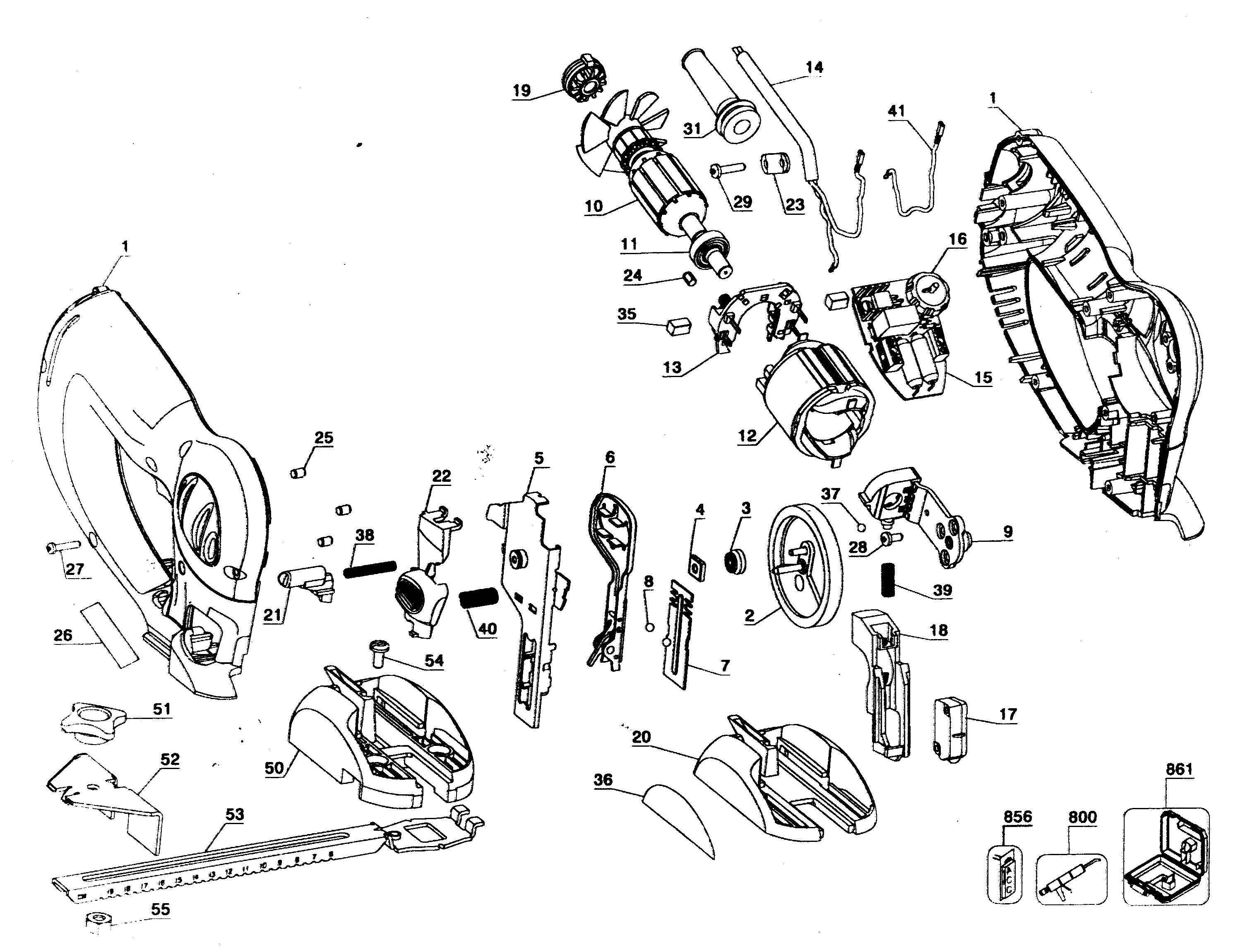

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Dewalt Rec Shaft 604211-01
#6

Saw diagram

Dewalt rec shaft

Part #604211-01

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Strap 609660-00
#53

Saw diagram

Dewalt strap

Part #609660-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Field 142959-71
#12

Saw diagram

Dewalt field

Part #142959-71

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Lead Assembly 606908-00
#41

Saw diagram

Dewalt lead assembly

Part #606908-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Armature 606039-00
#10

Saw diagram

Dewalt armature

Part #606039-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Steel Ball 613088-00
#37

Saw diagram

Dewalt steel ball

Part #613088-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Sandpaper 610014-00
#NI

Saw diagram

Dewalt sandpaper

Part #610014-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Button 603794-00
#21

Saw diagram

Dewalt button

Part #603794-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Rel Button 603944-00
#22

Saw diagram

Dewalt rel button

Part #603944-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Ball Bearing 330003-79
#11

Saw diagram

Dewalt ball bearing

Part #330003-79

The manufacturer no longer makes this part, and there's no substitute part
