Model # 11624402 Official Kenmore vacuum cleaner & attachment parts
Here are the diagrams and repair parts for Official Kenmore 11624402 vacuum cleaner & attachment parts, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for11624402 Vacuum Cleaners
- #5

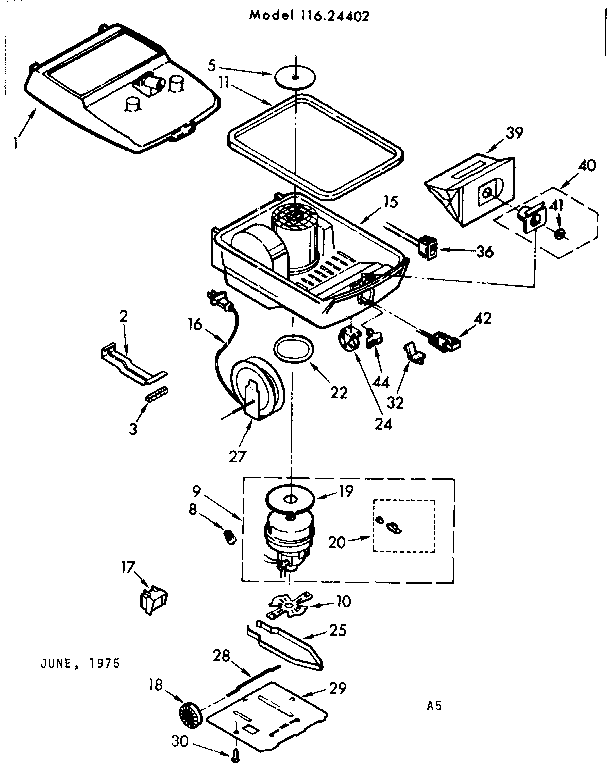

Base assembly diagram
FilterPart #764681
The manufacturer no longer makes this part, and there's no substitute part
- #82

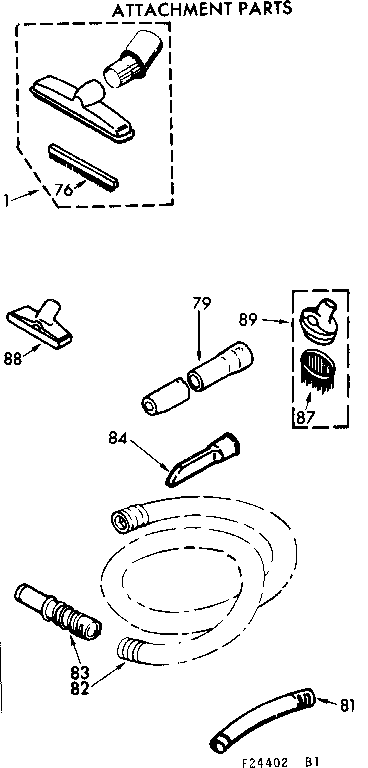

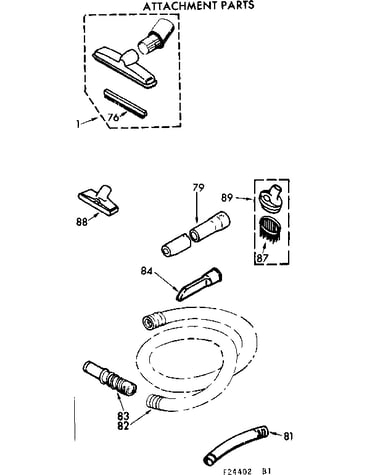

Attachment parts diagram
HosePart #725055
The manufacturer no longer makes this part, and there's no substitute part
- #27
Base assembly diagram
ReelPart #700760
The manufacturer no longer makes this part, and there's no substitute part
- #20
Base assembly diagram
BrushPart #588198
The manufacturer no longer makes this part, and there's no substitute part
- #81
Attachment parts diagram
HandlePart #725109
The manufacturer no longer makes this part, and there's no substitute part
- #36
Base assembly diagram
SwitchPart #764690
The manufacturer no longer makes this part, and there's no substitute part
- #16
Base assembly diagram
CordPart #764625
The manufacturer no longer makes this part, and there's no substitute part
- #42
Base assembly diagram
ReceptaclePart #764657
The manufacturer no longer makes this part, and there's no substitute part
- #19
Base assembly diagram
Fan assemblyPart #674315
The manufacturer no longer makes this part, and there's no substitute part
- #3
Base assembly diagram
PadPart #764933
The manufacturer no longer makes this part, and there's no substitute part
