Model # 143164162 Official Craftsman 4-cycle engine
Here are the diagrams and repair parts for Official Craftsman 143164162 4-cycle engine, as well as links to manuals and error code tables, if available.
By Schematic
By Part

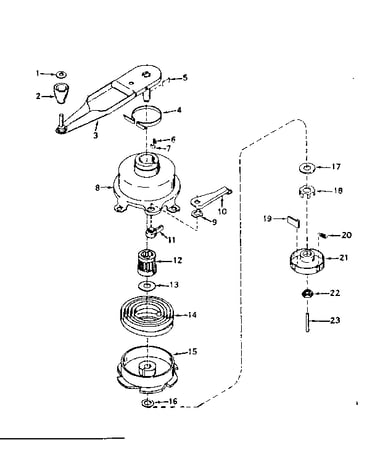

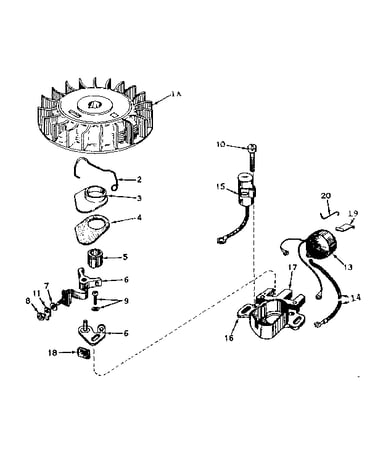

SELECT DIAGRAM
Browse Parts for
143164162 4-Cycle Engine
#21

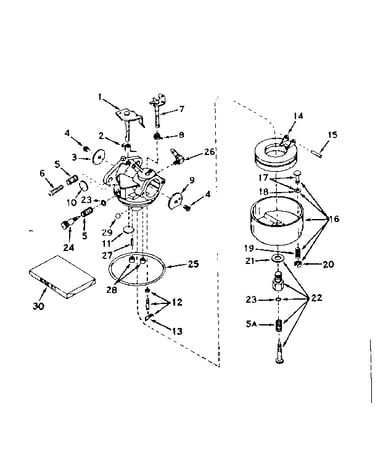

Carburetor no. 630987a diagram
Gasket
Part #27110
The manufacturer no longer makes this part, and there's no substitute part
#26
Carburetor no. 630987a diagram
Fitting
Part #631038
The manufacturer no longer makes this part, and there's no substitute part
#54

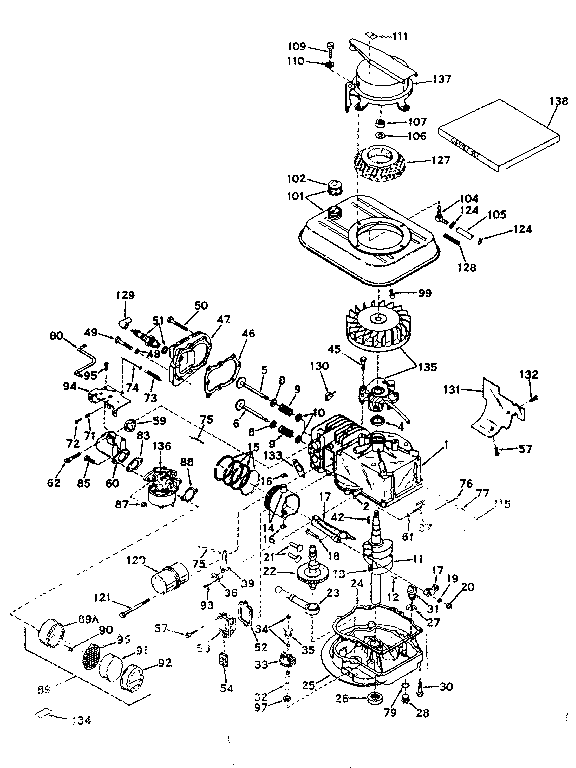

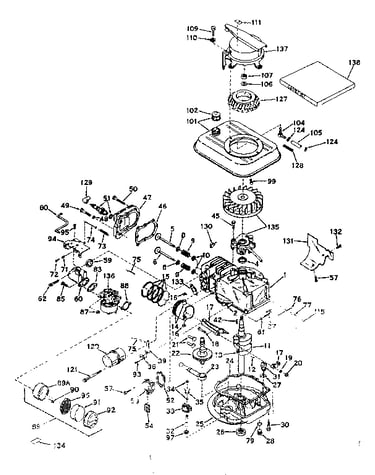

Basic engine diagram
Element
Part #31410
The manufacturer no longer makes this part, and there's no substitute part
#31
Basic engine diagram
Plug
Part #27625
The manufacturer no longer makes this part, and there's no substitute part
#28
Basic engine diagram
Plug
Part #30572
The manufacturer no longer makes this part, and there's no substitute part
#90
Basic engine diagram
Screw
Part #28820
The manufacturer no longer makes this part, and there's no substitute part
#13
Carburetor no. 630987a diagram
Clip
Part #631022
The manufacturer no longer makes this part, and there's no substitute part
#18
Carburetor no. 630987a diagram
Gasket
Part #27554
The manufacturer no longer makes this part, and there's no substitute part
#5
Carburetor no. 630987a diagram
Spring
Part #630766
The manufacturer no longer makes this part, and there's no substitute part
#35
Basic engine diagram
Spool
Part #30588A
The manufacturer no longer makes this part, and there's no substitute part
Symptoms for gas walk-behind mowers
Choose a symptom to see related walk-behind mower repairs.
Main causes: engine needs tune up, dirty or clogged carburetor, damaged flywheel key…
Main causes: uneven wheel height settings, damaged wheel, dull or damaged cutting blade…
Main causes: damaged cutting blade, loose cutting blade, damaged flywheel key, engine needs tune up…
Main causes: stale gas, engine needs tune up, bad spark plug, dead battery, bad recoil starter, faulty safety switch, ba…
Main causes: dirty carburetor, bad spark plug, clogged air filter, engine choke problems, clogged gas cap vent…
Main causes: drive control cable failure, worn or broken drive belt, bad transmission, broken drive wheel…
Repair guides for gas walk-behind mowers
These step-by-step repair guides will help you safely fix what’s broken on your walk-behind lawn mower.
How to replace a lawn mower spark plug
Take a few minutes to replace the spark plug during your lawn mower's annual tune-up or if the spark plug is burnt or cr…
Repair difficulty
Time required
15 minutes or less
How to replace a lawn mower blade
Check your lawn mower blade regularly and replaced it if it's bent or damaged. …
Repair difficulty
Time required
15 minutes or less
How to replace a lawn mower flywheel key on a flathead engine
When you hit a hard object with your mower, the flywheel can shear to protect more expensive components. Learn how to re…
Repair difficulty
Time required
45 minutes or less
Effective articles & videos to help repair your lawn & garden engines
Use the advice and tips in these articles and videos to get the most out of your walk-behind lawn mower.
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn about the main parts of a lawn mower and when to replace parts.…
