Amana
Bottom-Mount Refrigerator

Model # 86061-P1125505W Official Amana refrigerator

Here are the diagrams and repair parts for Official Amana 86061-P1125505W refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

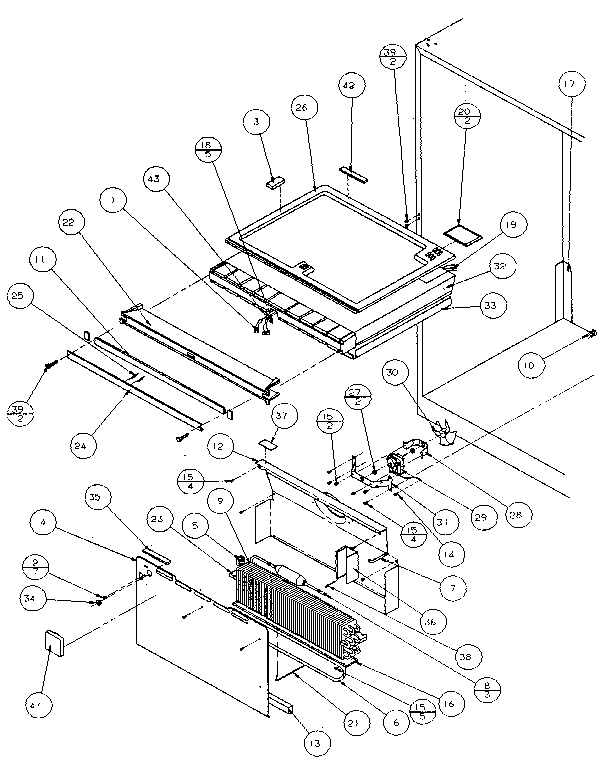

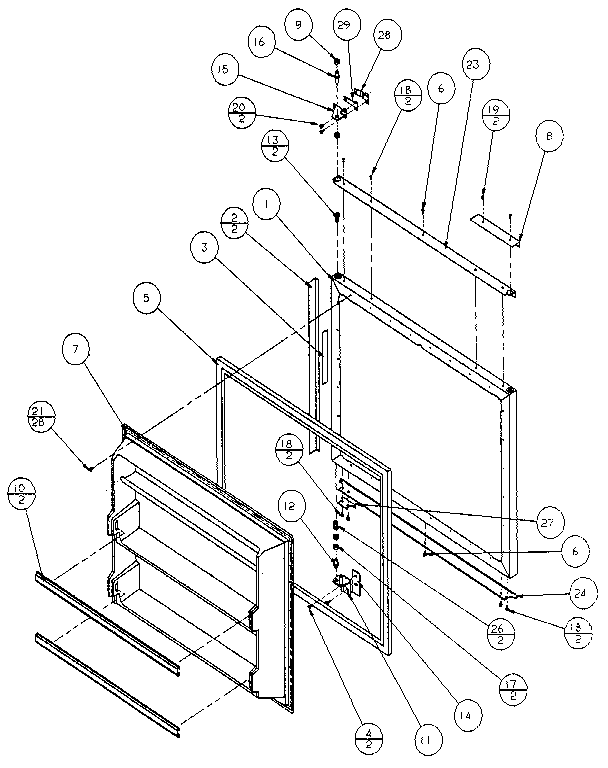

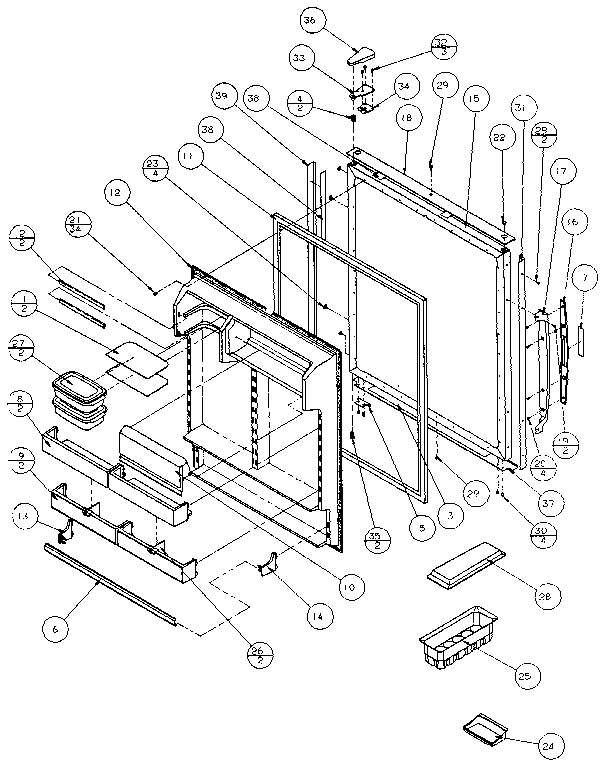

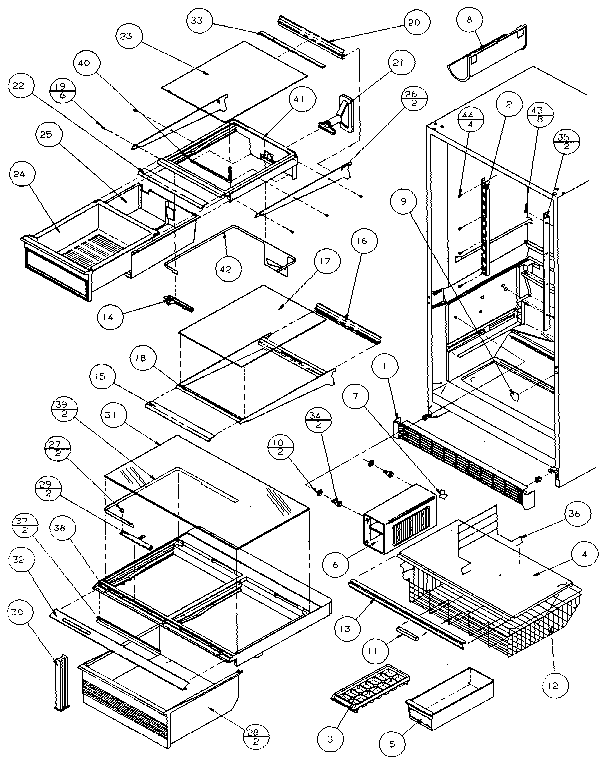

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 346 parts  |
Refrigerator Ice Maker (red) D7824702
#2

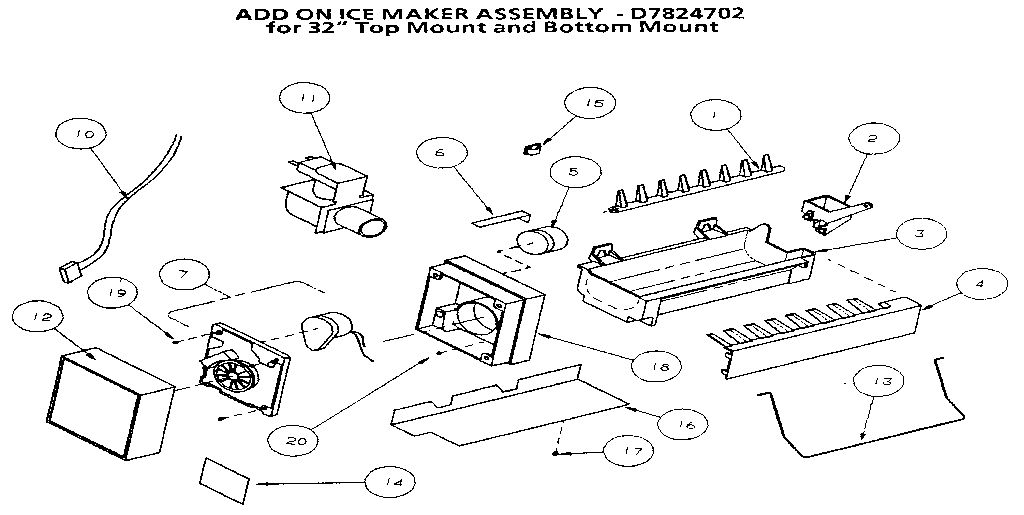

Add-on ice maker assembly diagram

Refrigerator ice maker (red)

Part #D7824702

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces D7824702. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Ice Maker R0161060
#5

Add on ice maker assembly - d7824702 diagram

Refrigerator ice maker

Part #R0161060

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Ice Maker D7824701
#2

Add on ice-maker assembly diagram

Refrigerator ice maker

Part #D7824701

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces D7824701. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Motor Module R0167202
#7

Add on ice maker assembly - d7824702 diagram

Motor module

Part #R0167202

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces R0167202. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Mold & Heatr R0156669
#3

Add on ice maker assembly - d7824702 diagram

Mold & heatr

Part #R0156669

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces R0156669. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Lamp, 40-watt, 115 To 125-volt A0282803
#15

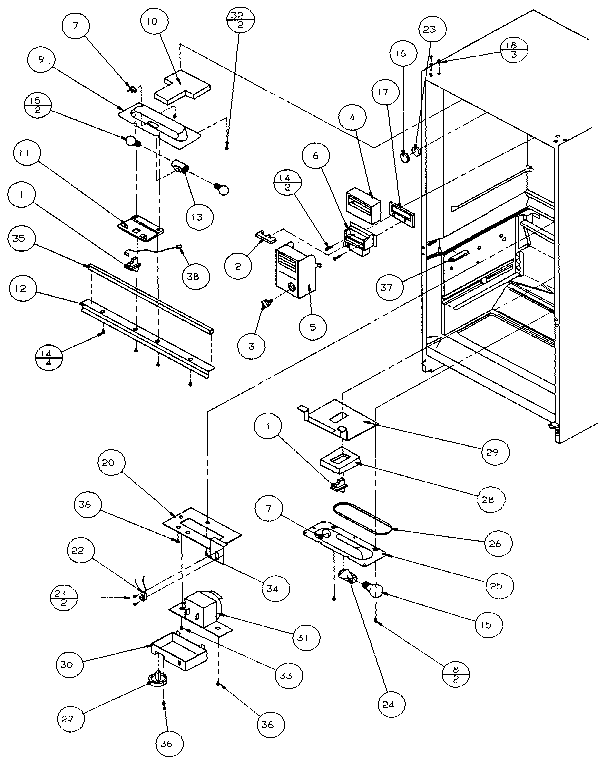

Controls and lamps diagram

Refrigerator lamp, 40-watt, 115 to 125-volt

Part #A0282803

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Light Switch C3680307
#1

Controls and lamps diagram

Refrigerator light switch

Part #C3680307

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Ptc Relay 10097202
#13A

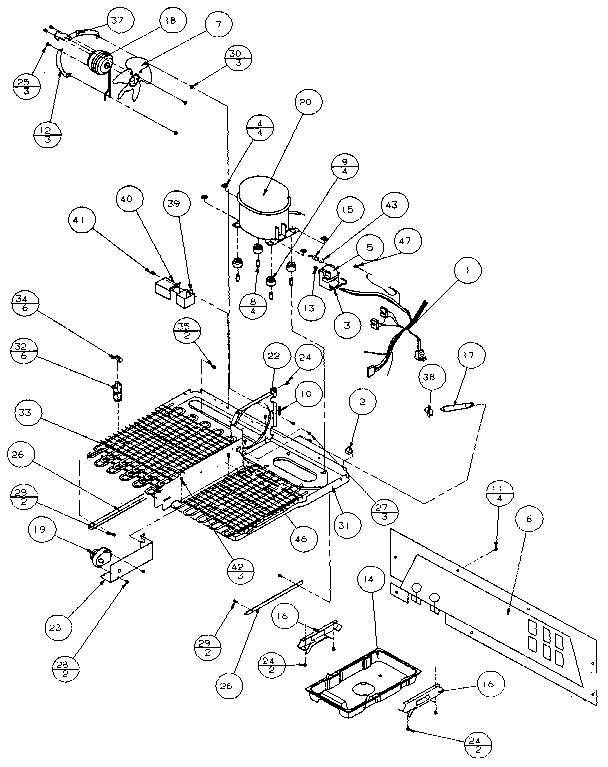

Compressor compartment diagram

Refrigerator ptc relay

Part #10097202

Replaced by #WPW10189190

?
Manufacturer substitution
This part replaces 10097202. Substitute parts can look different from the original.
BEST SELLER
$71.10 |
8% OFF Phone Price : $77.10
In Stock
Drier B2150502
#17

Compressor compartment diagram

Drier

Part #B2150502

Replaced by #WPB2150504

?
Manufacturer substitution
This part replaces B2150502. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Refrigerator Fan Motor D7584001
#18

Compressor compartment diagram

Refrigerator fan motor

Part #D7584001

Replaced by #833697

?
Manufacturer substitution
This part replaces D7584001. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
9% OFF Phone Price : $66.49
In Stock
