Model # ARR625W-P1130970NW Official Amana electric freestanding range

Here are the diagrams and repair parts for Official Amana ARR625W-P1130970NW electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

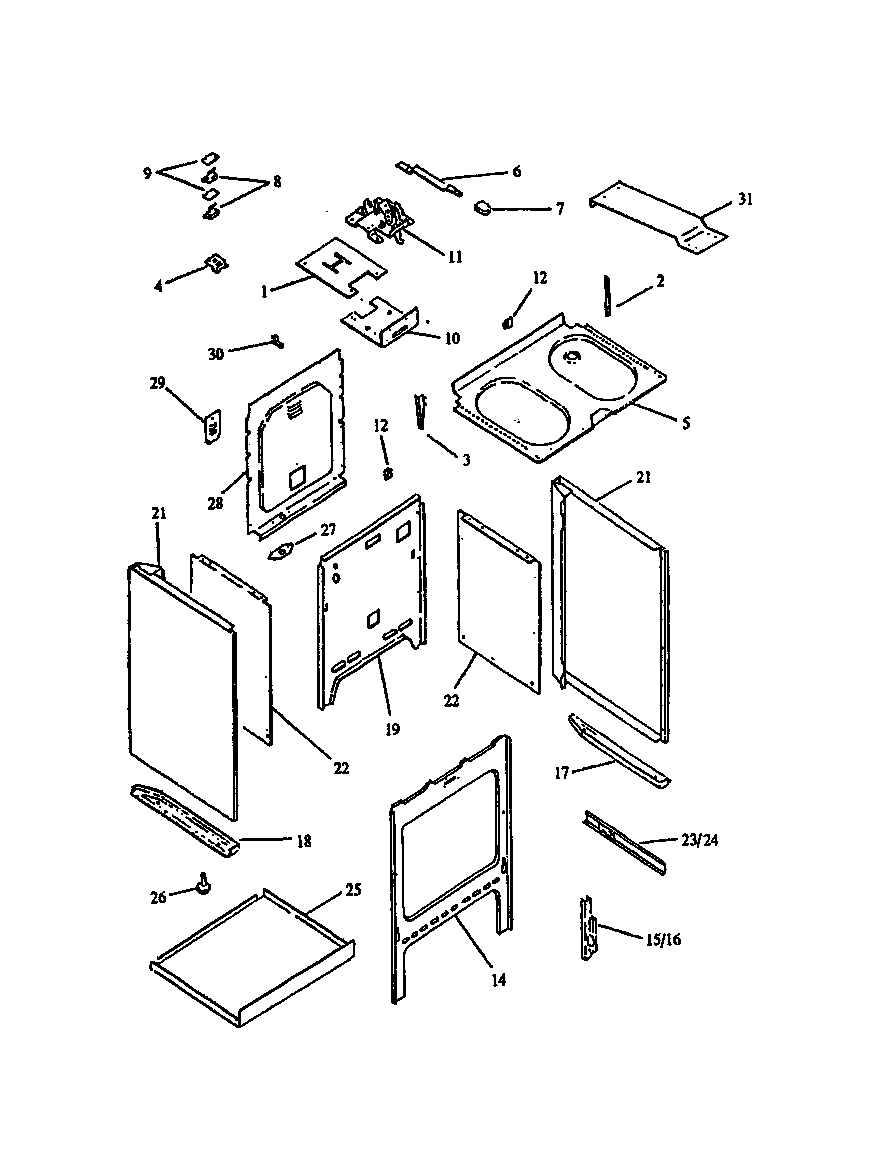

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Kit, Top Ele 0089336
#8

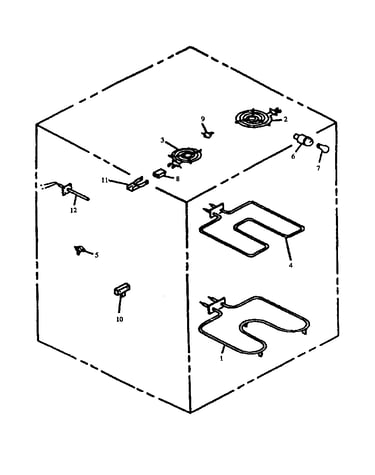

Electrical components diagram

Kit, top ele

Part #0089336

Replaced by #330031

?
Manufacturer substitution
This part replaces 0089336. Substitute parts can look different from the original.
BEST SELLER
$10.32 |
16% OFF Phone Price : $12.32
In Stock
Machine Screw 0041768
#9999

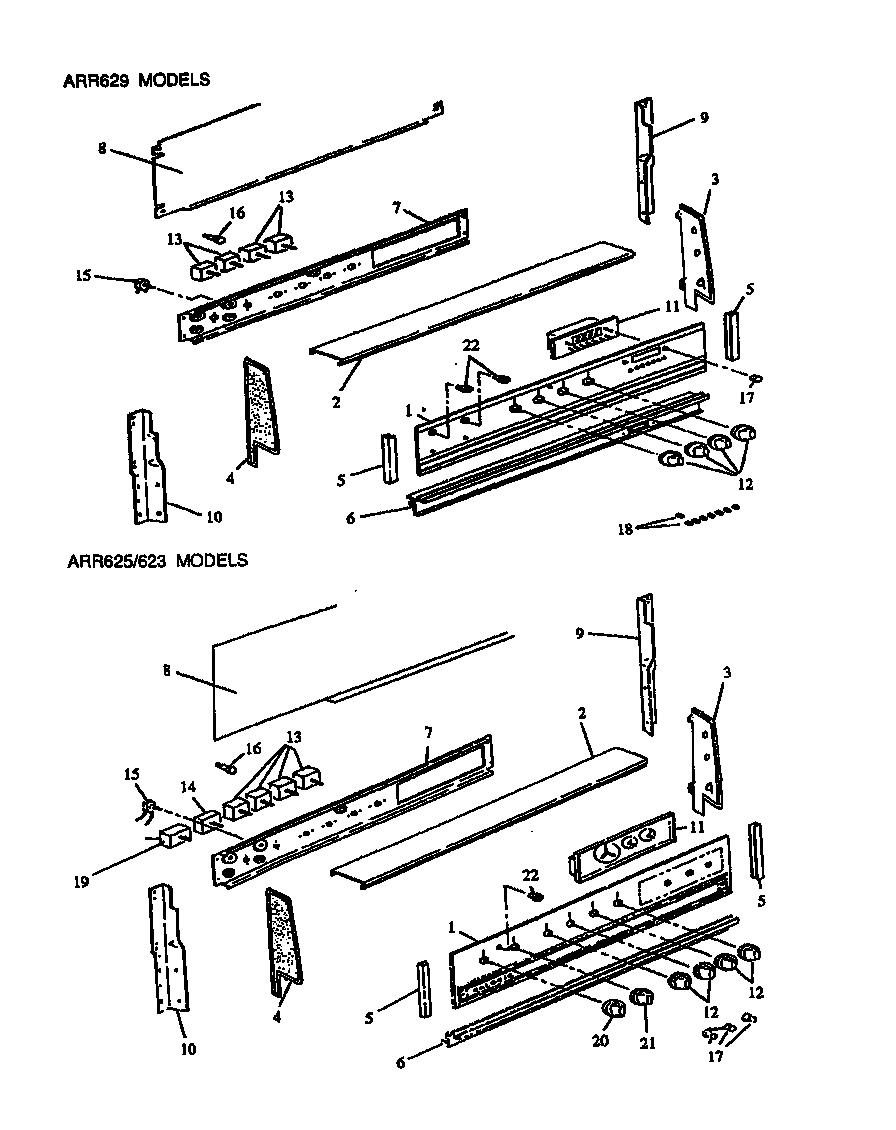

Control panel parts diagram

Machine screw

Part #0041768

Replaced by #WP3400882

?
Manufacturer substitution
This part replaces 0041768. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Bake Element 0059552
#1

Electrical components diagram

Bake element

Part #0059552

Replaced by #WP77001094

?
Manufacturer substitution
This part replaces 0059552. Substitute parts can look different from the original.
$28.19 |
18% OFF Phone Price : $34.19
In Stock
Assy, Oven L 0300582
#6

Electrical components diagram

Assy, oven l

Part #0300582

Replaced by #WP74011278

?
Manufacturer substitution
This part replaces 0300582. Substitute parts can look different from the original.
$71.99 |
8% OFF Phone Price : $77.99
In Stock
Screw, #8-18 0059445
Screw, #8-18

Part #0059445

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 0059445. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 0041809
#9999

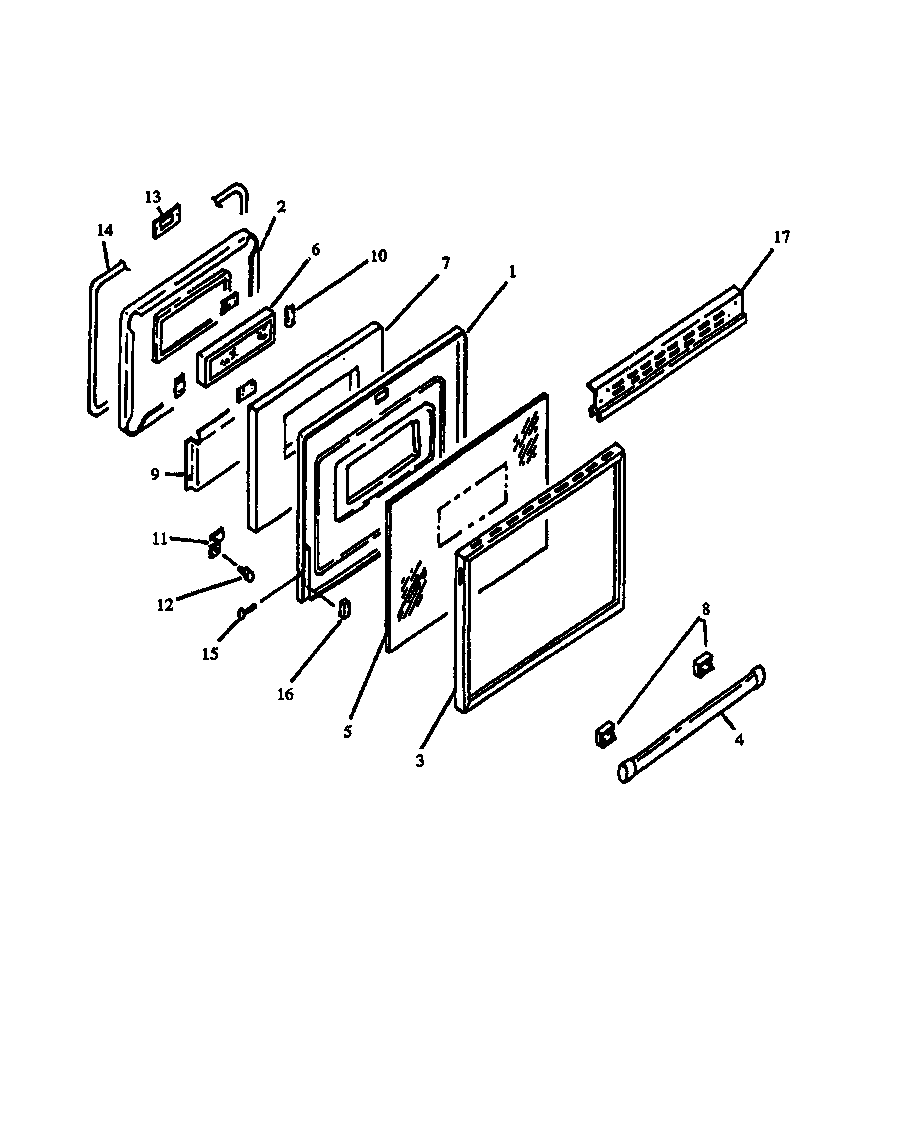

Oven door diagram

Screw

Part #0041809

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 0041809. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Drip Bowl 0300728
#6

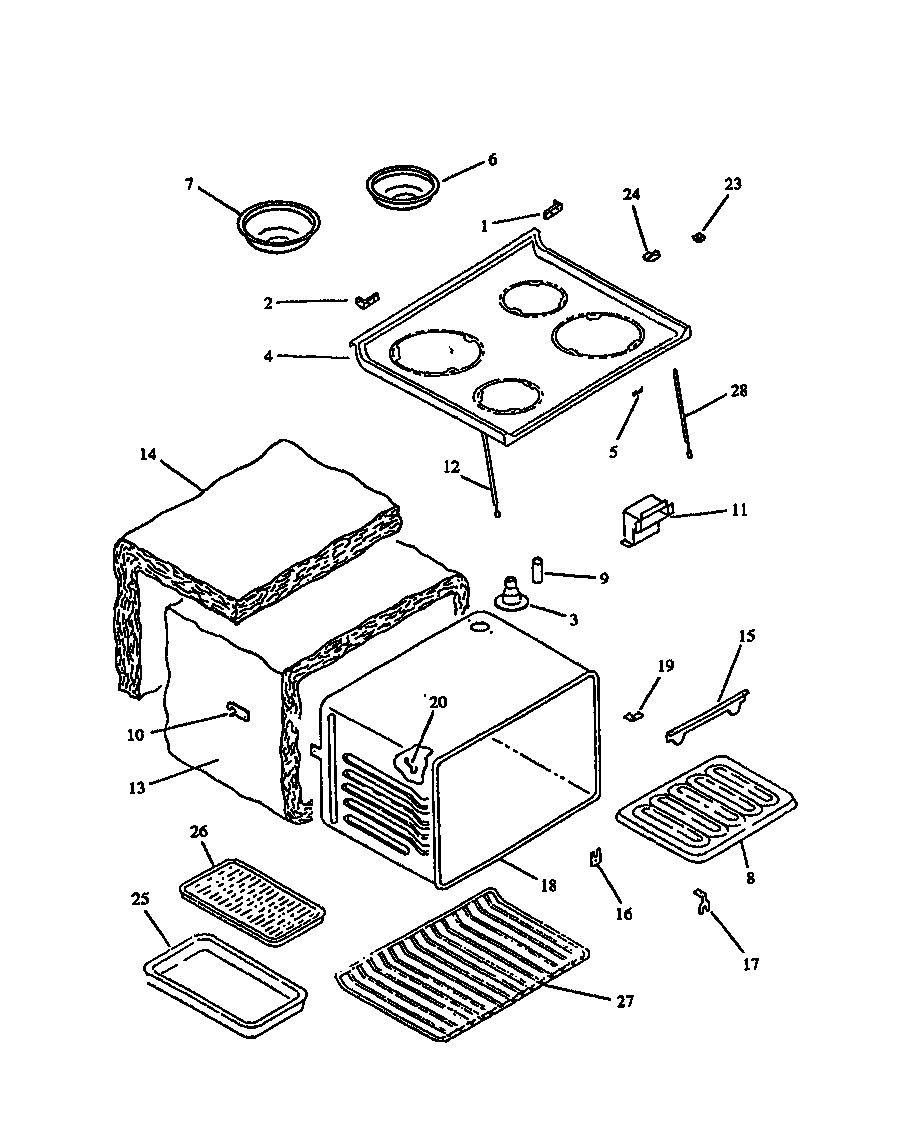

Main top and oven assy diagram

Drip bowl

Part #0300728

Replaced by #W10290353RW

?
Manufacturer substitution
This part replaces 0300728. Substitute parts can look different from the original.
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Oven Rack 0067810
#27

Main top and oven assy diagram

Oven rack

Part #0067810

Replaced by #WP314763J

?
Manufacturer substitution
This part replaces 0067810. Substitute parts can look different from the original.
$35.63 |
14% OFF Phone Price : $41.63
In Stock
Burner Bowl 0300730
#7

Main top and oven assy diagram

Burner bowl

Part #0300730

Replaced by #W10290350RW

?
Manufacturer substitution
This part replaces 0300730. Substitute parts can look different from the original.
This item is not returnable
$13.79 |
13% OFF Phone Price : $15.79
In Stock
Element, 4 T 0051576
#3

Electrical components diagram

Element, 4 t

Part #0051576

Replaced by #WPW10259868

?
Manufacturer substitution
This part replaces 0051576. Substitute parts can look different from the original.
$76.43 |
7% OFF Phone Price : $82.43
In Stock
