Model # 14350045 Official Craftsman 4-cycle gas engine

Here are the diagrams and repair parts for Official Craftsman 14350045 4-cycle gas engine, as well as links to manuals and error code tables, if available.

By Schematic
By Part

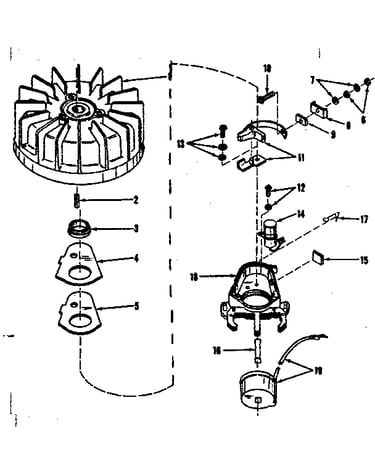

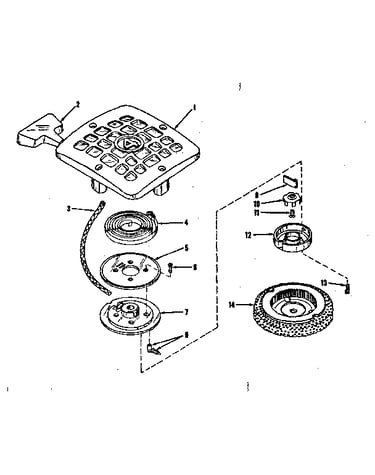

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
14350045 4-Cycle Gas Engine
Gasket 27110
#20

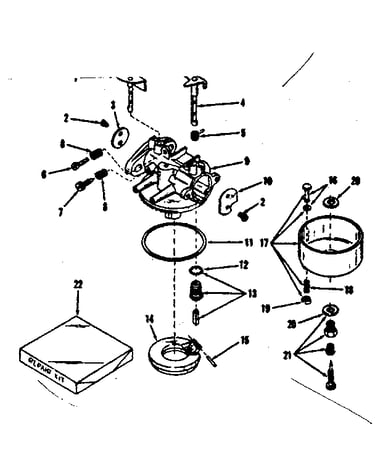

Carburetor no. 28860 diagram

Gasket

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

Breather Element Air Filter 28424
#55

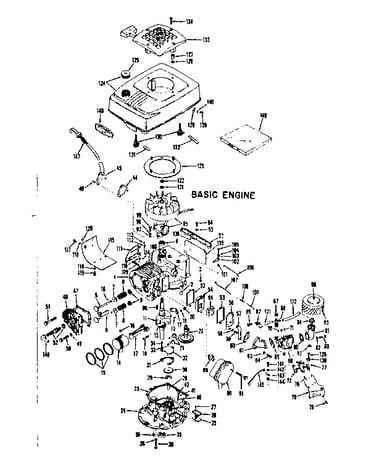

Basic engine diagram

Breather element air filter

Part #28424

The manufacturer no longer makes this part, and there's no substitute part

Tube 27627
#57

Basic engine diagram

Tube

Part #27627

The manufacturer no longer makes this part, and there's no substitute part

Cover 28425
#56

Basic engine diagram

Cover

Part #28425

The manufacturer no longer makes this part, and there's no substitute part

Screw 28878
#105

Basic engine diagram

Screw

Part #28878

The manufacturer no longer makes this part, and there's no substitute part

Fitting 28584
#130

Basic engine diagram

Fitting

Part #28584

The manufacturer no longer makes this part, and there's no substitute part

Nut 28264
#20

Basic engine diagram

Nut

Part #28264

The manufacturer no longer makes this part, and there's no substitute part

Plug Cover 27276
#146

Basic engine diagram

Plug cover

Part #27276

The manufacturer no longer makes this part, and there's no substitute part

Bolt 21718
#18

Basic engine diagram

Bolt

Part #21718

The manufacturer no longer makes this part, and there's no substitute part

/carb Float 27105
#14

Carburetor no. 28860 diagram

/carb float

Part #27105

The manufacturer no longer makes this part, and there's no substitute part
