Model # 217590083 Official Craftsman electric fishing motor

Here are the diagrams and repair parts for Official Craftsman 217590083 electric fishing motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

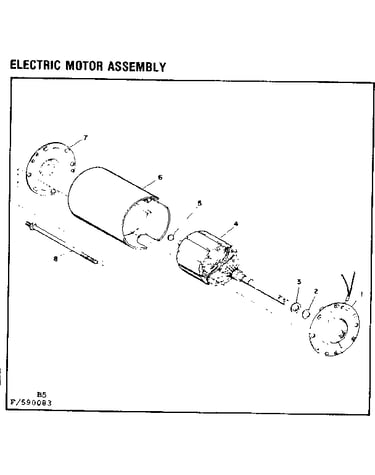

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 55 parts |

#43

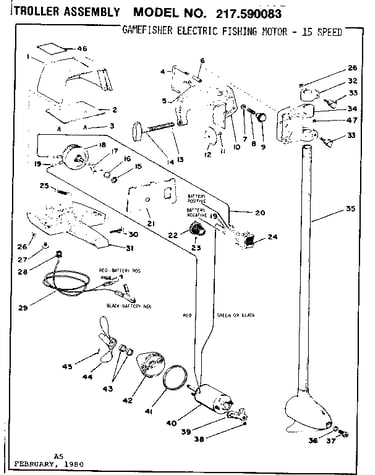

Troller assembly diagram

Oil seal

Part #26329

The manufacturer no longer makes this part, and there's no substitute part

#31

Troller assembly diagram

Control

Part #26721

The manufacturer no longer makes this part, and there's no substitute part

Troller assembly diagram

Part #7438

The manufacturer no longer makes this part, and there's no substitute part

#15

Troller assembly diagram

Nut

Part #2839

The manufacturer no longer makes this part, and there's no substitute part

#21

Troller assembly diagram

Panel

Part #36330

The manufacturer no longer makes this part, and there's no substitute part

#14

Troller assembly diagram

Stud/hndl

Part #66097

The manufacturer no longer makes this part, and there's no substitute part

#27

Troller assembly diagram

Screw

Part #60

The manufacturer no longer makes this part, and there's no substitute part

#18

Troller assembly diagram

Rheostat

Part #76146

The manufacturer no longer makes this part, and there's no substitute part

#29

Troller assembly diagram

Battery wire

Part #76045

The manufacturer no longer makes this part, and there's no substitute part

#36

Troller assembly diagram

O-ring

Part #26402

The manufacturer no longer makes this part, and there's no substitute part
