Model # 66514875N120 Official Kenmore Elite dishwasher

Here are the diagrams and repair parts for Official Kenmore Elite 66514875N120 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 153 parts  |
Fill Valve Assembly W11025970
#23

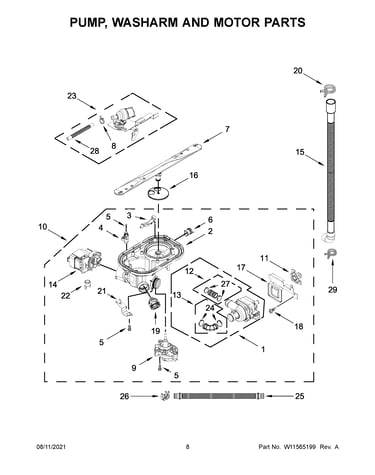

Pump, washarm and motor parts diagram

Fill valve assembly

Part #W11025970

Replaced by #W11434044

?
Manufacturer substitution
This part replaces W11025970. Substitute parts can look different from the original.
BEST SELLER
$35.24 |
15% OFF Phone Price : $41.24
In Stock
Dishwasher Tine Row W10056272
#4

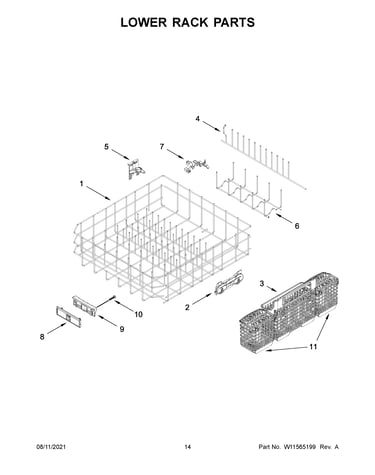

Lower rack parts diagram

Dishwasher tine row

Part #W10056272

Replaced by #W10728160

?
Manufacturer substitution
This part replaces W10056272. Substitute parts can look different from the original.
BEST SELLER
$44.69 |
12% OFF Phone Price : $50.69
In Stock
Heater Element Assembly W11536143
#26

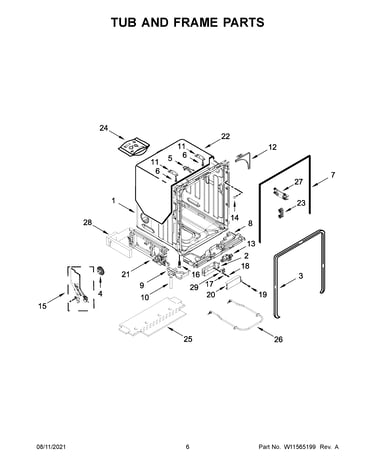

Tub and frame parts diagram

Heater element assembly

Part #W11536143

Replaced by #W11537778

?
Manufacturer substitution
This part replaces W11536143. Substitute parts can look different from the original.
BEST SELLER
$43.93 |
12% OFF Phone Price : $49.93
In Stock
Dishwasher Manifold And Spray Arm Assembly W11174340
#4

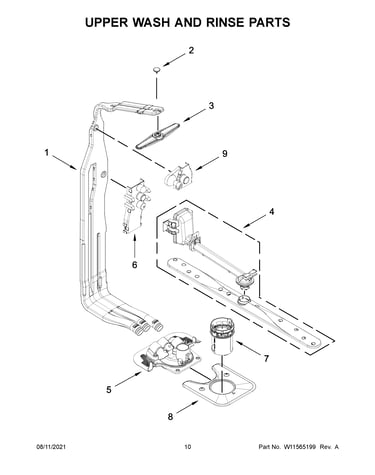

Upper wash and rinse parts diagram

Dishwasher manifold and spray arm assembly

Part #W11174340

Replaced by #W11545334

?
Manufacturer substitution
This part replaces W11174340. Substitute parts can look different from the original.
BEST SELLER
$39.67 |
13% OFF Phone Price : $45.67
In Stock
Water Inlet W11429970
#15

Tub and frame parts diagram

Water inlet

Part #W11429970

Replaced by #W11535094

?
Manufacturer substitution
This part replaces W11429970. Substitute parts can look different from the original.
BEST SELLER
$37.13 |
14% OFF Phone Price : $43.13
In Stock
Gasket-tub,d W11035860
#3

Tub and frame parts diagram

Gasket-tub,d

Part #W11035860

Replaced by #W11483553

?
Manufacturer substitution
This part replaces W11035860. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$16.46 |
11% OFF Phone Price : $18.46
In Stock
Dishwasher Door Hinge W10920232
#2

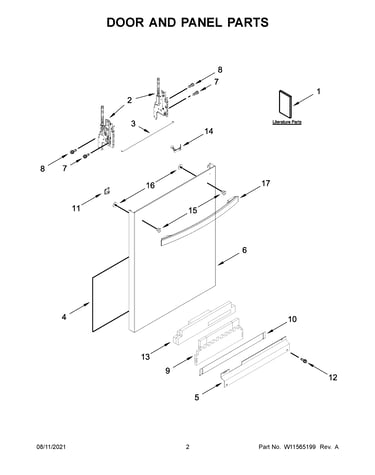

Door and panel parts diagram

Dishwasher door hinge

Part #W10920232

BEST SELLER
$30.35 |
17% OFF Phone Price : $36.35
In Stock
Dishwasher Door Hinge, Right W10920230
#2A

Door and panel parts diagram

Dishwasher door hinge, right

Part #W10920230

BEST SELLER
$29.47 |
17% OFF Phone Price : $35.47
In Stock
Dishwasher Screw W10348409
#9

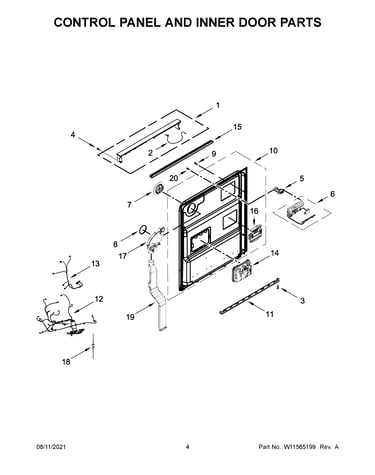

Control panel and inner door parts diagram

Dishwasher screw

Part #W10348409

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces W10348409. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Dispenser As W11092649
#14

Control panel and inner door parts diagram

Dispenser as

Part #W11092649

Replaced by #W11412300

?
Manufacturer substitution
This part replaces W11092649. Substitute parts can look different from the original.
BEST SELLER
$73.15 |
8% OFF Phone Price : $79.15
In Stock
