Countertop Microwave

Model # TMT117U1W0 Official Tappan microwave

Here are the diagrams and repair parts for Official Tappan TMT117U1W0 microwave, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
TMT117U1W0 Microwaves
Screw 5303305372

#NI

All parts diagram

Screw

Part #5303305372

In Stock
Door Button 5303307951
#9

Control panel diagram

Door button

Part #5303307951

In Stock
White-westinghouse Holder 5303284217

#NI

All parts diagram

White-westinghouse holder

Part #5303284217

In Stock
Wrapper 5303307961
#20

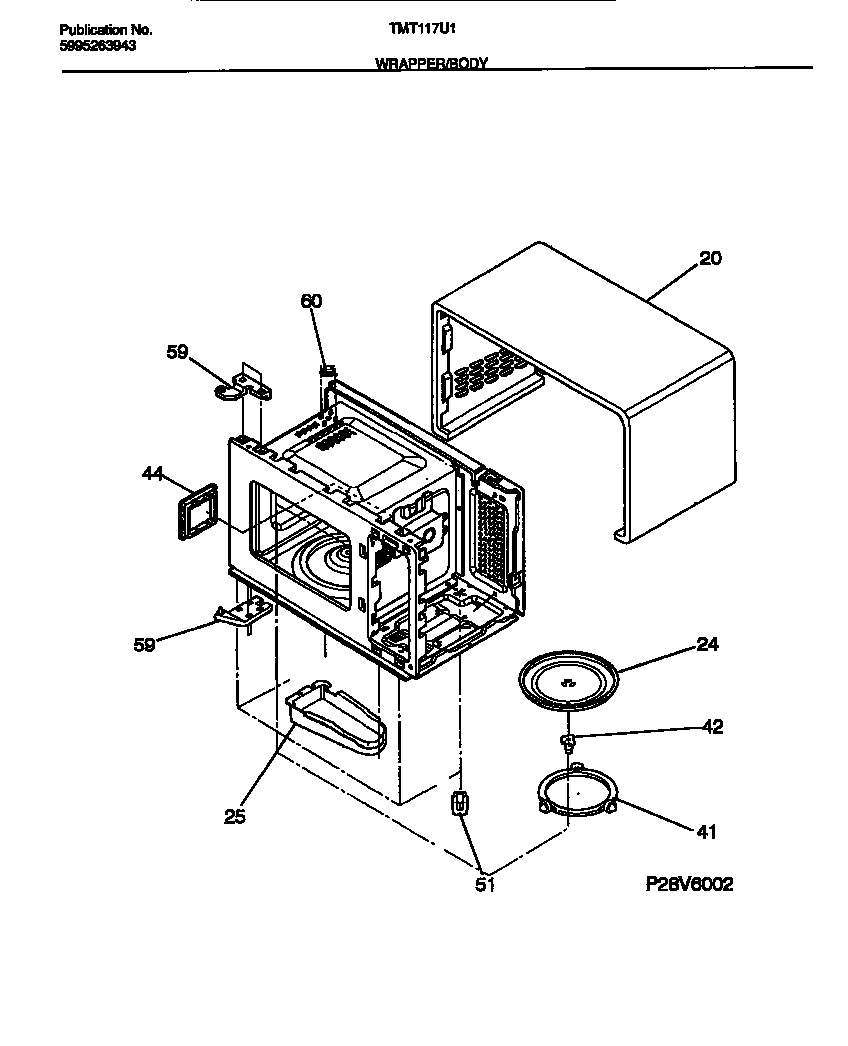

Wrapper/body diagram

Wrapper

Part #5303307961

In Stock
Lever 5303307958
#12

Control panel diagram

Lever

Part #5303307958

In Stock
Complete Door 5303307939
#19

Door diagram

Complete door

Part #5303307939

In Stock
Control Panel 5303307955
#2

Control panel diagram

Control panel

Part #5303307955

In Stock
Spring 5303305352
#18

Door diagram

Spring

Part #5303305352

In Stock
Lamp 5303305385
#26

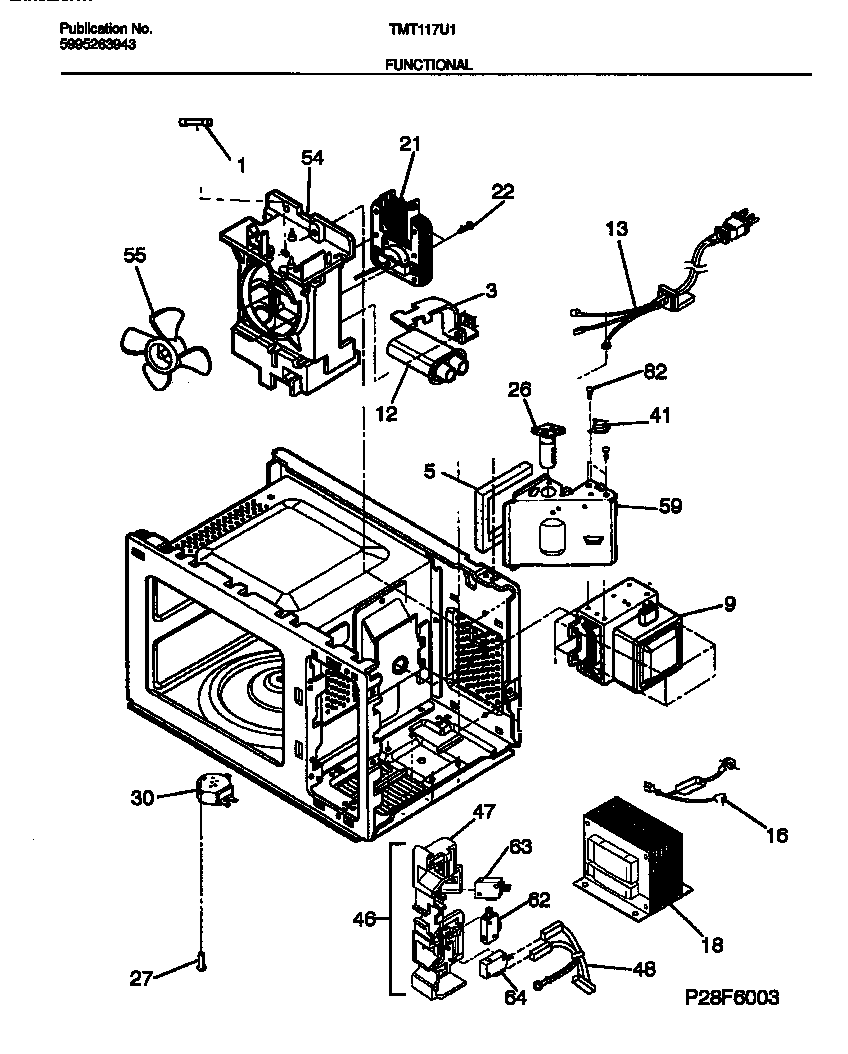

Functional parts diagram

Lamp

Part #5303305385

Replaced by #5303308381

?
Manufacturer substitution
This part replaces 5303305385. Substitute parts can look different from the original.
In Stock
Frame-door 5303307944
#6

Door diagram

Frame-door

Part #5303307944

The manufacturer no longer makes this part, and there's no substitute part
