White-Westinghouse
Room Air Conditioner

Model # WAV157S1A1 Official White-Westinghouse room air conditioner - 5995240537

Here are the diagrams and repair parts for Official White-Westinghouse WAV157S1A1 room air conditioner - 5995240537, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Bracket Screw 3015312
#18

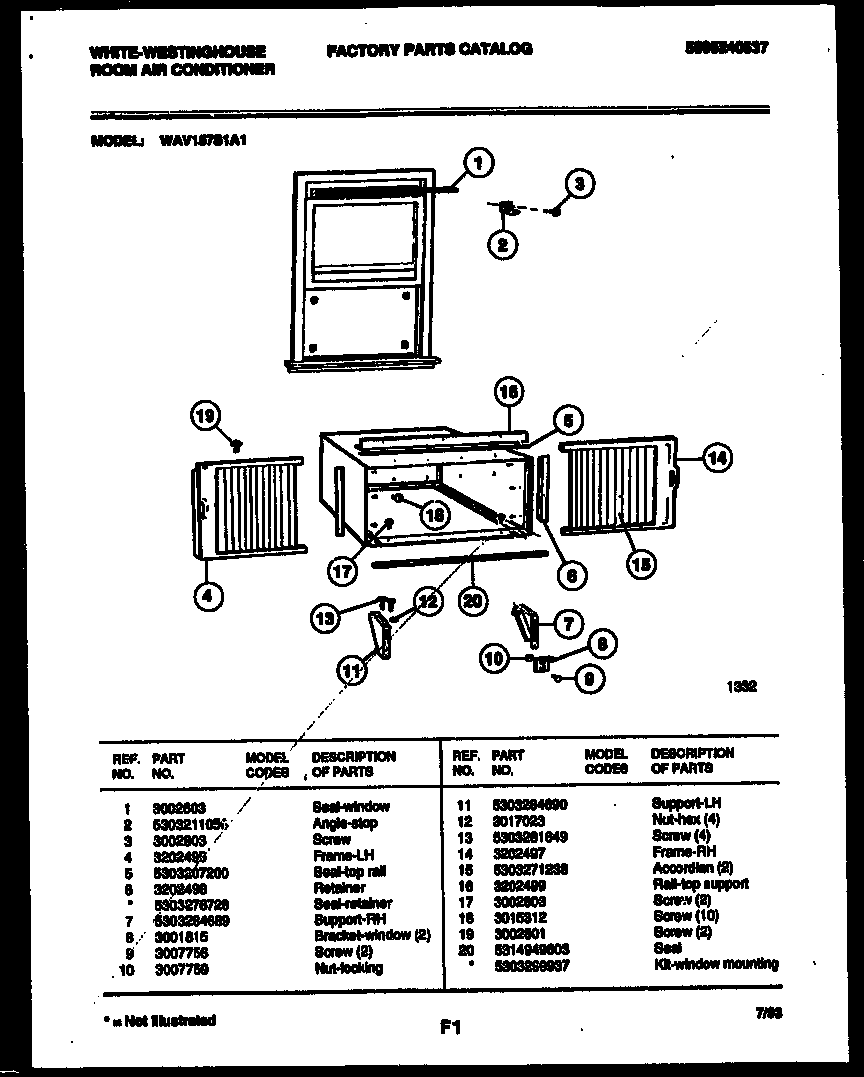

Cabinet and installation parts diagram

Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
$5.80
In Stock
Room Air Conditioner Screw 5303015427
Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
$14.69
In Stock
Screw 5303015294
#2

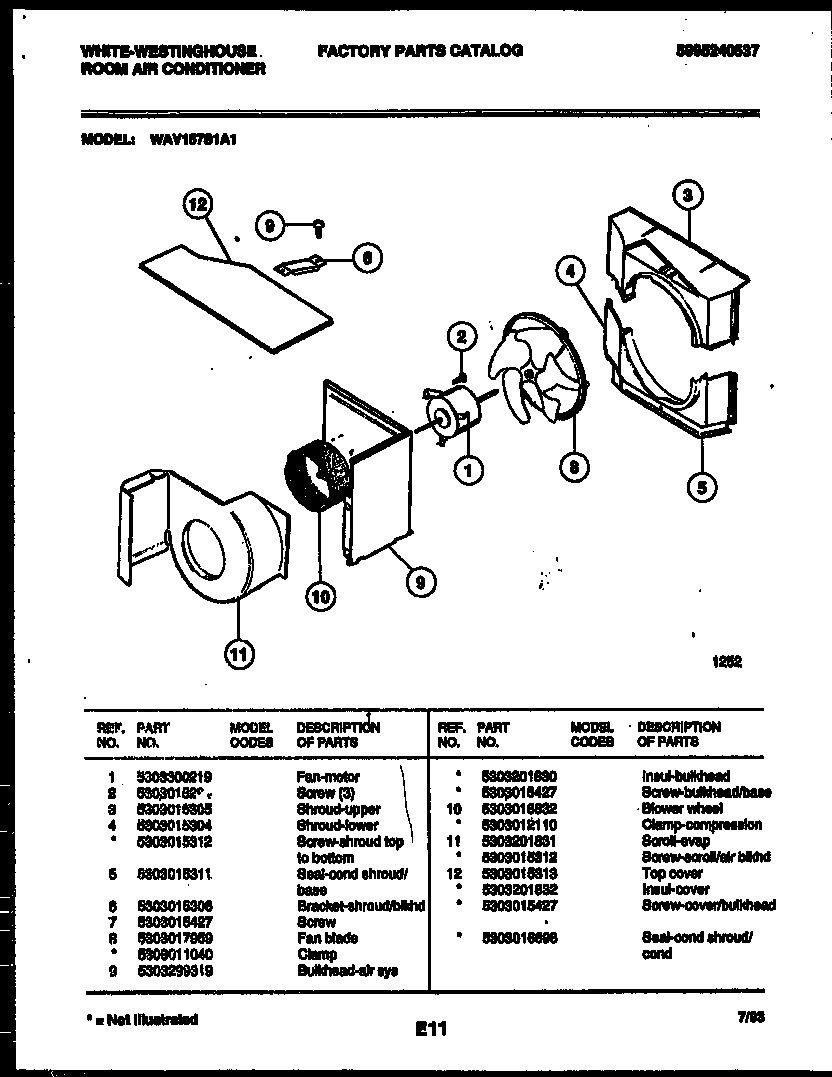

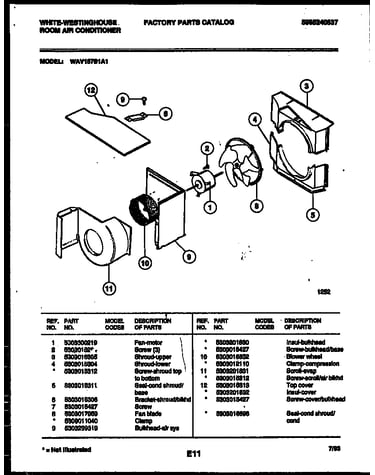

Air handling parts diagram

Screw

Part #5303015294

This item is not returnable
$2.34
In Stock
Plate Dial 5303300216
#3

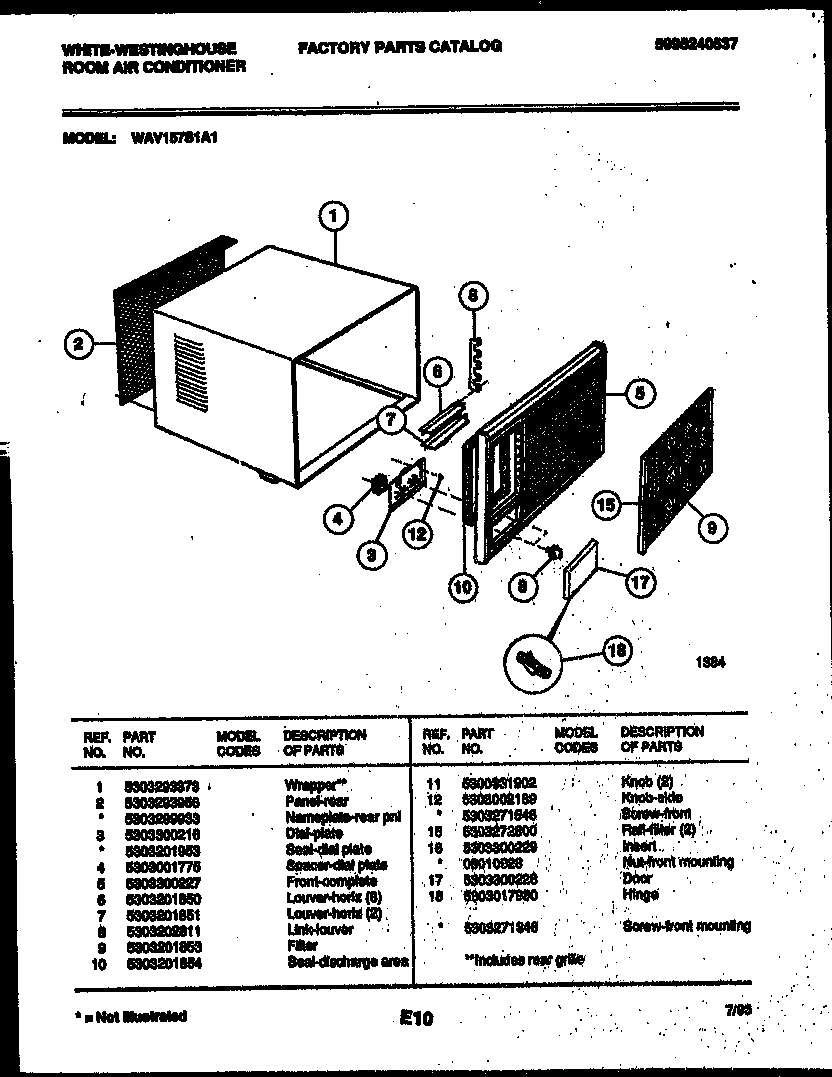

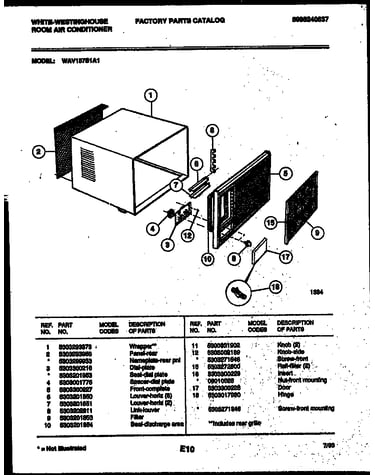

Cabinet parts diagram

Plate dial

Part #5303300216

$13.99
In Stock
Spacer 5303211009
#13

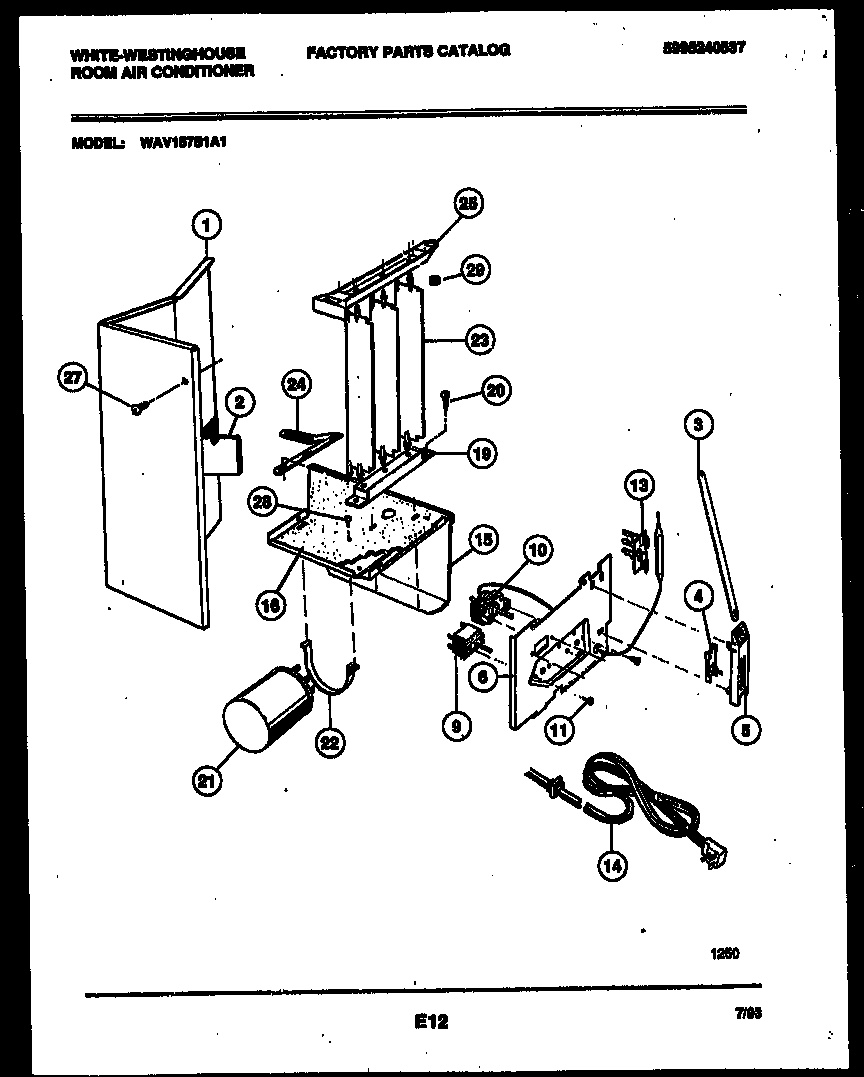

Electrical parts diagram

Spacer

Part #5303211009

This item is not returnable
$3.24
In Stock
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#16

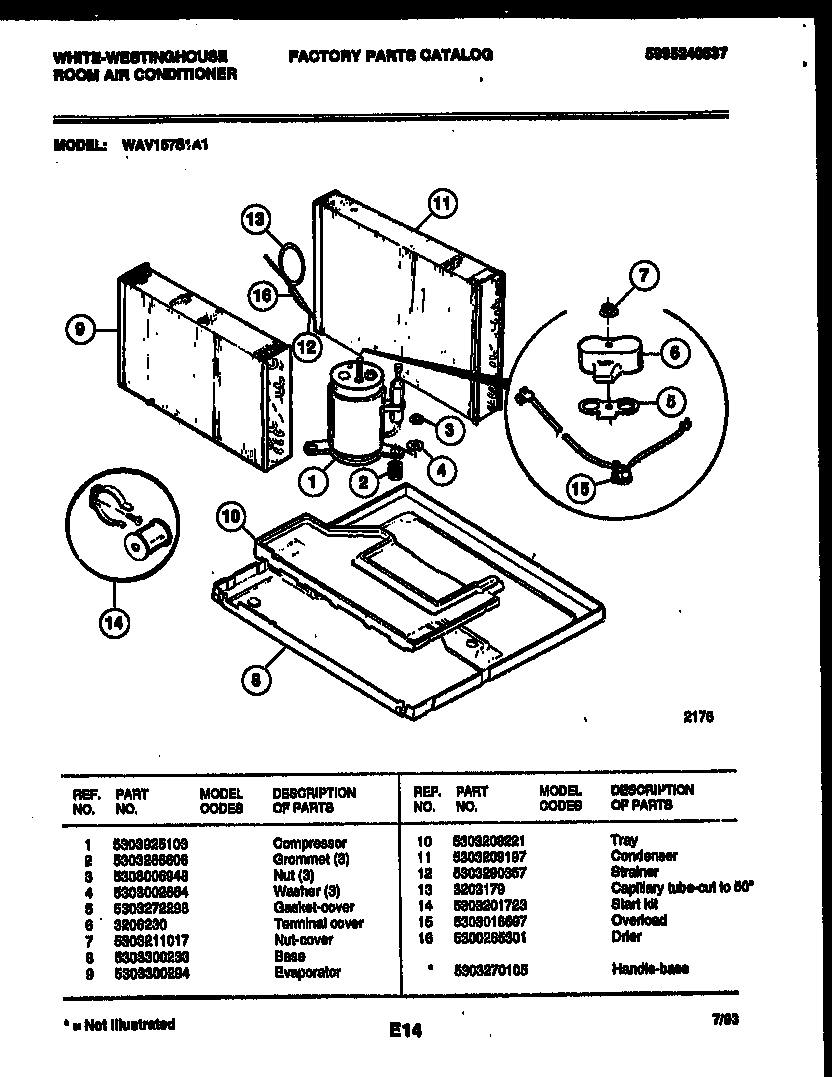

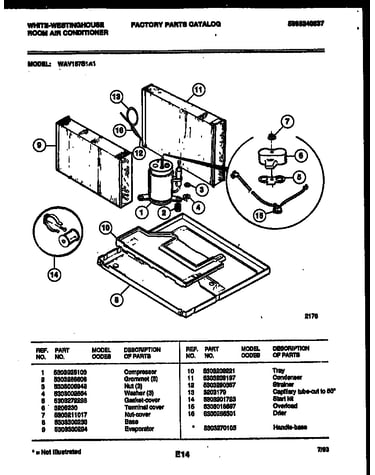

System parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Cord 5303270109
#14

Electrical parts diagram

Cord

Part #5303270109

Replaced by #5303301021

?
Manufacturer substitution
This part replaces 5303270109. Substitute parts can look different from the original.
$49.98
In Stock
Nut-hex 3017023
#12

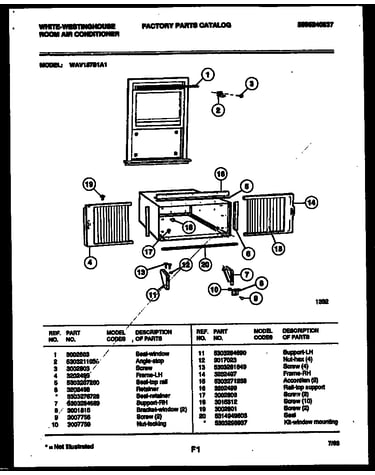

Cabinet and installation parts diagram

Nut-hex

Part #3017023

Replaced by #316205500

?
Manufacturer substitution
This part replaces 3017023. Substitute parts can look different from the original.
This item is not returnable
$11.20
In Stock
Gasket 3002603
#1

Cabinet and installation parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$25.17
In Stock
Panel 5303293956
#2

Cabinet parts diagram

Panel

Part #5303293956

The manufacturer no longer makes this part, and there's no substitute part
