Model # FY4ANF036000 Official Carrier air handler

Here are the diagrams and repair parts for Official Carrier FY4ANF036000 air handler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

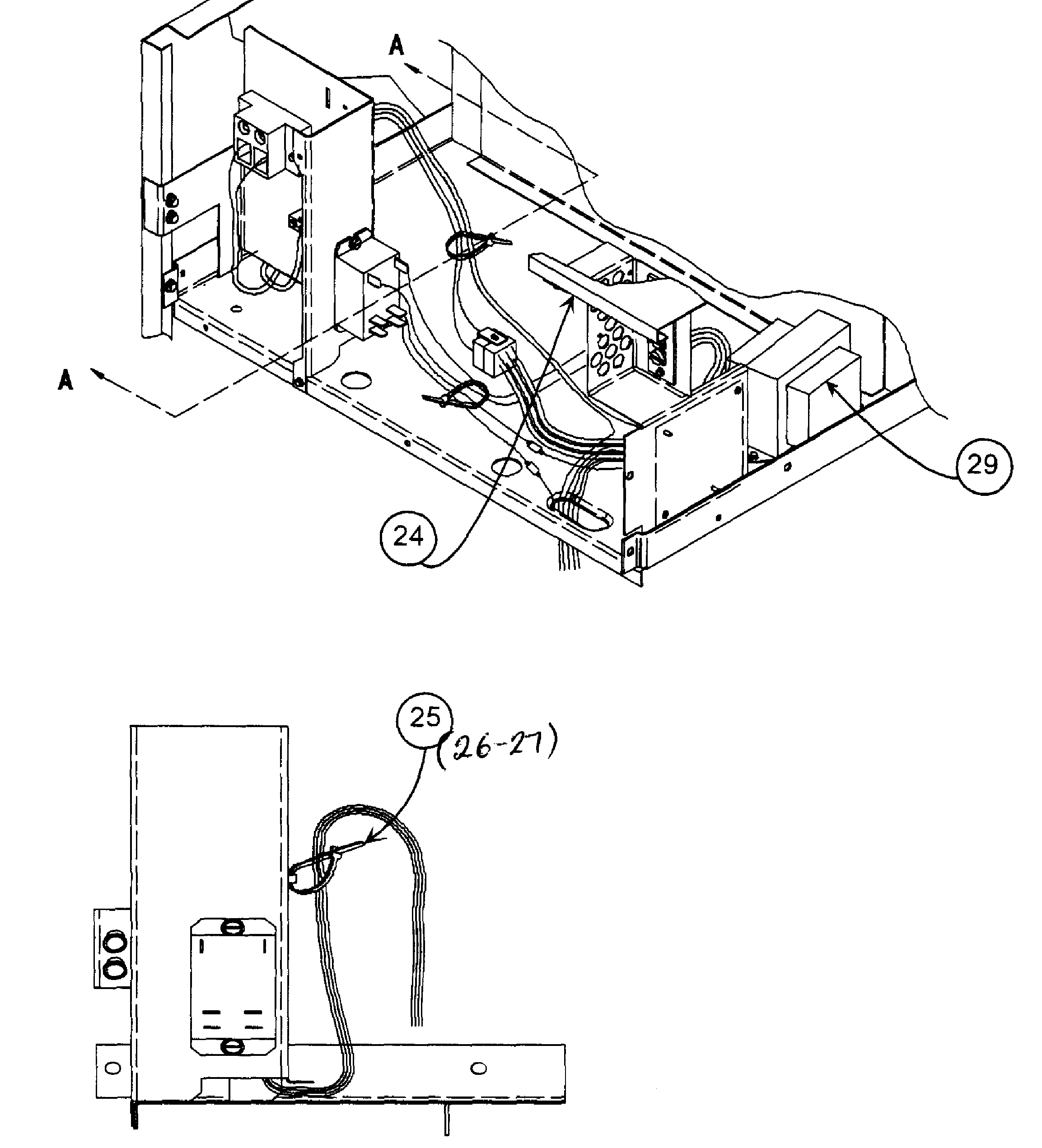

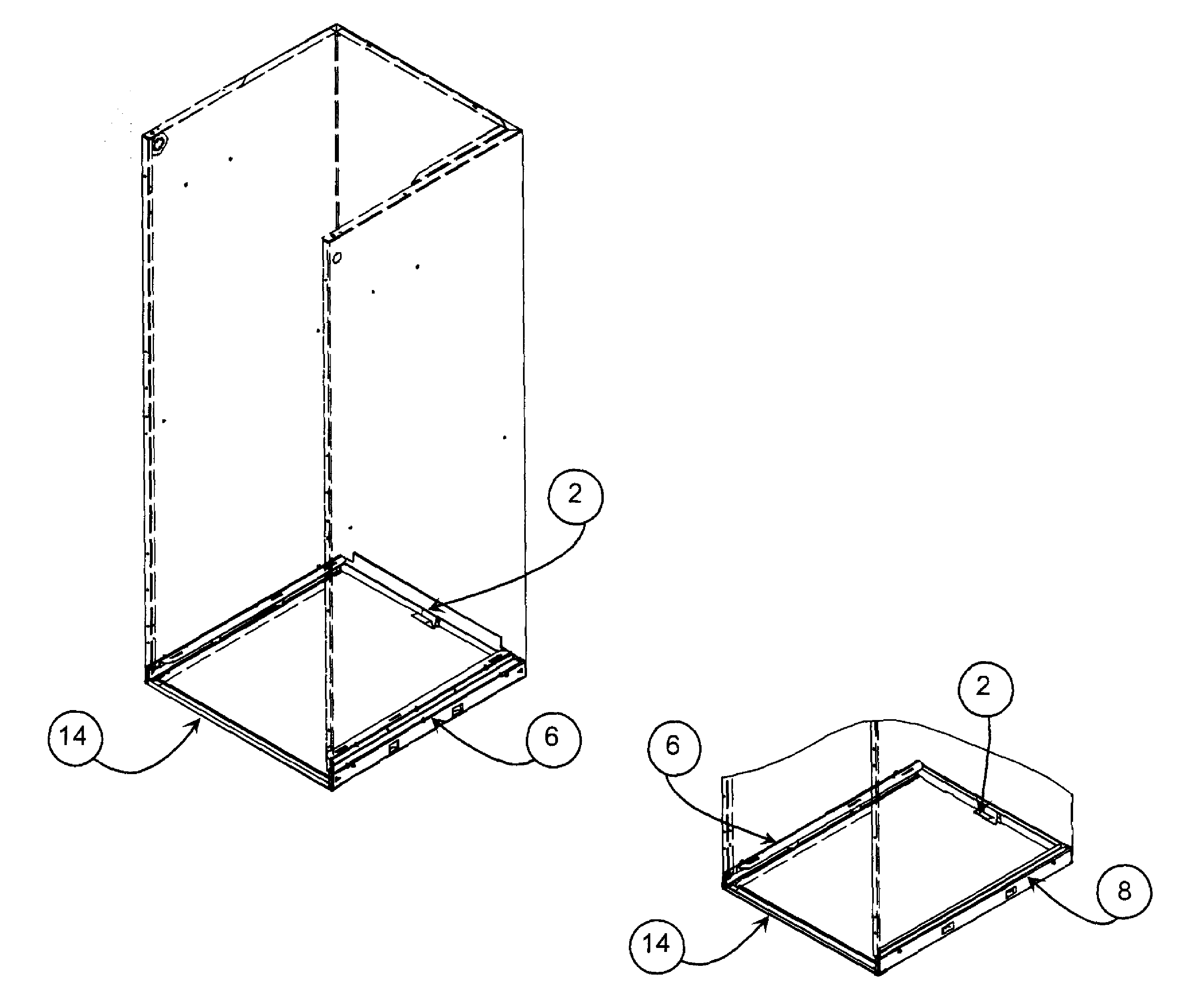

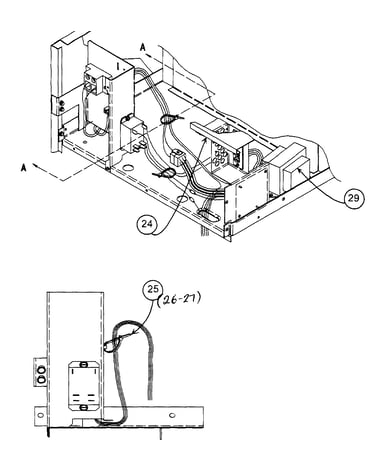

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |
Central Air Conditioner Air Handler Fan Control Board HK61EA006
#28

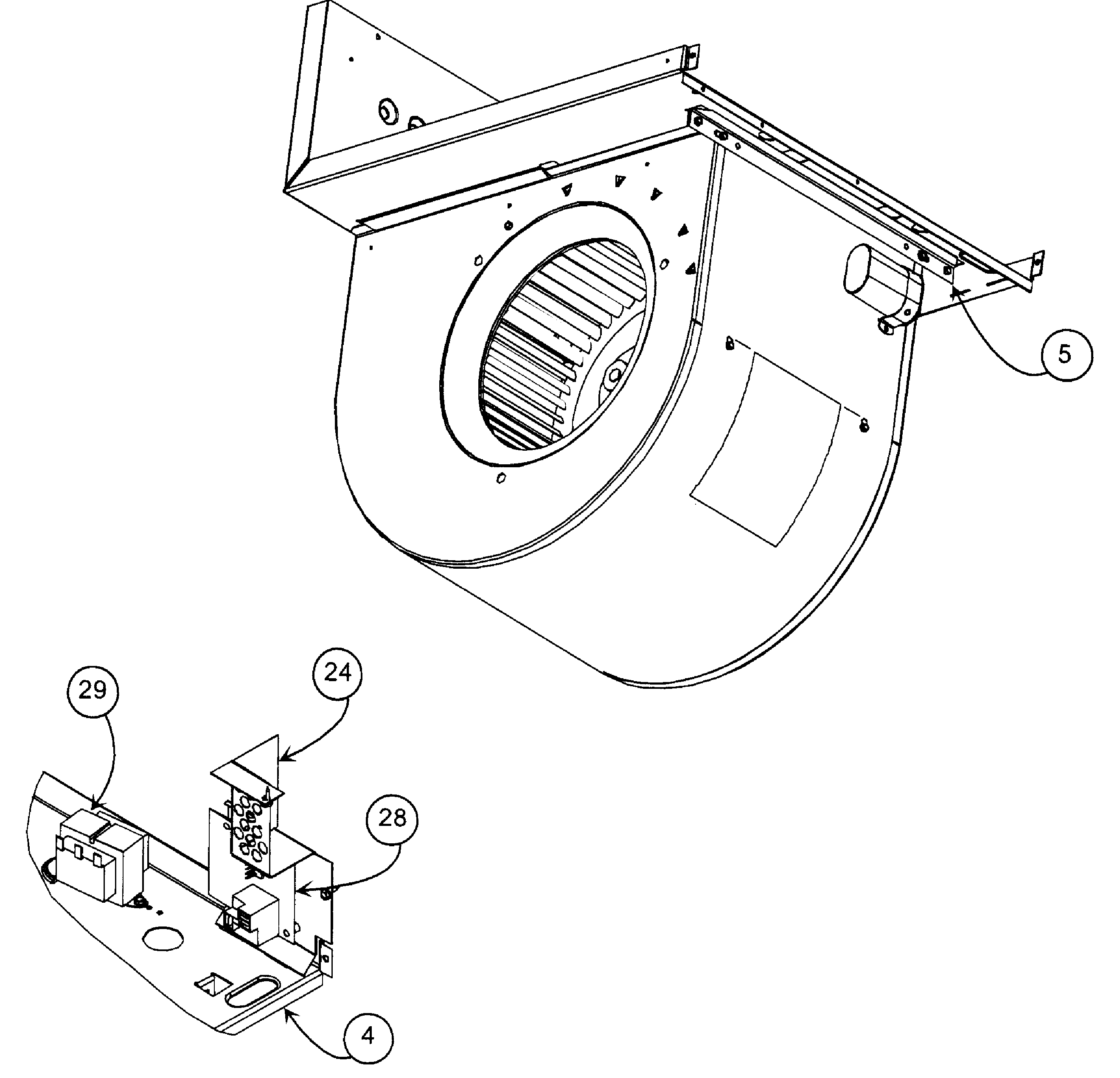

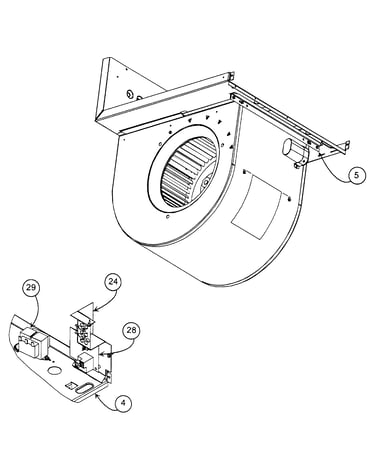

Cabinet 3 diagram

Central air conditioner air handler fan control board

Part #HK61EA006

This item is not returnable
$93.96 |
6% OFF Phone Price : $99.96
In Stock
Sw Temp Act HH19ZA940
#NI

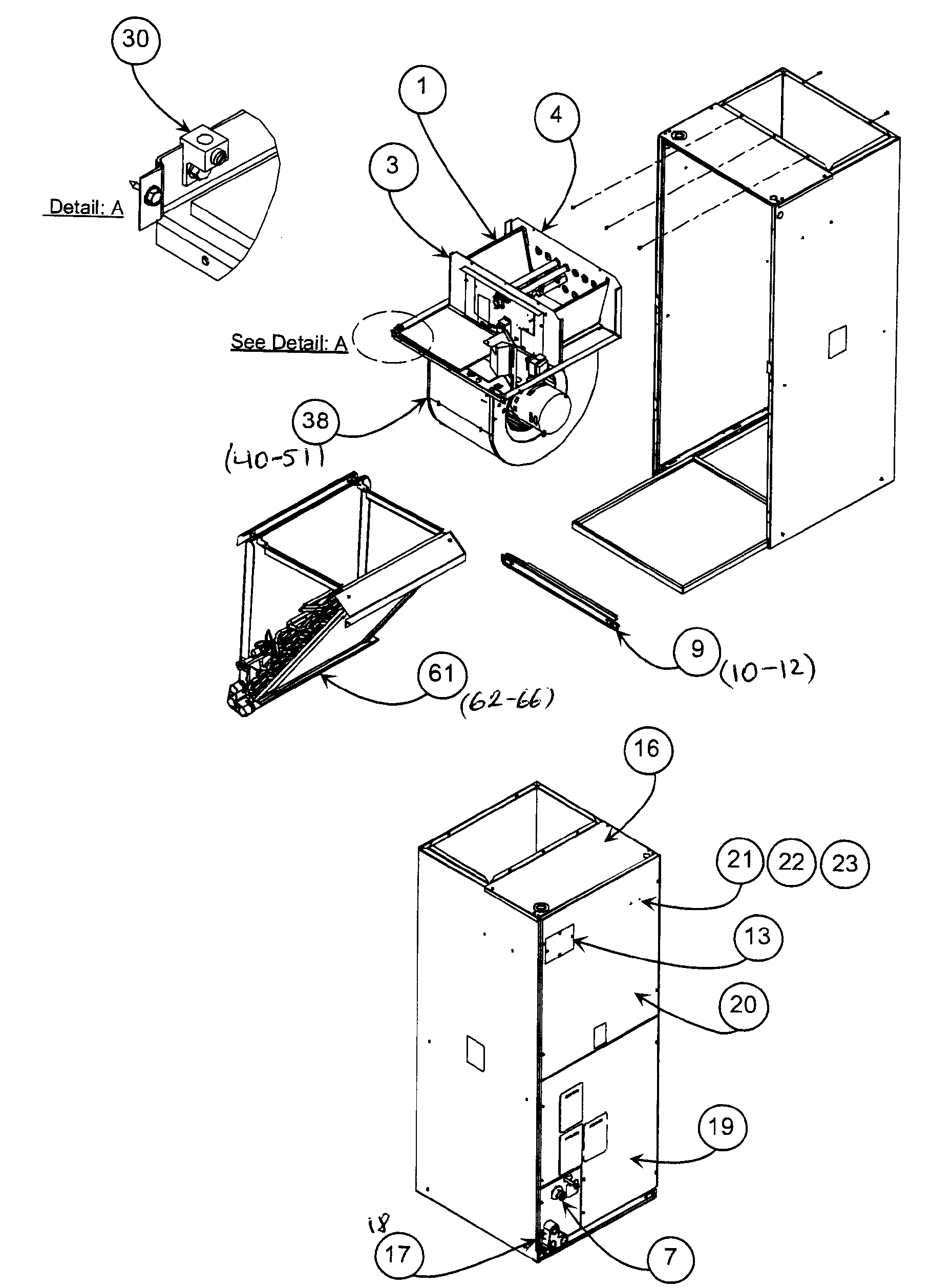

Cabinet 1 diagram

Sw temp act

Part #HH19ZA940

$72.44
In Stock
Sw Temp Act HH19ZA955
#NI

Cabinet 1 diagram

Sw temp act

Part #HH19ZA955

$34.49
In Stock
211,elec Heat 15kw Ck Br KFCEH3101C15
#NI

Cabinet 1 diagram

211,elec heat 15kw ck br

Part #KFCEH3101C15

$909.14
In Stock
Paint 313974-751
#NI

Cabinet 1 diagram

Paint

Part #313974-751

$60.89
In Stock
Furnace Temperature Limit Switch HH19ZA950
#NI

Cabinet 1 diagram

Furnace temperature limit switch

Part #HH19ZA950

$63.98 |
9% OFF Phone Price : $69.98
In Stock
Element 320074-702
#NI

Cabinet 1 diagram

Element

Part #320074-702

$193.38
In Stock
Clamp KA67CN111
#NI

Cabinet 1 diagram

Clamp

Part #KA67CN111

$22.71
In Stock
Connector HY90AZ021
Connector

Part #HY90AZ021

This item is not returnable
$6.40
In Stock
Cover C.b. 323437-404
#NI

Cabinet 1 diagram

Cover c.b.

Part #323437-404

$470.03
In Stock
