KitchenAid
Microwave/Hood Combo

Model # KMHS120ESS8 Official KitchenAid microwave/hood combo

Here are the diagrams and repair parts for Official KitchenAid KMHS120ESS8 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

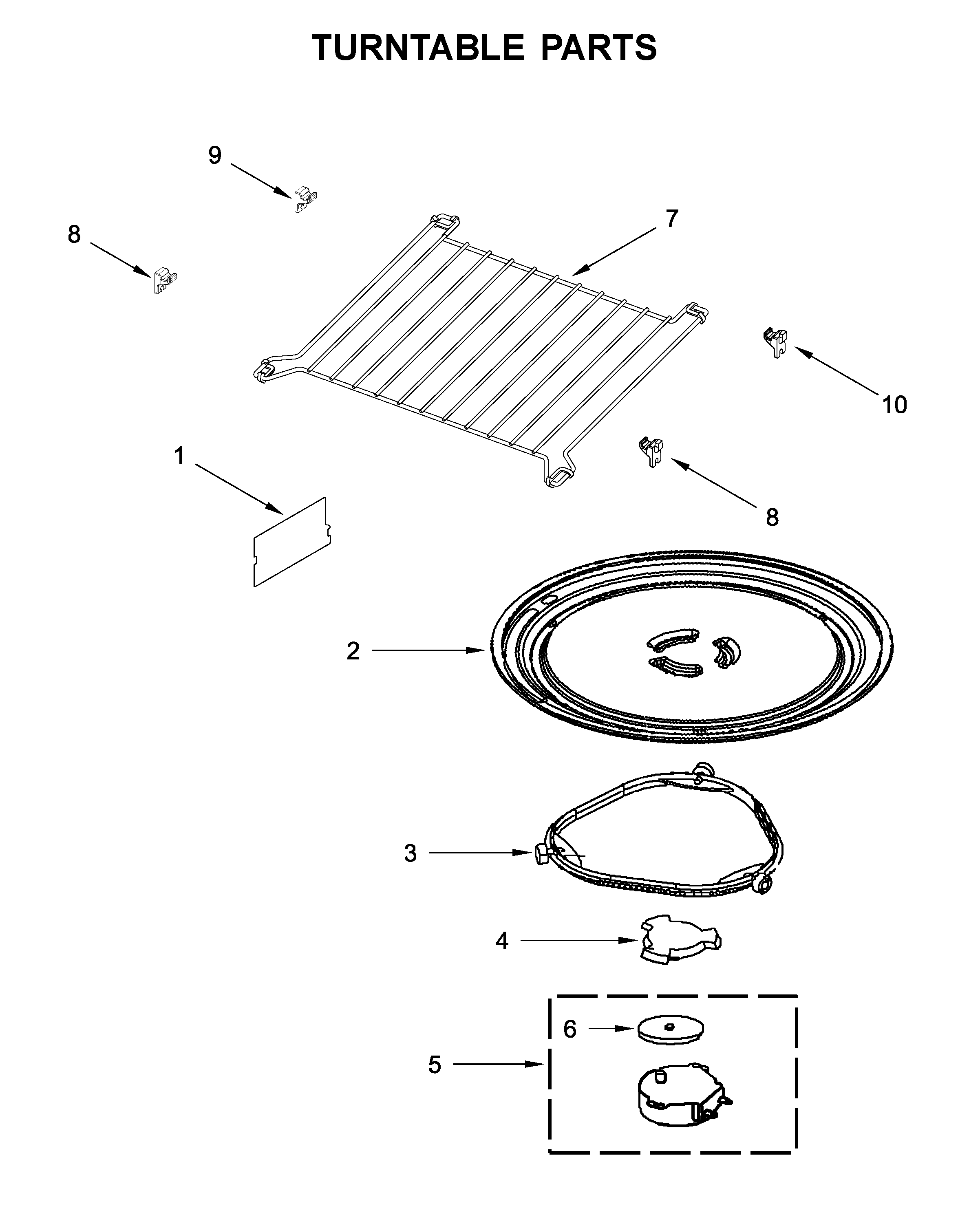

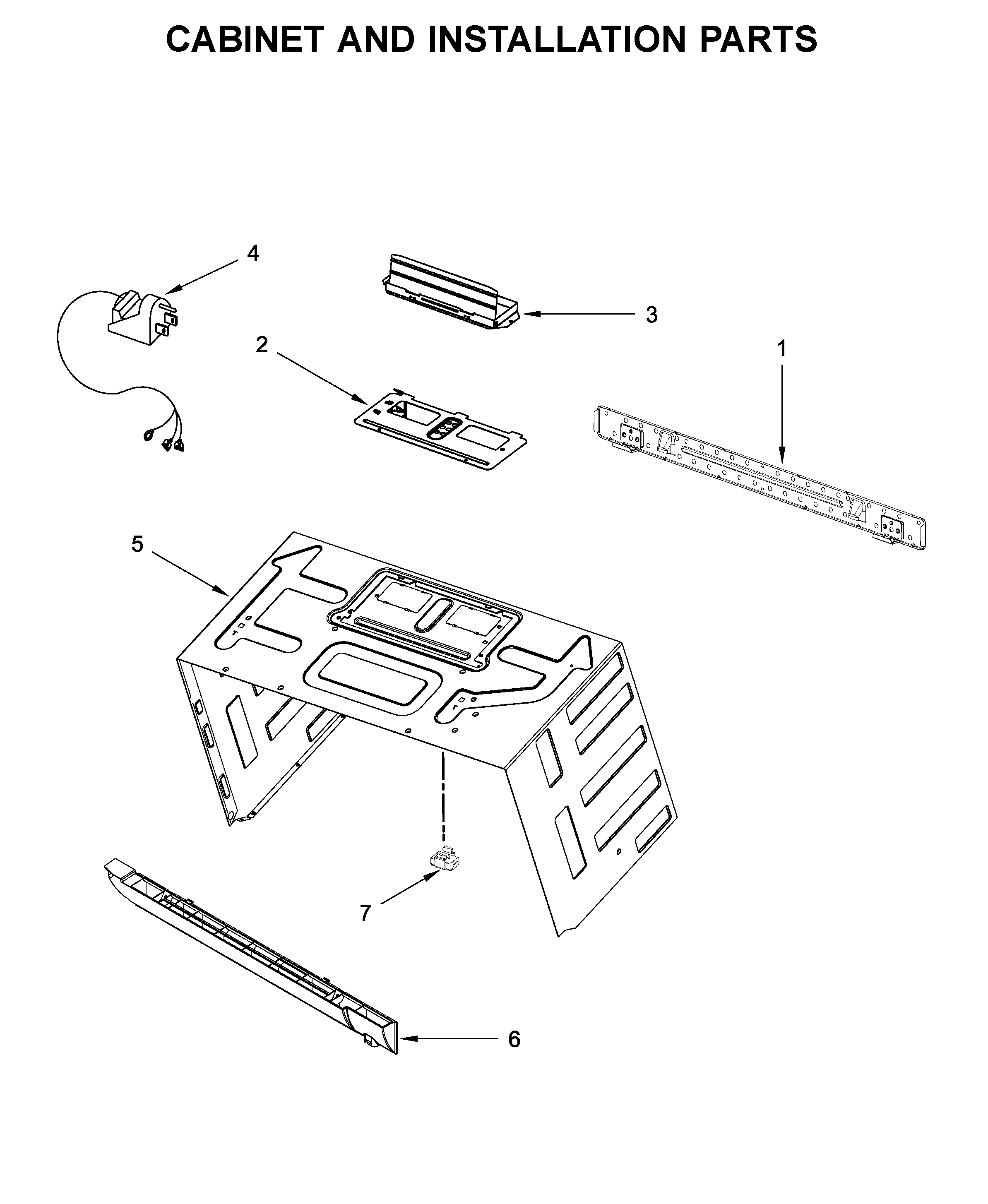

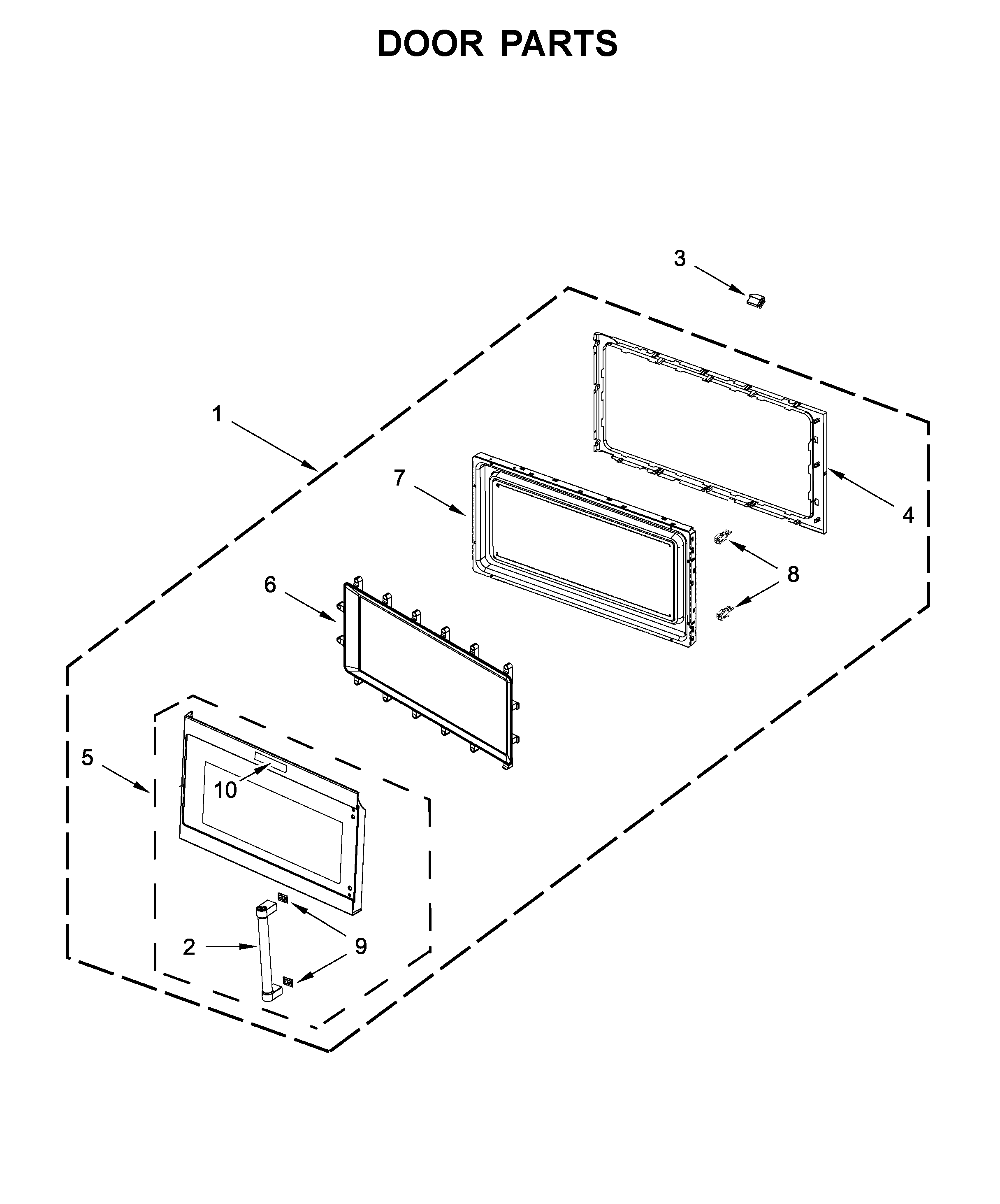

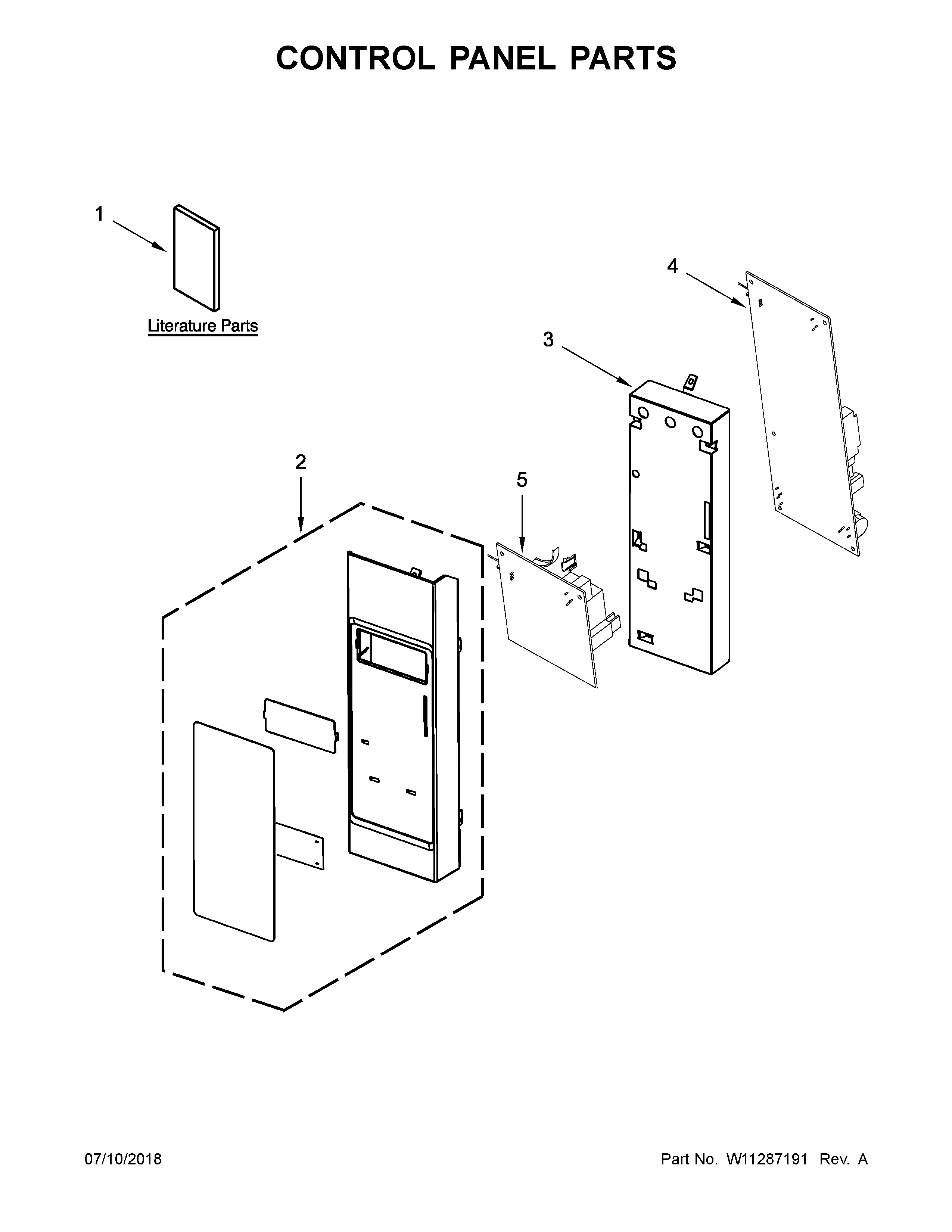

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Gaoxin-hvd C W11222648
#13

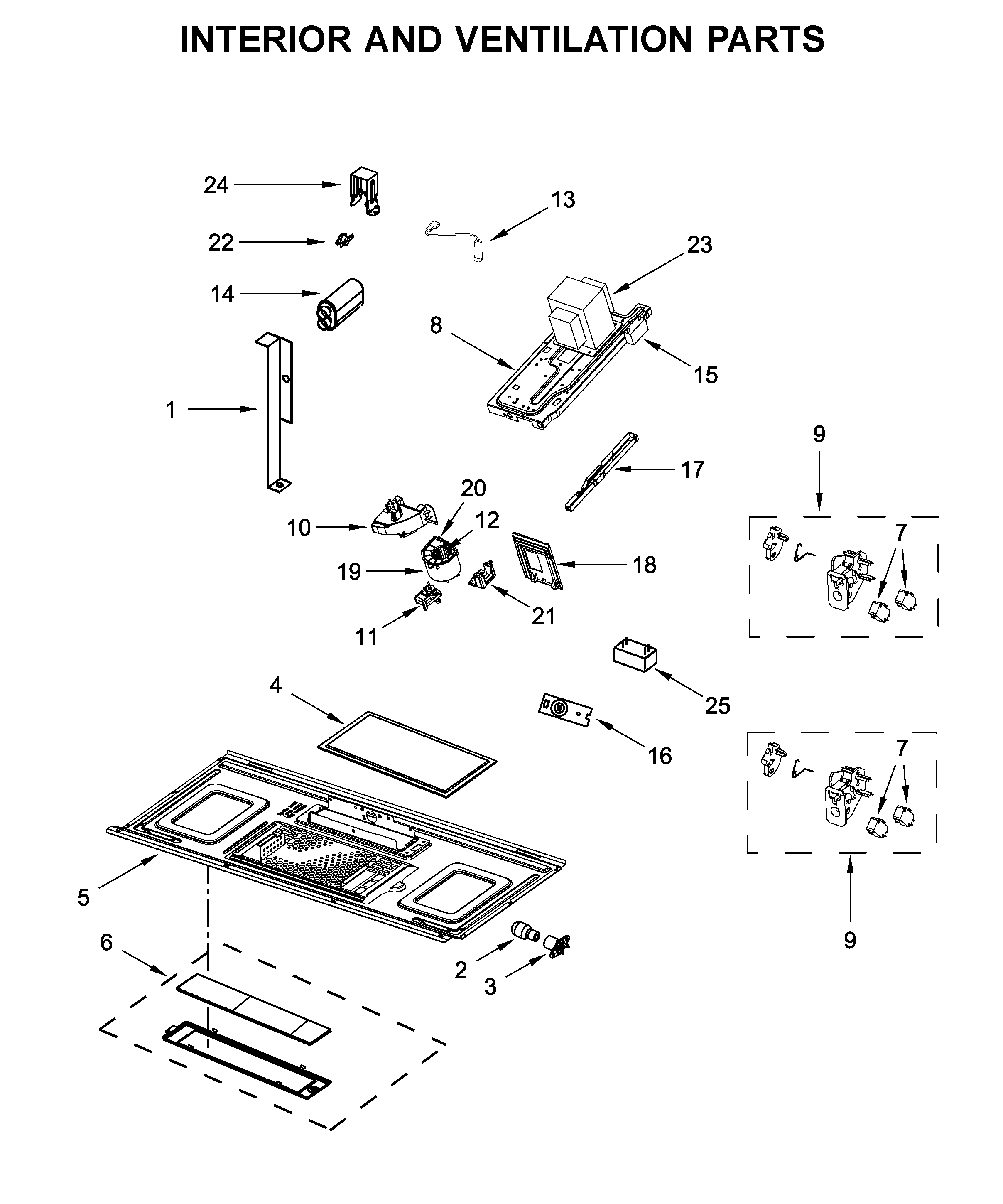

Interior and ventilation parts diagram

Gaoxin-hvd c

Part #W11222648

Replaced by #W11256462

?
Manufacturer substitution
This part replaces W11222648. Substitute parts can look different from the original.
BEST SELLER
$24.65 |
20% OFF Phone Price : $30.65
In Stock
Capacitor W10343300
#14

Interior and ventilation parts diagram

Capacitor

Part #W10343300

Replaced by #W10850446

?
Manufacturer substitution
This part replaces W10343300. Substitute parts can look different from the original.
BEST SELLER
$94.83 |
6% OFF Phone Price : $100.83
In Stock
Lamp Assembly 4393681
#3

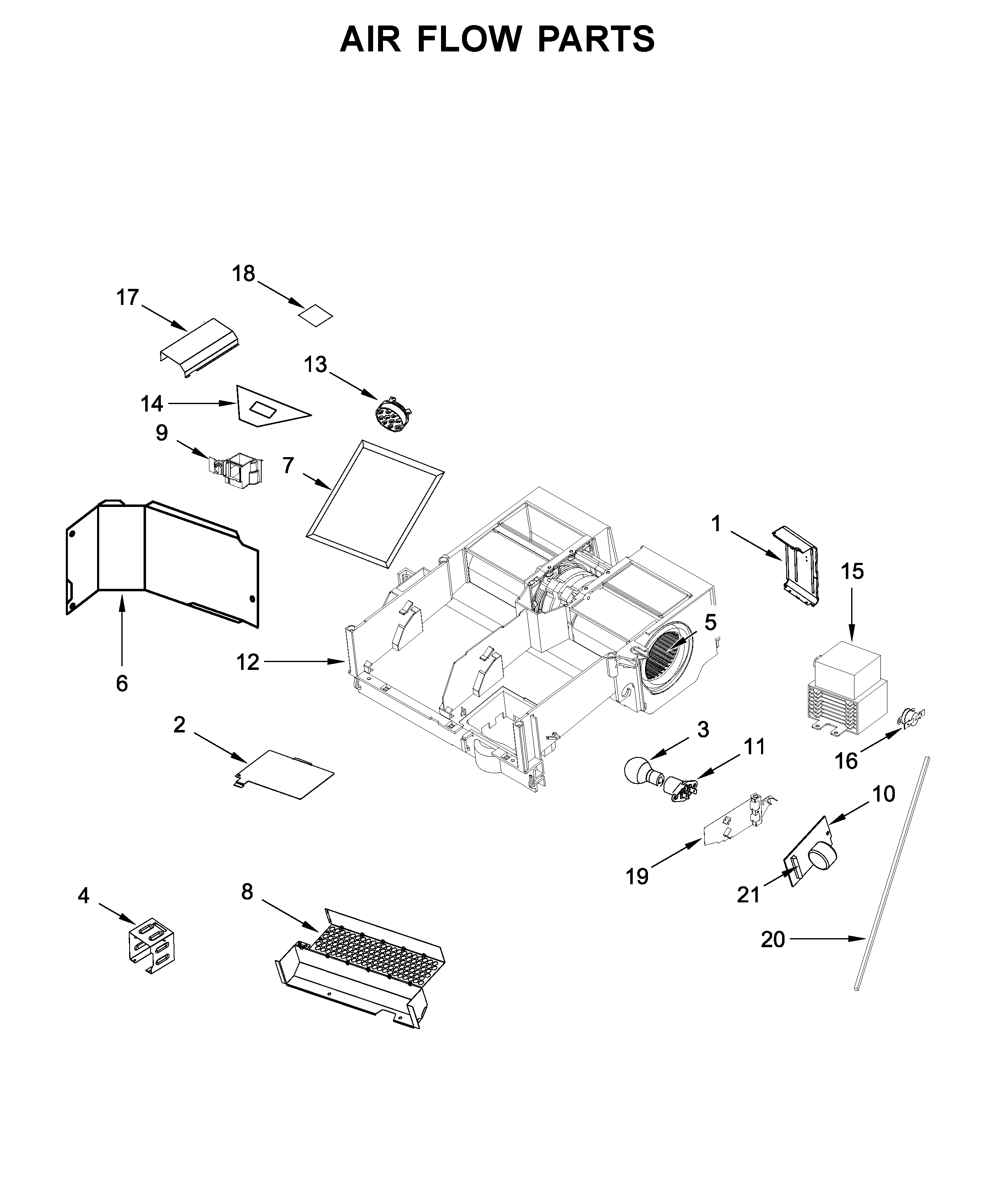

Air flow parts diagram

Lamp assembly

Part #4393681

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
BEST SELLER
$8.91 |
10% OFF Phone Price : $9.91
In Stock
Microwave/hood Light Bulb 8206232
#2

Interior and ventilation parts diagram

Microwave/hood light bulb

Part #8206232

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 8206232. Substitute parts can look different from the original.
BEST SELLER
$8.91 |
10% OFF Phone Price : $9.91
In Stock
Microwave Fuse (replaces W10422951) W10138793
#21

Air flow parts diagram

Microwave fuse (replaces w10422951)

Part #W10138793

Replaced by #W11707984

?
Manufacturer substitution
This part replaces W10138793. Substitute parts can look different from the original.
BEST SELLER
$23.80
In Stock
Assembly, Interlock (includes Switches) W11187757
#9

Interior and ventilation parts diagram

Assembly, interlock (includes switches)

Part #W11187757

Replaced by #W11197766

?
Manufacturer substitution
This part replaces W11187757. Substitute parts can look different from the original.
BEST SELLER
$19.97 |
9% OFF Phone Price : $21.97
In Stock
Magnetron W10754514
#15

Air flow parts diagram

Magnetron

Part #W10754514

The manufacturer no longer makes this part, and there's no substitute part

Microwave Light Socket W10210871
#3

Interior and ventilation parts diagram

Microwave light socket

Part #W10210871

BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Filter W10208631
#4

Interior and ventilation parts diagram

Filter

Part #W10208631

Replaced by #W10208631A

?
Manufacturer substitution
This part replaces W10208631. Substitute parts can look different from the original.
BEST SELLER
$25.60 |
19% OFF Phone Price : $31.60
In Stock
Filter 8206230
#7

Air flow parts diagram

Filter

Part #8206230

Replaced by #8206230A

?
Manufacturer substitution
This part replaces 8206230. Substitute parts can look different from the original.
BEST SELLER
$11.14 |
15% OFF Phone Price : $13.14
In Stock
