Kenmore
Humidifier

Model # 303147012 Official Kenmore 17-gallon central humidifier

Here are the diagrams and repair parts for Official Kenmore 303147012 17-gallon central humidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Transformer 410539-02

#*79802

All parts diagram

Transformer

Part #410539-02

The manufacturer no longer makes this part, and there's no substitute part

Media Pad 335210-01
#2

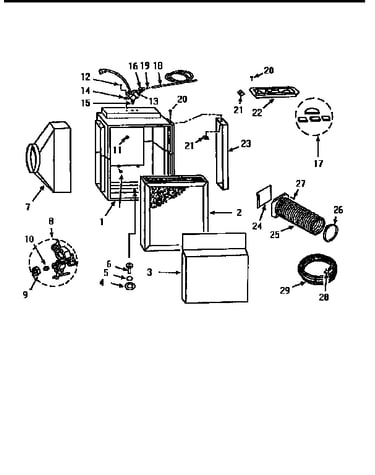

Kenmore 2700 diagram

Media pad

Part #335210-01

The manufacturer no longer makes this part, and there's no substitute part

Pad 355879-01
#17

Kenmore 2700 diagram

Pad

Part #355879-01

The manufacturer no longer makes this part, and there's no substitute part

Screw STD610603
#20

Kenmore 2700 diagram

Screw

Part #STD610603

The manufacturer no longer makes this part, and there's no substitute part

Valve 215977-01
#14

Kenmore 2700 diagram

Valve

Part #215977-01

The manufacturer no longer makes this part, and there's no substitute part

Out Fitting 215987-01
#15

Kenmore 2700 diagram

Out fitting

Part #215987-01

The manufacturer no longer makes this part, and there's no substitute part

Screw STD610803
#27

Kenmore 2700 diagram

Screw

Part #STD610803

The manufacturer no longer makes this part, and there's no substitute part

Humidstat 355873-02

#*79801

All parts diagram

Humidstat

Part #355873-02

The manufacturer no longer makes this part, and there's no substitute part

Insert 410675-01
#19

Kenmore 2700 diagram

Insert

Part #410675-01

The manufacturer no longer makes this part, and there's no substitute part

Panel 215951-01
#3

Kenmore 2700 diagram

Panel

Part #215951-01

The manufacturer no longer makes this part, and there's no substitute part
