Room Air Conditioner

Model # AZ61H12DABW2 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AZ61H12DABW2 zoneline air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

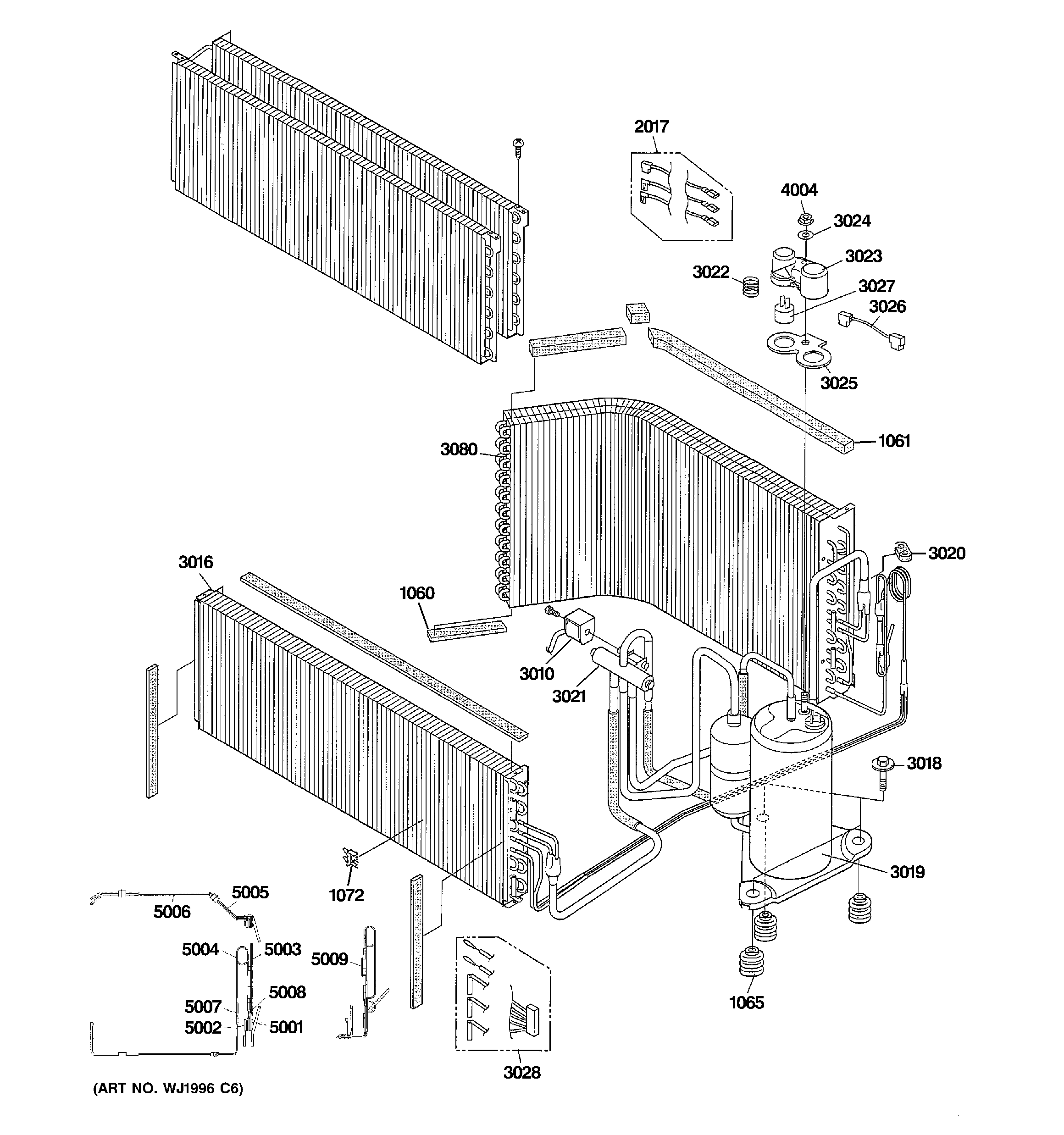

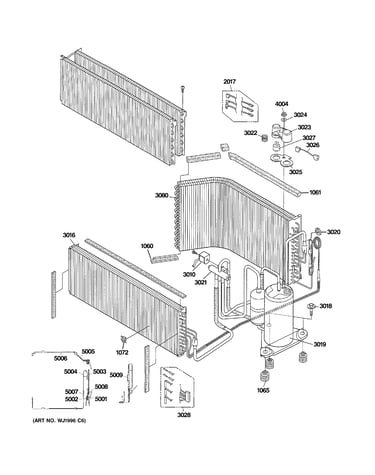

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Drive Power Board WP29X10010
#2070

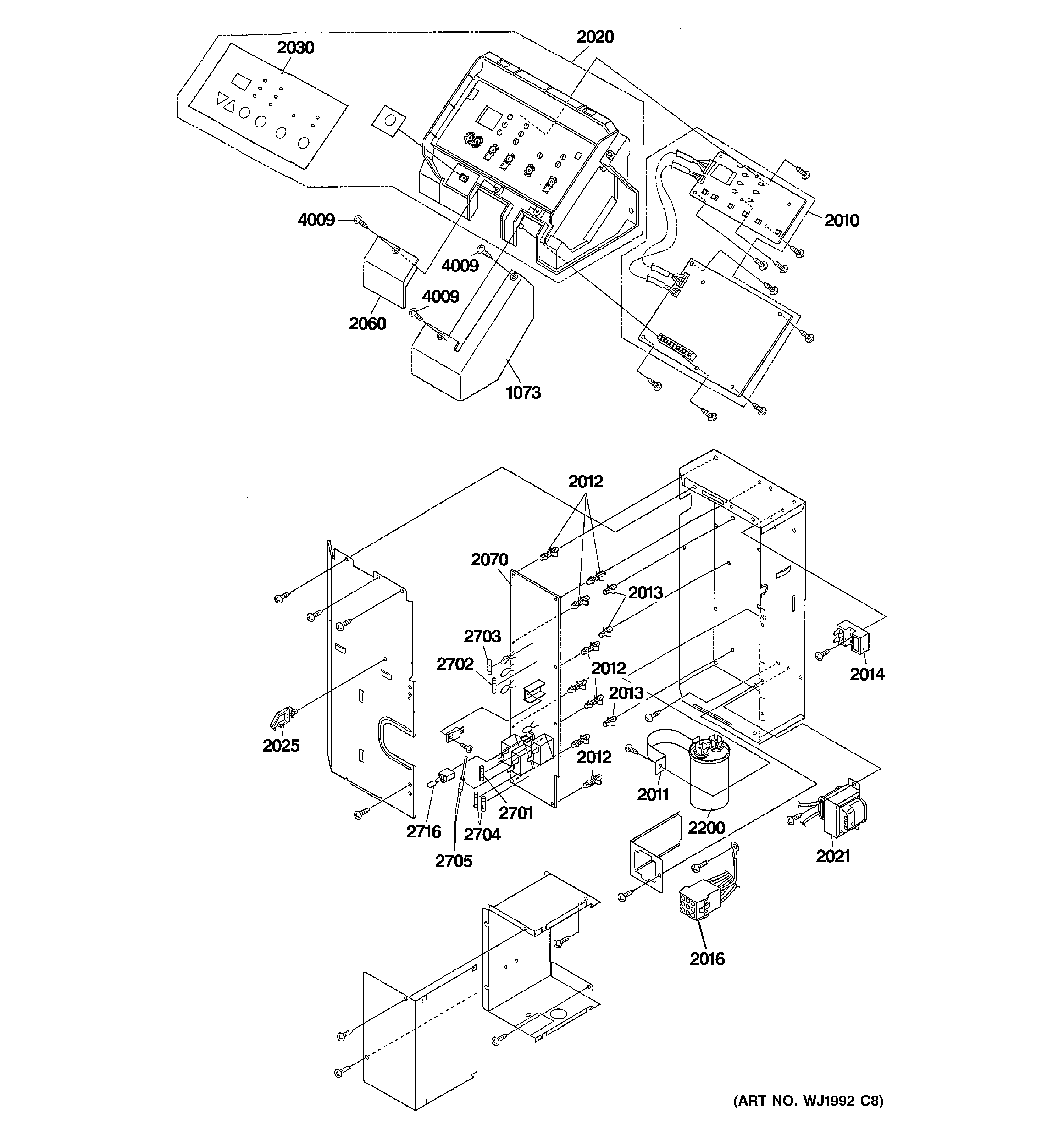

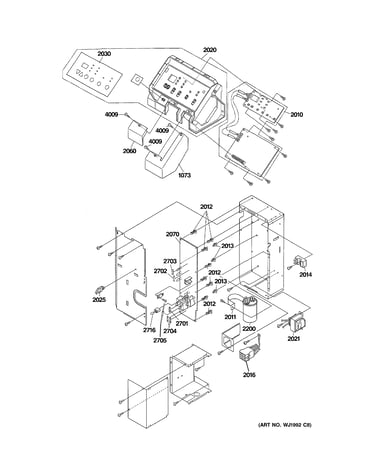

Control parts diagram

Drive power board

Part #WP29X10010

$205.89 |
6% OFF Phone Price : $217.89
In Stock
Room Air Conditioner Heater High-limit Thermostat WP27X10066
#2027

Grille, heater & base pan parts diagram

Room air conditioner heater high-limit thermostat

Part #WP27X10066

$183.51
In Stock
Room Air Conditioner Control Panel Door WP71X10033
#1020

Grille, heater & base pan parts diagram

Room air conditioner control panel door

Part #WP71X10033

$19.05 |
10% OFF Phone Price : $21.05
In Stock
Main Power Board WP29X10018
#2010

Control parts diagram

Main power board

Part #WP29X10018

Replaced by #WP29X10061

?
Manufacturer substitution
This part replaces WP29X10018. Substitute parts can look different from the original.
$137.75 |
8% OFF Phone Price : $149.75
In Stock
Control Cover WP71X10028
#1312

Grille, heater & base pan parts diagram

Control cover

Part #WP71X10028

Replaced by #WP71X10033

?
Manufacturer substitution
This part replaces WP71X10028. Substitute parts can look different from the original.
$19.05 |
10% OFF Phone Price : $21.05
In Stock
Magnet WP01X10001
#1047

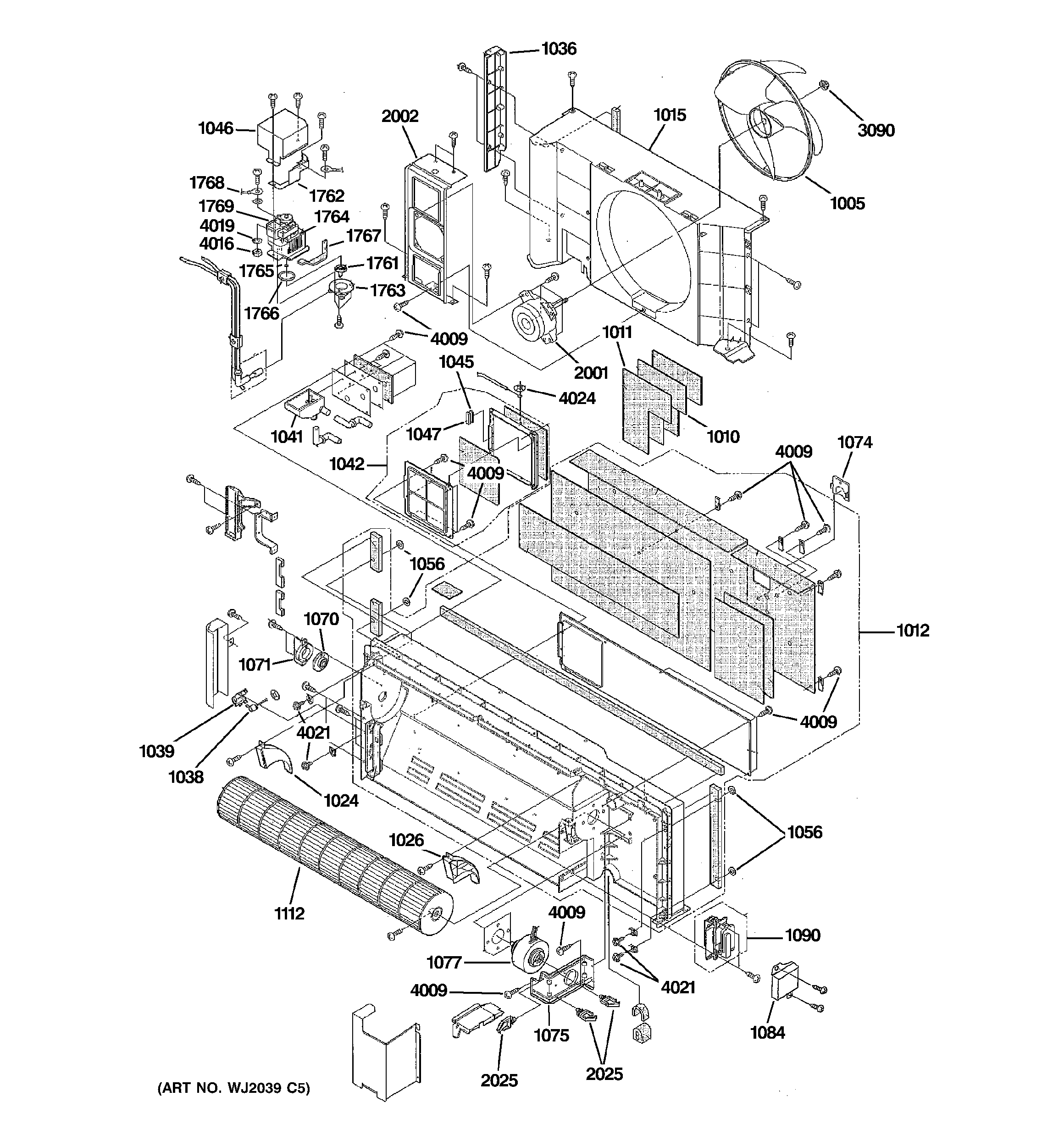

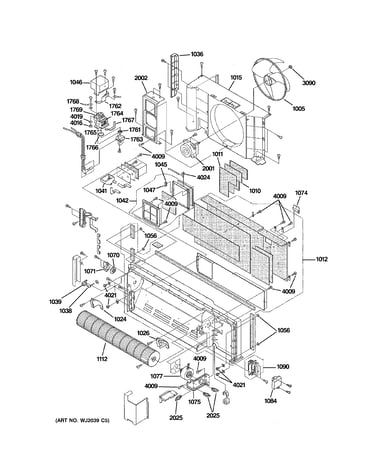

Motor & chassis parts diagram

Magnet

Part #WP01X10001

This item is not returnable
$4.35
In Stock
Holder WP03X10016
#1074

Motor & chassis parts diagram

Holder

Part #WP03X10016

This item is not returnable
$5.00
In Stock
Fan Housing WP03X10020
#1026

Motor & chassis parts diagram

Fan housing

Part #WP03X10020

This item is not returnable
$7.14
In Stock
Wire WP56X10004
#1064

Grille, heater & base pan parts diagram

Wire

Part #WP56X10004

$29.44
In Stock
Dc In Motor WP66X10008
#1075

Motor & chassis parts diagram

Dc in motor

Part #WP66X10008

$9.43
In Stock
