Model # 7TUD4000EB1 Official Whirlpool dishwasher

Here are the diagrams and repair parts for Official Whirlpool 7TUD4000EB1 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

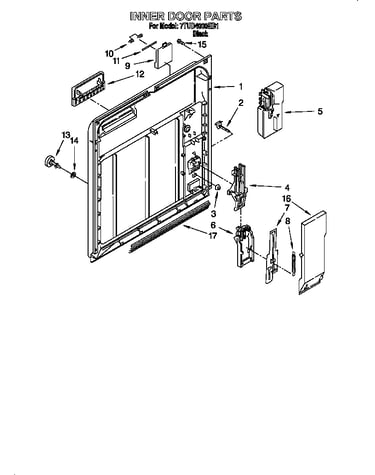

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 150 parts  |
Dishwasher Door Seal 3376927
#10

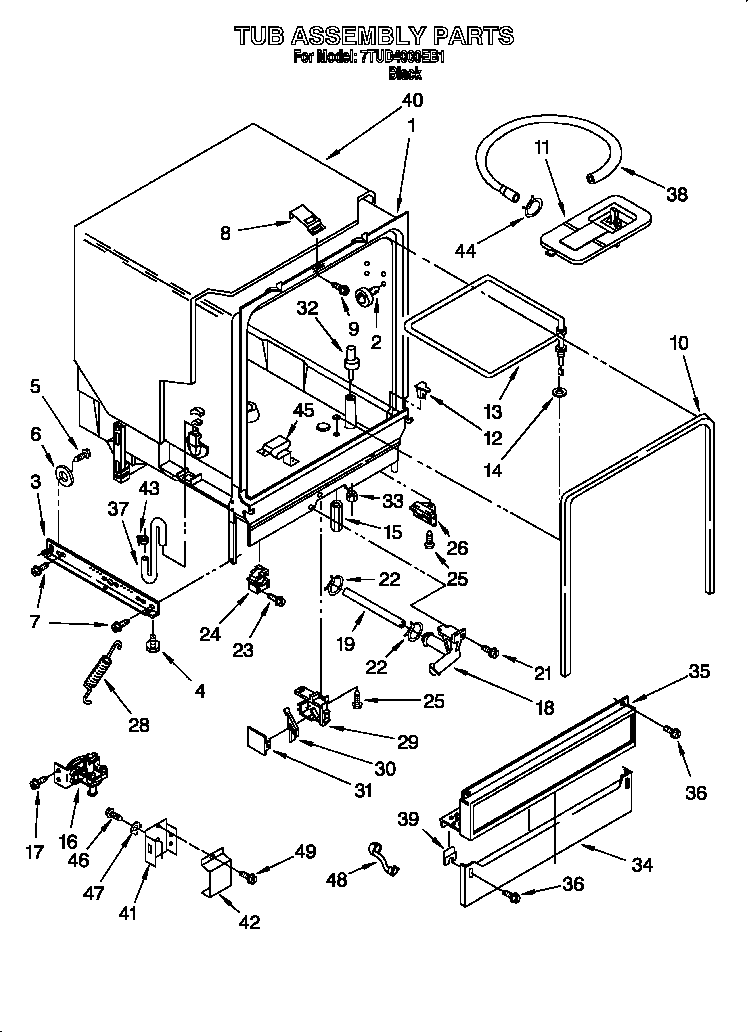

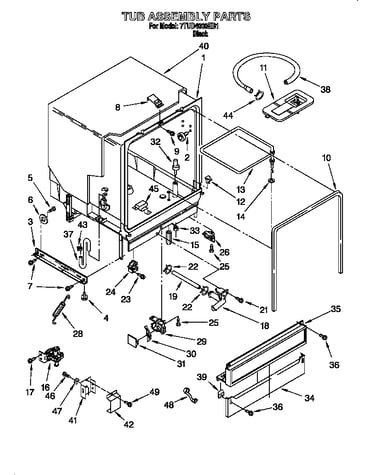

Tub assembly diagram

Dishwasher door seal

Part #3376927

Replaced by #WPW10509257

?
Manufacturer substitution
This part replaces 3376927. Substitute parts can look different from the original.
BEST SELLER
$40.49 |
13% OFF Phone Price : $46.49
In Stock
Clamp 301958
#43

Tub assembly diagram

Clamp

Part #301958

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 301958. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Torx Screw 3368921
#6

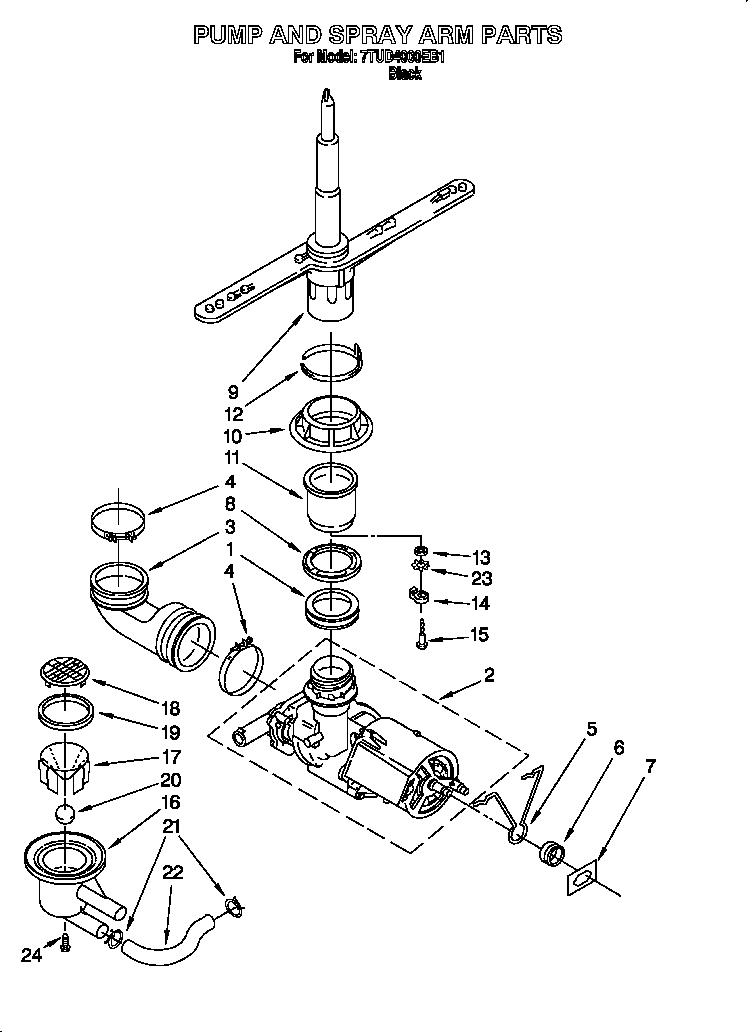

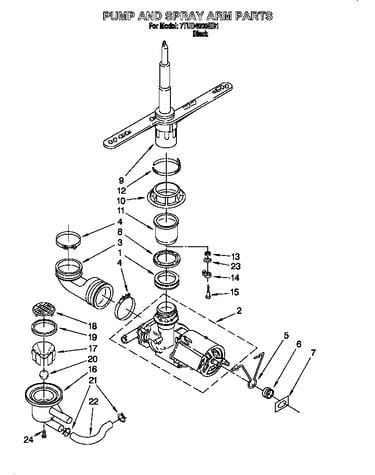

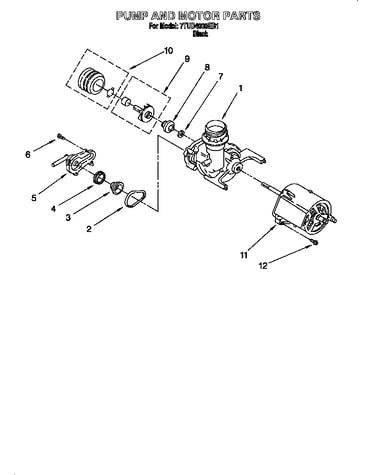

Pump and motor diagram

Torx screw

Part #3368921

Replaced by #WP3368921

?
Manufacturer substitution
This part replaces 3368921. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.34 |
14% OFF Phone Price : $7.34
In Stock
Dishrack 3372600
#8

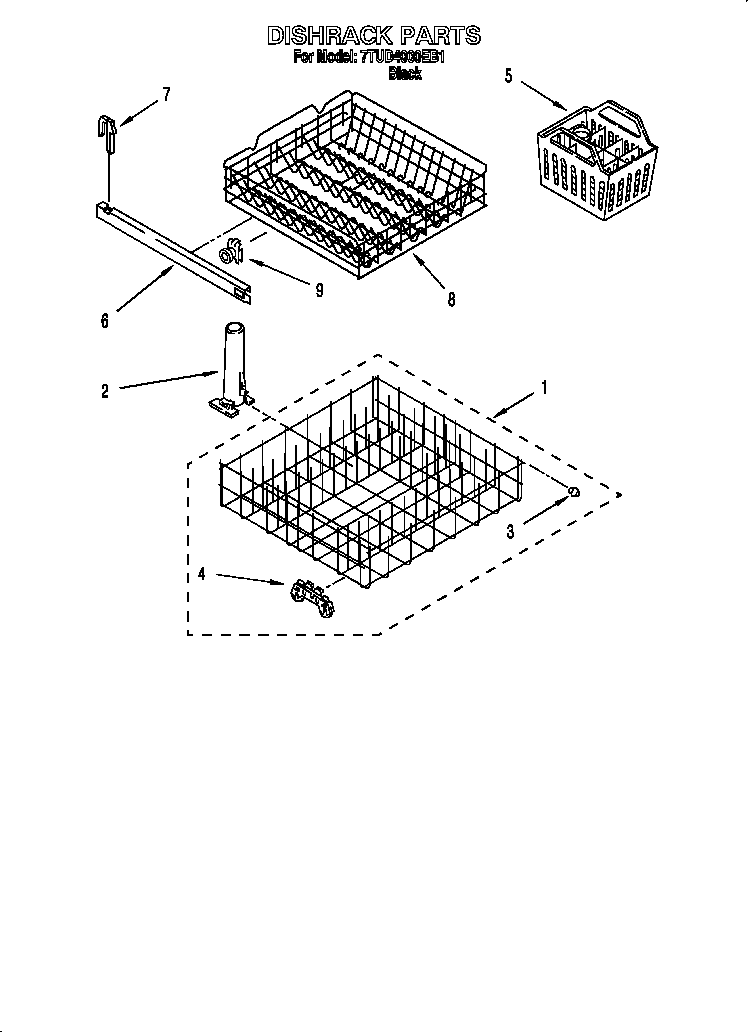

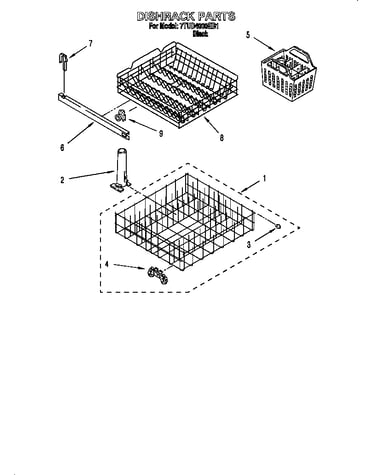

Dishrack diagram

Dishrack

Part #3372600

Replaced by #W11169039

?
Manufacturer substitution
This part replaces 3372600. Substitute parts can look different from the original.
BEST SELLER
$127.70 |
9% OFF Phone Price : $139.70
In Stock
Track 9742998
#6

Dishrack diagram

Track

Part #9742998

Replaced by #WP3385089

?
Manufacturer substitution
This part replaces 9742998. Substitute parts can look different from the original.
BEST SELLER
$42.97 |
12% OFF Phone Price : $48.97
In Stock
Dishwasher Heating Element Rubber Washer 717273
#14

Tub assembly diagram

Dishwasher heating element rubber washer

Part #717273

Replaced by #WP717273

?
Manufacturer substitution
This part replaces 717273. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.19 |
14% OFF Phone Price : $7.19
In Stock
Inlet Valve 3378779
#16

Tub assembly diagram

Inlet valve

Part #3378779

Replaced by #W10844024

?
Manufacturer substitution
This part replaces 3378779. Substitute parts can look different from the original.
BEST SELLER
$54.73 |
10% OFF Phone Price : $60.73
In Stock
Latch Bolt 3370260
#9

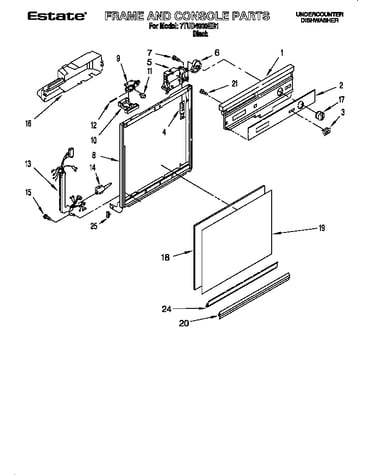

Frame and console diagram
