Model # 200713101 Official Diehard battery charger

Here are the diagrams and repair parts for Official Diehard 200713101 battery charger, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

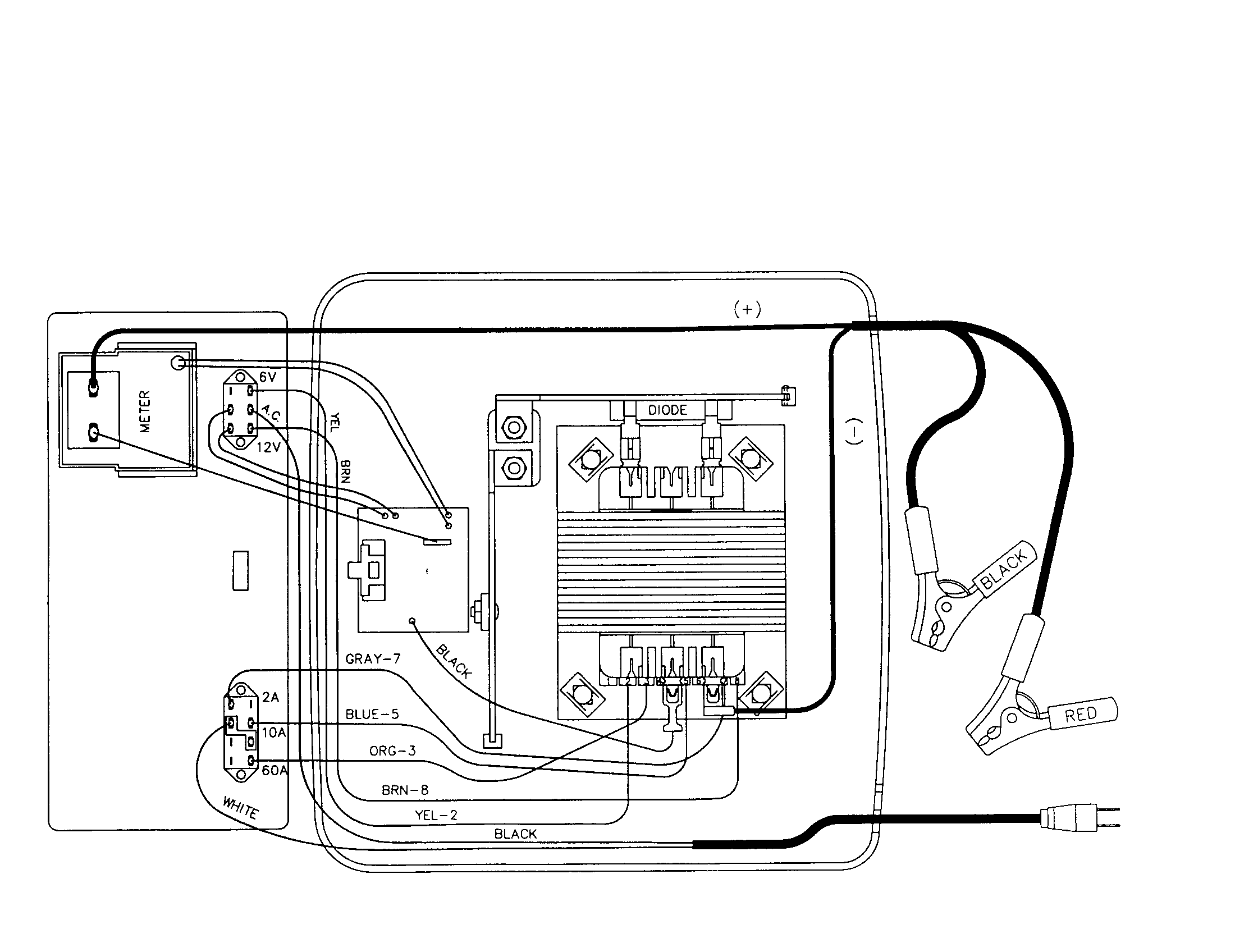

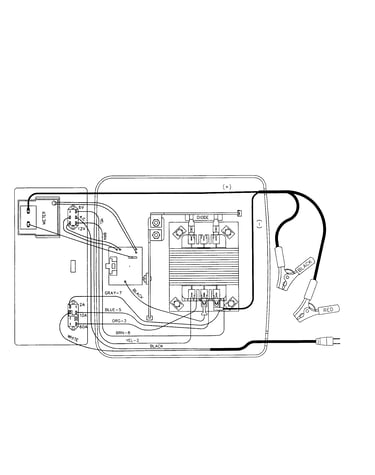

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 13 parts  |
Battery Charger Diode 3100300017
#6

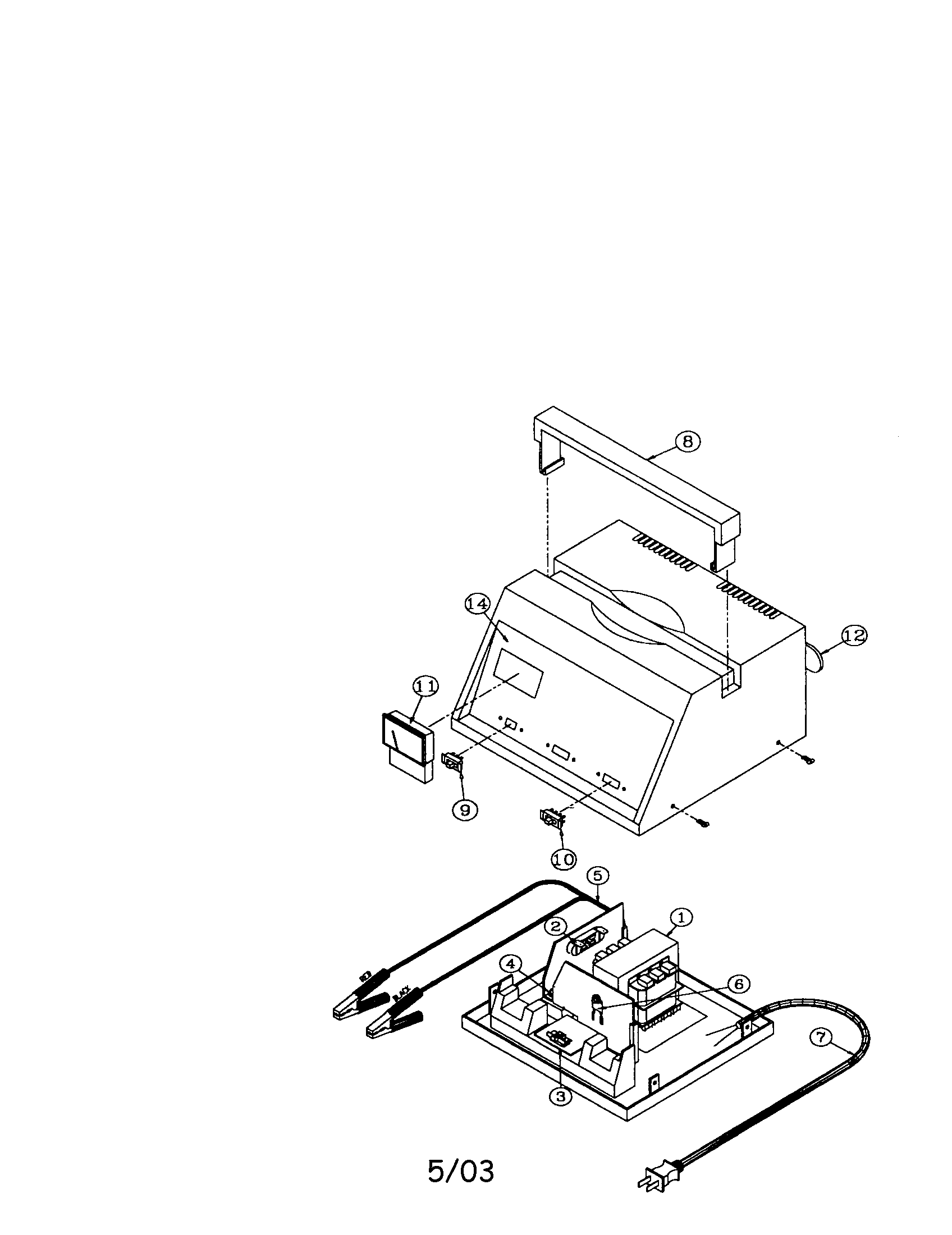

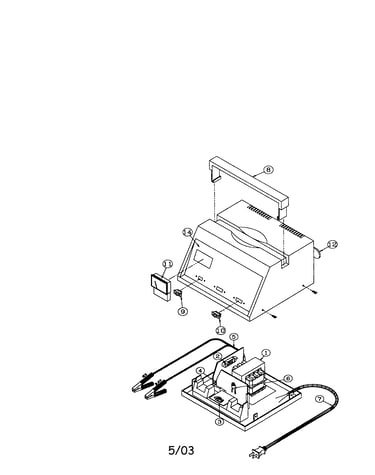

Transformer/meter/handle diagram

Battery charger diode

Part #3100300017

The manufacturer no longer makes this part, and there's no substitute part

Handle 3599000270
#8

Transformer/meter/handle diagram

Handle

Part #3599000270

The manufacturer no longer makes this part, and there's no substitute part

Faceplate 0899001075
#14

Transformer/meter/handle diagram

Faceplate

Part #0899001075

The manufacturer no longer makes this part, and there's no substitute part

Switch 0499000068
#10

Transformer/meter/handle diagram

Switch

Part #0499000068

The manufacturer no longer makes this part, and there's no substitute part

Meter 5399100093
#11

Transformer/meter/handle diagram

Meter

Part #5399100093

The manufacturer no longer makes this part, and there's no substitute part

Diode Ay Kit 2299000976
#2

Transformer/meter/handle diagram

Diode ay kit

Part #2299000976

The manufacturer no longer makes this part, and there's no substitute part

Cable Assembly 3899000850
#5

Transformer/meter/handle diagram

Cable assembly

Part #3899000850

The manufacturer no longer makes this part, and there's no substitute part

Pcb 2299000967
#3

Transformer/meter/handle diagram

Pcb

Part #2299000967

The manufacturer no longer makes this part, and there's no substitute part

Cleat 1199004390
#12

Transformer/meter/handle diagram

Cleat

Part #1199004390

The manufacturer no longer makes this part, and there's no substitute part

Line Cord 90026105
#7

Transformer/meter/handle diagram

Line cord

Part #90026105

The manufacturer no longer makes this part, and there's no substitute part
