Model # LWG65AW-PLWG65AW Official Amana top-loading washer

Here are the diagrams and repair parts for Official Amana LWG65AW-PLWG65AW top-loading washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

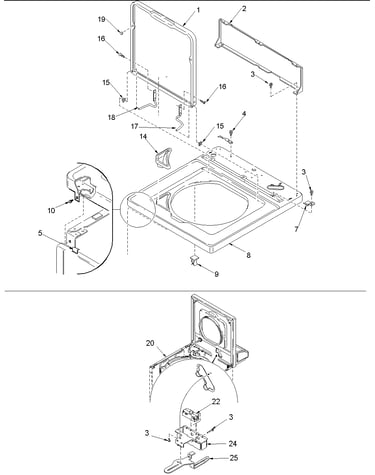

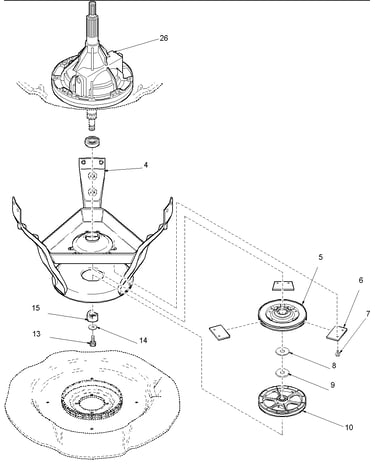

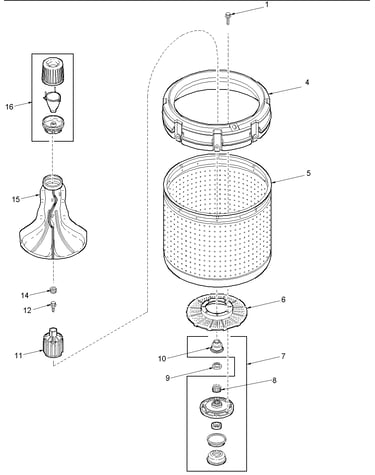

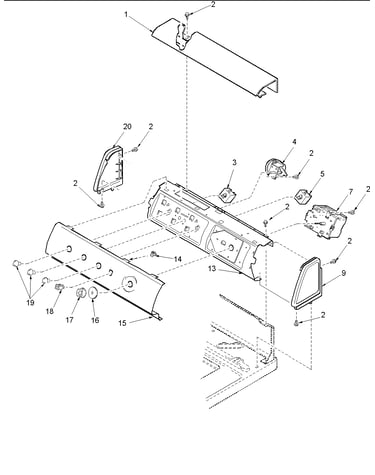

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 152 parts  |
Hose Clamp 36801
#14

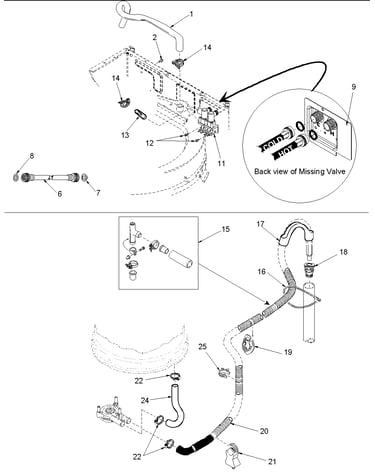

Mixing valve and hoses diagram

Hose clamp

Part #36801

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 36801. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 40064801
#11

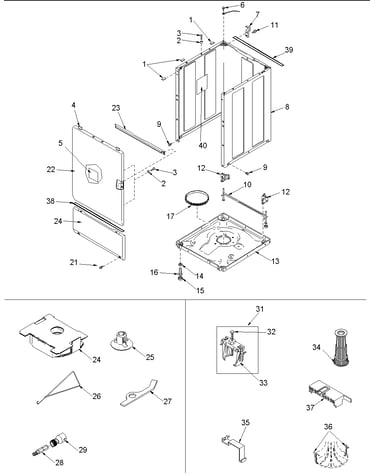

Front, base and cabinet & special tools diagram

Screw

Part #40064801

Replaced by #WP3390631

?
Manufacturer substitution
This part replaces 40064801. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 40039001
#16

Front, base and cabinet & special tools diagram

Screw

Part #40039001

Replaced by #22003428

?
Manufacturer substitution
This part replaces 40039001. Substitute parts can look different from the original.
This item is not returnable
$11.39 |
15% OFF Phone Price : $13.39
In Stock
Washer 20290
#8

Mixing valve and hoses diagram

Washer

Part #20290

Replaced by #Y013783

?
Manufacturer substitution
This part replaces 20290. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Tubing 40065001
#22

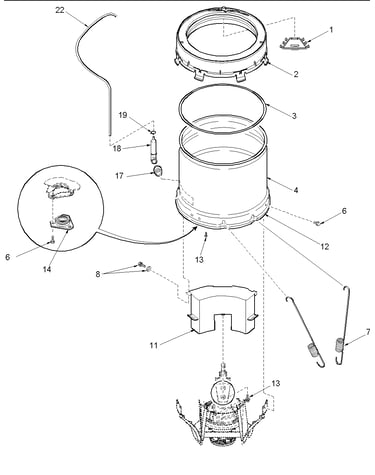

Outer tub, pressure tube & counterweight diagram

Tubing

Part #40065001

Replaced by #WP21001748

?
Manufacturer substitution
This part replaces 40065001. Substitute parts can look different from the original.
This item is not returnable
$5.84 |
15% OFF Phone Price : $6.84
In Stock
Hose 40054001
#24

Mixing valve and hoses diagram

Hose

Part #40054001

Replaced by #WP40094201

?
Manufacturer substitution
This part replaces 40054001. Substitute parts can look different from the original.
$24.49 |
20% OFF Phone Price : $30.49
In Stock
Hose Clamp 36802
#22

Mixing valve and hoses diagram

Hose clamp

Part #36802

Replaced by #WP285655

?
Manufacturer substitution
This part replaces 36802. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Belt 40053601
#19

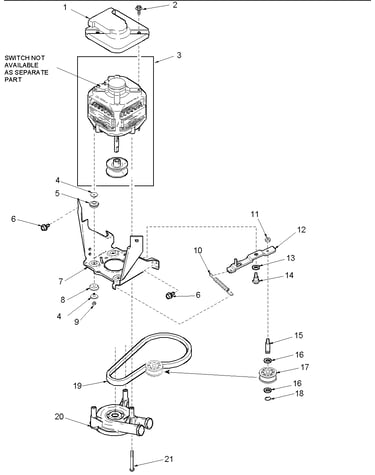

Motor, belt, pump, and idler assy diagram

Belt

Part #40053601

The manufacturer no longer makes this part, and there's no substitute part

Pulley 40045001
#17

Motor, belt, pump, and idler assy diagram

Pulley

Part #40045001

Replaced by #WP40045001

?
Manufacturer substitution
This part replaces 40045001. Substitute parts can look different from the original.
$37.68 |
14% OFF Phone Price : $43.68
In Stock
Nut 40038101
#14

Front, base and cabinet & special tools diagram

Nut

Part #40038101

Replaced by #WP210385

?
Manufacturer substitution
This part replaces 40038101. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
