Model # 110343114 Official Kenmore burner assembly

Here are the diagrams and repair parts for Official Kenmore 110343114 burner assembly, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Dryer Igniter 338900
#50

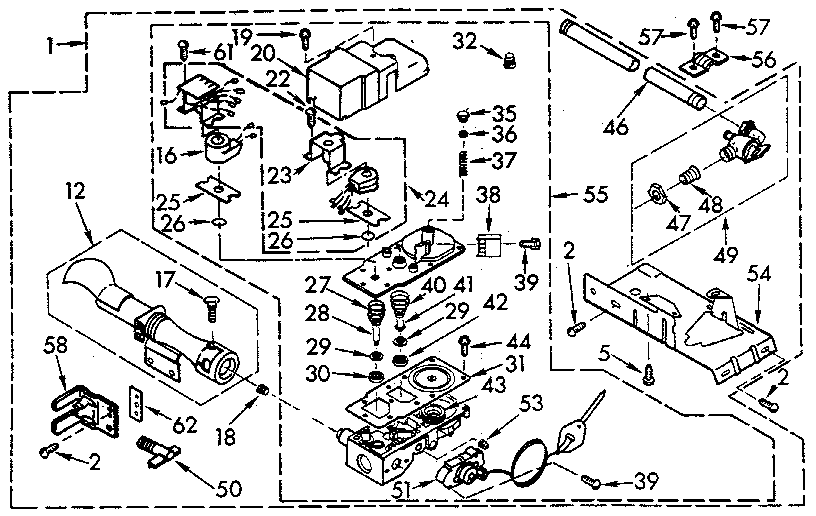

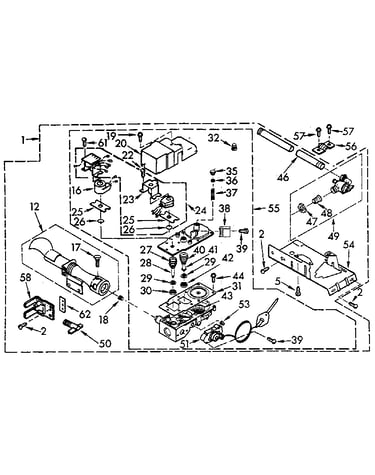

Burner assembly diagram

Dryer igniter

Part #338900

Replaced by #279311

?
Manufacturer substitution
This part replaces 338900. Substitute parts can look different from the original.
BEST SELLER
$24.00 |
20% OFF Phone Price : $30.00
In Stock
Igniter Bracket 343128
#58

Burner assembly diagram

Igniter bracket

Part #343128

Replaced by #279311

?
Manufacturer substitution
This part replaces 343128. Substitute parts can look different from the original.
BEST SELLER
$24.00 |
20% OFF Phone Price : $30.00
In Stock
Clamp 341029
#56

Burner assembly diagram

Clamp

Part #341029

$9.89
In Stock
Connector 340140
#32

Burner assembly diagram

Connector

Part #340140

Replaced by #STD375005

?
Manufacturer substitution
This part replaces 340140. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Tail Pipe 233077
#48

Burner assembly diagram

Tail pipe

Part #233077

Replaced by #3393767

?
Manufacturer substitution
This part replaces 233077. Substitute parts can look different from the original.
$65.84
In Stock
Screw 98605
#2

Burner assembly diagram

Screw

Part #98605

The manufacturer no longer makes this part, and there's no substitute part

Screw 337686
#57

Burner assembly diagram

Screw

Part #337686

Replaced by #WP33001882

?
Manufacturer substitution
This part replaces 337686. Substitute parts can look different from the original.
$29.89
In Stock
Diaph/gask 338874
#31

Burner assembly diagram

Diaph/gask

Part #338874

The manufacturer no longer makes this part, and there's no substitute part

Orifice 338089
#18A

Burner assembly diagram

Orifice

Part #338089

The manufacturer no longer makes this part, and there's no substitute part

Bracket Tube 338870
#23

Burner assembly diagram

Bracket tube

Part #338870

The manufacturer no longer makes this part, and there's no substitute part
