Hoover
Steam Cleaner

Model # F5871-950 Official Hoover steam cleaner

Here are the diagrams and repair parts for Official Hoover F5871-950 steam cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |

Regina Carpet Cleaner Screw 21447248
#1

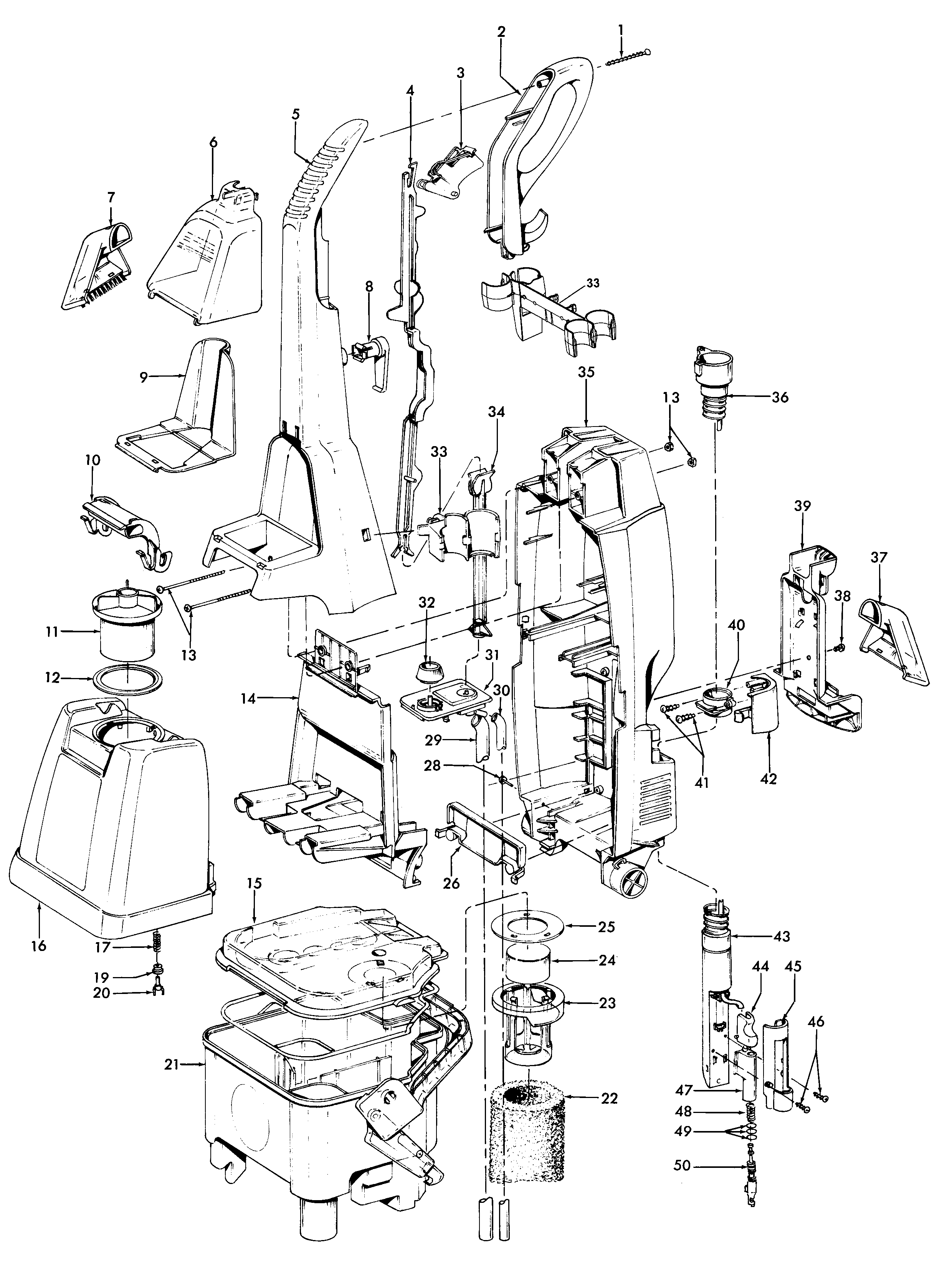

Cleaningtools, handle, tank, switch diagram

Regina carpet cleaner screw

Part #21447248

The manufacturer no longer makes this part, and there's no substitute part

Hood 37271078
#12I

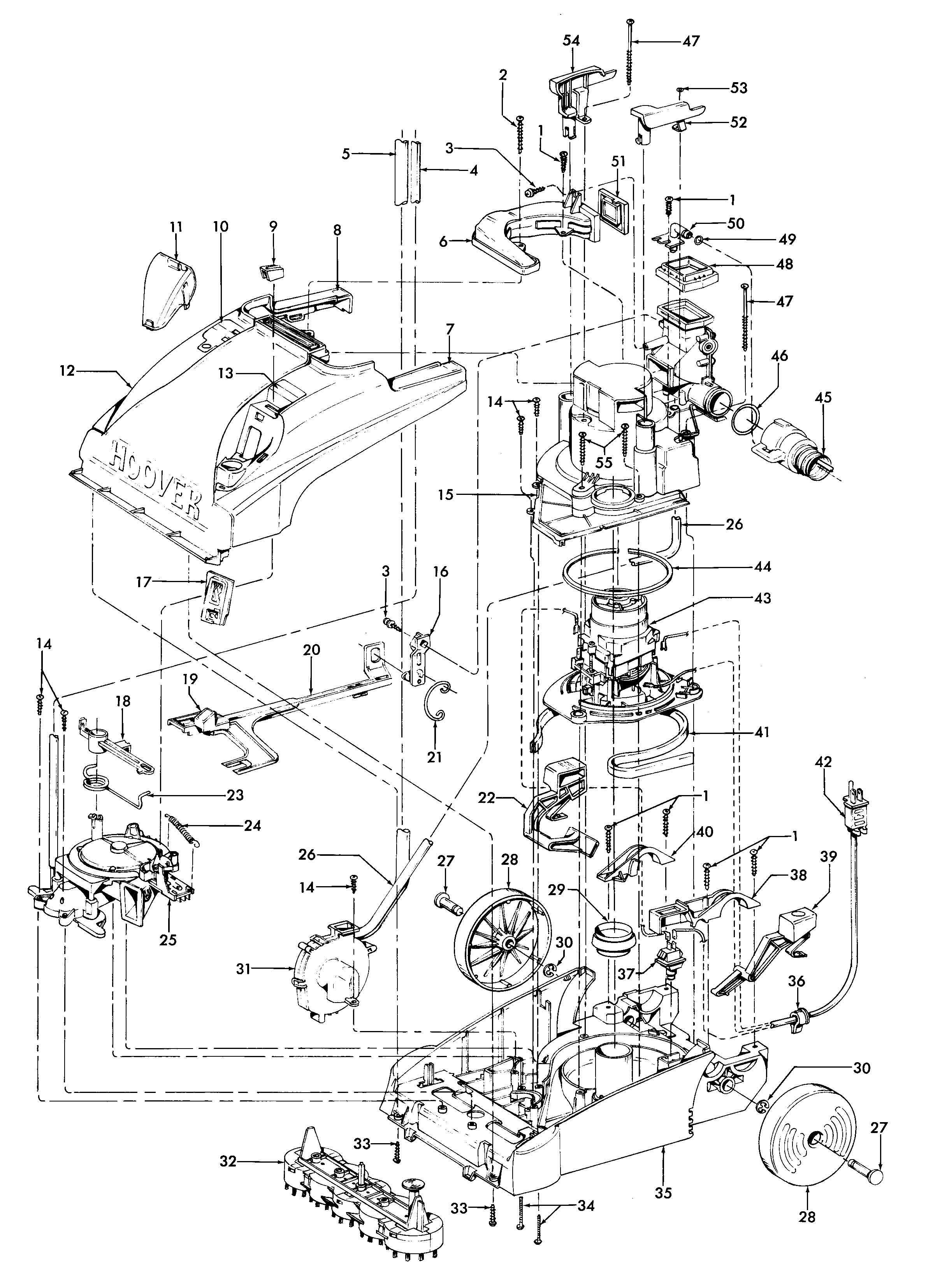

Motor assembly, hood diagram

Hood

Part #37271078

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Handle Release Pedal 38458042
#22

Motor assembly, hood diagram

Regina vacuum handle release pedal

Part #38458042

The manufacturer no longer makes this part, and there's no substitute part

Regina Lens 39383106
#11

Motor assembly, hood diagram

Regina lens

Part #39383106

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447041
#38

Cleaningtools, handle, tank, switch diagram

Regina vacuum screw

Part #21447041

The manufacturer no longer makes this part, and there's no substitute part

Regina Screen 43613009
#17

Motor assembly, hood diagram

Regina screen

Part #43613009

The manufacturer no longer makes this part, and there's no substitute part

Regina Carpet Cleaner Screw 21447232
#55

Motor assembly, hood diagram

Regina carpet cleaner screw

Part #21447232

The manufacturer no longer makes this part, and there's no substitute part

Regina Carpet Cleaner Motor Seal 34113004
#44

Motor assembly, hood diagram

Regina carpet cleaner motor seal

Part #34113004

The manufacturer no longer makes this part, and there's no substitute part

Regina Spring 36132003
#21

Motor assembly, hood diagram

Regina spring

Part #36132003

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Cover 37276011
#6

Cleaningtools, handle, tank, switch diagram

Vacuum cover

Part #37276011

The manufacturer no longer makes this part, and there's no substitute part
