Model # 920154420 Official Kenmore outdoor grill
Here are the diagrams and repair parts for Official Kenmore 920154420 outdoor grill, as well as links to manuals and error code tables, if available.
By Schematic

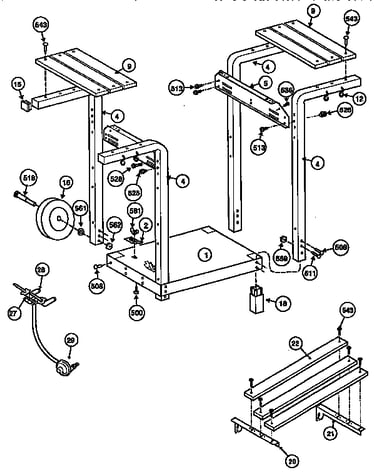

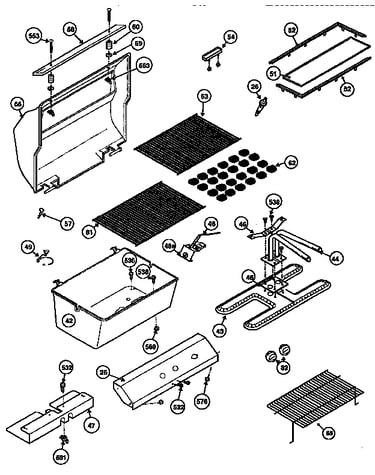

SELECT DIAGRAM
Browse Parts for
920154420 Outdoor Grills
#543
All parts diagram
10-16 x 1 1/8" screw
Part #STD611011
The manufacturer no longer makes this part, and there's no substitute part
#12
All parts diagram
Hook
Part #3023-0112
The manufacturer no longer makes this part, and there's no substitute part
#58
All parts diagram
Fhanlde
Part #0113-0359
The manufacturer no longer makes this part, and there's no substitute part
#4
All parts diagram
Handle
Part #0131-0100-1
The manufacturer no longer makes this part, and there's no substitute part
#511
All parts diagram
Machine screw
Part #STD512515
The manufacturer no longer makes this part, and there's no substitute part
#513
All parts diagram
Screw
Part #0040-4436
The manufacturer no longer makes this part, and there's no substitute part
#553
All parts diagram
Screw
Part #STD511030
The manufacturer no longer makes this part, and there's no substitute part
#508
All parts diagram
Screw
Part #0040-4366
The manufacturer no longer makes this part, and there's no substitute part
#25
All parts diagram
Control box
Part #0455-3002
The manufacturer no longer makes this part, and there's no substitute part
#59
All parts diagram
Washer
Part #0040-1380
The manufacturer no longer makes this part, and there's no substitute part
Symptoms for gas grills
Choose a symptom to see related gas grill repairs.
Main causes: nearly empty fuel tank, faulty pressure regulator, burner tube clogs, bad burner tube alignment to gas valv…
Main causes: empty fuel tank, tripped flow-limiting device on the pressure regulator, faulty manifold valves, burner tub…
Main cause: worn wheel…
Main causes: damaged or dirty flame tamers, corroded firebox, accumulated grease and debris in the grease pan…
Main causes: clogged burner tubes, cracked insulators on igniter electrodes, wiring failures, bad ignition module, manif…
Repair guides for gas grills
These step-by-step repair guides will help you safely fix what’s broken on your gas grill.
How to replace a gas grill wheel
Replace a broken or damaged wheel in less than 15 minutes.…
Repair difficulty
Time required
15 minutes or less
How to replace a gas grill igniter electrode
Replace the igniter electrode on your gas grill if it won’t light the burner.…
Repair difficulty
Time required
15 minutes or less
How to replace a gas grill ignition module
Follow these steps to replace the ignition module if it doesn't produce a spark. …
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your outdoor grills
Use the advice and tips in these articles and videos to get the most out of your gas grill.
Learn about the main parts of gas grills and get DIY tips for replacing gas grill parts.…
